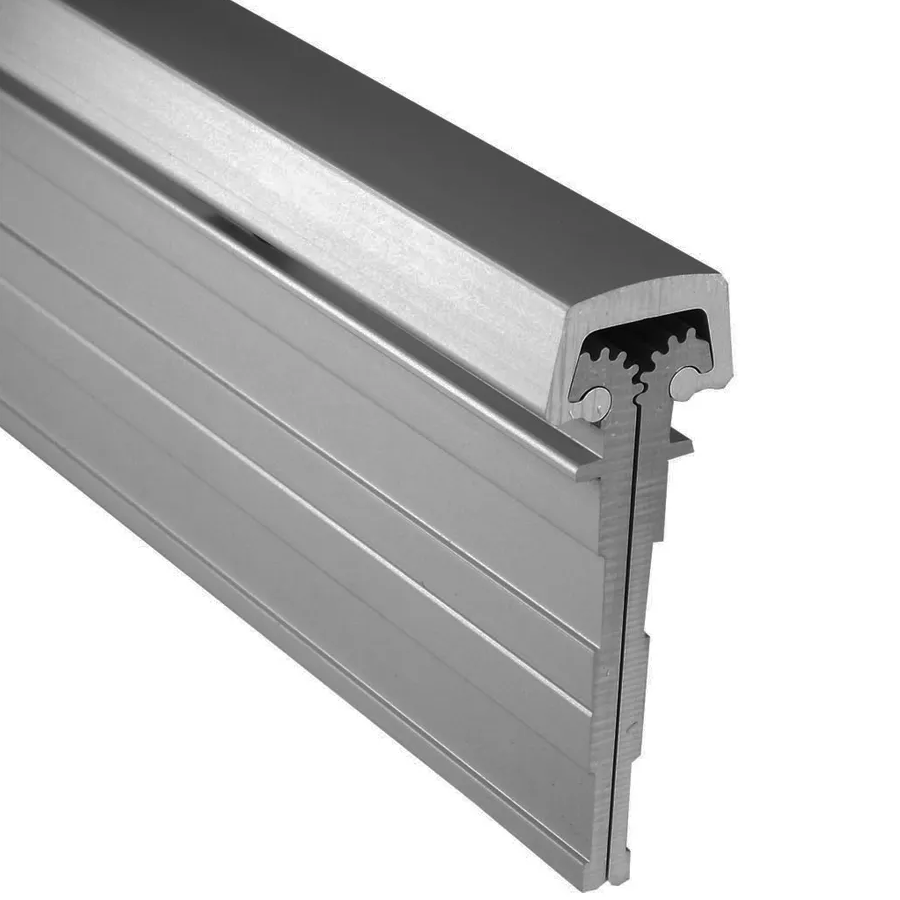

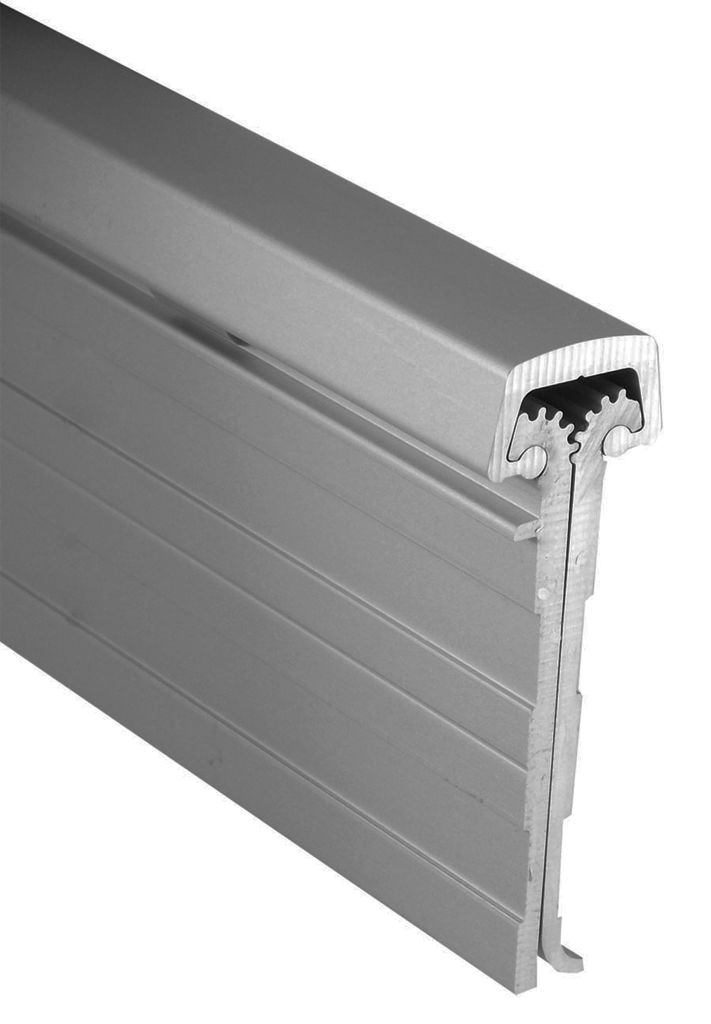

Standard Duty Anodized Aluminum - designed mainly for new door applications. Also available in heavy duty models.
Attributes
Ship via: No UPS - Common Carrier Only
Restriction message: Due to the large package size of this item, shipping charges will be as follows: 1 to 3 Units: $130.00 4 to 6 Units: $260.00 7 to 9 Units: $390.00
Alternate Codes: CFM95HD1
Bearing Type: Continuous Gear
Capacity: Heavy Duty, Grade 1
Category: Continuous Hinges, Hinges
Certifications: A156.26, ANSI, BHMA, Environmental Product Declaration (EPD), Health Product Declaration (HPD), UL 10C
Commercial Residential: Commercial
Door Application: Continuous Hinges
Door Type: Metal Door, Wood Door
Fasteners: Teks Self Drilling
Finish: Clear Aluminum
Finish Color: Clear Anodized Aluminum
Finish Description: Satin Aluminum Clear Anodized
Finish Family: Matte Silver
Grade: Grade 1
Handing: Non-Handed
Hinge Height: 7' 11"
Hinge Rating: 540 lbs
Hinge Size: 95"
Hinge Style: Full Mortise, Geared
Hinge Type: Continuous Hinge
Hinge type: Full-Mortise
Installation: Commercial
Manufacturer: Pemko Manufacturing Co
Material: Aluminum
Mounting Holes: 24
Quickship: Yes
Restrictions: Largewide
SKU: CFM95HD1
Series: PemkoHinge
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Size: 95"
Subtype: Continuous Hinges
Type: Door Hinges
Weight: Heavy Duty
