Pemko CFS95HD1-M PemKonnect Heavy Duty Geared Continuous Hinge Kit, 95in, Clear Aluminum

Pemko Manufacturing Co CFS95HD1-M KIT – PemKonnect Modular Full Surface Heavy Duty Geared Continuous Hinge offers outstanding durability and adaptability for various door applications. Designed primarily for retrofit projects, this hinge is engineered to be applied to the exposed surfaces of doors and frames, making it an ideal choice for a range of settings. Constructed from high-quality aluminum, this heavy-duty hinge boasts a Grade 1 rating, ensuring resilience and longevity even under heavy use. It is suitable for swinging fire doors made of hollow metal, tin-clad, or wood-covered composite types, with fire ratings of up to 3 hours for metal doors and 1.5 hours for wood. The hinge supports a maximum door width of 4 feet and a thickness of 1-3/4 inches, making it versatile for various installations. Key features include non-handed design for flexible installation, guaranteed longevity against defects in material or workmanship, and the option for custom lengths to fit unique specifications. The hinge requires no special reinforcements, simplifying installation processes while ensuring compliance with NFPA 80 standards. Available in a clear anodized finish, it seamlessly blends into any environment, enhancing both functionality and aesthetics. Elevate your security and operational efficiency with the Pemko Manufacturing Co CFS95HD1-M KIT, a reliable choice for demanding applications.

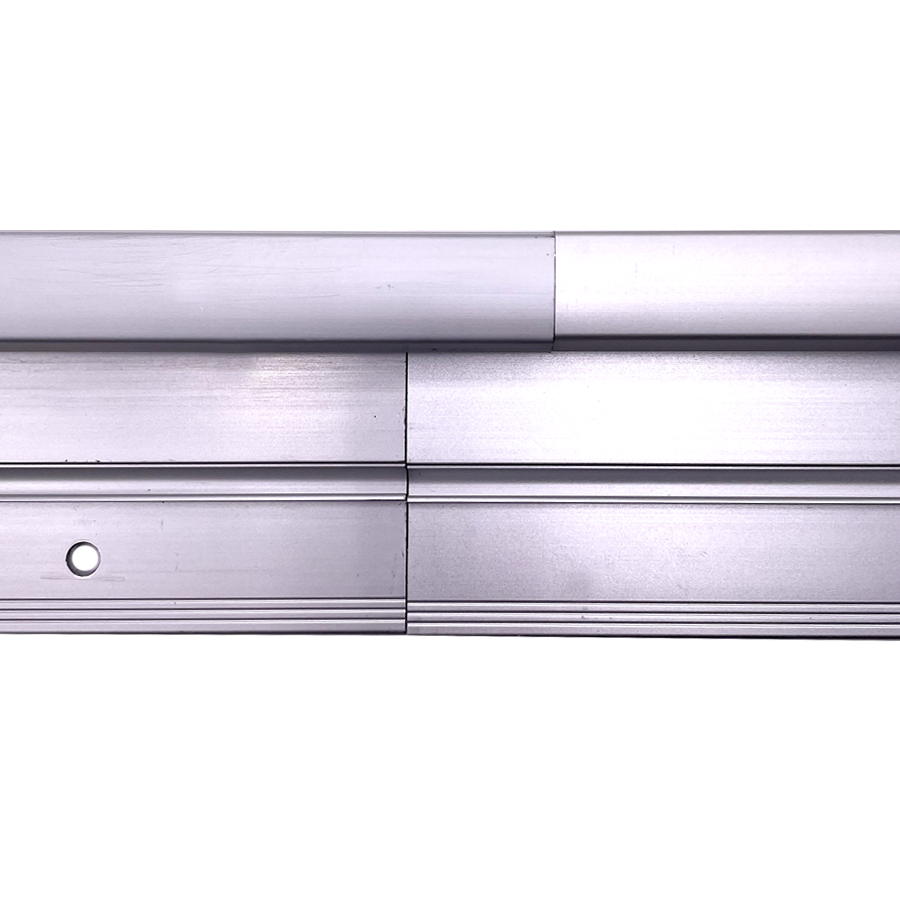

KIT - PemKonnect Modular Full Surface Heavy Duty Geared Continuous Hinge, 3 Pieces - 95in, Clear Aluminum

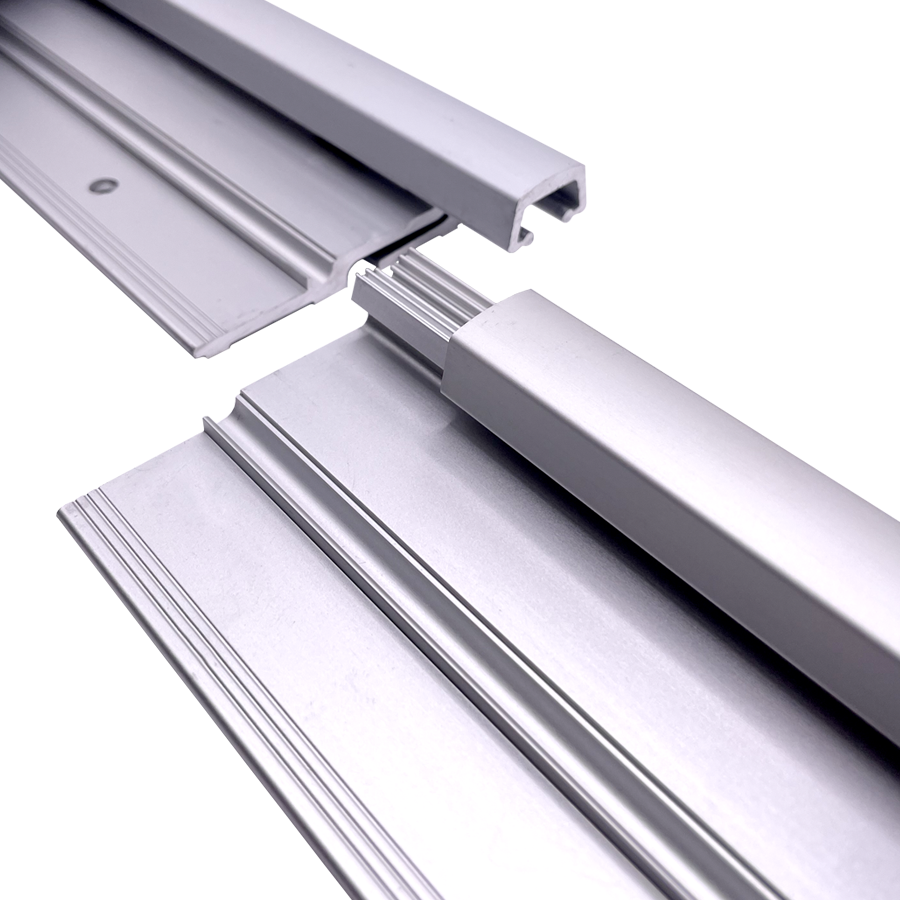

The FS series full surface continuous geared hinge is designed mainly for retrofit work and is applied to the exposed surfaces of the door and frame. This hinge is available in standard and heavy duty models, as well as our PemKonnect modular version (FS_HD1-M) that is primarily designed for freight savings and ease of transportation.

Features:

• Standard and heavy duty versions available
• For swinging fire doors of hollow metal, tin-clad, sheet metal or steel covered composite type rated up to 3 hours
• Hollow metal door and frame manufacturers’ standard reinforcement is acceptable
• For wood covered composite type rated up to and including 1-1/2 hours
• Applied to the exposed surfaces of the door and frame
• Guaranteed for the life of the opening against defects in material or workmanship (HD only)
• Removal of hinge reinforcements in the door and frame is not advised
• Custom lengths available
• Special hinge reinforcements are not required
• Fire pins are required on 3-Hour (A-Label) assemblies
• Excessive clearance on fire rated assemblies may violate NFPA 80

Specifications:

• Grade: Grade 1
• Hinge Material: Aluminum
• Hinge Mounting Type: Full surface
• Hinge Strength: Heavy weight
• Handing: Non-handed
• Fastener: Teks
• Fastener Type: Self drilling
• Maximum Door Thickness: 1 3/4"
• Minimum Door Thickness: 1 3/4"
• Maximum Door Width: 4'
• Maximum Hinge Length: 10'
• Minimum Length: 79"
• Maximum Swing: 180°
• Minimum Hinge Clearance: 1/16"
• Weight: 1.29lbs. per foot

Models:

• FS:
• Hinge Strength: Standard
• Bearing Spacing: 3"
• FS_HD1:
• Hinge Strength: Heavy Weight
• Bearing Spacing: 3"

Options:

• SER: Serviceable section prep with wires - 4, 8, or 12 wire options available
• QC: ElectroLynx wires with Molex connectors - 4, 8, or 12 wire options available
• CUT: Cut charge
• HT: Hospital tip
• ALP: Anti ligature package for continuous geared hinges
• SSHT_ALP: Stainless steel anti ligature package for continuous geared hinges
• TORX: TORX Security screws
• WS: Wood screws
• M: PemKonnect modular hinge

Finishes:

• C - Clear anodized
• D - Dark bronze anodized
• G - Gold powder coat
• BSP - Black suede powder coat
• WSP - White suede powder coat
• SN - Satin nickel powder coat
