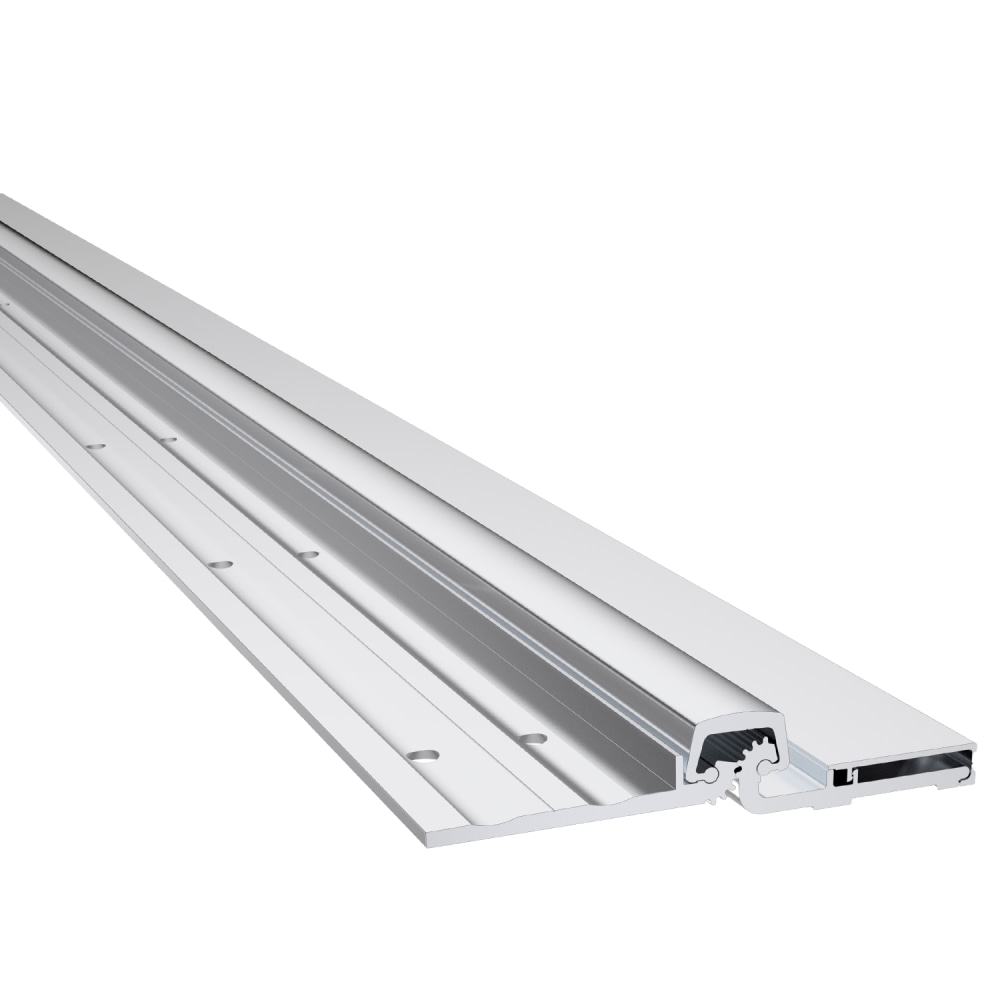

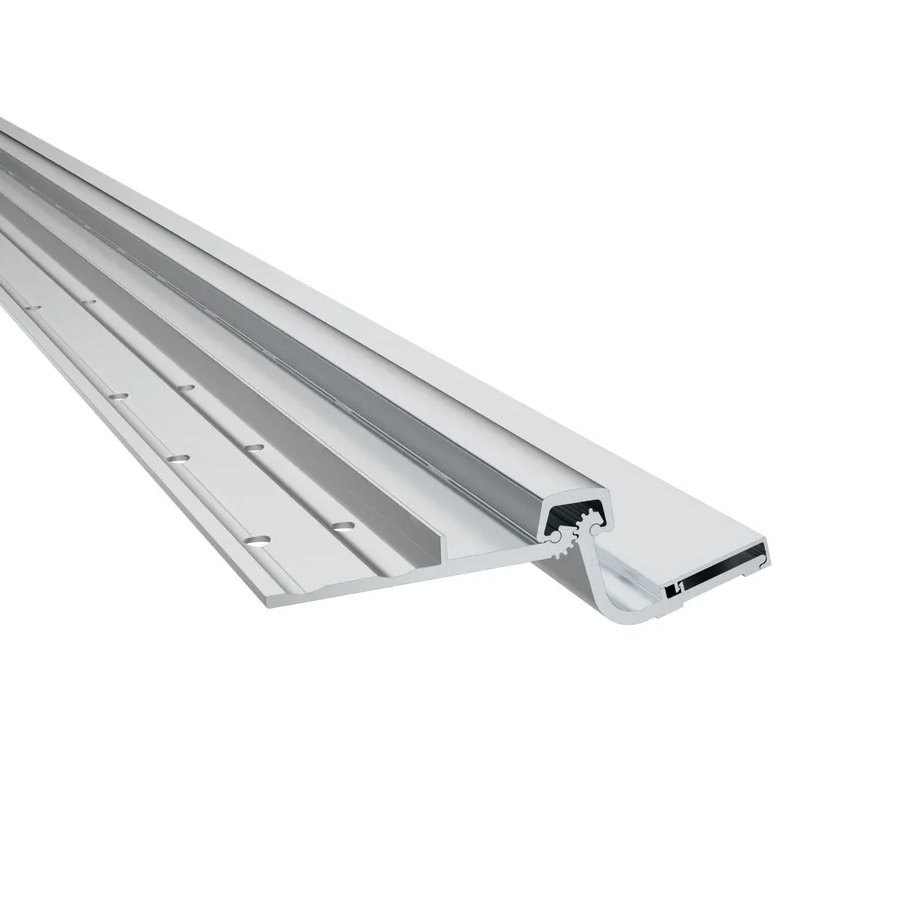

Pemko CHS83HD1 83" Half Surface Heavy Duty Continuous Hinge Clear Aluminum Finish

• C - Clear Anodized Aluminum
• D - Dark Bronze Anodized Aluminum
• SN - Satin Nickel Anodized Aluminum, (Special Order Finish)
• BL - Black Anodized Aluminum, (Special Order Finish)
• PW - Painted White Aluminum, (Special Order Finish)
• G - Gold Anodized Aluminum, (Special Order Finish)
• Pemko Products Provide an Energy Efficient Door Solution
• Pemko Products Undergo Rigorous Testing to Ensure That They Meet or Exceed the Industry Standards
• Pemko Offers Many Fabrication Options to Fit Specific Job Requirements
• Mounting Hardware Included
• Limited 5 Year Warranty
• Designed for use with hollow metal frames, where the inset conforms to S.D.I. specifications for aligning doors and frames.
• Allows for adjustments in order to properly align the edge of the door to the frame.
• BL (Black Anodized) and PW (Painted White) are special finishes available upon request.
• Fasteners - Frame Portion - All fasteners are #12-24 x 7/16" FHUC, Type C, threadforming.
• Standard model: 16 fasteners required for each leaf.
• Wood screws available on request (specify on order).
• Fasteners - Door Portion - a. Thru-bolt - 1/4-20 x 1-5/8". - Standard Duty Hinges - 4 required. - b. Shoulder Bolt - 1/4-20 x 1" PCH. - Standard Duty Hinges - 4 required. - c. Pan Head Self Drilling #12 x 3/4". - Standard Duty Hinges - 6 required.
• Standard duty hinge. 6" between bearing centers.
• Standard duty hinges conform to Grade 3-150 and Grade 3-300 cycle requirements per BHMA standard ANSI/BHMA A156.26-2006.
• Tested and certified by Underwriters Laboratories Inc. (USA and Canada) to standard UL10B, UL10C and UBC 7.2 (positive pressure) for up to a 3-Hour (A-Label) fire listing for all 4 ft. 0 in. x 10 ft. 0 in.
• and 8 ft. 0 in. x 10 ft. 0 in. door and frame assemblies. Fire listing certifications apply to all approved hollow metal and wood door assemblies in drywall or masonry construction.
• Aluminum continuous hinge for use on swinging type fire doors of the hollow metal, tin-clad, sheet metal and steel covered composite type rated up to 3 hours, wood covered composite type rated up to and including 1-1/2 hours. Also wood core rated up to and including 20 minutes without hose stream.
• All hinges meet criteria of UBC 7.2 for positive pressure.
• Special FirePins are only required on 3-Hour (A-Label) assemblies.
• Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire rated assemblies may violate the requirements for NFPA 80.
• PemkoHinge® products are guaranteed for the life of the opening against defects in material or workmanship with the exception of AL, RS, standard duty and Grade 3 hinges, which carry a 10 year warranty.
• Weight bearing (per BHMA standard ANSI/BHMA A156.26-2006) for standard models: 83" and 85" = 14 bearings, door weight = 280 lbs.; 95" = 16 bearings, door weight = 320 lbs.; 120" = 20 bearings, door weight = 400 lbs.
• Special hinge reinforcements are not required. Hollow metal door and frame manufacturers’ standard is acceptable. Removal of hinge reinforcements in the door and frame is not advised.

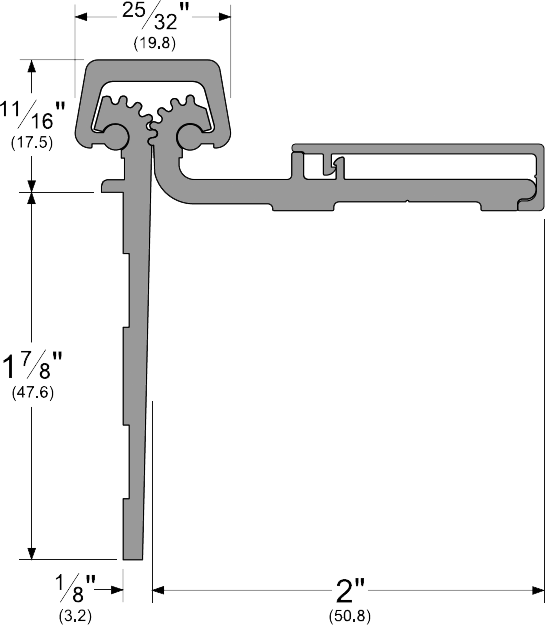

• Width: 1/8" (3.2 mm) (between frame edge and door edge).
• Width: 2" (50.8 mm) (between frame leaf and door leaf edge).
• Cap Width: 25/32" (19.8 mm).
• Height: 11/16" (17.5 mm) (to top cap/frame edge side).
• Height: 1-7/8" (47.6 mm) (to flange/frame edge side).
