Pemko DFS12HD1-M PemKonnect 12in Section HD1, Dark Bronze Aluminum

Pemko Manufacturing Co DFS12HD1-M PemKonnect 12in Section HD1, Dark Bronze Aluminum is an essential component for ensuring durability in swinging fire doors. Designed specifically for retrofit applications, this full surface continuous geared hinge is applied to the exposed surfaces of both the door and frame, making it an ideal choice for various installations. Constructed from high-quality aluminum, the DFS12HD1-M is available in both standard and heavy-duty models, accommodating fire doors made of hollow metal, tin-clad, sheet metal, or composite materials rated up to three hours. It boasts a non-handed design, allowing for versatile installation without the need for special hinge reinforcements. Its robust construction supports door widths of up to four feet and thicknesses of 1 3/4 inches. With a guaranteed lifetime against defects in material or workmanship for the heavy-duty version, this hinge delivers peace of mind. The hinge features a maximum swing of 180 degrees and is compatible with custom lengths to suit specific project needs. The dark bronze anodized finish adds an aesthetic appeal, ensuring that functionality does not compromise style. Certified under A156.26, ANSI, and UL 10C, the DFS12HD1-M is a reliable choice for professionals and homeowners alike.

PemKonnect 12in Section HD1, Dark Bronze Aluminum

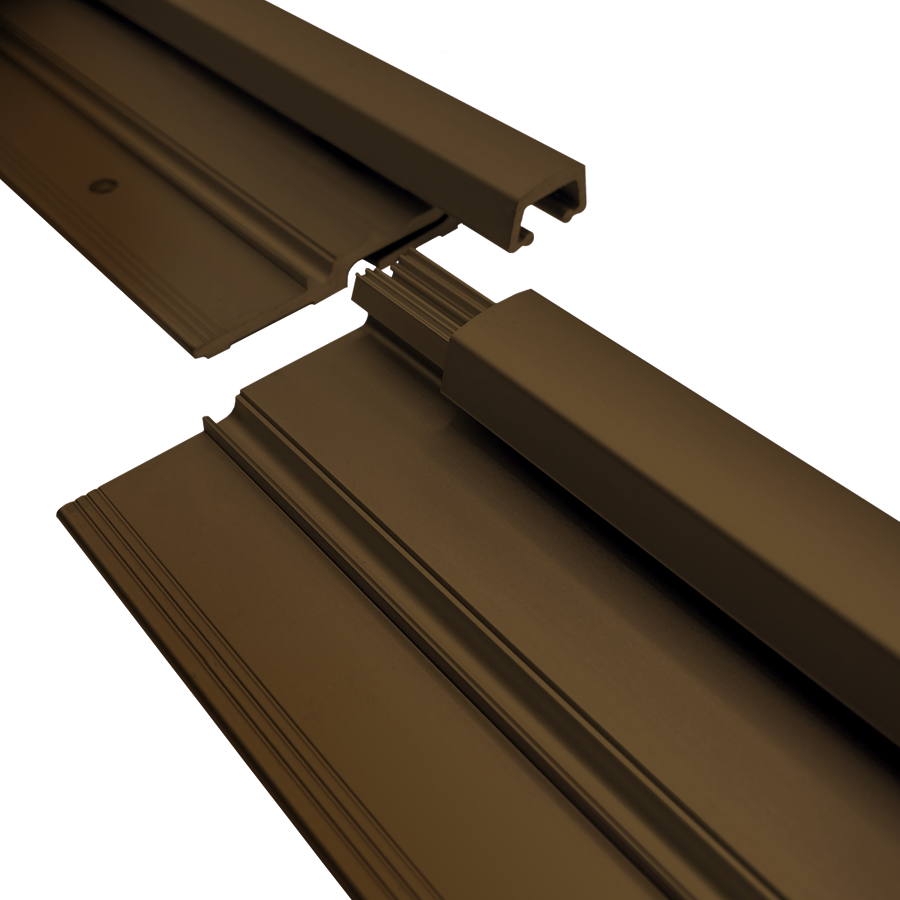

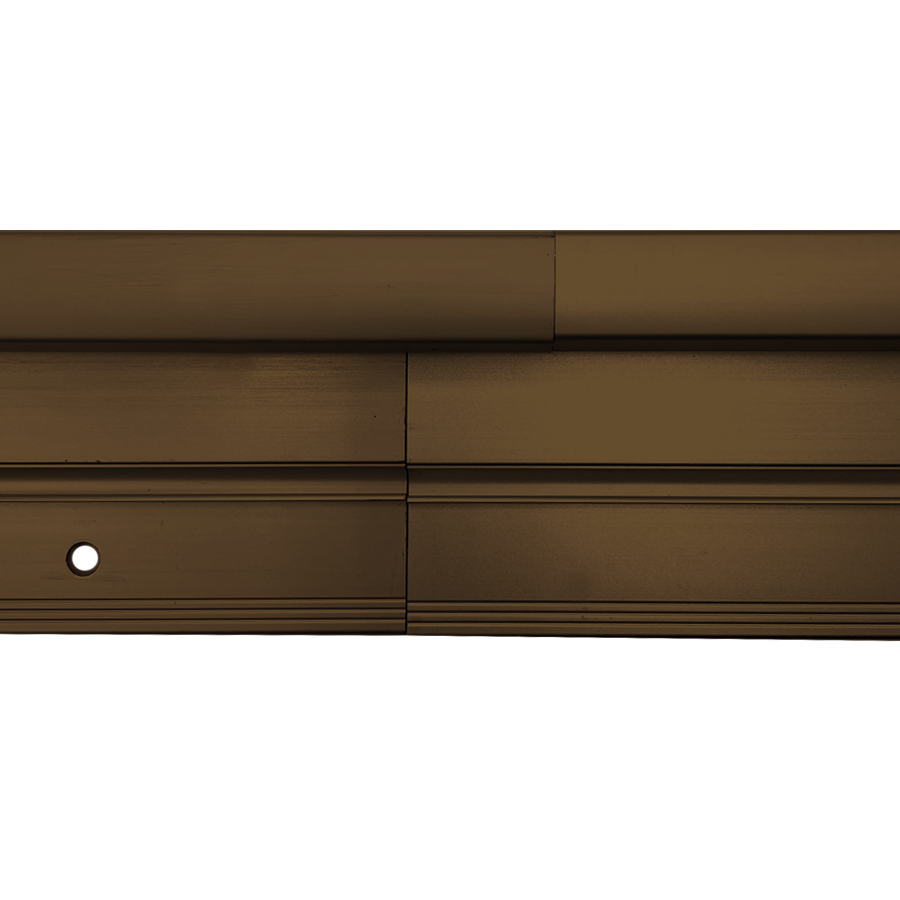

The FS series full surface continuous geared hinge is designed mainly for retrofit work and is applied to the exposed surfaces of the door and frame. This hinge is available in standard and heavy duty models, as well as our PemKonnect modular version (FS_HD1-M) that is primarily designed for freight savings and ease of transportation.

Features:

• Standard and heavy duty versions available
• For swinging fire doors of hollow metal, tin-clad, sheet metal or steel covered composite type rated up to 3 hours
• Hollow metal door and frame manufacturers’ standard reinforcement is acceptable
• For wood covered composite type rated up to and including 1-1/2 hours
• Applied to the exposed surfaces of the door and frame
• Guaranteed for the life of the opening against defects in material or workmanship (HD only)
• Removal of hinge reinforcements in the door and frame is not advised
• Custom lengths available
• Special hinge reinforcements are not required
• Fire pins are required on 3-Hour (A-Label) assemblies
• Excessive clearance on fire rated assemblies may violate NFPA 80

Specifications:

• Grade: Grade 1
• Hinge Material: Aluminum
• Hinge Mounting Type: Full surface
• Hinge Strength: Heavy weight
• Handing: Non-handed
• Fastener: Teks
• Fastener Type: Self drilling
• Maximum Door Thickness: 1 3/4"
• Minimum Door Thickness: 1 3/4"
• Maximum Door Width: 4'
• Maximum Hinge Length: 10'
• Minimum Length: 79"
• Maximum Swing: 180°
• Minimum Hinge Clearance: 1/16"
• Weight: 1.29lbs. per foot

Models:

• FS:
• Hinge Strength: Standard
• Bearing Spacing: 3"
• FS_HD1:
• Hinge Strength: Heavy Weight
• Bearing Spacing: 3"

Options:

• SER: Serviceable section prep with wires - 4, 8, or 12 wire options available
• QC: ElectroLynx wires with Molex connectors - 4, 8, or 12 wire options available
• CUT: Cut charge
• HT: Hospital tip
• ALP: Anti ligature package for continuous geared hinges
• SSHT_ALP: Stainless steel anti ligature package for continuous geared hinges
• TORX: TORX Security screws
• WS: Wood screws
• M: PemKonnect modular hinge

Finishes:

• C - Clear anodized
• D - Dark bronze anodized
• G - Gold powder coat
• BSP - Black suede powder coat
• WSP - White suede powder coat
• SN - Satin nickel powder coat
