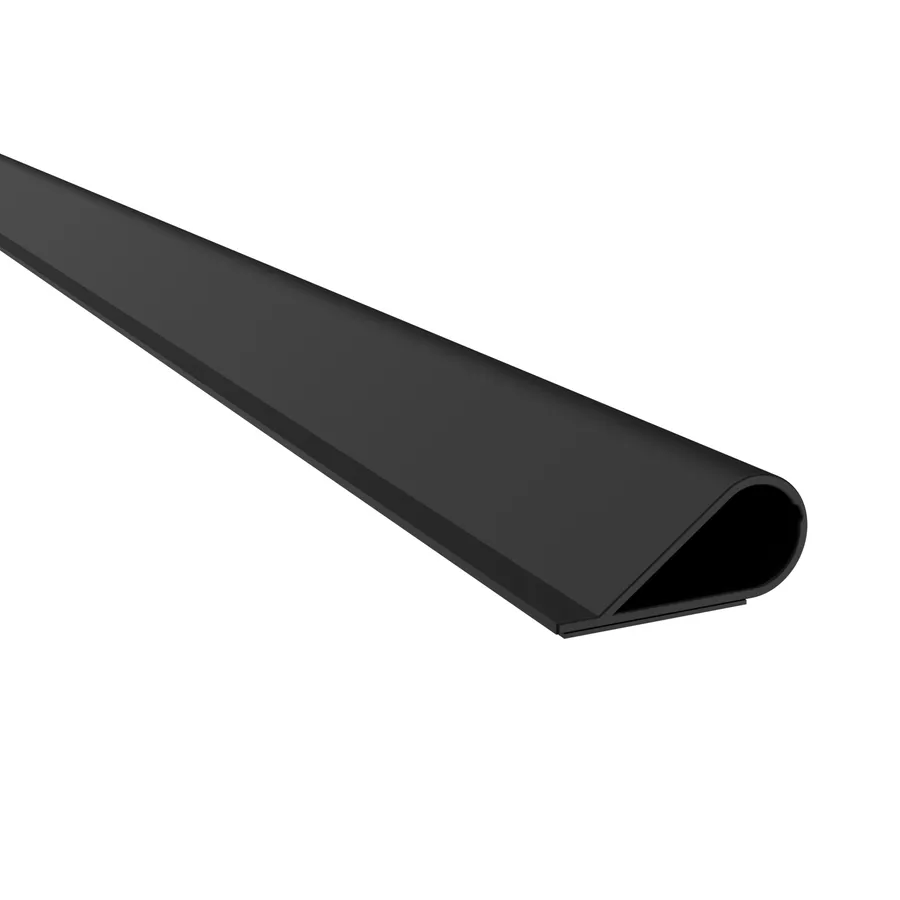

Pemko S88BL 17FT Smoke Seal 17ft Black

Pemko Manufacturing Co S88BL 17FT Smoke Seal is an essential solution for ensuring fire safety and smoke control in your building. This 17-foot black adhesive perimeter gasket is expertly designed to compress and seal gaps up to 1/16", making it an ideal choice for various door applications. The high-temperature silicone material, effective in temperatures ranging from -58°F to 450°F, guarantees durability and resilience. This smoke seal meets stringent standards, including FAR 25.853 Airworthiness Standards, and has been smoke tested in accordance with UBC 7-2 and UL 1784-01, fulfilling NFPA 105 requirements. Its air infiltration is impressively low at just .09 CFM per foot of crack, ensuring a tight seal that enhances energy efficiency while maintaining safety. The S88BL is compatible with Category B and Category G doors, providing a reliable edge-sealing system. It's also self-extinguishing, non-toxic, and resistant to sunlight, ozone, and UV rays, ensuring it remains effective even under harsh conditions. Additionally, this gasket is impervious to fungus and mildew, promoting long-lasting performance. For optimal results, it should be used within six months of purchase and stored properly. Upgrade your door sealing solutions with the Pemko Manufacturing Co S88BL 17FT Smoke Seal for enhanced safety and efficiency.

Smoke Seal 17ft Black

The S88 adhesive perimeter gasket compresses to seal up to a 1/16" gap and is available with perforations for behavioral health applications.

Features:

• Seal begins compressing at 1/4", compresses to seal up to a 1/16" gap
• SiliconSeal is extruded from high-temperature silicone; effective between -58°F and 450°F
• Meets FAR 25.853 Airworthiness Standards for Compartment Interiors
• Smoke tested in accordance with UBC 7-2 and UL 1784-01; meets the requirements of NFPA 105
• Air infiltration tested in accordance with ASTM E-283-04. Air infiltration is only .09 CFM / ft of crack.
• Category B - Doors - additional edge sealing system required - see Category G. Requires Category G system with gasket for fire and possibly smoke
• Category G - Edge-Sealing Systems - systems that are surface applied to frames or doors and required for Category B doors
• Category H - Gasketing - Smoke and draft control for positive pressure openings. Recommended products are PK33, PK55, S44, S88 and S773
• Category H gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes without hose stream. When applied to the door and frame assembly in accordance with the manufacturers installation instruction, the assembly will comply with UBC 7-2 (1997) part II
• Category J - Doors - gasketing that has been tested on a positive pressure fire door and frame but is not required for the door to obtain its fire door rating. Category J gasketing does not negatively affect the rating on a positive pressure door
• Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes
• Limited shelf life - product must be used within 6 months of purchase and must be stored between 50 degrees (F) and 100 degrees (F)
• Self-extinguishing, non-toxic and unaffected by sunlight, ozone and ultraviolet rays.
• Impervious to fungus and mildew; will not deteriorate under normal exposure

Specifications:

• Gasketing Material: Silicone
• Height: 1/4"
• Maximum Length: 510'
• Minimum Length: 17'
• Mounting Location: Side of frame
• Mounting Type: Self-adhesive
• Weight: 0.03 lbs
• Width: 1/2"

Colors:

• C - Clear
• GR - Gray
• TAN - Tan
• D - Dark brown
• BL - Black
• W - White
