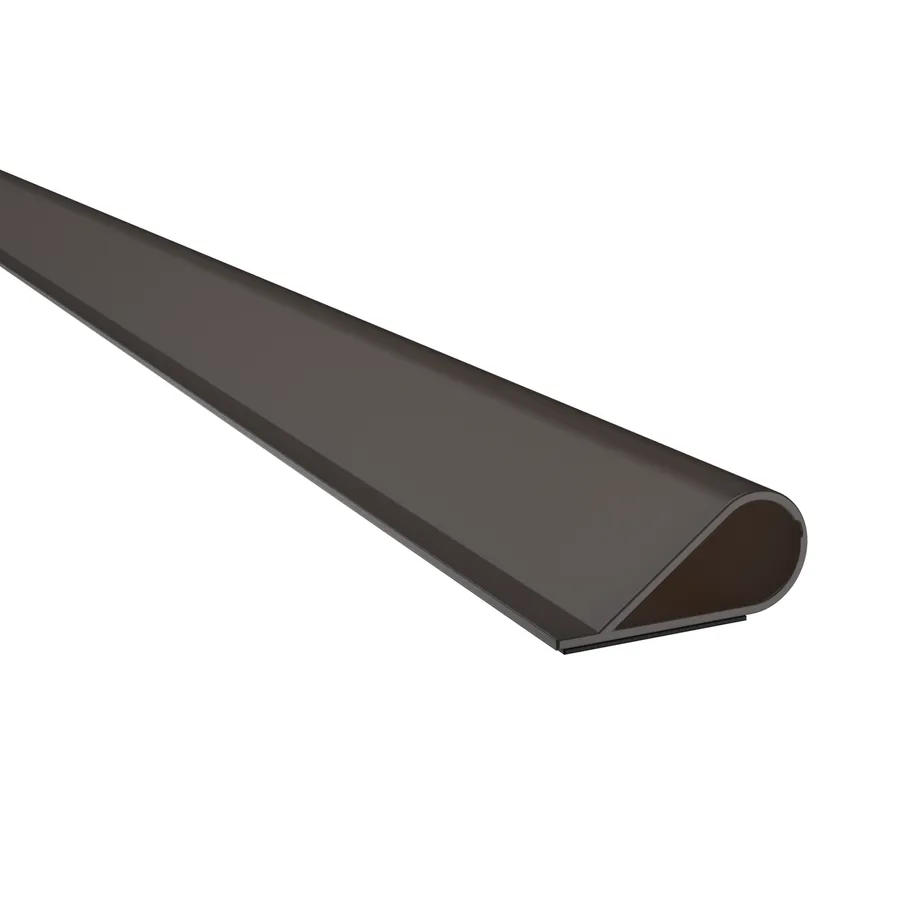

Pemko S88D 204FT Smoke Seal 204ft Dark Brown

Pemko Manufacturing Co S88D 204FT Smoke Seal offers an effective solution for ensuring smoke control and energy efficiency in door assemblies. This self-adhesive perimeter gasket is designed to compress from 1/4" down to a tight seal of 1/16", making it ideal for various applications, including behavioral health environments. Constructed from high-temperature silicone, the S88D is capable of withstanding temperatures ranging from -58°F to 450°F. It meets rigorous standards, including FAR 25.853 for compartment interiors and has been smoke tested per UBC 7-2 and UL 1784-01, ensuring compliance with NFPA 105. With an impressive air infiltration rating of only .09 CFM/ft of crack, this gasket minimizes air leakage, contributing to enhanced energy efficiency. The S88D is suitable for Category B doors and must be paired with an additional edge sealing system for optimal performance. It is designed for use with various types of doors, including those rated for fire resistance up to three hours. The product is impervious to fungi and mildew, ensuring durability under normal conditions. Available in dark brown, this 204-foot gasket provides a discreet and effective sealing solution for both residential and commercial applications, enhancing safety and comfort in any environment.

Smoke Seal 204ft Dark Brown

The S88 adhesive perimeter gasket compresses to seal up to a 1/16" gap and is available with perforations for behavioral health applications.

Features:

• Seal begins compressing at 1/4", compresses to seal up to a 1/16" gap
• SiliconSeal is extruded from high-temperature silicone; effective between -58°F and 450°F
• Meets FAR 25.853 Airworthiness Standards for Compartment Interiors
• Smoke tested in accordance with UBC 7-2 and UL 1784-01; meets the requirements of NFPA 105
• Air infiltration tested in accordance with ASTM E-283-04. Air infiltration is only .09 CFM / ft of crack.
• Category B - Doors - additional edge sealing system required - see Category G. Requires Category G system with gasket for fire and possibly smoke
• Category G - Edge-Sealing Systems - systems that are surface applied to frames or doors and required for Category B doors
• Category H - Gasketing - Smoke and draft control for positive pressure openings. Recommended products are PK33, PK55, S44, S88 and S773
• Category H gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes without hose stream. When applied to the door and frame assembly in accordance with the manufacturers installation instruction, the assembly will comply with UBC 7-2 (1997) part II
• Category J - Doors - gasketing that has been tested on a positive pressure fire door and frame but is not required for the door to obtain its fire door rating. Category J gasketing does not negatively affect the rating on a positive pressure door
• Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes
• Limited shelf life - product must be used within 6 months of purchase and must be stored between 50 degrees (F) and 100 degrees (F)
• Self-extinguishing, non-toxic and unaffected by sunlight, ozone and ultraviolet rays.
• Impervious to fungus and mildew; will not deteriorate under normal exposure

Specifications:

• Gasketing Material: Silicone
• Height: 1/4"
• Maximum Length: 510'
• Minimum Length: 17'
• Mounting Location: Side of frame
• Mounting Type: Self-adhesive
• Weight: 0.03 lbs
• Width: 1/2"

Colors:

• C - Clear
• GR - Gray
• TAN - Tan
• D - Dark brown
• BL - Black
• W - White

Resources

• Cut Sheet
