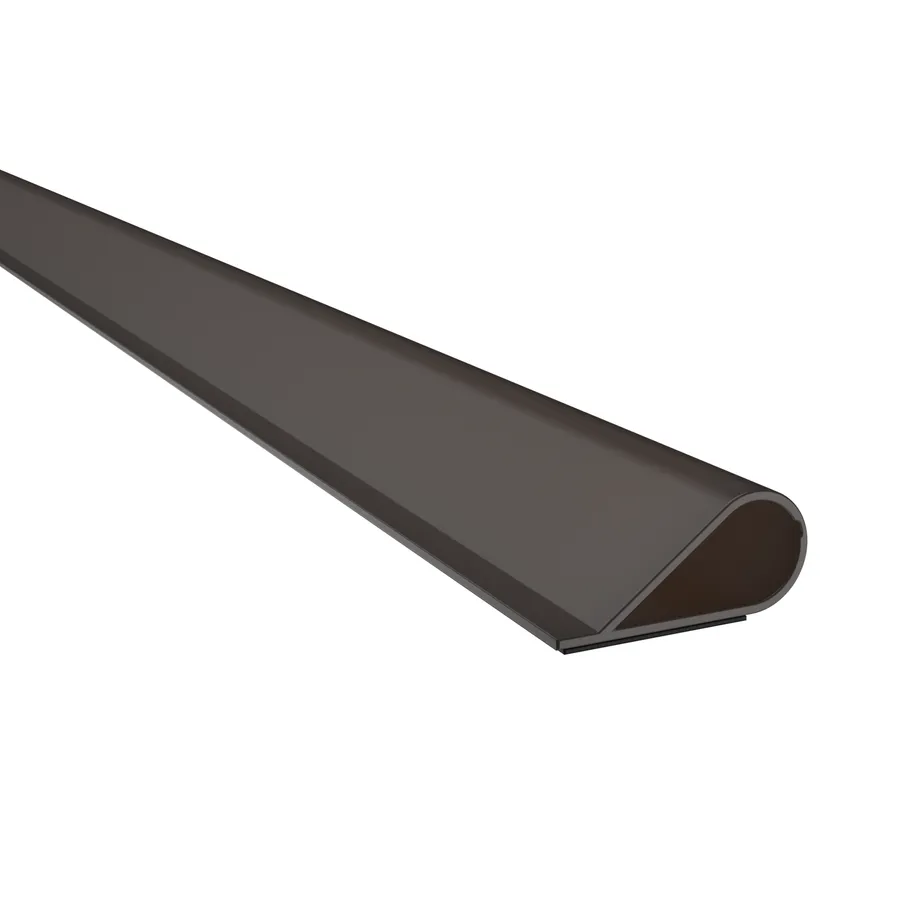

Pemko S88D 510FT Smoke Seal 510ft Roll Dark Brown

Pemko Manufacturing Co S88D 510FT Smoke Seal offers a reliable solution for enhancing door performance and maintaining safety standards in various settings. This adhesive perimeter gasket is designed to compress effectively, sealing gaps up to 1/16" for optimal draft and smoke control. Made from high-temperature silicone, the S88D is effective in extreme temperatures ranging from -58°F to 450°F, ensuring durability and performance under varying conditions. This smoke seal meets the stringent FAR 25.853 Airworthiness Standards and has been smoke tested in accordance with UBC 7-2 and UL 1784-01, complying with NFPA 105 requirements. With an air infiltration rating of only 0.09 CFM per foot of crack, it significantly minimizes energy loss. The product is self-adhesive for easy installation on the side of frames and is available in a generous 510-foot roll. Additionally, it is impervious to fungus and mildew, ensuring long-lasting performance without deterioration. The S88D is ideal for use with various door types, including steel and wood core doors, and is categorized for positive pressure openings. Available in dark brown, this smoke seal not only enhances security but also blends seamlessly with your existing décor. Trust Pemko's commitment to quality for your smoke and draft control needs.

Smoke Seal 510ft Roll Dark Brown

The S88 adhesive perimeter gasket compresses to seal up to a 1/16" gap and is available with perforations for behavioral health applications.

Features:

• Seal begins compressing at 1/4", compresses to seal up to a 1/16" gap
• SiliconSeal is extruded from high-temperature silicone; effective between -58°F and 450°F
• Meets FAR 25.853 Airworthiness Standards for Compartment Interiors
• Smoke tested in accordance with UBC 7-2 and UL 1784-01; meets the requirements of NFPA 105
• Air infiltration tested in accordance with ASTM E-283-04. Air infiltration is only .09 CFM / ft of crack.
• Category B - Doors - additional edge sealing system required - see Category G. Requires Category G system with gasket for fire and possibly smoke
• Category G - Edge-Sealing Systems - systems that are surface applied to frames or doors and required for Category B doors
• Category H - Gasketing - Smoke and draft control for positive pressure openings. Recommended products are PK33, PK55, S44, S88 and S773
• Category H gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes without hose stream. When applied to the door and frame assembly in accordance with the manufacturers installation instruction, the assembly will comply with UBC 7-2 (1997) part II
• Category J - Doors - gasketing that has been tested on a positive pressure fire door and frame but is not required for the door to obtain its fire door rating. Category J gasketing does not negatively affect the rating on a positive pressure door
• Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes
• Limited shelf life - product must be used within 6 months of purchase and must be stored between 50 degrees (F) and 100 degrees (F)
• Self-extinguishing, non-toxic and unaffected by sunlight, ozone and ultraviolet rays.
• Impervious to fungus and mildew; will not deteriorate under normal exposure

Specifications:

• Gasketing Material: Silicone
• Height: 1/4"
• Maximum Length: 510'
• Minimum Length: 17'
• Mounting Location: Side of frame
• Mounting Type: Self-adhesive
• Weight: 0.03 lbs
• Width: 1/2"

Colors:

• C - Clear
• GR - Gray
• TAN - Tan
• D - Dark brown
• BL - Black
• W - White
