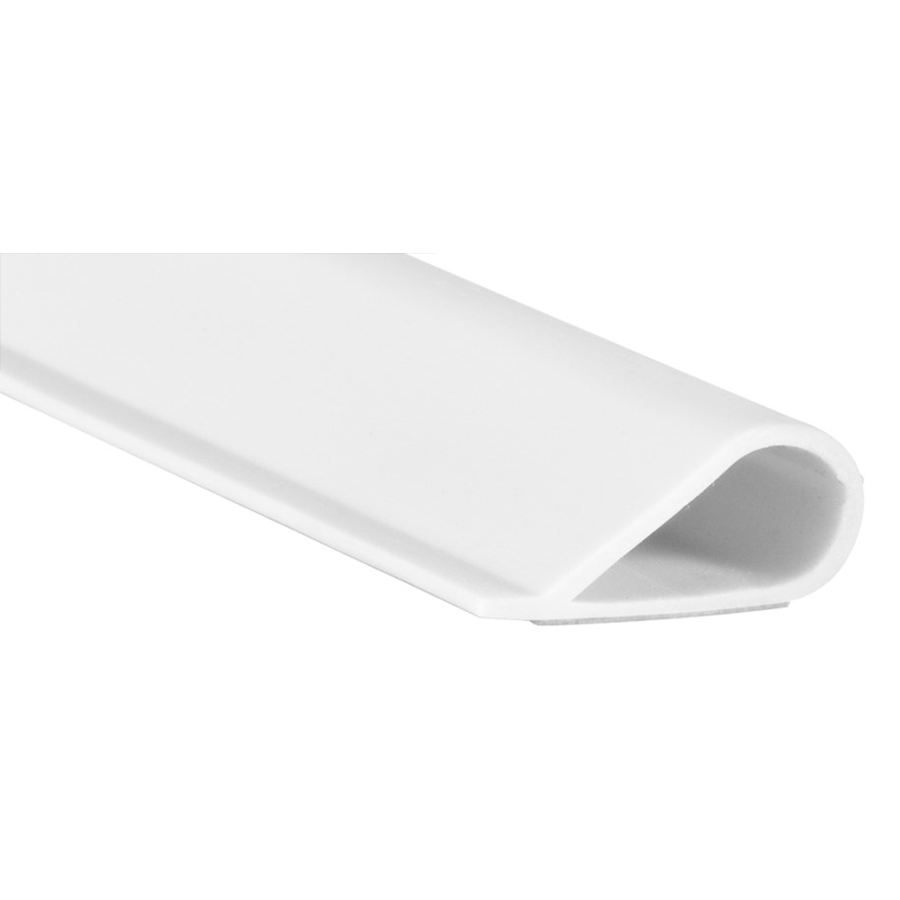

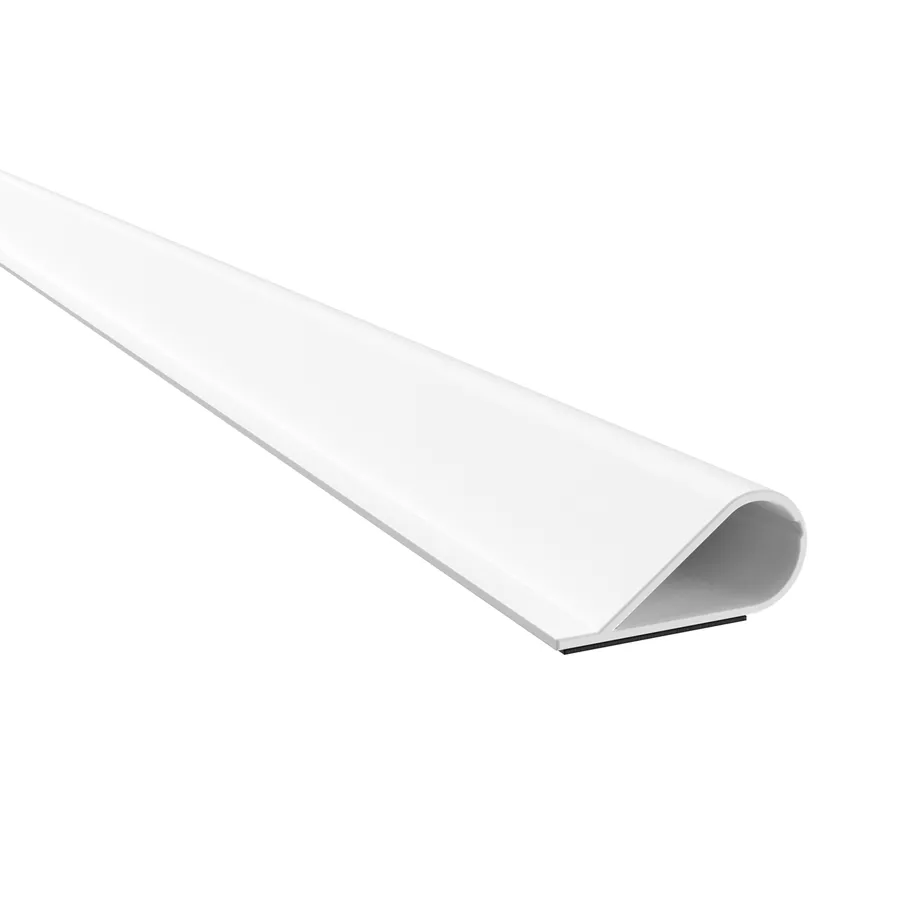

Pemko S88W 17FT Smoke Seal 17ft White

Pemko Manufacturing Co S88W 17FT Smoke Seal is an ideal solution for effective smoke and draft control in various door applications. This 17-foot white adhesive perimeter gasket is designed to compress from 1/4" to seal gaps of up to 1/16", ensuring a tight fit that enhances safety and energy efficiency. Crafted from high-temperature silicone, the SiliconSeal remains effective in extreme temperatures ranging from -58°F to 450°F, making it suitable for diverse environments. The S88W complies with stringent fire safety standards, having been smoke tested in accordance with UBC 7-2 and UL 1784-01, and meets the requirements of NFPA 105. Its low air infiltration rating of only 0.09 CFM/ft of crack ensures minimal air leakage, promoting better indoor air quality. This gasket is compatible with Category B and Category G edge sealing systems, and it is specifically designed for use with listed steel frames, hollow metal doors rated up to 3 hours, and wood core doors with varying ratings. The product is self-extinguishing, non-toxic, and resistant to UV rays, ozone, and mildew, ensuring durability and longevity. Remember to use the product within six months of purchase and store it in a temperature range of 50°F to 100°F for optimal performance.

Smoke Seal 17ft White

The S88 adhesive perimeter gasket compresses to seal up to a 1/16" gap and is available with perforations for behavioral health applications.

Features:

• Seal begins compressing at 1/4", compresses to seal up to a 1/16" gap
• SiliconSeal is extruded from high-temperature silicone; effective between -58°F and 450°F
• Meets FAR 25.853 Airworthiness Standards for Compartment Interiors
• Smoke tested in accordance with UBC 7-2 and UL 1784-01; meets the requirements of NFPA 105
• Air infiltration tested in accordance with ASTM E-283-04. Air infiltration is only .09 CFM / ft of crack.
• Category B - Doors - additional edge sealing system required - see Category G. Requires Category G system with gasket for fire and possibly smoke
• Category G - Edge-Sealing Systems - systems that are surface applied to frames or doors and required for Category B doors
• Category H - Gasketing - Smoke and draft control for positive pressure openings. Recommended products are PK33, PK55, S44, S88 and S773
• Category H gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes without hose stream. When applied to the door and frame assembly in accordance with the manufacturers installation instruction, the assembly will comply with UBC 7-2 (1997) part II
• Category J - Doors - gasketing that has been tested on a positive pressure fire door and frame but is not required for the door to obtain its fire door rating. Category J gasketing does not negatively affect the rating on a positive pressure door
• Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes
• Limited shelf life - product must be used within 6 months of purchase and must be stored between 50 degrees (F) and 100 degrees (F)
• Self-extinguishing, non-toxic and unaffected by sunlight, ozone and ultraviolet rays.
• Impervious to fungus and mildew; will not deteriorate under normal exposure

Specifications:

• Gasketing Material: Silicone
• Height: 1/4"
• Maximum Length: 510'
• Minimum Length: 17'
• Mounting Location: Side of frame
• Mounting Type: Self-adhesive
• Weight: 0.03 lbs
• Width: 1/2"

Colors:

• C - Clear
• GR - Gray
• TAN - Tan
• D - Dark brown
• BL - Black
• W - White

Resources

• Cut Sheet
