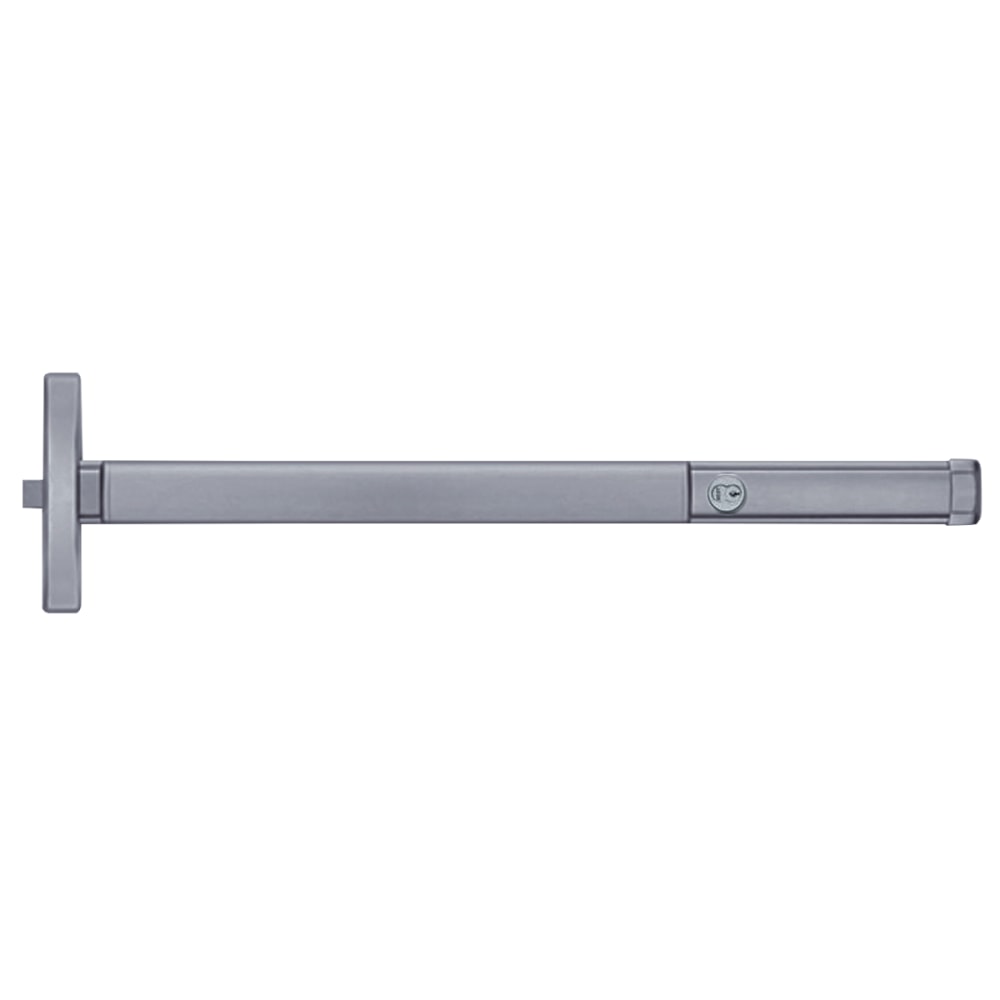

PHI 2408CD 628 36 Grade 1 Narrow Rim Exit Device

PHI 2408CD 628 36 Grade 1 Narrow Rim Exit Device offers a robust, reliable solution for ensuring safe egress in commercial settings. This Grade 1 rim exit device features a sleek narrow stile pushpad design and is equipped with a classroom function and cylinder dogging, making it ideal for a variety of applications. Measuring 36 inches in length, it is compatible with single and double doors, accommodating openings up to 4 feet wide and door thicknesses from 1-3/4 inches to 2-1/4 inches. Engineered for durability, the device's cover, touchbar, and end cap are constructed from heavy wrought brass, bronze, or stainless steel, while the chassis is made of investment cast steel with a zinc dichromated finish. The stainless steel latchbolt ensures a secure deadlocking mechanism with a 3/4-inch throw. Certified to ANSI A156.3 Grade 1 and UL listed for panic and fire hardware, the PHI 2408CD is a trusted choice for healthcare and educational facilities across the nation. Its field-reversible handing and standard touchbar height of 39-15/16 inches add to its versatility. With a 5-year limited warranty, this exit device is a smart investment for enhancing safety and accessibility in any commercial environment.

Grade 1 Narrow Rim Exit Device

Grade 1 Rim Exit Device, Narrow Stile Pushpad, 36" Device, Classroom Function, Cylinder Dogging, Satin Aluminum Clear Anodized Finish, Field Reversible

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation's largest healthcare and educational facilities prefer the Apex for its aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

For all types of single and double doors with a mullion.

Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide opening. For thicker door, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide opening.

• FUNCTIONS - A universal exit device. Add trim for desired function.
• BASE MATERIAL - The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought brass, bronze or stainless steel. US28 devices are furnished with aluminum, brass, bronze and stainless steel components.
• CHASSIS - Investment cast steel, zinc dichromated.
• LATCHBOLT - Stainless steel, deadlocking, 3/4" throw.
• STRIKES - No. S988, for (single) aluminum door applications, Black Powder Coated Stainless Steel Roller Strike. No. S458, for (paired) mullion applications, please specify when ordering.
• DOGGING - 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.
• TOUCHBAR HEIGHT - 39-15/16" from floor standard. May be varied as situation dictates.
• UL LISTED - Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.
• ANSI/BHMA - Devices are BHMA certified for ANSI 156.3, Grade 1.
