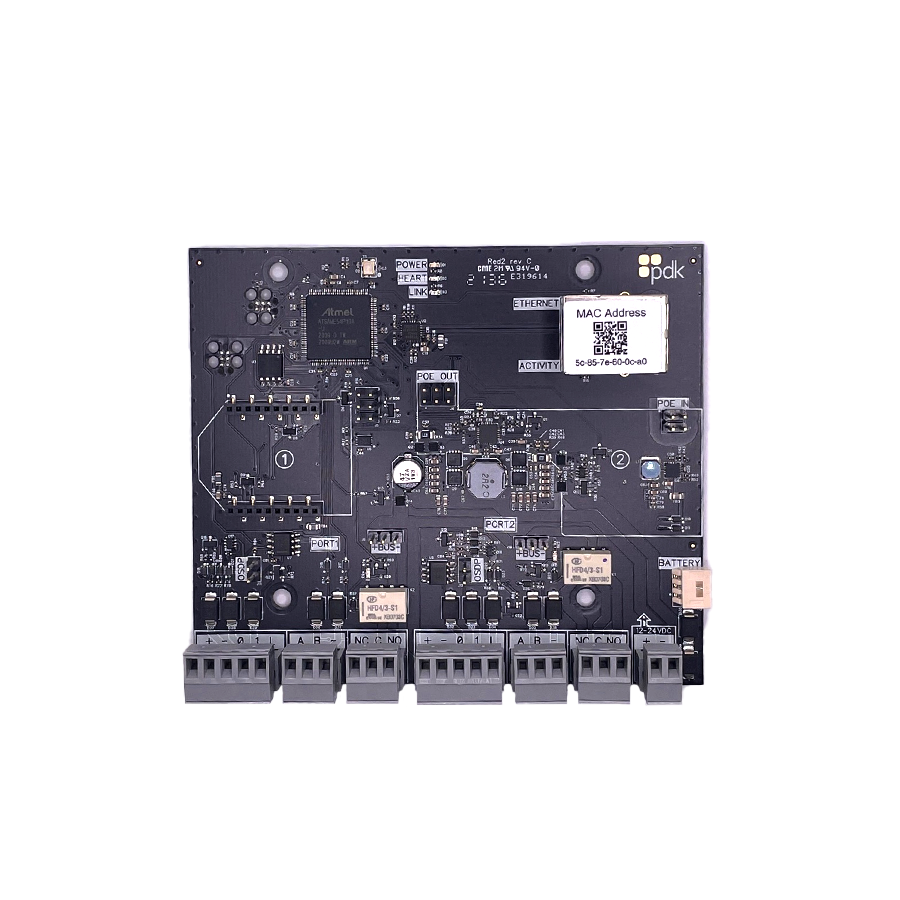

Prodatakey R2E Red Two Door Controller Expansion Board with Ethernet OSDP

Prodatakey R2E Red Two Door Controller Expansion Board offers an innovative solution for modern access control systems, seamlessly integrating advanced technology with user-friendly features. This controller is designed with built-in Ethernet connectivity and self-discovery capabilities, making IP configuration a breeze. The plug-and-play functionality allows for easy installation, enabling users to expand their systems effortlessly, whether it’s for two doors or a thousand. Equipped with OSDP functionality and a fully-supervised power circuit, the R2E monitors input, output, battery voltage, and overall controller health, ensuring optimal performance and security. The advanced security protocols, including AES 128-bit encryption, guarantee secure communication across mobile and encrypted credentials. In addition to its robust design, the Red 2 supports additional connectivity options through optional WiMAC wireless and PoE++ module kits, enhancing flexibility in installation and use. With an operational temperature range of -4° to +140°F and a humidity tolerance of 0-95%, this controller is built to withstand diverse environments. The enclosure measures 7.625" x 10.4375" x 3" and features a lockable security can for indoor use. Experience the reliability and advanced features of the Prodatakey R2E, a vital component for any access control system.

Red Two Door Controller Expansion Board, Ethernet, OSDP, Wiegand, Battery Monitoring, Optional Wireless and PoE++

Red 2 controller includes built-in Ethernet connectivity and self-discovery, simplifying ip configuration and functionality. Communication plug-and-play connection options are added by purchasing a Red WiMAC wireless or PoE++ Module Kit. The Red 2 is equipped with OSDP functionality, an on-board power supply, and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.

Features:

• Advanced Security: Red products lead the industry in secure communication protocols. This includes OSDP, mobile, and encrypted credential communication.
• Power Monitoring: Equipped with an on-board power supply, and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.
• Plug-n-play Connectivity: All PDK Red devices were designed to be plug n' play. That means they're easy to install right out of the box. It's simple to add any device, no matter how large the job is.
• Self Discoverable: The Red 2 will be automatically discovered by the Cloud Node when an Ethernet cable is connected; it is not necessary to enter the IP address; the device is self-discoverable.
• Module Kits: Additional WiMAC and PoE++ plug-and-play connection kits can be added by purchasing the respective wireless or PoE kit. Plug the module into the PDK Red 2 board, and it's ready to go.
• Systems Capability: Whether you need two doors or a thousand, the PDK red 2 controller gives you the flexibility to add more doors anytime, anywhere, on any device.

Specifications:

• Connections:
• Removable screw-down terminals
• Built-in power supply
• Industrial-grade 2A form-C relays (2)
• Reader (2)
• Input A (2)
• Input B (2)
• Communication Options:
• Ethernet
• WiMAC Wireless (2.4 GHz/ 802.15.4)
• PoE++
• Encryption: AES 128bit
• Wireless Range: 1 Mile LoS, 450ft indoor average
• Environmental:
• Temperature: -4° ~ +140° F /-20° ~ +60° C
• Humidity: 0 - 95% relative humidity non-condensing
• Enclosure: Dimensions (W x H x D) 7.625" x 10.4375" x 3". Metal lockable security can (indoor use only)
• Power:
• 12V-24V DC Input
• Board powers readers and other door hardware directly from the bus.
• Power supplies included with purchase of red max controller
• Battery not included but a backup battery must be installed to comply with UL 294.
