Prodatakey RCNEW Red CloudNode with Built-in Single io Door Controller and WiMAC

Prodatakey RCNEW Red CloudNode with Built-in Single IO Door Controller and WiMAC offers a robust solution for modern access control needs. This powerful controller features built-in Ethernet connectivity and self-discovery capabilities, streamlining IP configuration for quick and efficient setup. With plug-and-play connectivity, you can effortlessly add additional network or WiMAC wireless controllers in seconds, making it perfect for both small and expansive installations. Designed with advanced security in mind, the Red CloudNode utilizes secure communication protocols, including OSDP and encrypted credential communication, ensuring maximum protection. It includes a fully supervised power circuit that monitors input, output, battery voltage, and overall controller health, providing peace of mind to users. The versatile design allows the Red CloudNode to function as a single door controller while connecting seamlessly to the PDK cloud platform, enabling full configuration and management from any internet-connected device. With a temperature range of -4° to +140°F and a humidity tolerance of 0-95%, this unit is built to withstand various environments. Compliance with UL 294 standards assures reliability, while its compact metal enclosure ensures durability. Empower your access control system with the efficiency and flexibility of the Prodatakey RCNEW Red CloudNode.

Red CloudNode with Built-in Single io Door Controller and WiMAC

Red cloud node is the main controller and includes built-in Ethernet connectivity and self-discovery, simplifying IP configuration and functionality. With built-in plug-and-play connectivity options, additional network or WiMAC wireless controllers can be added in seconds. Red CN is equipped with OSDP functionality, an onboard power supply, and a fully supervised power circuit that monitors input, output, battery voltage, and overall controller health.

Features:

• Advanced Security: Red products lead the industry in secure communication protocols. This includes OSDP, mobile, and encrypted credential communication.
• Power Monitoring: Equipped with an on board power supply, and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.
• Plug-n-play Connectivity: All io devices were designed to be plug n’ play. That means they’re super easy to install right out of the box. It’s easy to add in any io device, no matter how large the job is.
• Automatic Updates: Experience future-proof access control that’s always secure, and up-to-date features, and security enhancements become available.
• Multi Door: In addition to connecting to our cloud platform, the cloud node doubles as a single door controller. It’s the only device you need for a single door install. Connect to the network and door hardware for a streamlined installation.
• Cloud Platform: Pdk.io provides the most powerful and streamlined access control platform on the market. Experience full configuration and management from any internet-connected device.
• Systems Capability: Whether you need one door or a thousand, the PDK Red CN gives you the flexibility to add more doors anytime, anywhere, on any device.

Specifications:

• Connections:
• Removable screw-down terminals
• Built-in power supply
• Industrial-grade 2A form-C relay
• Reader
• Input A
• Input B
• Communication Options:
• Ethernet
• WiMAC Wireless (2.4 GHz/ 802.15.4)
• Encryption: AES 128bit
• Wireless Range: 1 Mile LoS, 450ft indoor average
• Environmental:
• Temperature: -4° ~ +140° F /-20° ~ +60° C
• Humidity: 0 - 95% relative humidity non-condensing

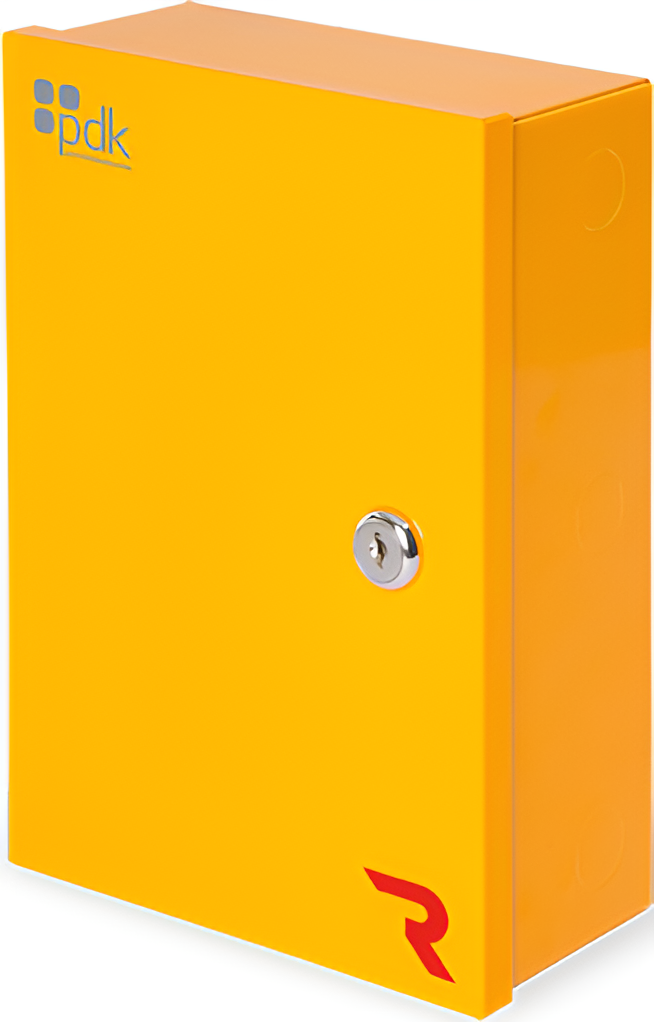

• Enclosure: Dimensions (W x H x D) 7.625" x 10.4375" x 3". Metal lockable security can (indoor use only)
• Compliance: Conforms to UL 294
• Power:
• 12V-24V DC Input
• 14 VDC 2A 28 watt class 2 wall-wart power supply (Input supply to the board)
• Powers readers and other door hardware directly from the bus.
• Operating Amperage: 200mA (Continuous amperage draw when idle)
• Power delivery to the peripheral is shared among all ports. Total output to peripherals is 2AMPs at 12V when powered with the included 2.5 AMP wall adapter.
• Battery not included, but a backup battery must be installed to comply with UL 294.
• Note: For proper operation, use the provided power supply. When not using the provided power supply, PDK recommends using a regulated power supply that outputs no greater than 24 volts as measured with a multimeter.
