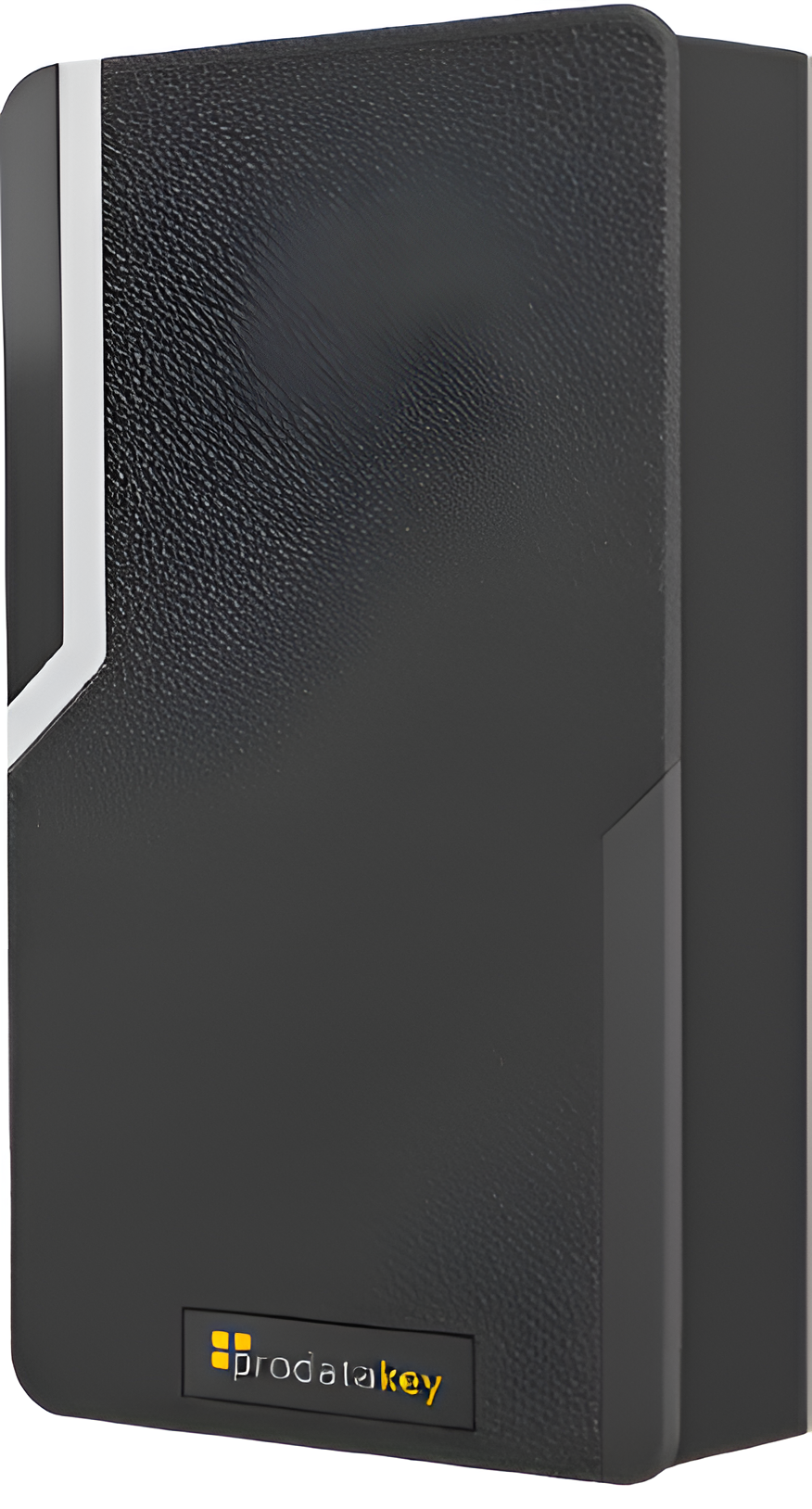

Prodatakey RDRG Single Gang Reader HID Compatible, Wiegand

Prodatakey RDRG Single Gang Reader HID Compatible, Wiegand offers an exceptional solution for your access control needs. This versatile reader is designed to accommodate both mullion and single-gang applications, making it ideal for a variety of installation environments, from door frames to wall-mounted settings. Equipped with a 125 kHz input and supporting the 26- to 37-bit Wiegand output protocol, the RDRG seamlessly integrates with existing systems, ensuring compatibility with a wide range of access credentials. The reader's secure, potted electronics are built to withstand the elements, making it suitable for both indoor and outdoor use, with an operating temperature range of -4° to +140° F and a humidity tolerance of up to 95% relative humidity. Powered by pdk.io, this reader benefits from a true cloud access solution that provides real-time updates, cloud backup, and 24-hour support, giving you peace of mind and control over your security system. Weighing in at just 0.38 lbs for the single gang variant, installation is both straightforward and efficient. Enhance your security strategy with the Prodatakey RDRG Single Gang Reader, where reliability meets innovative technology in access control.

Single Gang Reader HID Compatible, Wiegand

Enjoy the flexibility of using traditional readers that fit any application. The mullion style reader is ideal for door frame applications, or use the single gang reader for wall-mounting applications.

Features:

• Our standard readers use 125 kHz, 26 bit Weigand communication protocol, combining critical security standards with access credential compatibility.
• The mullion and single-gang standard reader are made with secure, potted electronics, making them perfect for both indoor and outdoor applications.
• Powered by pdk.io, the only true cloud access solution. Take advantage of real-time updates, cloud backup, 24-hour support, and more.

Specifications:

• Input: 125 kHz
• Output: 26- to 37-bit Wiegand protocol
• Environmental:
• Temperature: -4° ~ +140° F /-20° ~ +60° C
• Humidity: 0 - 95% relative humidity non-condensing
• Weight:
• Mullion: 0.25 lbs (4 oz)
• Single Gang: 0.38 lbs (6 oz)
• Power: 12V DC from the controller board. Max Amperage: 30mA
