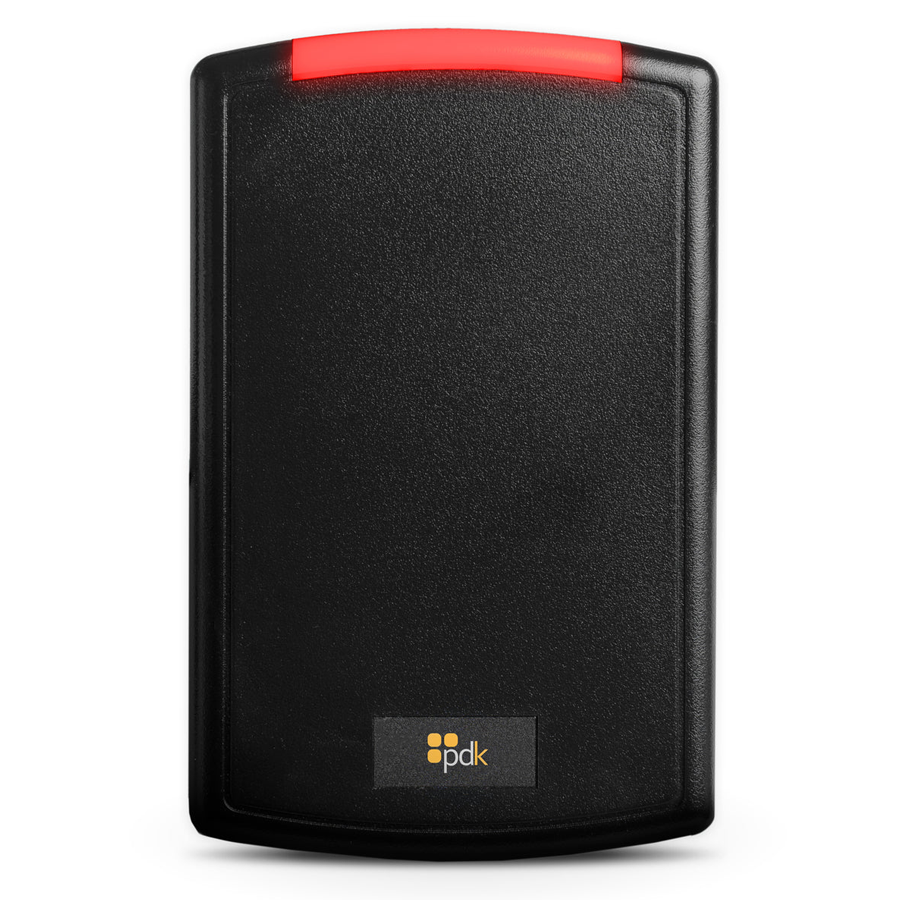

Prodatakey RGPB Red Single-Gang Reader High Security + Prox + Mobile

Prodatakey RGPB Red Single-Gang Reader High Security + Prox + Mobile combines cutting-edge technology with exceptional versatility, making it a standout choice for access control solutions. Designed for high-security environments, this reader supports both high-frequency (13.56 MHz) and low-frequency (125 kHz) communication, allowing customers to establish a seamless migration path toward secure credentials and advanced security ecosystems. The RGPB features OSDP secure connectivity, enabling multi-drop configurations that simplify installation by allowing multiple readers to operate on a single cable run. Powered by pdk.io, users gain access to a true cloud access solution, complete with real-time updates, cloud backup, and 24-hour support, ensuring peace of mind in security management. With a read range of up to 4 inches for proximity cards, the RGPB is highly effective in various settings. Built to withstand demanding conditions, it operates within a temperature range of -31 to +150°F and boasts an IP55 protection rating against dust and water. Weighing in at just 10 oz and measuring 3.25" x 5.1" x 0.71", this compact reader is both practical and durable, making it an ideal choice for any professional installation.

Red Single-Gang Reader High Security + Prox + Mobile

Red readers are in a class of their own, with OSDP secure connectivity, high (13.56MHz) and low-frequency (125 kHz) communication, and mobile-ready options. Red readers are now one of the most secure and versatile readers on the market today, handling every application, from your daily install to the most secure implementation.

Features:

• Standard technologies include proximity (125 kHz) and high-security (13.56 MHz), so customers can set their migration path to secure credentials and security ecosystems.
• OSDP Multi-drop accommodates many readers by running one length of cable, eliminating the need to run wire for each reader.
• Powered by pdk.io, the only true cloud access solution. Take advantage of real-time updates, cloud backup, 24-hour support, and more.

Specifications:

• Model: Single-gang
• Read Range: 125 kHz up to 4in
• Output: OSDP and Wiegand protocol
• Encryption: MiFare DESFire EV2
• Cable Distance: Wiegand 500’ (22AWG)
• Temperature: -31 ~ +150 F or -35 ~ +66C
• Humidity: 0 - 95% non-condensing
• Protection Rating: IP55
• Power: 5 - 16V DC (Linear power supply recommended)
• Average Amperage: 118 mA
• Max Amperage: 169 mA
• Dimensions: 3.25" x 5.1" x 0.71"
• Weight: 10 oz
