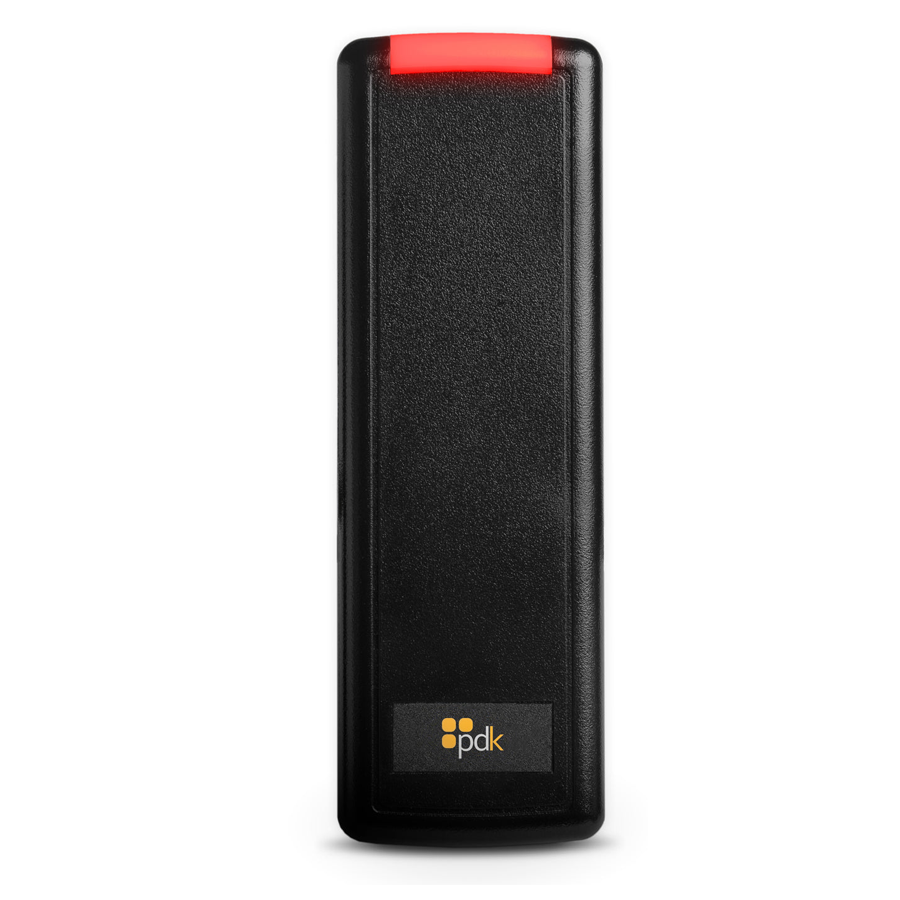

Prodatakey RM High-Security (13.56 MHz), OSDP, Wiegand, Red Mullion Reader

Prodatakey RM High-Security (13.56 MHz), OSDP, Wiegand, Red Mullion Reader stands out as a premier choice for both commercial and residential access control needs. This versatile reader supports both high-security (13.56 MHz) and low-frequency (125 kHz) technologies, allowing customers to tailor their security migration paths effectively. The OSDP multi-drop feature simplifies installations by connecting multiple readers over a single cable, reducing installation time and complexity. Powered by pdk.io, the RM reader offers the benefits of a true cloud access solution, ensuring real-time updates, robust cloud backup, and around-the-clock support. With a read range of up to 4 inches for 125 kHz credentials, this reader is designed for seamless integration into various security ecosystems. Constructed to withstand challenging environments, the RM reader operates within a temperature range of -31 to +150°F and is rated IP55 for protection against dust and water, making it suitable for both indoor and outdoor use. With dimensions of 1.7" x 5.1" x 0.71" and a lightweight design at 7 oz, it is easy to install without compromising on durability or performance. Explore the reliability and advanced features of the Prodatakey RM reader to enhance your security infrastructure.

High-Security (13.56 MHz), OSDP, Wiegand, Red Mullion Reader

Red readers are in a class of their own, with OSDP secure connectivity, high (13.56MHz) and low-frequency (125 kHz) communication, and mobile-ready options. Red readers are now one of the most secure and versatile readers on the market today, handling every application, from your daily install to the most secure implementation.

Features:

• Standard technologies include proximity (125 kHz) and high-security (13.56 MHz), so customers can set their migration path to secure credentials and security ecosystems.
• OSDP Multi-drop accommodates many readers by running one length of cable, eliminating the need to run wire for each reader.
• Powered by pdk.io, the only true cloud access solution. Take advantage of real-time updates, cloud backup, 24-hour support, and more.

Specifications:

• Model: Single-gang
• Read Range: 125 kHz up to 4in
• Output: OSDP and Wiegand protocol
• Encryption: MiFare DESFire EV2
• Cable Distance: Wiegand 500’ (22AWG)
• Temperature: -31 ~ +150 F or -35 ~ +66C
• Humidity: 0 - 95% non-condensing
• Protection Rating: IP55
• Power: 5 - 16V DC (Linear power supply recommended)
• Average Amperage: 106 mA
• Max Amperage: 144 mA
• Dimensions: 1.7" x 5.1" x 0.71"
• Weight: 7 oz
