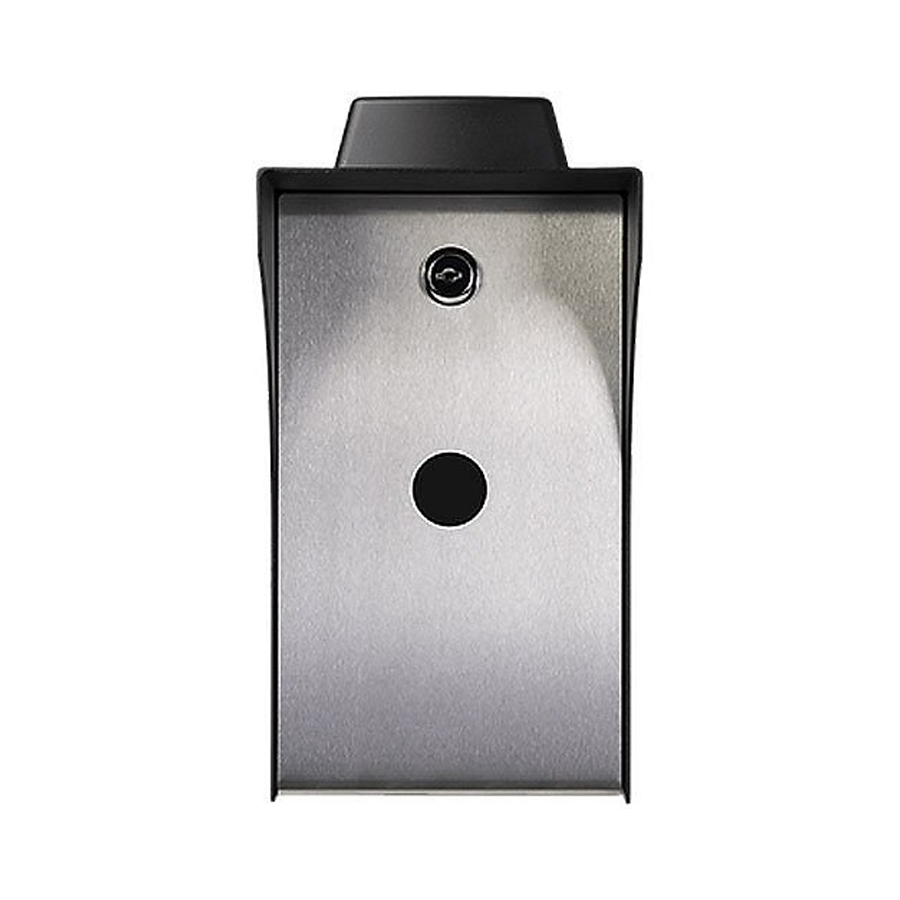

Prodatakey RPW Red Pedestal IO Wireless without Reader

Prodatakey RPW Red Pedestal IO Wireless Without Reader is your ideal solution for outdoor access control in locations like parking lots, gated communities, and storage facilities. This robust controller features a weatherproof stainless-steel housing, ensuring durability in various environmental conditions while providing a blank faceplate to accommodate your preferred reader. Designed with advanced security in mind, the RPW leverages industry-leading communication protocols, including OSDP and encrypted credential communication, ensuring secure interactions. Its built-in power monitoring system includes an on-board power supply and supervises the power circuit, providing insights into input, output, and battery voltage for comprehensive controller health management. Installation is a breeze with plug-and-play connectivity, allowing for easy integration into any system, whether you're managing two doors or a thousand. The self-discoverable feature simplifies setup by automatically connecting to the cloud node without requiring manual IP entry. With WiMAC wireless capabilities, the RPW eliminates costly trenching for gate access, making it a cost-effective choice. The controller operates effectively in temperatures ranging from -20° to +60° C and supports up to 95% humidity, making it versatile for a variety of outdoor applications. Streamline your access control with the Prodatakey RPW Red Pedestal.

Red Pedestal IO Wireless Without Reader

Red pedestal controller is the solution for access control needs in outdoor applications such as parking lots, gated communities, and storage facilities. A robust weatherproof stainless-steel housing protects the controller and provides a blank faceplate for your favorite reader. It features built-in network connectivity and self-discovery to simplify IP configuration. It is also fully equipped with controller health monitoring and OSDP functionality.

Features:

• Advanced Security: Red products lead the industry in secure communication protocols. This includes OSDP, mobile, and encrypted credential communication.
• Power Monitoring: Equipped with an on-board power supply, and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.
• Plug-n-play Connectivity: All PDK Red devices were designed to be plug n' play. That means they're easy to install right out of the box. It's simple to add any device no matter how large the job is.
• Self Discoverable: The Red pedestal will be automatically discovered by the cloud node when an ethernet cable is connected; it is not necessary to enter the IP address; the device is self-discoverable.
• Eliminate Trenching: Protecting access to gates and exposed areas has never been easier or more cost-effective. Because of our WiMAC wireless capabilities, the gate io eliminates the substantial expenses associated with trenching.
• System Scalability: Whether you need two doors or a thousand, the PDK Red pedestal gives you the flexibility to add more doors anytime, anywhere, on any device.

Specifications:

• Connections:
• Removable screw-down terminals
• Built-in power supply
• Industrial-grade 2A gorm-C relays (2)
• Reader Input (2)
• Input A (2)
• Input B (2)
• Communication Options:
• Ethernet
• WiMAC Wireless (2.4 GHz/ 802.15.4)
• Encryption: AES 128bit
• Wireless Range: 1 Mile LoS, 450ft indoor average
• Environmental:
• Temperature: -20° ~ +60° C /-4° ~ +140° F
• Humidity: 0 - 95% relative humidity non-condensing
• Enclosure:
• Dimensions (W x H x D) 5.5" x 9.5" x 5.5"
• Stainless-Steel enclosure
• Weight: RPE/RPW - 7.3 lbs (116.8 oz)
• Power:
• Included Power Supply: 14V DC, 2A transformer 12V-24V AC/DC Input
• 12VDC 1.2A Battery-backed output
• Powers readers and other door hardware directly from the bus.
• Operating Amperage: 35mA (continuous amperage draw when idle)
• Battery not included
• Note: For proper operation, use the provided power supply. When not using the provided power supply, PDK recommends using a regulated power supply that outputs no greater than 24 volts as measured with a multimeter.
