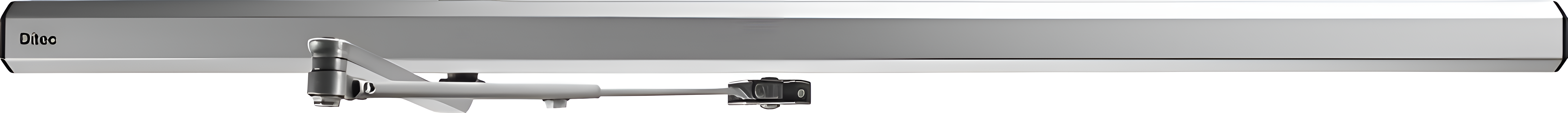

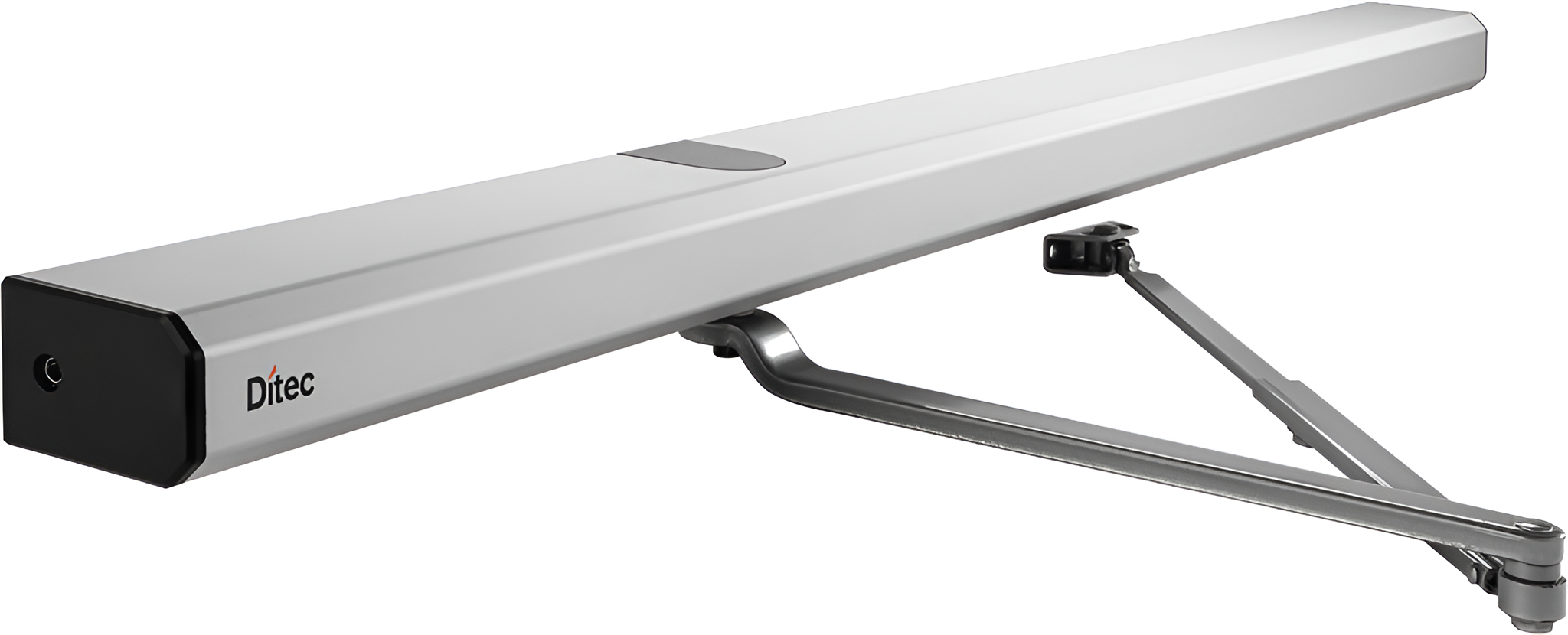

Record HA7-100-ISO Slim Low Energy Auto Operator with Push/Pull Arms, 39.5in L, 120VAC

Record-USA HA7-100-ISO Slim Low Energy Auto Operator with Push and Pull Arms offers a modern solution for automating interior doors while fitting seamlessly into tighter spaces. With dimensions of 1-7/8 inches in height, 3 inches in depth, and 39.5 inches in length, this low-energy operator is designed for easy installation, requiring only a standard 120 VAC wall outlet for power. The HA7 features a user-friendly app available on Google Play and Apple Store, providing hands-free control for opening, closing, holding, and locking doors at your fingertips. Its non-handed design accommodates various applications, and the power assist and Push and Go features enhance accessibility. The operator includes a multiple-point hold open function and a privacy mode (patent pending), ensuring versatile usage. Constructed with high-quality 689/SP28 aluminum, the HA7 is energy-efficient and eco-friendly, suitable for single interior doors weighing up to 200 lbs and up to 48 inches wide. With adjustable opening and closing times ranging from 4.5 to 12 seconds, the HA7 supports an ambient temperature range of -20°C to +45°C, ensuring reliable operation in diverse conditions. UL325/UL10C certified, the HA7-100-ISO is the perfect choice for modernizing your spaces with style and functionality.

Slim Low Energy Auto Operator with Push and Pull Arms, 1-7/8in H x 3in D x 39.5in L, Includes Power Adaptor Plug-in Cables 120VAC, 689/SP28 Aluminum

The Record HA7 transforms virtually any interior door from manual to modern. Due to its smaller size profile, the HA7 has the ability to fit within tighter door frame spaces, expanding potential applications. The HA7 is easy to install, with the option of simply plugging into a standard 120-vac wall outlet. The app (available on both Google Play and Apple stores) walks you through the setup process and also serves as a useful tool for hands-free control. Close, open, hold, lock and much more with the touch of a finger. Available in clear or dark bronze anodized finishes, the HA7 requires less energy and is an eco-friendly option for single doorways while still meeting functional requirements.

Features:

• Non-handed
• Electrician not required with option of simply plugging into a standard 120vac wall outlet
• Power assist
• Push and Go
• Parking (multiple-point hold open)
• Privacy function (patent pending)
• Ratchet function
• Electric-strike integration (no external relays required)
• UL325/UL10C certified
• For use on single interior doors

Specifications:

• Header Size: Height: 1.875", Depth: 3", Length: 39.5"
• Power Supply: 120 VAC +10/-15%, 50/60 Hz
• Power Consumption: Max 90 W
• Auxiliary Voltage: 24 V DC, max 400 mA
• Electromechanical locking connection: 12 V DC, max 1200 mA or 24 V DC, max 600 MA
• Ambient Temperature: -20° C to +45° C
• Relative Humidity: Max 95%
• Door Weight (max): 200 lbs
• Door Width (max): 48"
• Door Opening Angle (Push): 80°-110°, with reveal 0-5 1/8"
• Door Opening Angle (Pull): 80°-110°, with reveal 0-2"
• Opening Time: Variable between 4.5-12 seconds
• Closing Time: Variable between 4.5-12 seconds

Resources

• Sell Sheet
