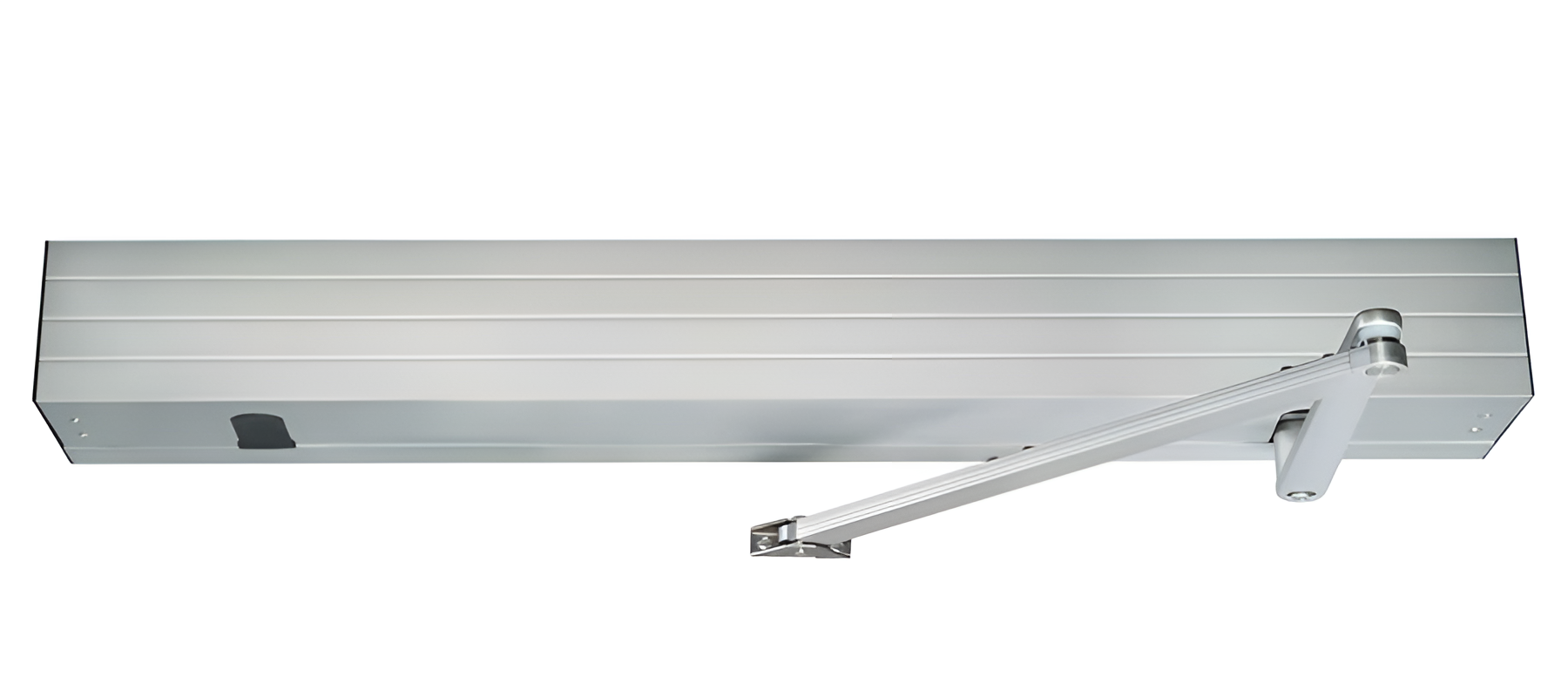

Record SS8211C2SNN-36 Simple Swing Auto Operator with Standard Arm Field Reversible

Record-USA SS8211C2SNN-36 Simple Swing Auto Operator With Standard Arm Field Reversible offers a seamless solution for both commercial and residential applications. Engineered to accommodate a maximum door weight of 700 lbs, this low-energy door operator is designed for reliable performance with inswinging and outswinging doors. Key features include adjustable opening speeds, push or pull operation, and a microprocessor control system that ensures efficient operation. The auto-reverse mechanism and obstruction stop enhance safety, while the latch assist function guarantees proper closing, even in high-traffic areas. This operator meets ANSI 156.19 standards and UL325, UL228 safety regulations. The SS8211C2SNN-36 is non-handed and field reversible, making installation versatile and straightforward. Available in clear aluminum and dark bronze finishes, it features a one-piece header that aligns seamlessly with the doorframe. The built-in electric strike interface eliminates the need for additional relays, streamlining installation. Designed with user-friendly programming through an LCD display, this operator supports single, pairs, or double egress doors and is ideal for ADA applications. A breakaway adapter protects against damage, ensuring longevity. Enhance accessibility and convenience with the Record-USA SS8211C2SNN-36, where functionality meets reliability.

Simple Swing Auto Operator With Standard Arm Field Reversible

Available in standard (SD) or heavy duty (HD) models, the record simple swing family of low-energy door operators provide reliable operation like you have never experienced. Designed to handle a maximum door weight of 700lbs—the simple swing family has been engineered to accommodate most types of inswinging and out swinging doors.

Features:

• Adjustable opening speeds
• Non Handed
• Push or pull operation
• High frequency use
• Complies with ANSI 156.19
• Electro-mechanical
• Surface applied
• Full length header
• Push to start
• Auto-reverse
• Obstruction stop
• Stack pressure feature
• Microprocessor controlled
• Latch assist
• Adjustable latch check speed
• Programmable controls
• Positive stop
• Built In electric strike interface
• Built In interface for presence sensor
• Meets UL325, UL228
• Self diagnostic

Additional Features:

• Single, pairs or double egress doors
• Doors that require up to 120° door swing
• Swing clear doors
• Available in clear aluminum and dark bronze anodized finishes
• Push to start applications eliminate the need for additional activation accessories and complex field wiring
• Latch assist function assures closing in areas with heavy stack conditions commonly associated with doors in air conditioned and heated environments
• Interfaces with electric strikes without additional relays or delays
• Simplelynk display included standard
• ADA applications
• Breakaway adapter to prevent operator or arm damage when abused
• 24V @ .05 amps power supply to power most magnets and electric strikes
• Various arm options available
• One piece header across opening

Specifications:

• ADA Electromechanical door operator that powers open or close doors under the requirements of ANSI 156.19.
• Operators can be surface applied to either the push or pull side.
• Available in a clear aluminum or dark bronze header matching the width of the doorframe.
• Contains a breakaway arm adapter that protects the unit(s) from damage.
• Field programmable by the user and installer through a LCD display interface.
• Non-handed field reversible.
