record-usa SS8211D2SNN 36 SimpleSwing Operator is a heavy-duty electromechanical door operator designed for both commercial and residential applications. Featuring a robust 36-inch header and a statuary bronze finish, this operator is tailored for left-handed installations and can accommodate doors up to 48 inches wide and 400 lbs in weight. Its advanced control system ensures smooth operation during the entire opening and closing cycle, even under complex conditions. This operator boasts an impressive 120-degree swing using a standard arm, with a positive stop feature for added reliability. With built-in programmable controls and interfaces for electric strikes, the SS8211D2SNN is exceptionally versatile. Operating on 120 VAC at 15 amps, it also supports auxiliary power of 24V AC/DC at 0.5 amps for magnets and electric strikes. Rated for extreme conditions, the operator functions efficiently in temperatures ranging from -40°F to +140°F and is UL325 and ANSI/BHMA 156.19 compliant. Additionally, it includes a three-year limited warranty, underscoring its durability and performance. The SimpleSwing Operator is an ideal choice for professionals seeking a reliable, accessible, and compliant door solution that enhances functionality and security in any building environment.

SimpleSwing Operator, Single

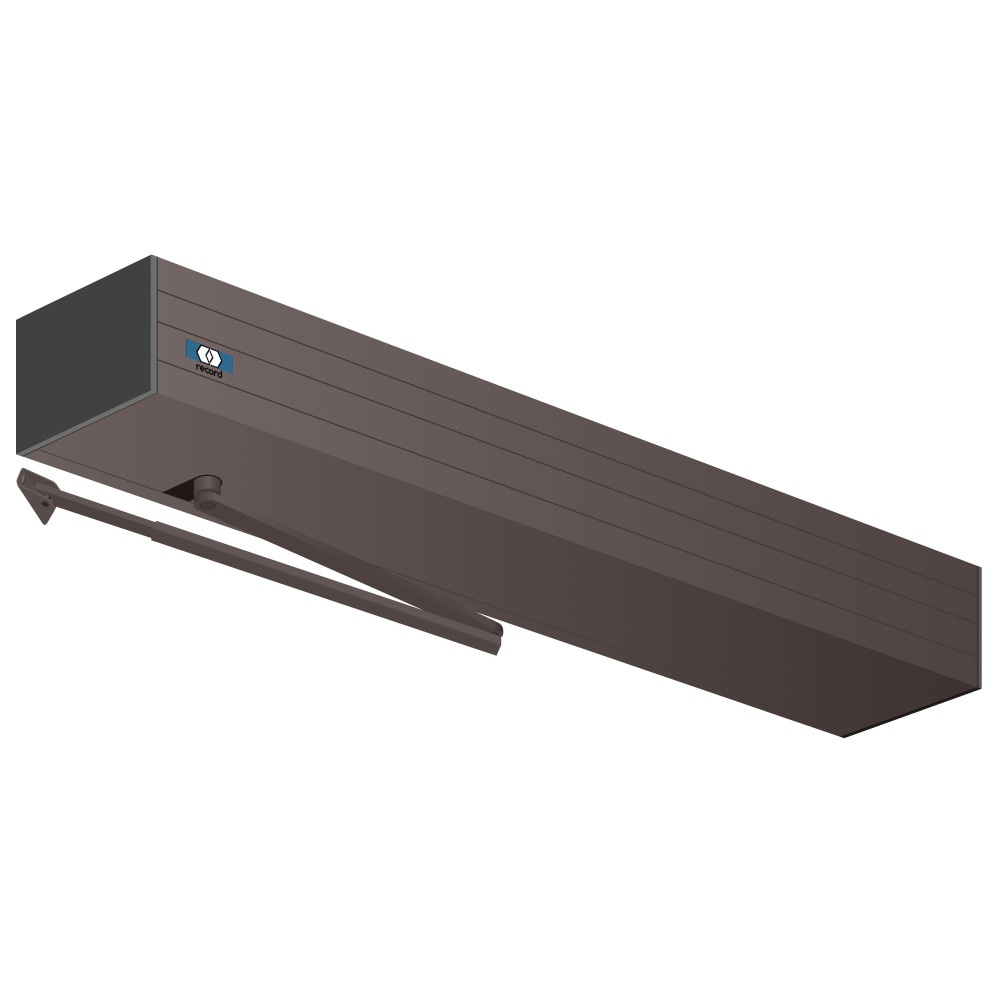

SimpleSwing Heavy Duty Surface Mounted Electromechanical Door Operator, 36" Header, Regular with Positive Stop, Push Side Mounted, Up to 48" Door, 120 Deg. Swing, Statuary Bronze Finish, Left Handed

SimpleSwing door operators are controlled by a proprietary control system that is patented, powerful and intelligent providing for a complete door control throughout the opening and closing cycle even when multifaceted tasks are required.

The Record SS8200 is a heavy duty low energy operator that can be specified for almost any interior or exterior application.

With built-in programmable controls and interfaces for electric strikes—combined with up to a 3-year warranty—the SS8200 simply out performs the competition.

• Header width dimensions: 4.5" x 5"
• Motor: 1/4hp
• Opening angle with track arm: 90 degrees
• Opening angle with standard arm: 120 degrees
• Electrical requirements: 120 VAC @ 15amps 60hz
• Power Supply: 24V AC/DC @.5amp for magnets, electric strikes
• ANSI/BHMA 156.19
• UL325/UL228
• Operating Conditions:  -40°F and +140°F
