record-usa SS8261C2S4S 72 SimpleSwing Operator, Pair is a heavy-duty surface-mounted electromechanical door operator designed to enhance accessibility and functionality in both commercial and residential settings. With a robust 72" header and a positive stop feature, this operator accommodates doors up to 48" wide, swinging at an impressive 120 degrees. Crafted with an aluminum painted finish, the unit is not only durable but also aesthetically pleasing. Equipped with a proprietary control system, the SimpleSwing Operator ensures precise control throughout the opening and closing cycle, making it ideal for high-traffic areas. Its built-in programmable controls and interfaces for electric strikes elevate its versatility, allowing seamless integration into existing systems. The operator boasts a powerful 1/4hp motor, designed to handle doors weighing up to 400 lbs. This model is ADA compliant and operates effectively in temperatures ranging from -40°F to +140°F, catering to a variety of environments. UL325 and ANSI/BHMA 156.19 certifications further affirm its reliability and safety. With a generous 3-year warranty, you can trust the record-usa SS8261C2S4S to deliver superior performance and peace of mind for your door control needs.

SimpleSwing Operator, Pair

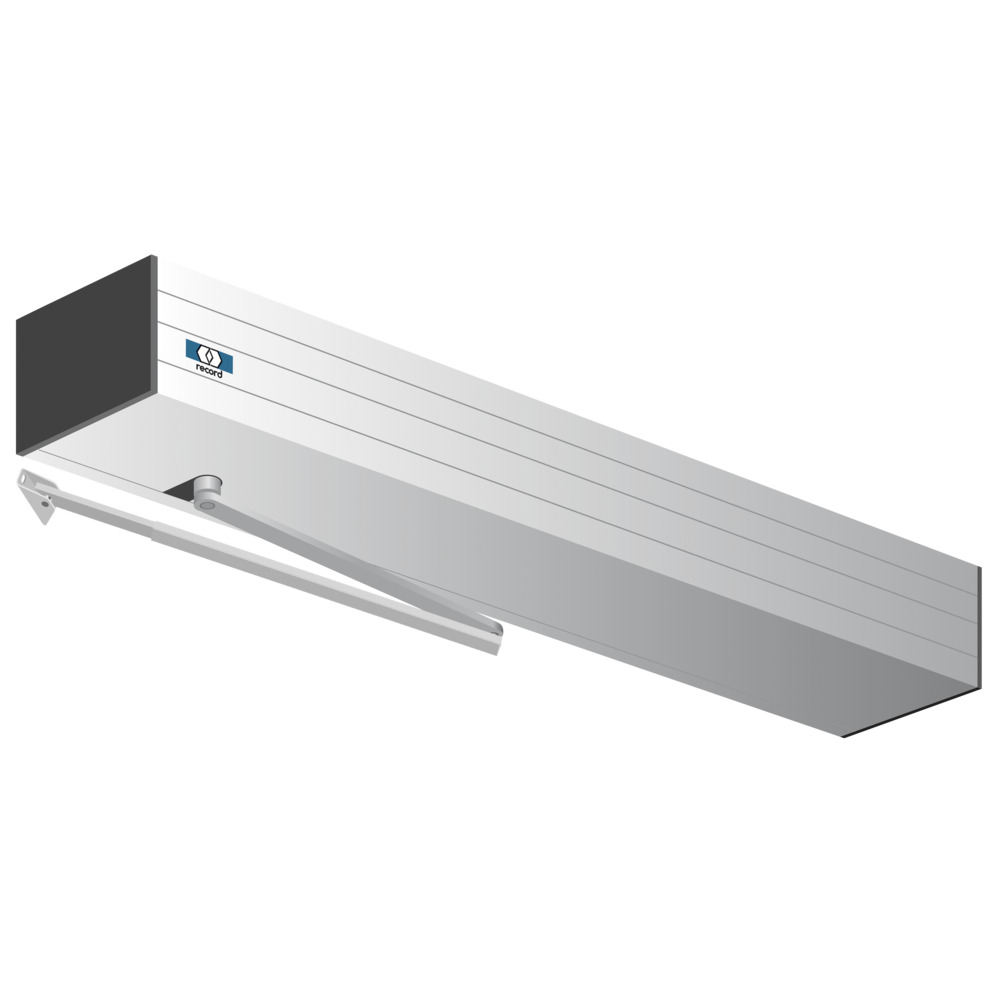

SimpleSwing Heavy Duty Surface Mounted Electromechanical Double Door Operator, 72" Header, Regular with Positive Stop, Push Side Mounted, Up to 48" Door, 120 Deg. Swing, Aluminum Painted Finish, Dual Handed

SimpleSwing door operators are controlled by a proprietary control system that is patented, powerful and intelligent providing for a complete door control throughout the opening and closing cycle even when multifaceted tasks are required.

The Record SS8200 is a heavy duty low energy operator that can be specified for almost any interior or exterior application.

With built-in programmable controls and interfaces for electric strikes—combined with up to a 3-year warranty—the SS8200 simply out performs the competition.

• Header width dimensions: 4.5" x 5"
• Motor: 1/4hp
• Opening angle with track arm: 90 degrees
• Opening angle with standard arm: 120 degrees
• Electrical requirements: 120 VAC @ 15amps 60hz
• Power Supply: 24V AC/DC @.5amp for magnets, electric strikes
• ANSI/BHMA 156.19
• UL325/UL228
• Operating Conditions:  -40°F and +140°F

Resources

• 6100/8100 Series Head Cover Design Guide
• 8100 Series Swing Door Heavy Duty Operator Brochure
• 8100 Series Swing Door Operator Installation Instructions
• Simple Swing Low-Energy Swing Door Operators Brochure
• SimpleSwing SS8200 Cut Sheet
