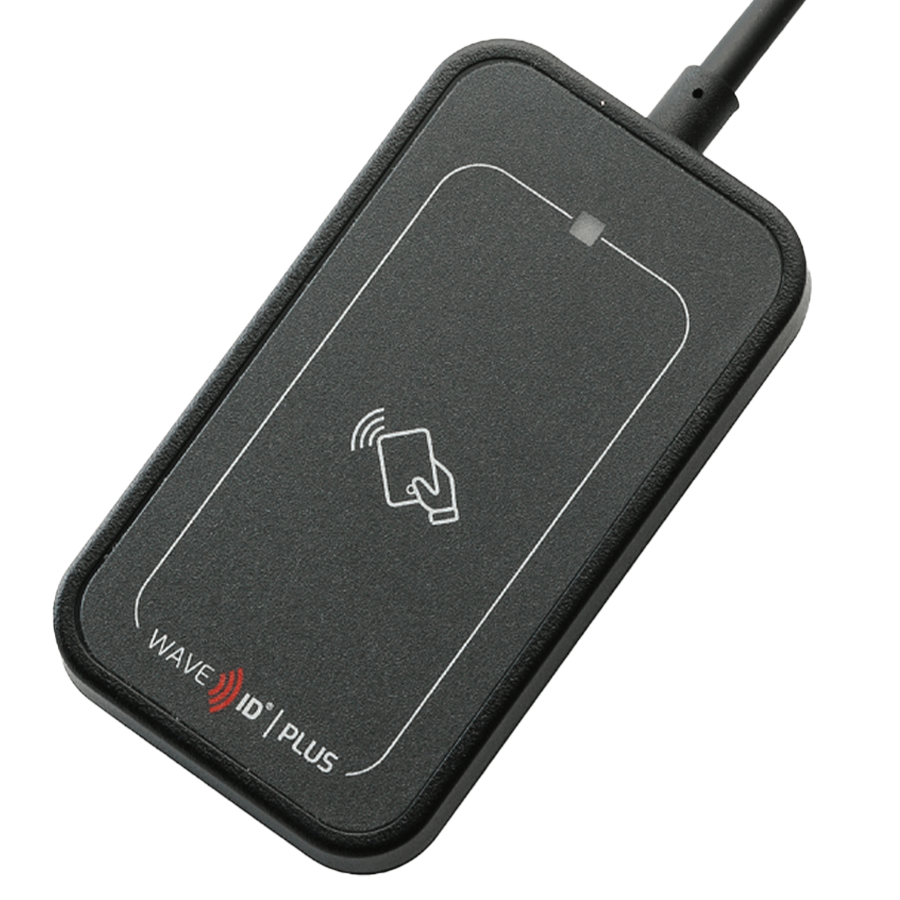

RFI Ideas RDR-80531BKU Desk Top Prox Reader

RFI Ideas RDR-80531BKU Desk Top Prox Reader is the ultimate solution for seamless access control in any environment. Designed with a compact footprint, this desk-mounted reader integrates effortlessly into your workspace while providing powerful capabilities. The RDR-80531BKU supports dual frequencies of 125/132 kHz and 13.56 MHz, accommodating a vast range of proximity and contactless smart cards. With the ability to handle up to four ID card configurations, including two preset options, this reader ensures versatility tailored to your organization's needs. Its innovative design features a patented 13.56 MHz antenna that auto-tunes for optimal performance, minimizing interference. Additionally, the user-selectable volume control and adjustable beeper enhance usability. The RDR-80531BKU connects via USB for plug-and-play simplicity, with serial models available for RS232 connectivity. Weighing only 4 oz and measuring 3.6 in × 2.1 in × 0.7 in, it boasts a robust build suitable for varied operating conditions, withstanding temperatures from -30°C to 65°C. Ideal for sectors such as healthcare, finance, and retail, this reader streamlines authentication processes, reducing errors and security risks associated with manual logins. Experience future-proof security solutions with the RFI Ideas RDR-80531BKU, a reliable choice for modern access control needs.

Desk Top Prox Reader

The new WAVE ID plus mini card reader is our smallest, most capable desktop reader. WAVE ID plus mini readers offer all the features and benefits of our acclaimed WAVE ID plus readers—but with a sleek, compact design that saves valuable space and allows for more versatile placement. These dual-frequency readers work with nearly every proximity and contactless smart card worldwide and support up to four simultaneous card configurations. The same ID cards used for building access can now secure workstations, applications, devices, networks and data across your entire organization, wherever people work. WAVE ID plus mini readers emulate keystrokes to enter login screen data via a USB port connection. The serial models can connect to a RS232 port. Additionally, SDK-compatible models can integrate into most software and hardware solutions using the rf IDEAS universal software developer’s kit (SDK), supporting applications such as single sign-on, secure print, cashless campus, time and attendance, industrial vending and more.

Features:

• Four ID card configurations (two are preset and all four are user-definable)
• Patented 13.56 MHz antenna auto-tuning ensures optimal power transfer to avoid interference
• User-selectable volume control includes a beeper on/off setting
• Works with nearly every proximity or contactless smart card—see the full list
• Support for MiFare secure card types: DESFire EV1/EV2/EV3; Classic; Plus; Ultralight/Ultralight-C
• Delivers card ID in formats that multiple applications recognize
• Ideal for enrollment into third-party software or for single sign-on providers
• Seamless, plug-and-play integration via USB port
• New compact design includes articulated cable and rubber feet for secure desktop placement
• Compatible with our mini desktop mounting bracket to prevent tampering, removal and disassembly
• WAVE ID mini desktop supports the power of HID employee badge and student ID in Apple Wallet
• Fully compatible with the legacy credential readers you already own
• Offers the same features as WAVE ID Plus readers, including our card analyzer
• Simultaneously reads proximity and contactless card technologies
• rf IDEAS Configuration utility easily meets limitless identification and authentication possibilities
• Customizable to work with any card solution for any size corporation
• Eliminates wasted time, errors and security risks associated with manual password entry
• Futureproof design accommodates tomorrow’s credentials and security solutions
• Ideal for healthcare, manufacturing, financial, government, retail and enterprise

Specifications:

• Operating Frequency: 125/132 kHz and 13.56 MHz
• Typical Maximum Read Range: 1.0" – 3.0" (2.5 – 7.6cm) dependent upon card type and environmental conditions
• Power Consumption: 65 mA typical, 185 mA maximum
• Dimensions: 3.6 in × 2.1 in × 0.7 in (9.1 cm × 5.3 cm × 1.8 cm)
• Weight: 4 oz (113.4 g)
• Housing Color: Black
• Cable Length: 6’ standard; 6" and 16" lengths available
• Indicators: Quad-state LED (off, green, amber, red) and adjustable beeper (off, low, medium, high)
• Form Factor: Desktop
• Operating Temperature Range: -30C to 65C (-22F to 150F)
• Operating Humidity Range: 5% to 95% relative humidity, non-condensing
• Storage Temperature Range: -40C to 85C (-40F to 185F)
