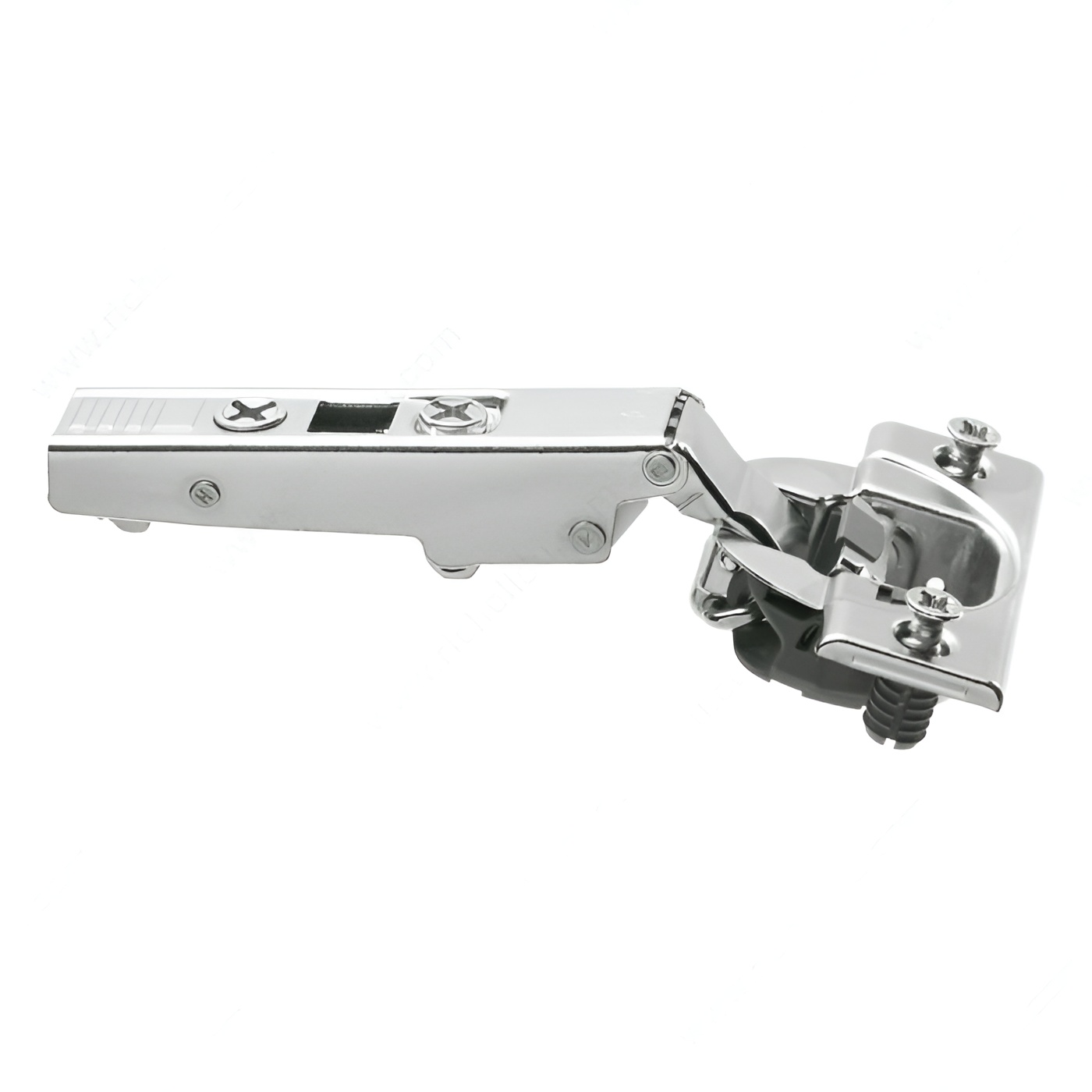

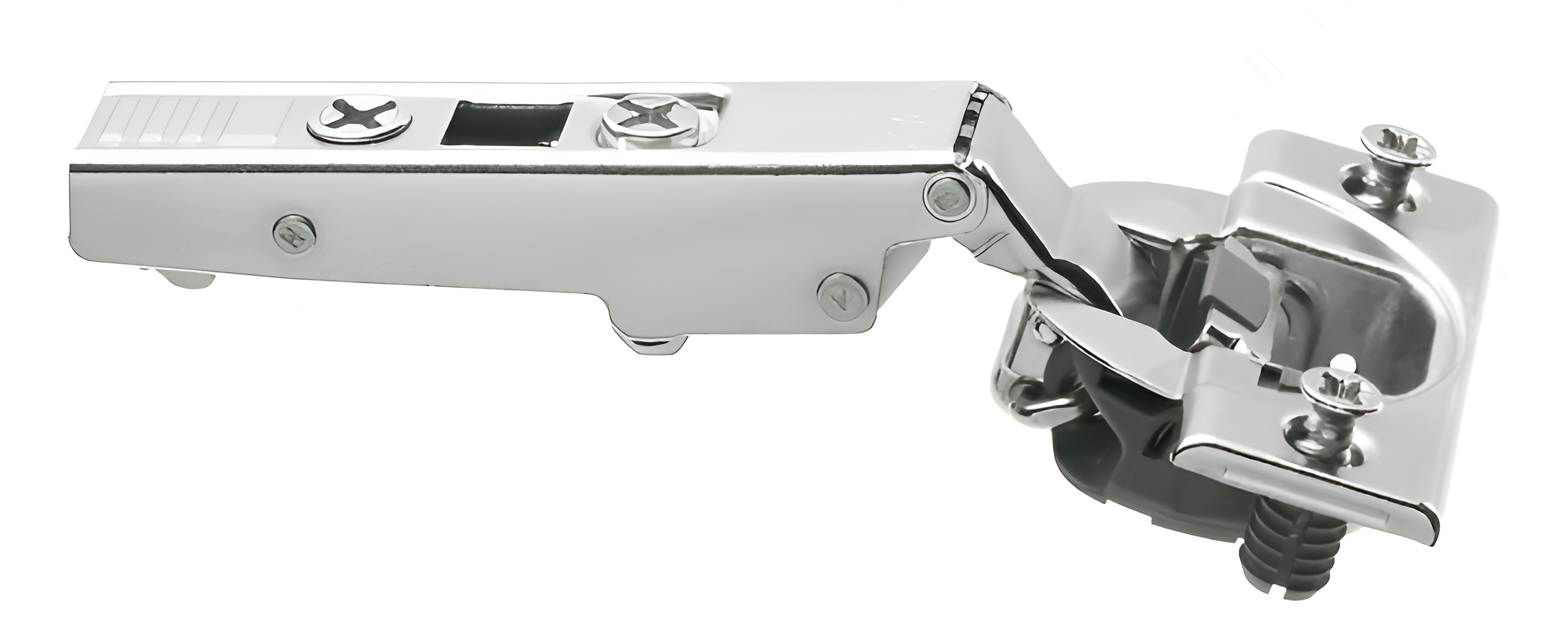

Richelieu 71B358E180 CLIP top BLUMOTION - Hinge 110 offers precision movement and superior functionality, making it an essential component for frameless cabinetry. This hinge is expertly engineered with an integrated BLUMOTION feature, ensuring that furniture doors close silently and effortlessly. Designed for longevity, the CLIP top BLUMOTION hinge can withstand at least 200,000 openings and closings while maintaining a smooth, high-quality motion throughout its lifespan. This hinge suits cabinet thicknesses starting from 5/8 inch and accommodates door overlay applications. Its self-closing mechanism enhances user convenience, while the hinge opening angle of +110° allows for easy access to cabinet interiors. The nickel finish not only adds a touch of elegance but also ensures durability in everyday use. Installation is straightforward with pre-mounted expando dowels, though screws or nails are not included. The product is packaged per unit in industrial packaging, ensuring safe delivery. Ideal for standard door applications, the Richelieu 71B358E180 is a reliable choice for professionals and discerning homeowners looking to enhance the functionality and aesthetics of their cabinetry.
CLIP top BLUMOTION - Hinge 110
Cabinet Thickness: Min. 19/32 in*
Cabinet Type: Frameless
Closing Mechanism: Soft-Closing
Door Position: Full Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Expanding Dowel
Hinge Opening Angle: +110°
Hinge Type: CLIP top BLUMOTION
Material: Steel
Mechanism: Spring Closing, Soft-Closing
Milling Depth: 13 mm
Milling Diameter: 35 mm
Packaging Specifications: Industrial Packaging
Packaging format: Per unit
Product #: 71B358E180
Product number: 71B358E180
Screw/ Nail: Not Included
Unit 1: case - 250
Use Type: Standard Door
