Richelieu 11125090 Hinge for Lift-Up or Downward Kimana Panels

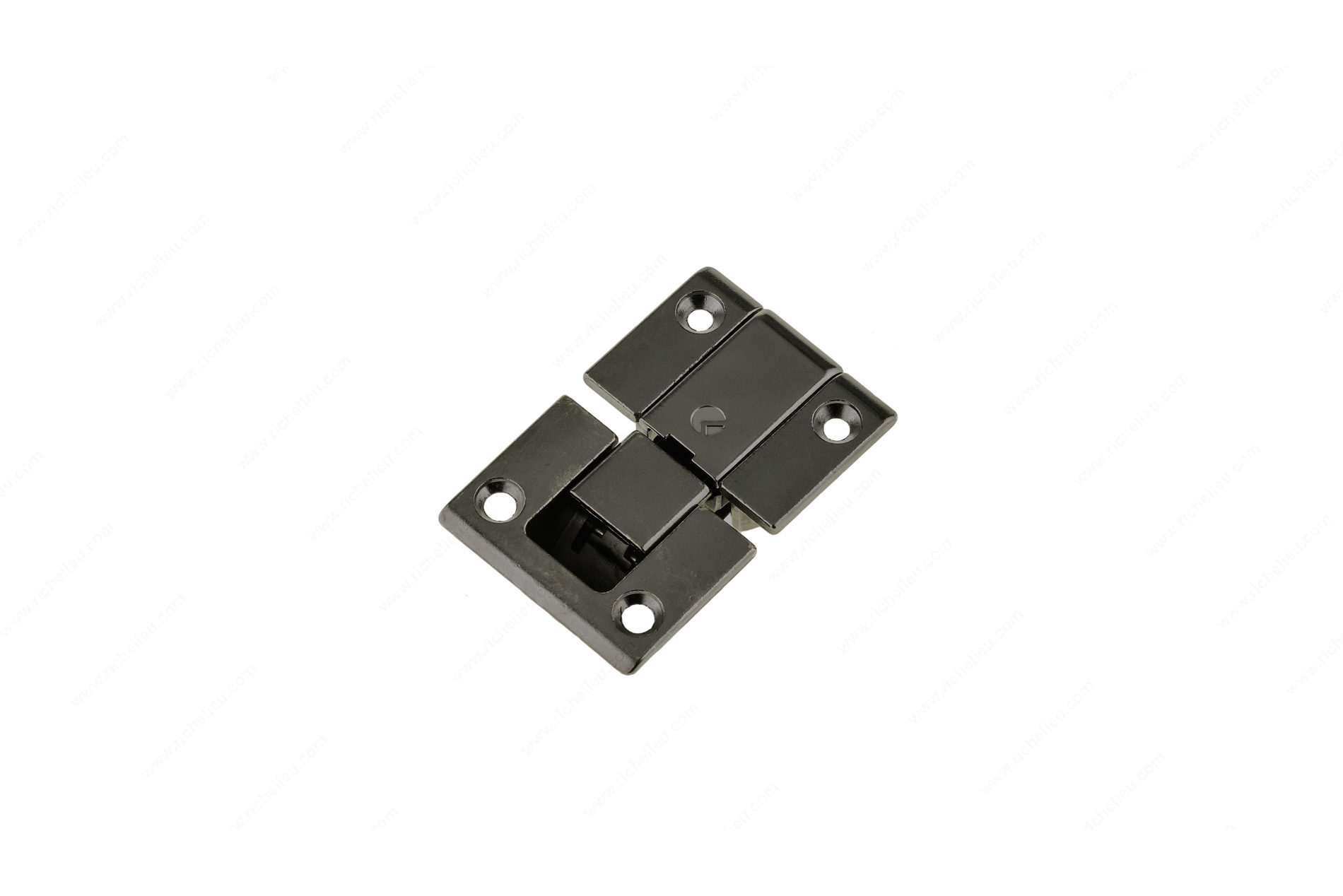

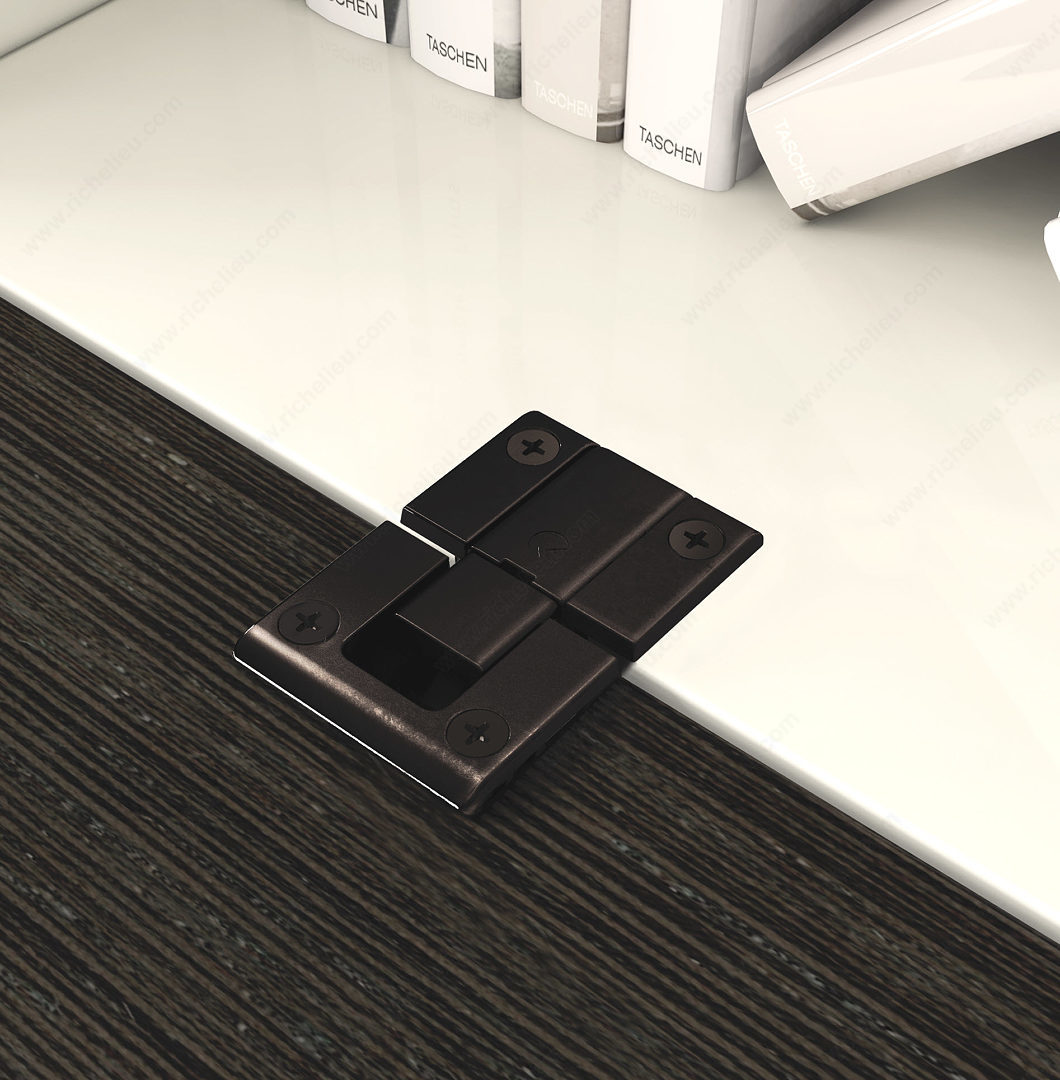

Kimana hinges are designed to open and close flap and drop-down doors. With a unique, exclusive movement design, it opens vertical cabinet doors even when the cabinet bottom rests on another panel or the cabinet top is topped with a decorative or lighting panel.

The minimum panel thickness for the installation of a Kimana hinge is 18 mm.
For installation on panels of 16 mm (5/8"), use the adapter #11116180 or 11116190.

Sold by the unit in a bag.

Advantages and benefits

Minimal dimensions (Ø 26 mm boring for both the door and the bottom) as well as a minimalistic and elegant design contribute to making Kimana a functional hinge that is unique in its class.

Perpendicular mounting screws allows Kimana to be precisely positioned and makes it perfect for aluminum profiles.

Kimana can easily be adjusted through the screws (PZ2) which are hidden underneath the cover. Different combinations of door and cabinet thicknesses can be created by adjusting Kimana (for thicknesses of 18 mm, 19 mm, and 20 mm) or by placing adapters (for panel thicknesses of 16 mm) under the hinge clip to ensure perfect movement and alignment of the door.

Exclusive to Richelieu.

Important information

Depth adjustment: 0 to 2 mm.
Lateral adjustment: 0 to 1 mm.
Vertical adjustment: 0 to 2 mm.
Locking system.

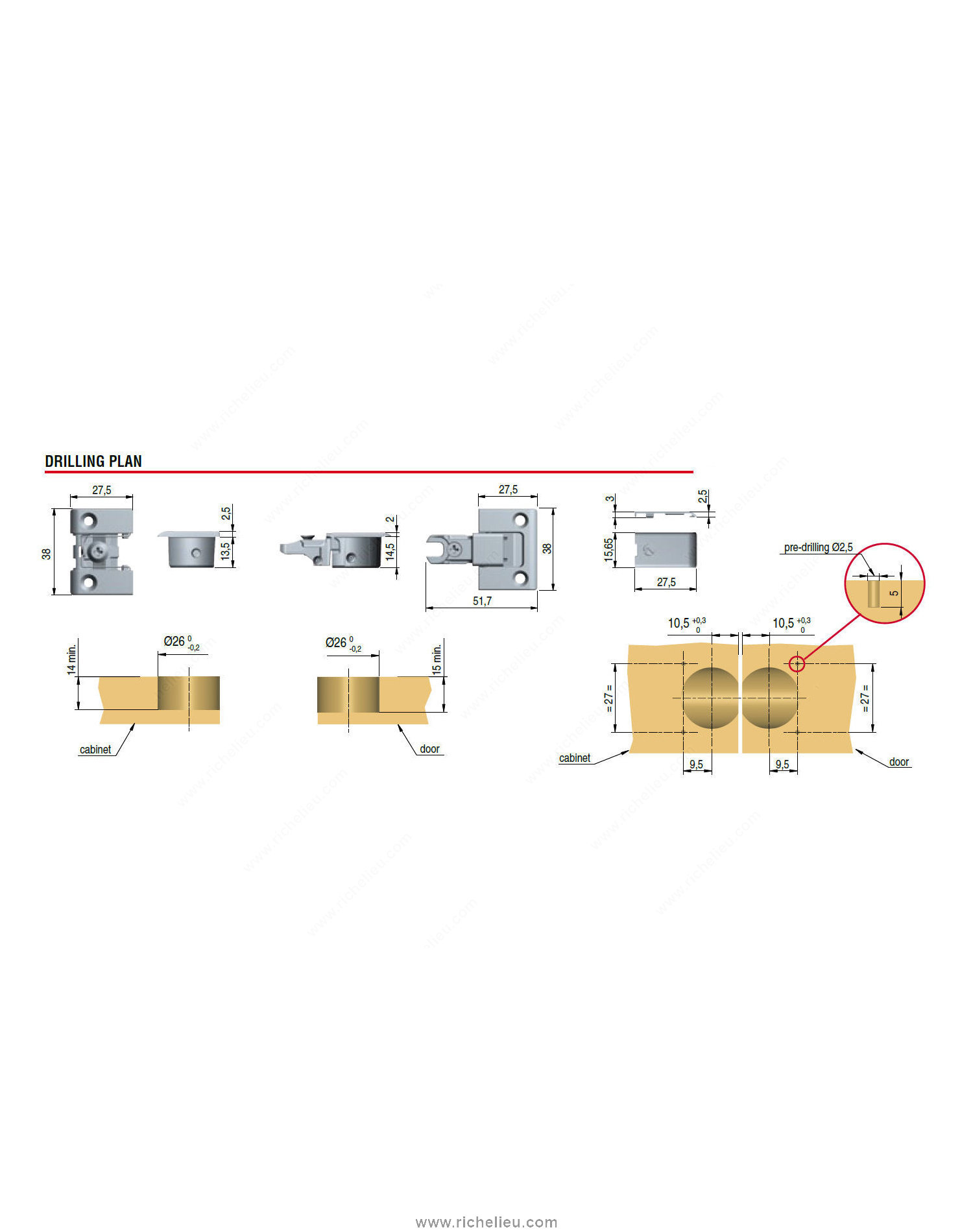

Standard drilling diameter: 26 mm.
Minimal depth: 15 mm.
The Kimana hinge installs without adapter on a door and cabinet panel that has a thickness of 18 mm to 20 mm.

Application

The ideal hinge for flap and drop-down doors.

Included products

- 4 perpendicular mounting screws
- Instructions
