Richelieu 130112180 COMPACT 33 Edge-Mount Mounting Plate offers a robust and reliable solution for full overlay door installations. Crafted from durable die-cast zinc and finished in a sleek nickel, this mounting plate combines strength with aesthetic appeal, making it an ideal choice for both modern and traditional cabinetry. Designed specifically for overlays of 1-1/8 inches, the COMPACT 33 ensures a secure fit and stability during use. It is important to note that for mounting plates with 1-3/8" to 1-5/8" overlays, an additional screw is required to enhance stability after height adjustments. This extra step guarantees a solid installation, ensuring that your cabinetry remains functional and visually pleasing. The product is packaged for convenient shipping via UPS, making it easy to incorporate into your next project. Each plate comes with #6 x 5/8" screws for a quick and efficient setup. The edge-mount design simplifies the installation process, allowing for a seamless integration into your cabinetry. With its combination of quality materials and thoughtful design, the Richelieu COMPACT 33 Edge-Mount Mounting Plate is a reliable choice for building professionals and discerning homeowners seeking durability and style.

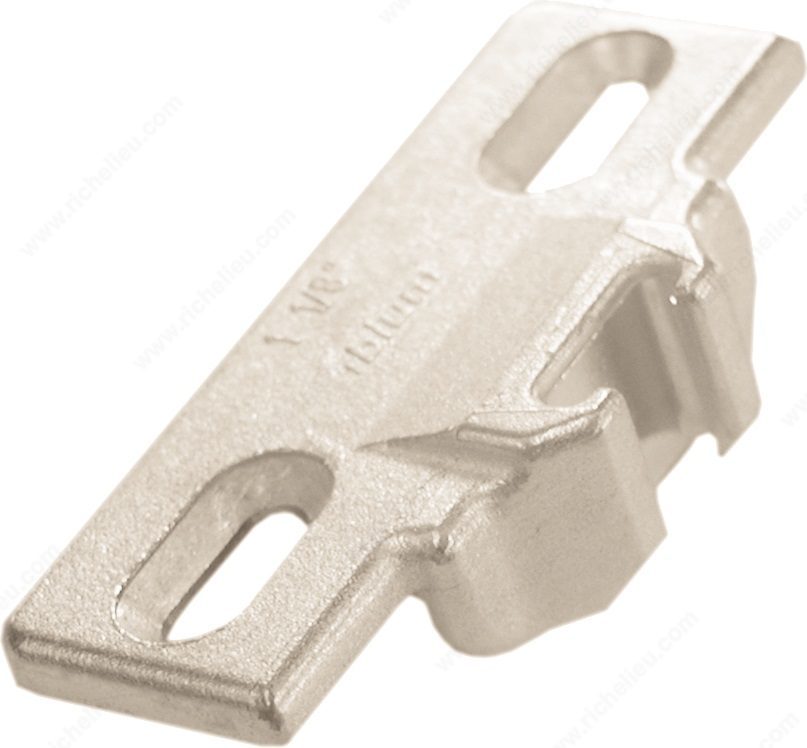

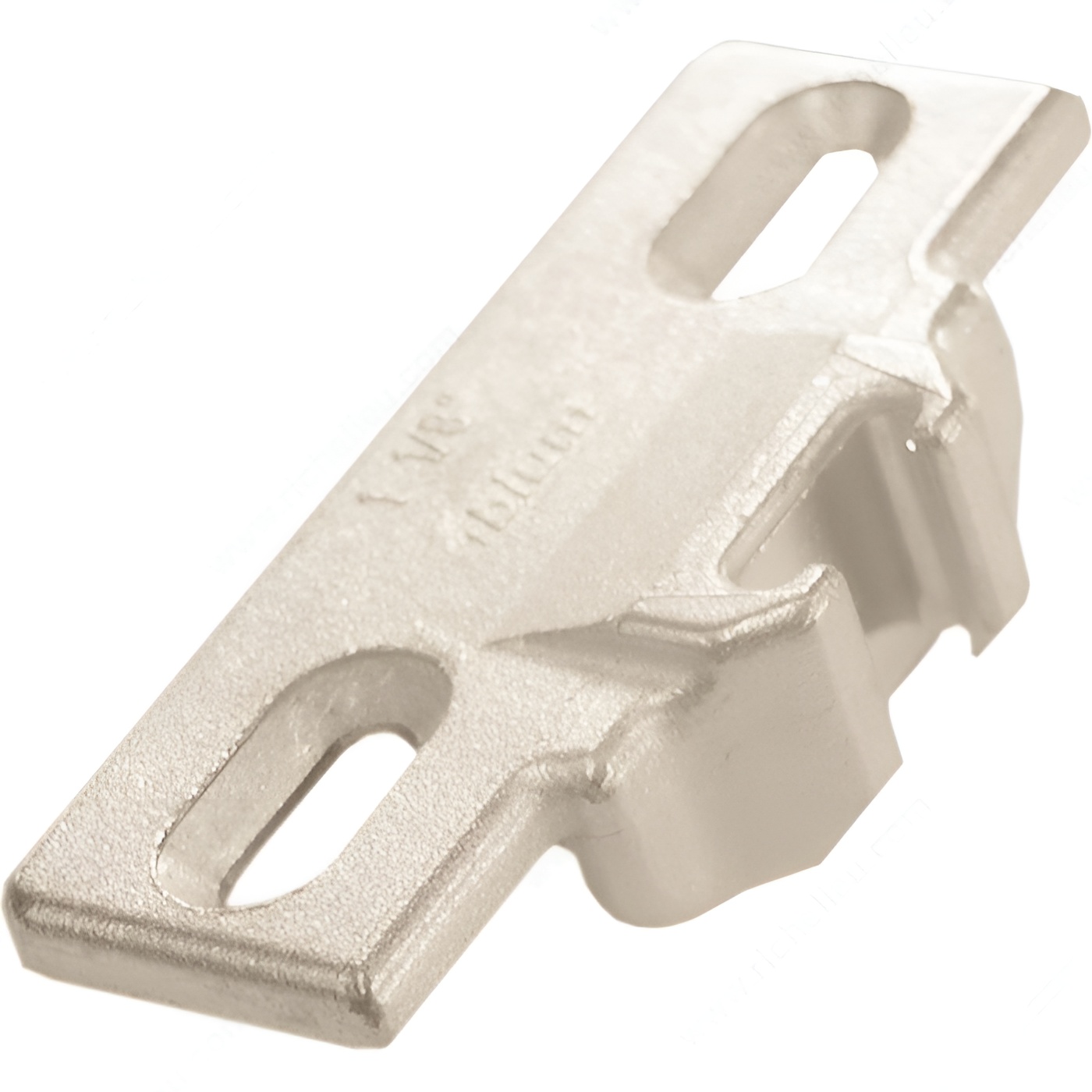

COMPACT 33 Edge-Mount Mounting Plate
Important information
Door Position: Full Overlay
Fastener: #6 x 5/8" Screws
Finish: Nickel
Material: Die-Cast Zinc
Overlay: 1 1/8 in
Packaging Specifications: Not Applicable
Product #: 130112180
Product number: 130112180
Type: Edge Mount
Unit 1: case - 250
