Richelieu 203502100 Smart Corner III Frame, Right Opening offers a sophisticated solution for corner cabinet organization. Designed for frameless cabinets, this door-mounted sliding system features a soft-closing mechanism that enhances both functionality and convenience. The system accommodates door widths ranging from 17 3/4 to 23 5/8 inches, ensuring a perfect fit for various cabinet styles. With a robust load rating of up to 77.2 lbs, this metal frame is built to withstand daily use while maintaining stability. It requires specific interior dimensions for optimal installation: a minimum height of 22 inches, a depth between 18 1/2 to 19 7/8 inches, and a width between 33 7/8 to 46 inches. To facilitate smooth operation, the opening width required is between 16 1/8 to 22 inches. Available in a sleek gray finish, the Richelieu Smart Corner III Frame not only streamlines access to your stored items but also complements modern kitchen aesthetics. Ideal for food storage, preparation, and general storage needs, this system is a perfect choice for homeowners and builders seeking to maximize space efficiency in kitchen designs. Enjoy the seamless blend of style and practicality with this exceptional corner cabinet solution.
Smart Corner III Frame, Right Opening
Area of Activity: Food Storage, Storage, Preparation
Cabinet Type: Frameless Cabinet
Door Width: 450 to 600 mm
Finish: Gray

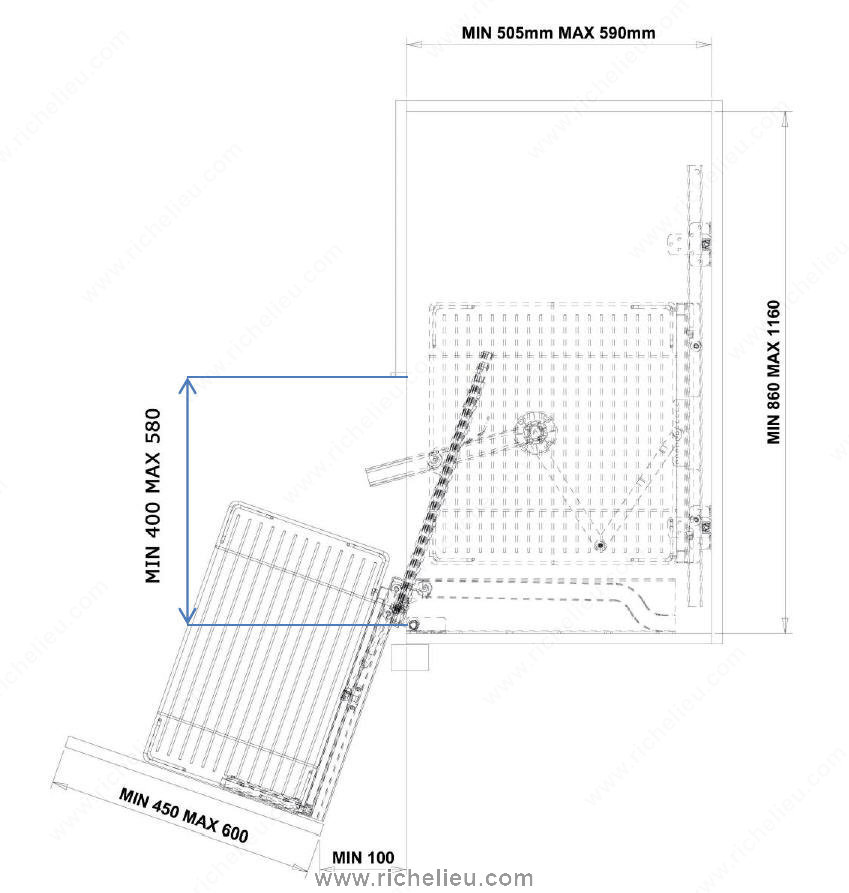

Interior Dimensions Required - Depth: 505 to 590 mm
Interior Dimensions Required - Height: 655 to 800 mm
Interior Dimensions Required - Width: 860 to 1 160 mm
Load Rating: Max. 30 kg
Material: Metal
Opening: Right Side
Opening Width Required: 400 to 580 mm
Product #: 203502100
Product number: 203502100
Product №: 203502100
Solutions: Corner Cabinets
Unit: Box
