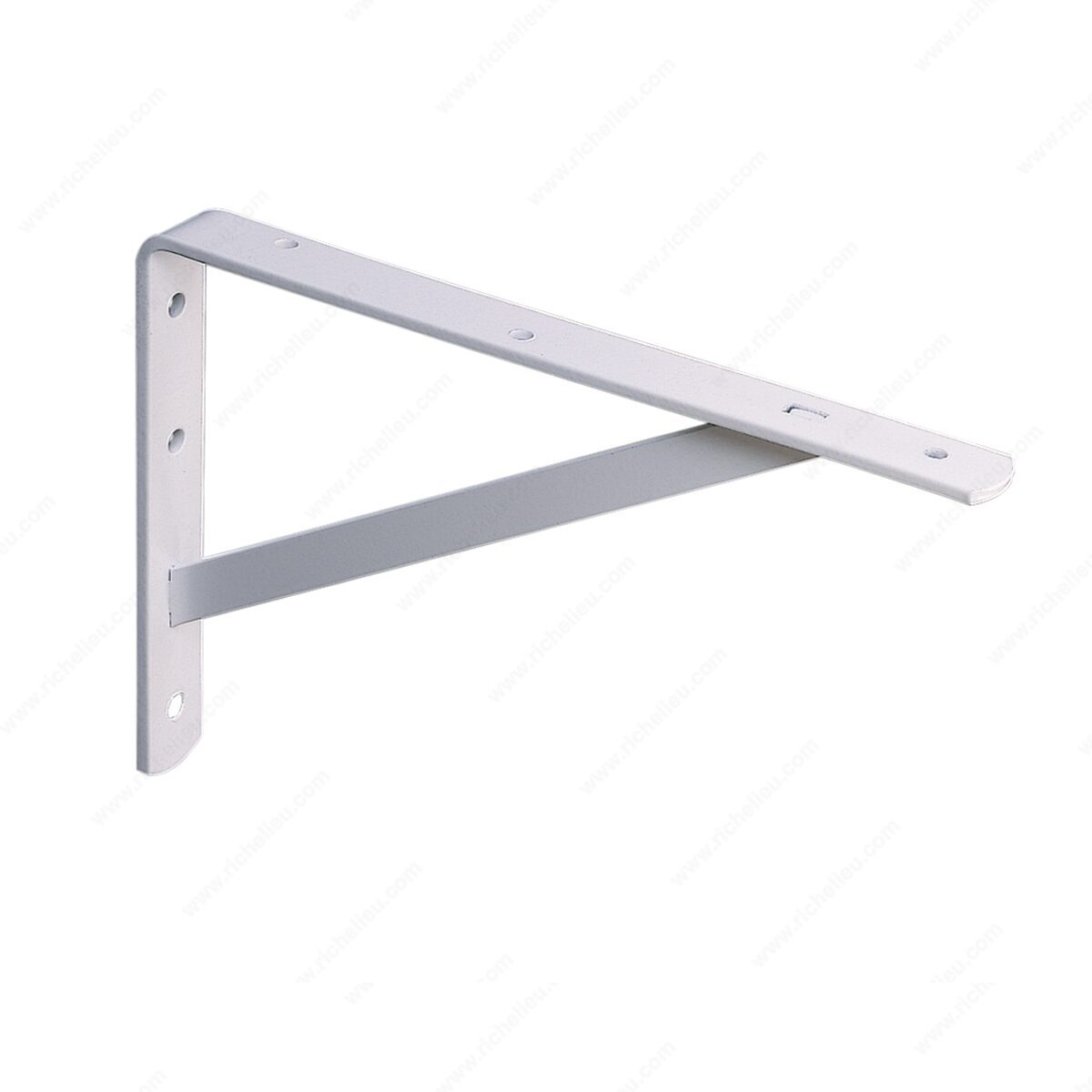

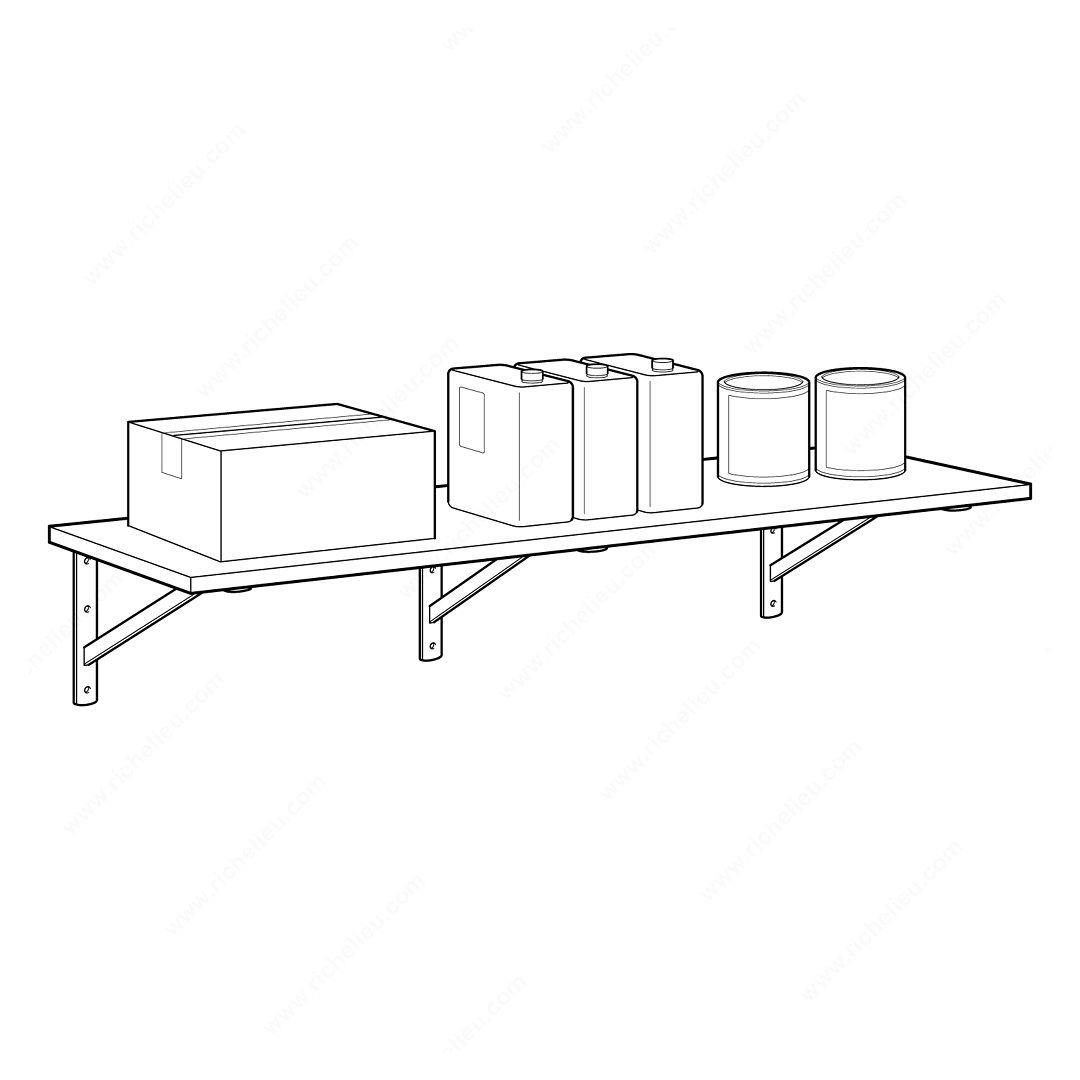

Richelieu 20830030 Heavy Duty Bracket is engineered to support extra heavy loads, making it a reliable choice for various applications in commercial, industrial, and residential settings. Whether you're looking to reinforce countertops, work surfaces, or shelves, this bracket excels in areas that experience frequent handling and rough usage. Constructed from durable steel, the 20830030 features a robust 5 mm (3/4") support strut that ensures exceptional strength, with a maximum load capacity of up to 1,200 lbs per pair when installed correctly. This impressive strength is complemented by its corrosion-resistant finish, guaranteeing long-lasting performance in diverse environments. With BHMA Grade 2 compliance, you can trust in its quality and reliability. For optimal installation, it is recommended to use 3" or longer 5/16" lag screws for wall mounting, along with #8 or larger screws for securing shelves. The bracket is available in a sleek white finish and has overall dimensions of 11-3/4 inches in projection and 1-1/4 inches in width, accommodating shelf thicknesses of 3/16 inches. When you need dependable support for heavy loads, the Richelieu 20830030 Heavy Duty Bracket is the ideal solution.
Heavy Duty Bracket
Application
Color/ Finish: White
Material: Steel
Maximum Load Capacity per Pair: 1 200 lb
Maximum Load Capacity per Shelf: 1 200 lb
Product #: 20830030
Projection - Overall Dimensions: 11-3/4 in*
Shelf Thickness: 3/16 in*
Standards and Certifications: ANSI
Width - Overall Dimension: 1-1/4 in*
