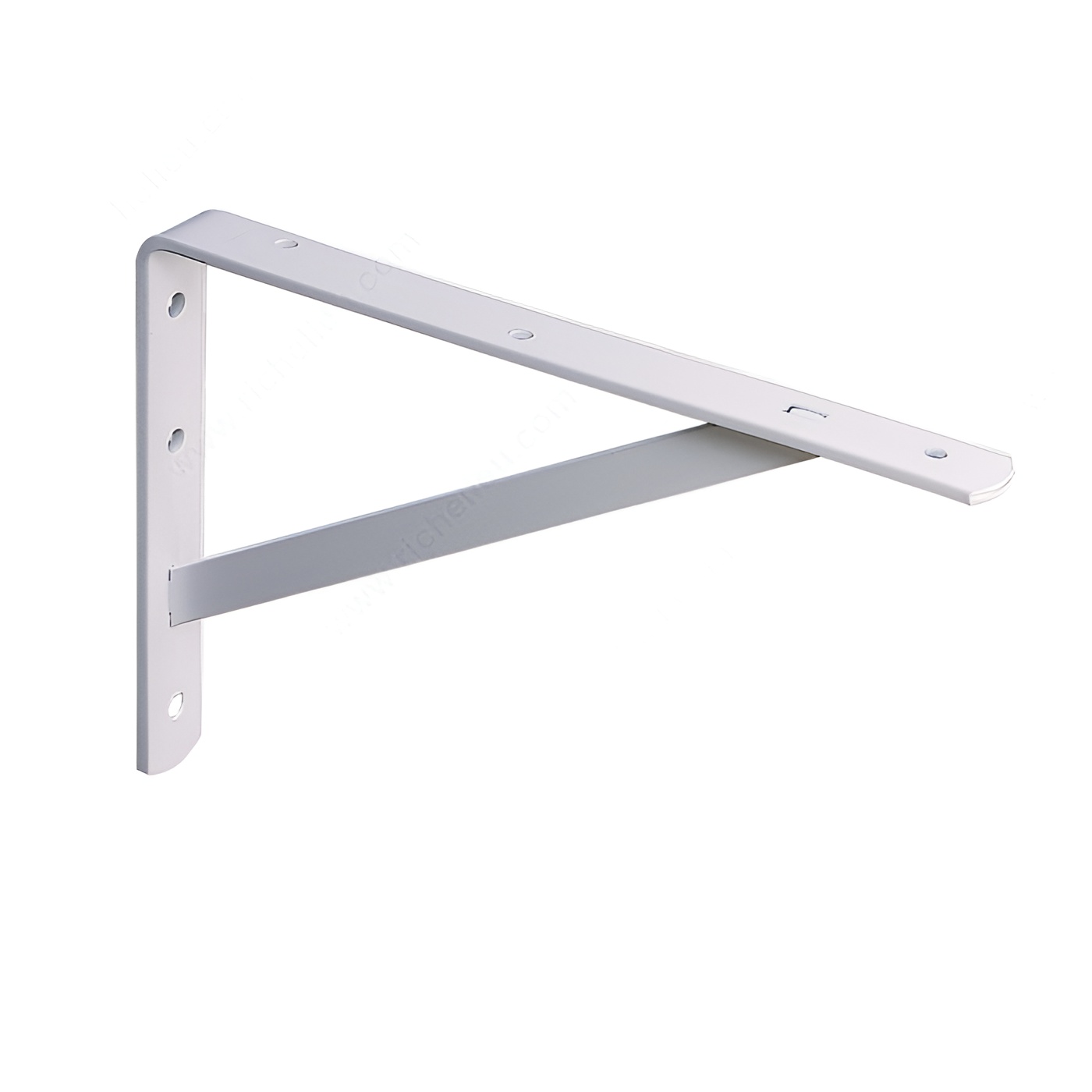

Richelieu 20830090 Heavy Duty Bracket is engineered to provide unparalleled support for extra heavy loads, making it an ideal choice for commercial, industrial, and residential applications. This robust bracket is perfect for supporting countertops, work surfaces, and shelves in environments that require durability and strength, especially in areas subjected to frequent use and rough handling. Constructed from high-quality steel, the bracket features a 5 mm (3/4") support strut, enabling it to hold up to 1,200 lbs per pair when properly installed. Its corrosion-resistant finish ensures longevity, even in challenging conditions. The bracket is also BHMA Grade 2 compliant, meeting stringent industry standards for reliability and safety. Installation is straightforward with recommended fasteners, including 3" or longer 5/16" lag screws for wall mounting and #8 or larger screws for securing the shelf. With an overall projection of 11 3/4 inches and a width of 1 1/4 inches, the Richelieu 20830090 Heavy Duty Bracket is designed to accommodate shelves with a thickness of 3/16 inches. Whether you're outfitting a busy kitchen or a professional workspace, this heavy-duty bracket delivers the strength and stability needed to support your most demanding projects.
Heavy Duty Bracket
Application
Color/ Finish: Black
Material: Steel
Maximum Load Capacity per Pair: 1 200 lb
Maximum Load Capacity per Shelf: 1 200 lb
Product #: 20830090
Product number: 20830090
Product №: 20830090

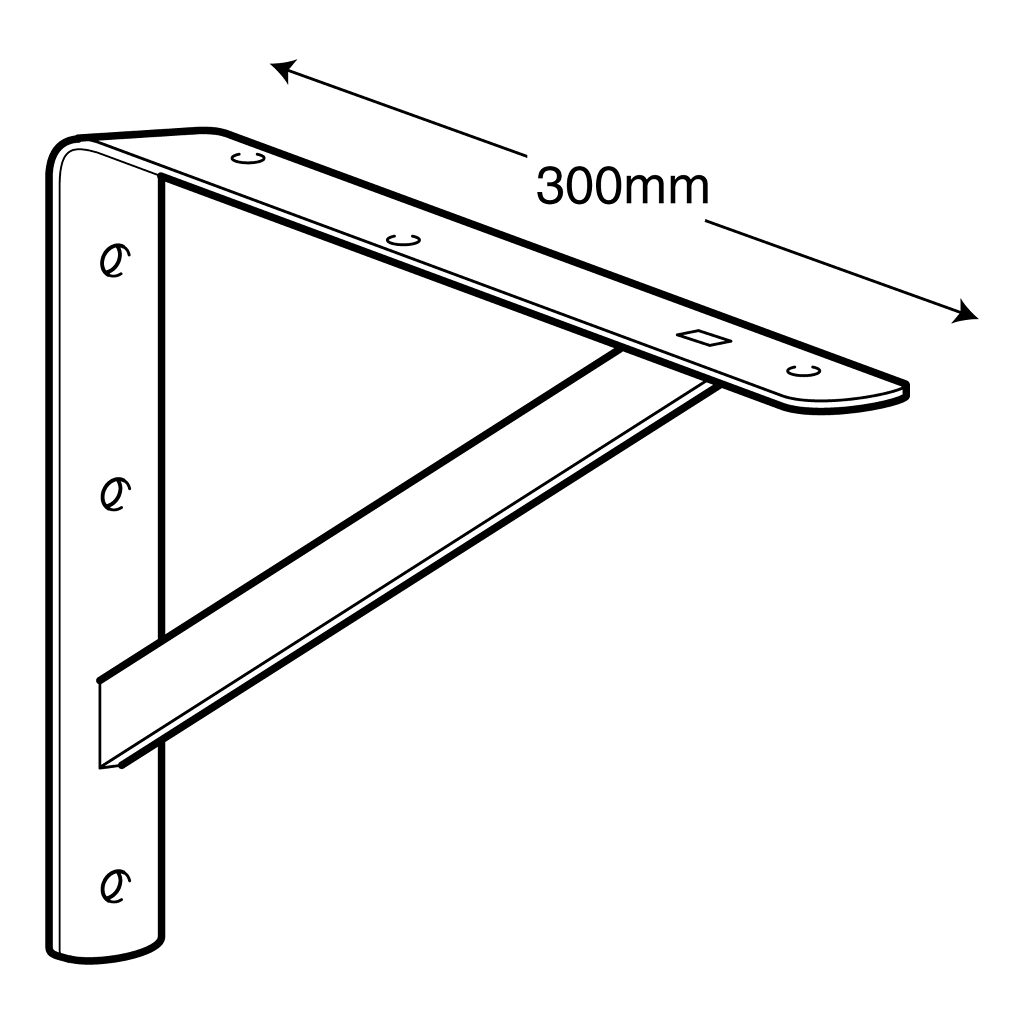

Projection - Overall Dimensions: 300 mm
Shelf Thickness: 5 mm
Shelf Width: 30 cm
Standards and Certifications: ANSI
Unit 1: case - 10
Width - Overall Dimension: 32 mm
