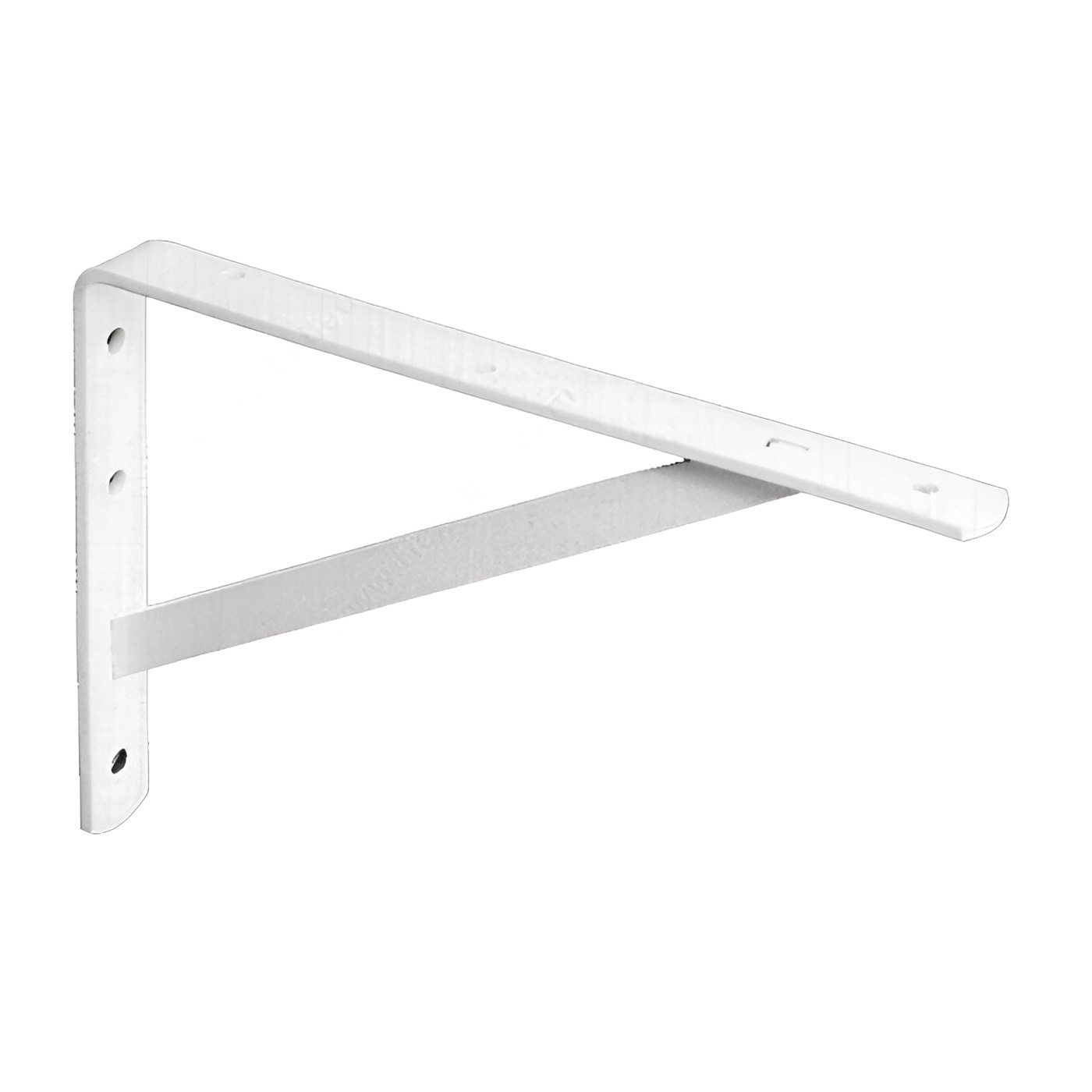

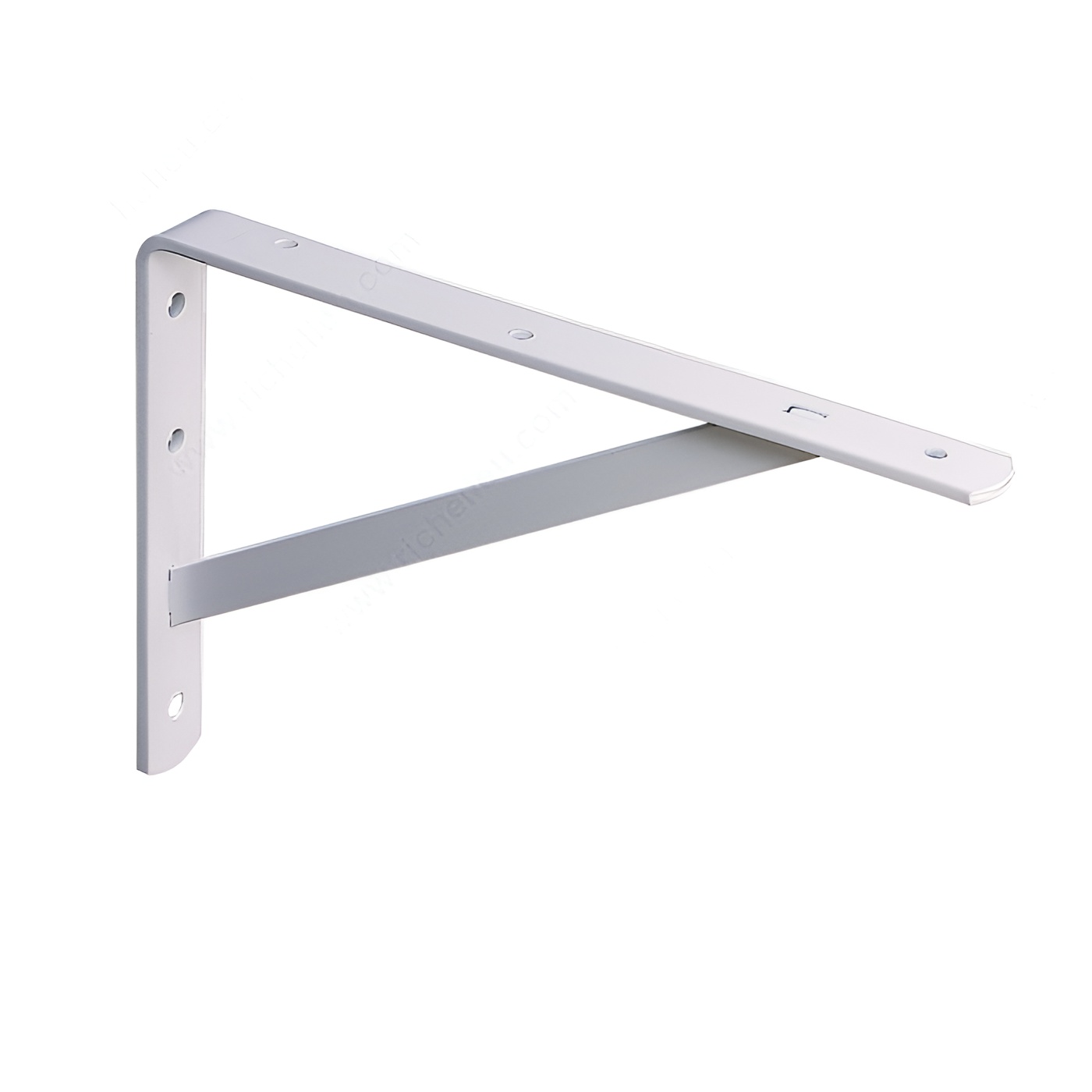

Richelieu 20840030 Heavy Duty Bracket is engineered to support extra heavy loads, making it an exceptional choice for commercial, industrial, and residential applications. Whether you need to hold up countertops, work surfaces, or shelves, this bracket is designed to withstand frequent use and rough handling. Constructed with a robust 5 mm (3/4") steel support strut, it offers unparalleled strength, with a maximum load capacity of up to 1,200 lbs per pair when properly installed. This heavy-duty bracket complies with BHMA Grade 2 standards, ensuring reliability and durability in various environments. Its corrosion-resistant finish adds to its longevity, making it suitable for both indoor and outdoor use. For optimal installation, it is recommended to use 3" or longer 5/16" lag screws for wall mounting and #8 or larger screws for securing shelves. The overall dimensions of the bracket include a projection of 15 3/4 inches and a width of 1 1/4 inches, accommodating a shelf thickness of 3/16 inches. With its practical design and impressive strength, the Richelieu 20840030 Heavy Duty Bracket is a vital component for any project requiring dependable support.
Heavy Duty Bracket
Application
Color/ Finish: White
Material: Steel
Maximum Load Capacity per Pair: 1 200 lb
Maximum Load Capacity per Shelf: 1 200 lb
Product #: 20840030
Product number: 20840030
Product №: 20840030

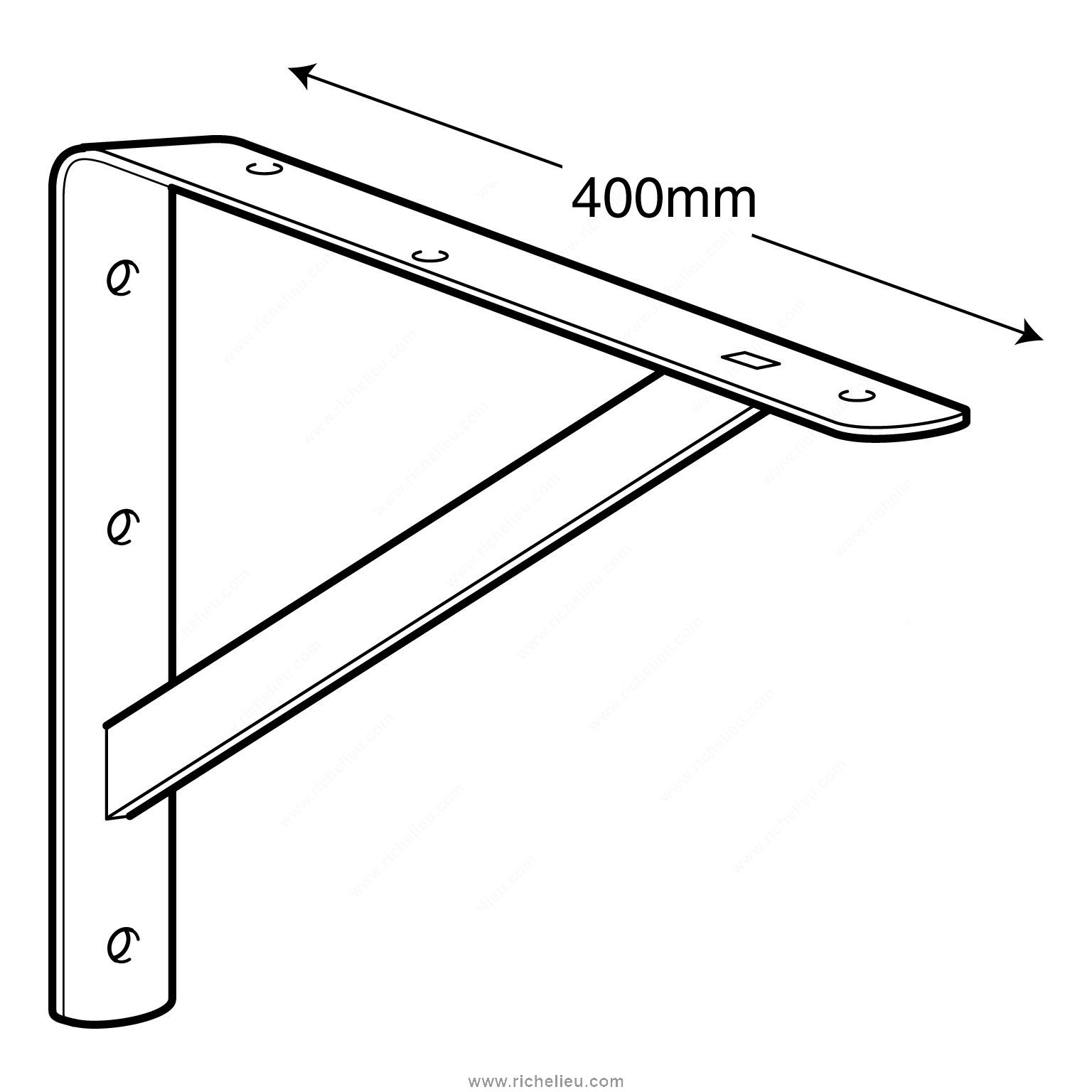

Projection - Overall Dimensions: 400 mm
Shelf Thickness: 5 mm
Shelf Width: 40 cm
Standards and Certifications: ANSI
Unit 1: case - 10
Width - Overall Dimension: 32 mm
