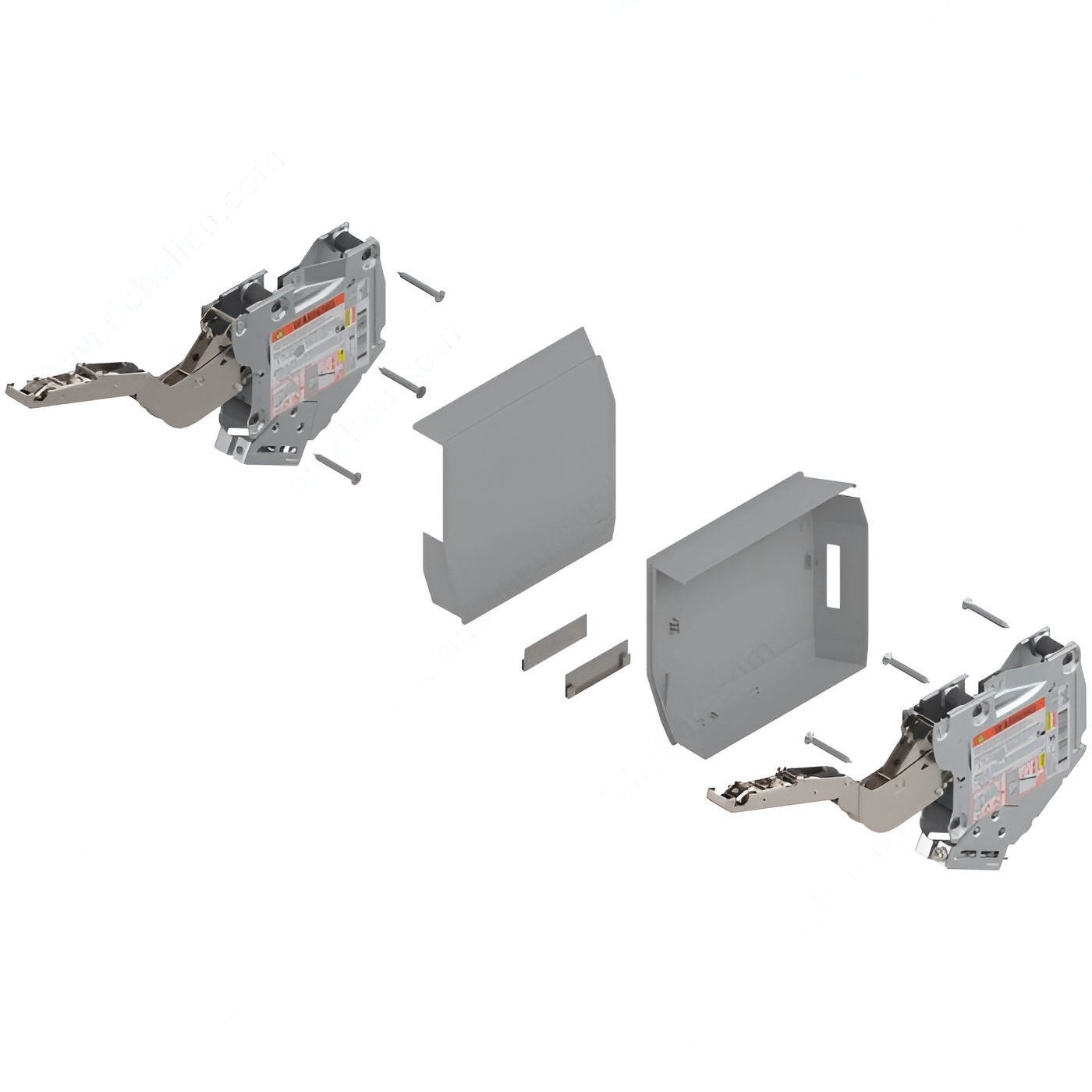

Richelieu 20K2B00N6 AVENTOS HK-S Opening Mechanism is designed to bring elegance and functionality to small cabinets with a minimum internal height of 150 mm (5 7/8 in). This innovative hinged lift door mechanism offers a clean aesthetic that seamlessly integrates into various furniture designs, providing maximum ease of movement. The AVENTOS HK-S mechanism features a soft-close motion technology, ensuring a gentle and controlled closing action. It supports doors with a height range of 7 5/32 to 15 3/4 inches and a maximum length of 70 7/8 inches, accommodating various cabinet configurations. With a load capacity ranging from 1.32 to 7.28 pounds, it is ideal for lightweight applications. Crafted from durable steel and finished in light gray, the mechanism boasts a hinge opening angle of +107°, allowing for optimal access to cabinet contents. The minimum internal depth required is 6 13/32 inches, making it suitable for compact spaces. This system type B mechanism is designed for use on both sides, enhancing flexibility in installation. For those looking to enhance their cabinetry with a sophisticated lift-up opening solution, the Richelieu AVENTOS HK-S is a reliable choice that combines style and performance.
AVENTOS HK-S Opening Mechanism
Brand: Blum
Compatible with aluminum frame doors: Yes
Door Height: 7 5/32 to 15 3/4 in*
Door Length: Max. 70 7/8 in*
Finish: Light Gray
Fixing with: Pre-Mounted Euro Screws
Hinge Opening Angle: +107°
LF Power Factor: 220-500
Load Capacity: 1.32 to 7.28 lb*
Material: Metal
Mechanism Strength: Light Weight
Minimum internal depth of the enclosure: 6 13/32 in*
Model: Aventos HK-S
Motion Technology: Soft-Close
Opening Angle: 107°
Product #: 20K2B00N6
Product range: AVENTOS
Side: Both
Specific Range(s): AVENTOS HK-S
System Type: B
Type of Opening: Lift-Up Opening
