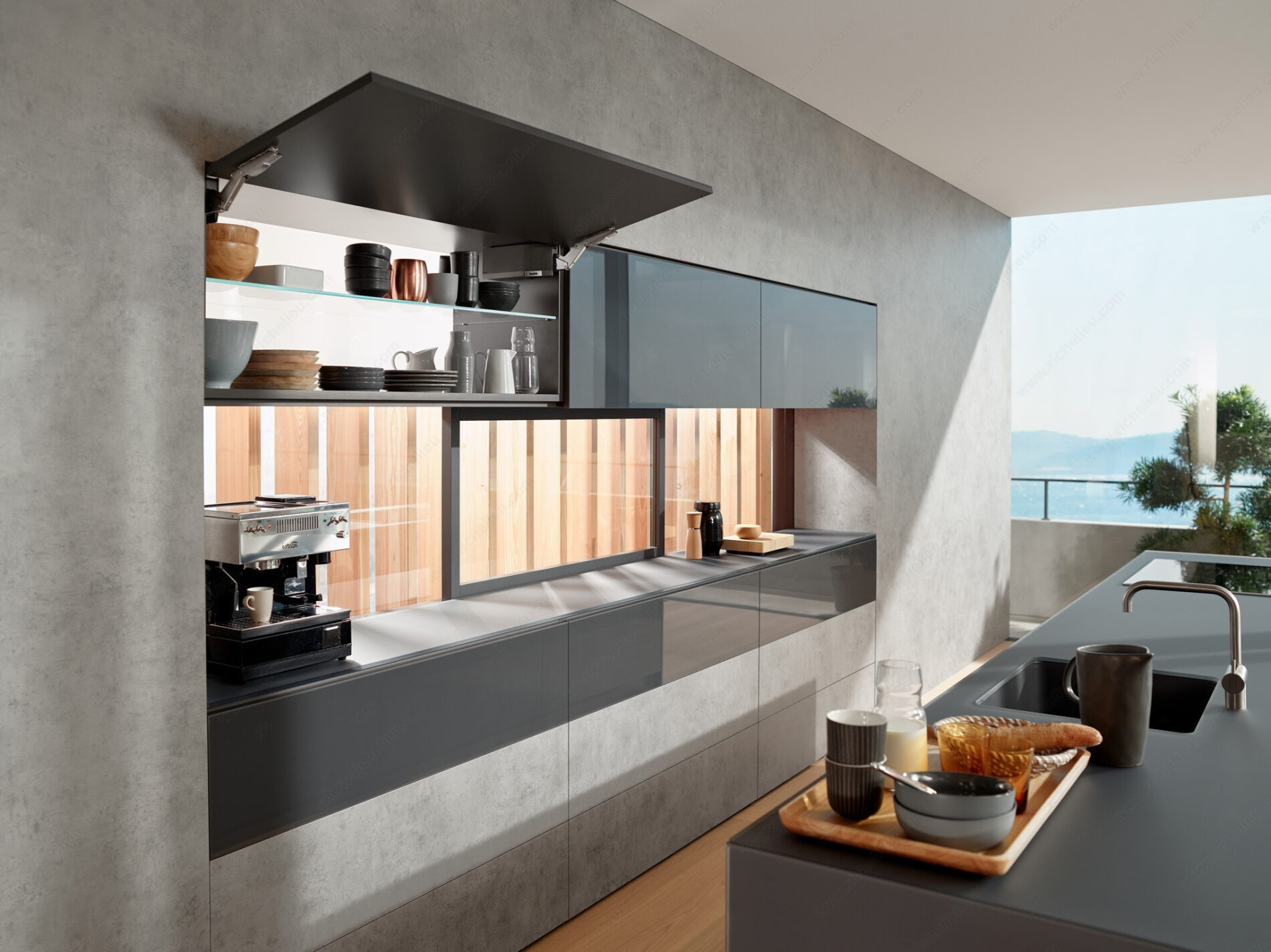

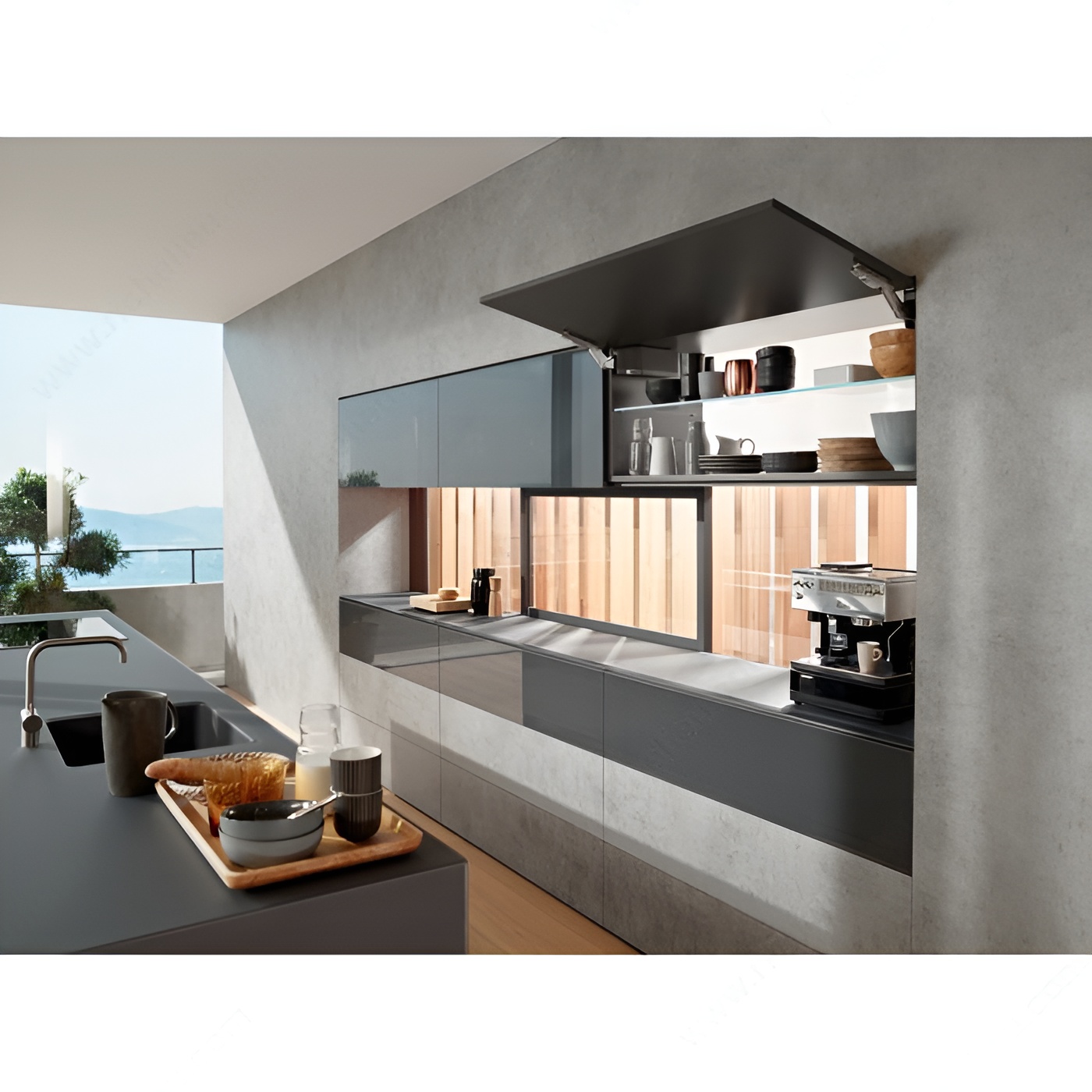

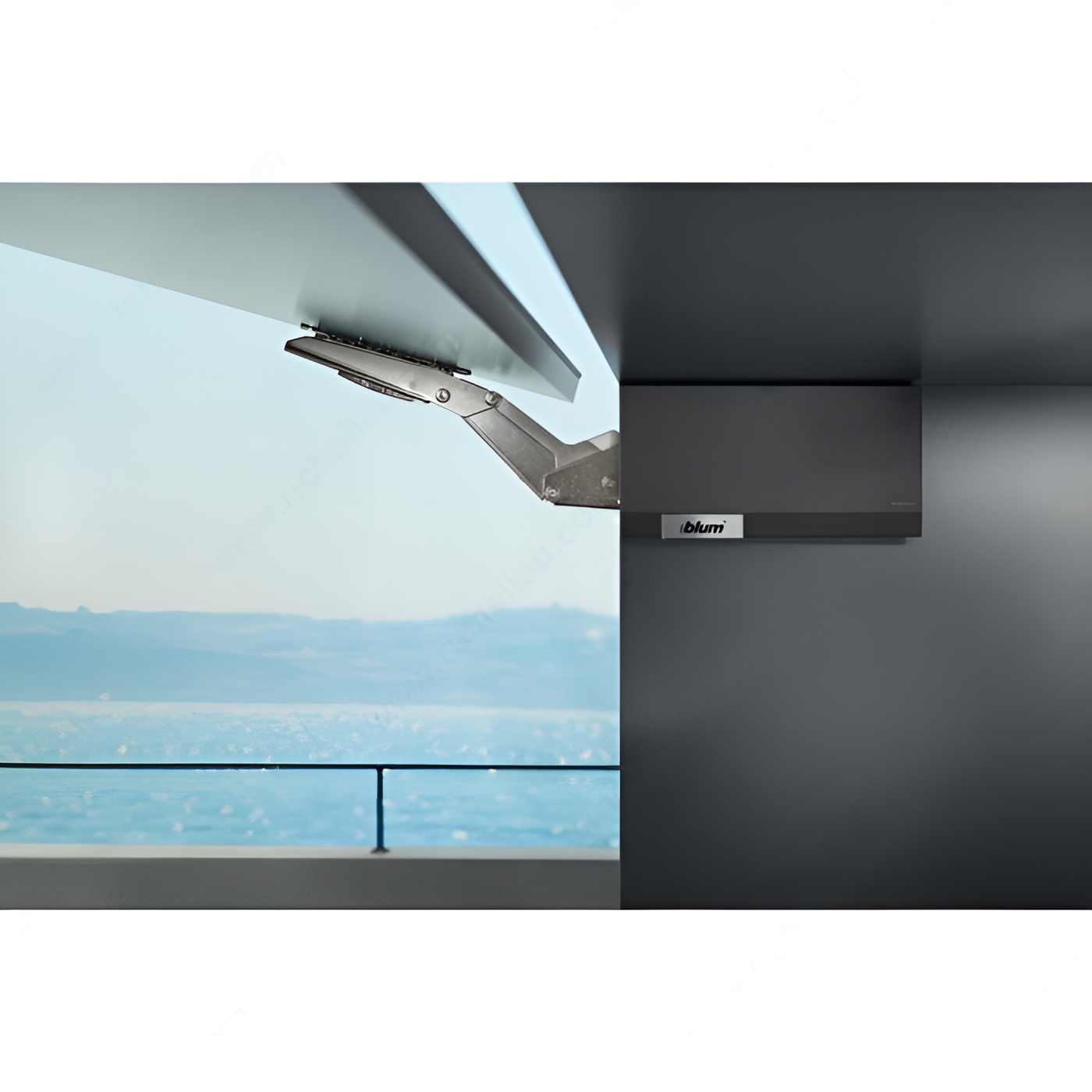

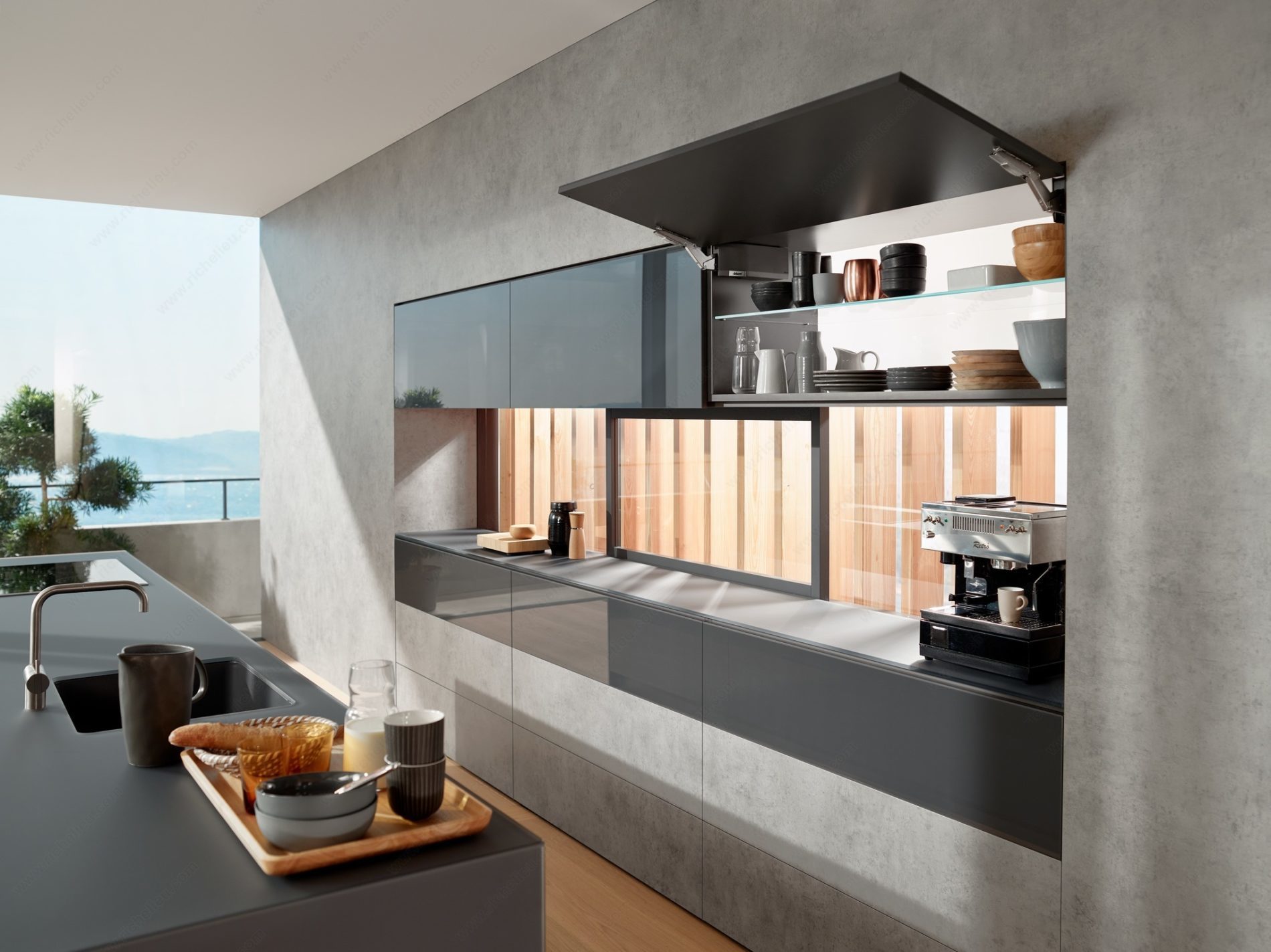

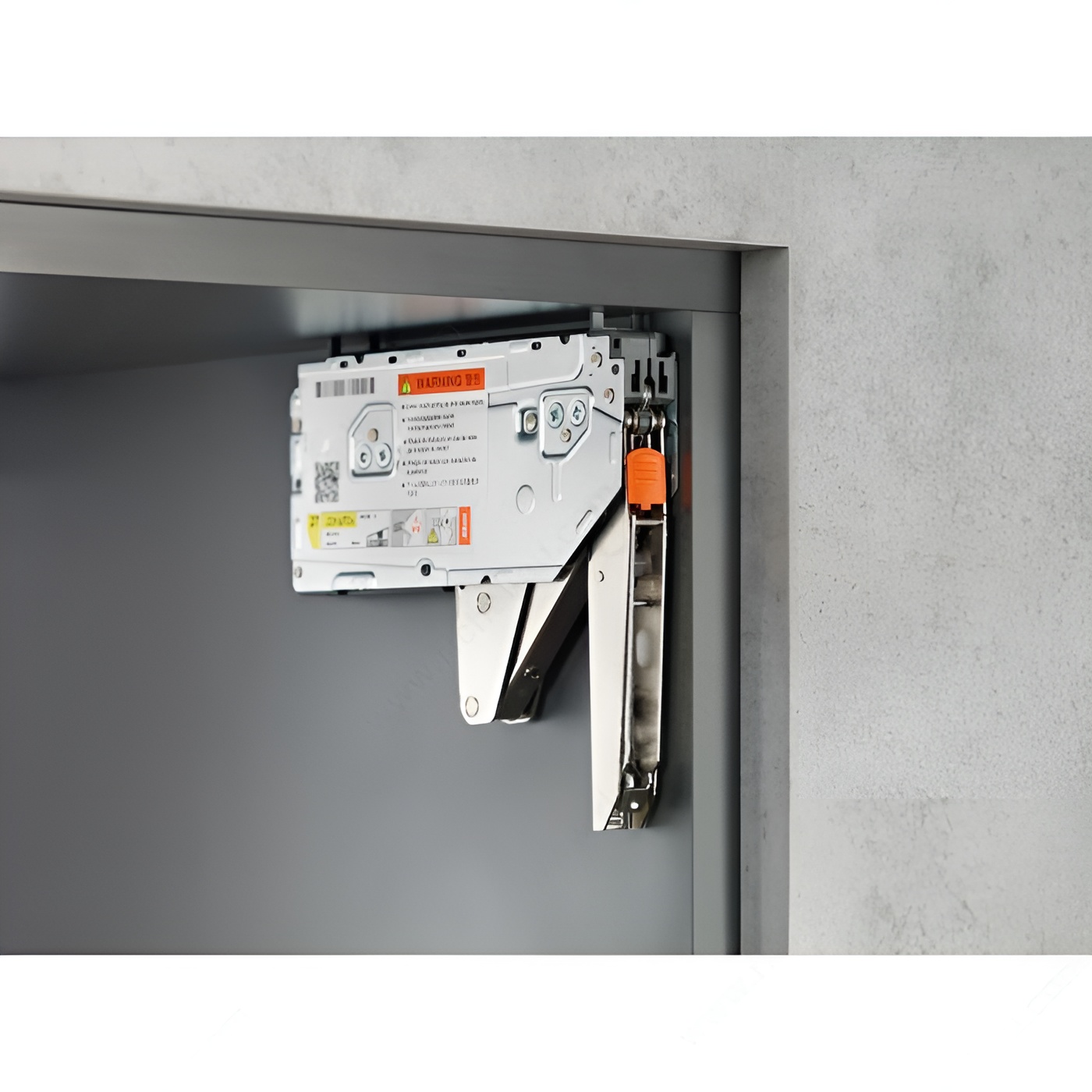

Richelieu 22K2700 AVENTOS HK Top Opening Mechanism offers a seamless solution for enhancing the functionality and aesthetics of top wall cabinets. Designed to blend discreetly into cabinetry, this mechanism allows the furniture's design to take center stage while providing ease of access. Ideal for both small and large wall cabinets, it supports door heights ranging from 8 1/16 to 23 5/8 inches and a maximum door length of 70 7/8 inches, accommodating various cabinet sizes. The AVENTOS HK features a heavy-duty steel construction with a load capacity of up to 39.7 pounds, ensuring durability and reliability. Its lift-up opening mechanism boasts a hinge opening angle of +107°, allowing for effortless access. An integrated opening angle stop simplifies adjustments, while the soft-close motion technology provides a smooth and controlled closure. With a minimum internal depth requirement of just 7 3/8 inches, this mechanism is versatile enough for various designs. Installation is straightforward, utilizing wood screws (included) and a positioning template for precise placement. The chic grey finish enhances its modern appeal, making the Richelieu AVENTOS HK an invaluable addition to any cabinetry project.
AVENTOS HK top Opening Mechanism
Application
Brand: Blum
Door Height: 205 to 600 mm
Door Length: Max. 1 800 mm
Finish: Grey
Fixing with: Wood Screws Ø4 x 35 mm (included)
Hinge Opening Angle: +107°
LF Power Factor: 1730-5200
LF Power factor: 1730-5200
Load Capacity: Max. 18 kg
Material: Steel
Mechanism Strength: Heavy Weight
Minimum internal depth of the enclosure: 7 3/8 in*
Motion Technology: Soft-Close
Product #: 22K2700
Product number: 22K2700
Product range: AVENTOS top
Screw/ Nail: Positioning Template
Side: Both
Specific Range(s): AVENTOS HK top
System Type: Arm
Type of Opening: Lift-Up Opening
Unit: Box
Unit 2: skid - 324
