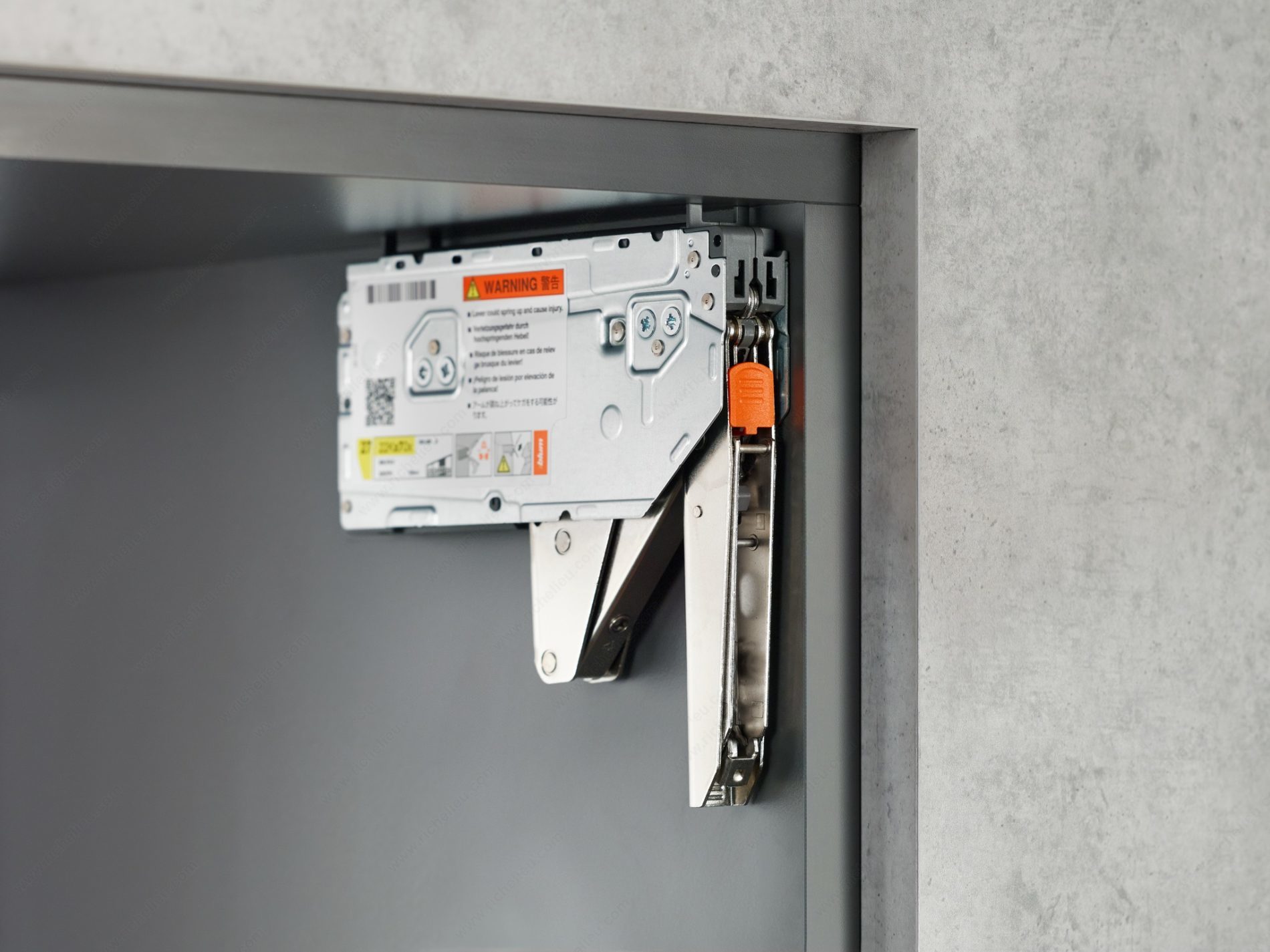

Richelieu 22K2700T AVENTOS HK Top Opening Mechanism offers an innovative solution for enhancing the functionality and aesthetic appeal of your top wall cabinets. Designed to blend seamlessly into cabinetry, this mechanism emphasizes the overall design while providing convenient access to stored items. The AVENTOS HK top is particularly well-suited for smaller cabinets, yet it is robust enough to support larger wall units, boasting a load capacity of up to 39.7 lbs. With an opening angle of +100°, this mechanism allows for effortless lift-up access, making it ideal for everyday use. The integrated opening angle stop ensures that doors remain securely in place, while the infinitely variable opening distance can be customized to meet specific needs. The mechanism features advanced motion technology, including Touch Release and Soft-Close functions, ensuring a smooth and quiet operation. Constructed from durable steel with a sleek grey finish, the AVENTOS HK is designed to withstand the rigors of daily use. Installation is straightforward, utilizing included wood screws and a positioning template for precise placement. Designed for versatility, this arm-type mechanism can be used on both sides, making it an excellent choice for any cabinetry project.
AVENTOS HK top Opening Mechanism
Application
Brand: Blum
Door Height: 8 1/16 to 23 5/8 in*
Door Length: Max. 70 7/8 in*
Finish: Grey
Fixing with: Wood Screws Ø4 x 35 mm (included)
Hinge Opening Angle: +100°
LF Power Factor: 1730-5200
LF Power factor: 1730-5200
Load Capacity: Max. 39.7 lb*
Material: Steel
Mechanism Strength: Heavy Weight
Minimum internal depth of the enclosure: 7 3/8 in*
Motion Technology: Touch Release / Soft-Close
Product #: 22K2700T
Product range: AVENTOS top
Screw/ Nail: Positioning Template
Side: Both
Specific Range(s): AVENTOS HK top
System Type: Arm
Type of Opening: Lift-Up Opening
