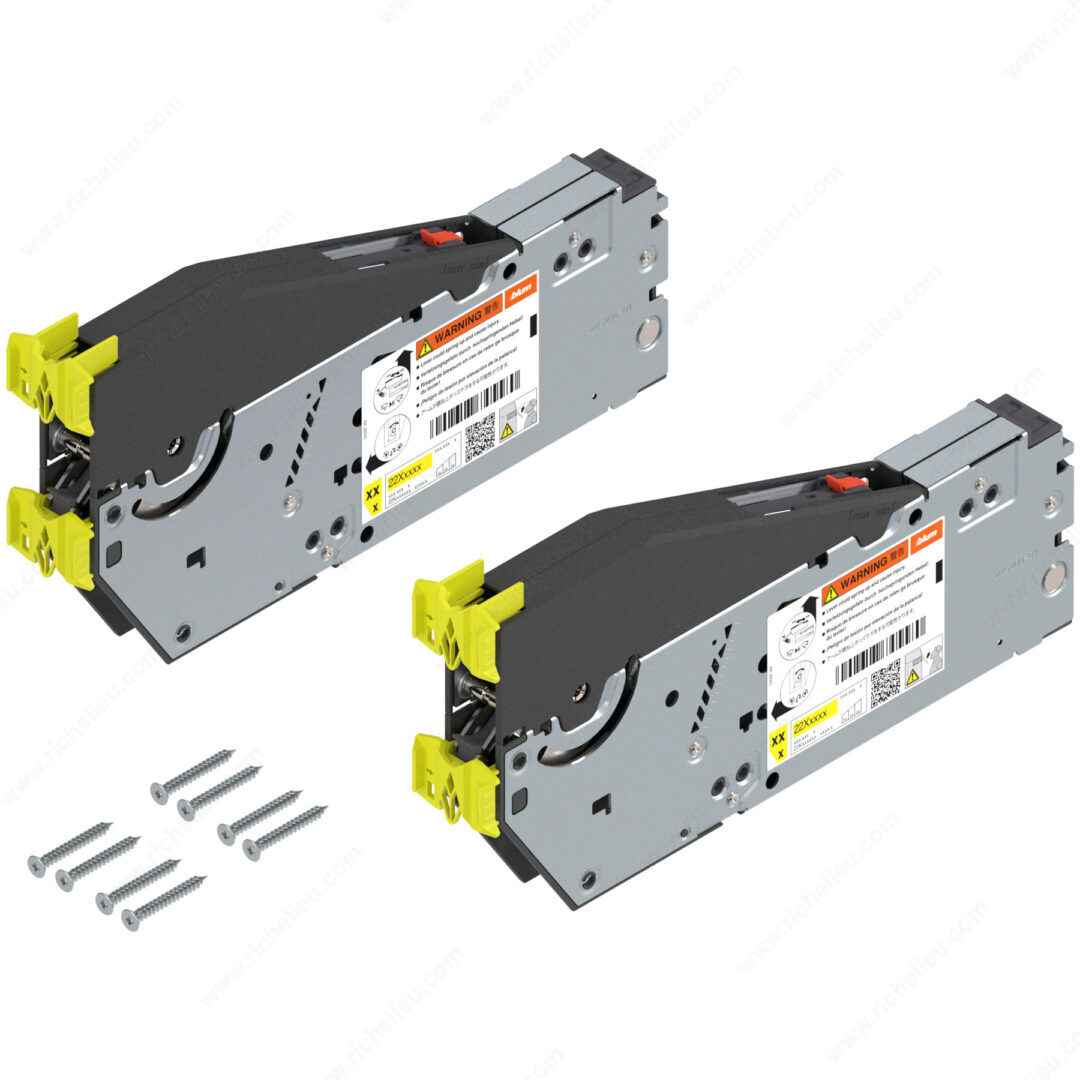

Richelieu 22S2500 AVENTOS HS Top-Opening Mechanism

Richelieu 22S2500 AVENTOS HS Top-Opening Mechanism

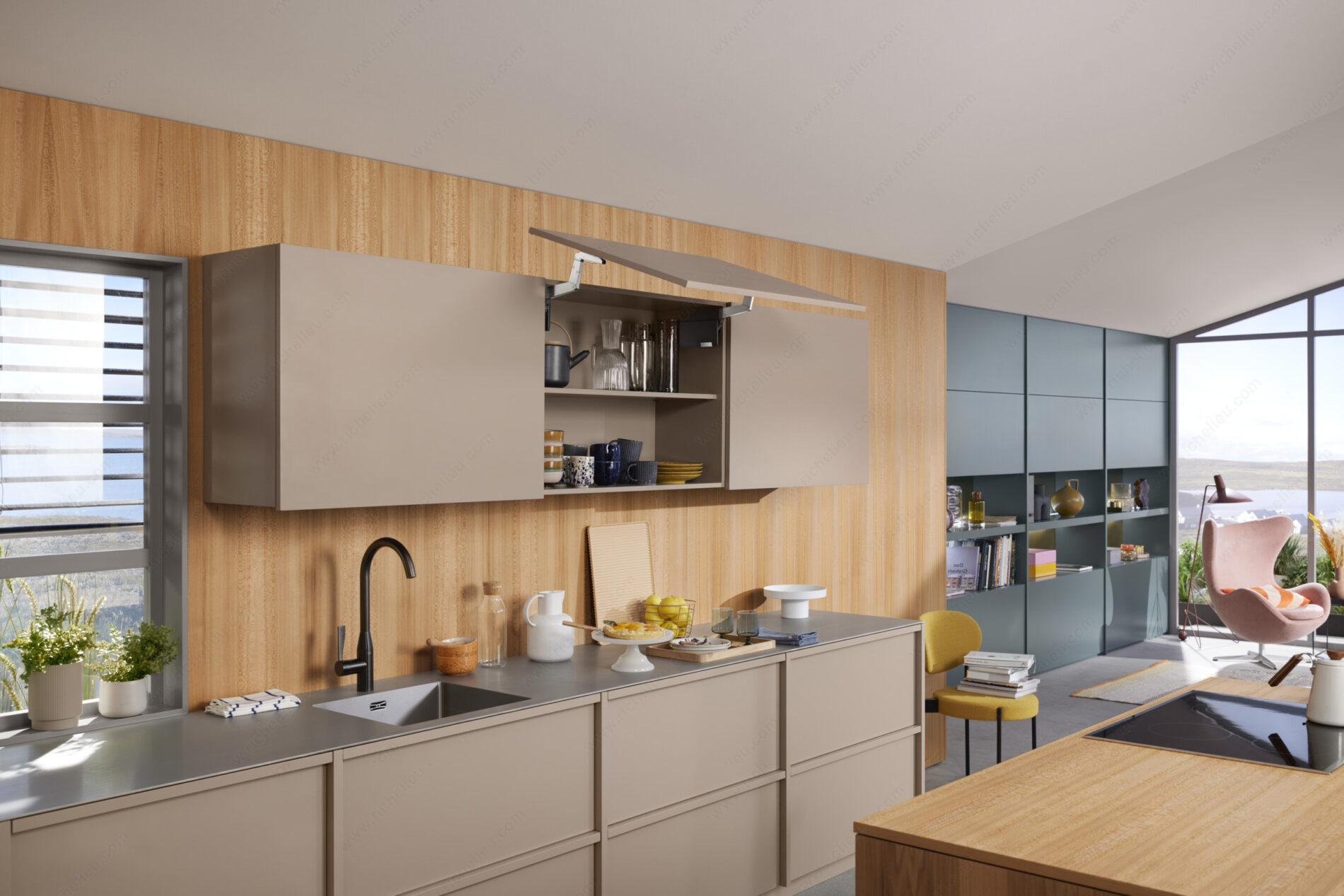

Richelieu 22S2500 AVENTOS HS Top Opening Mechanism offers an innovative solution for lift-up flap doors, making it ideal for both wide, one-piece fronts and tall cabinets adorned with cornices or arches. This mechanism ensures a seamless user experience with effortless opening and a soft, silent closing, thanks to the integrated BLUMOTION dampening feature. Designed for versatility, the AVENTOS HS accommodates wooden fronts, aluminum frames, and thin materials starting at just 8 mm. Its symmetrical power mechanism, coupled with a cross stabilizer, provides high stability for larger doors, supporting weights from 6.06 to 33.6 lb. Installation is a breeze with the CLIP technology, allowing quick assembly and disassembly without the need for tools. The continuous adjustment capability means that the lift-up flap door can stop at any desired position, while precise three-dimensional front adjustments ensure that your installation looks flawless. With a compact fitting that requires only 264 mm of cabinet depth, this mechanism is adaptable to cabinet heights of 350 to 800 mm and widths up to 1,800 mm. For a handle-free design, it can also be paired with the SERVO-DRIVE electrical motion support system, enhancing both functionality and aesthetics.

AVENTOS HS top Opening Mechanism

- Ideal for wide, one-piece fronts
- Also suitable for tall cabinets with cornices and arches
- Easy opening, seamless stop, and soft, silent closing thanks to the integrated BLUMOTION dampening
- Precise and harmonious gap adjustment through three-dimensional front adjustment
- Quick assembly and disassembly thanks to the CLIP technology
- Can be combined with SERVO-DRIVE for handle-free fronts

Blum AVENTOS HS for lift-up flap doors. Fitting for lift-up flap doors. Suitable for wooden fronts, wide and narrow aluminum frames, and thin fronts starting at 8 mm. Symmetrical power mechanism with spring packs. The lift-up flap door stops in any position thanks to the continuous adjustment of the power mechanism. High stability for large and wide fronts thanks to the cross stabilizer. Integrated dampening for both opening and closing. Removable arm pack. Quick, easy, and tool-free front assembly using clip technology. The power mechanism can also be installed on the free side of the cabinet. No protruding parts above the cabinet. Compatible with the SERVO-DRIVE electrical motion support system.

For cabinet heights of 350 to 800 mm and widths up to 1,800 mm.
Three-dimensional front adjustment: Height ± 2 mm, Side ± 2 mm, Depth ± 2 mm.

AVENTOS HS top improvements:

- Compact fitting
- Requires only a shallow cabinet depth of 264 mm
- Convenient and easy power mechanism adjustment from the front
- NO cross stabilizer required
- Suitable for wooden fronts, wide/narrow aluminum frames, thin fronts, miter, and rebated applications
