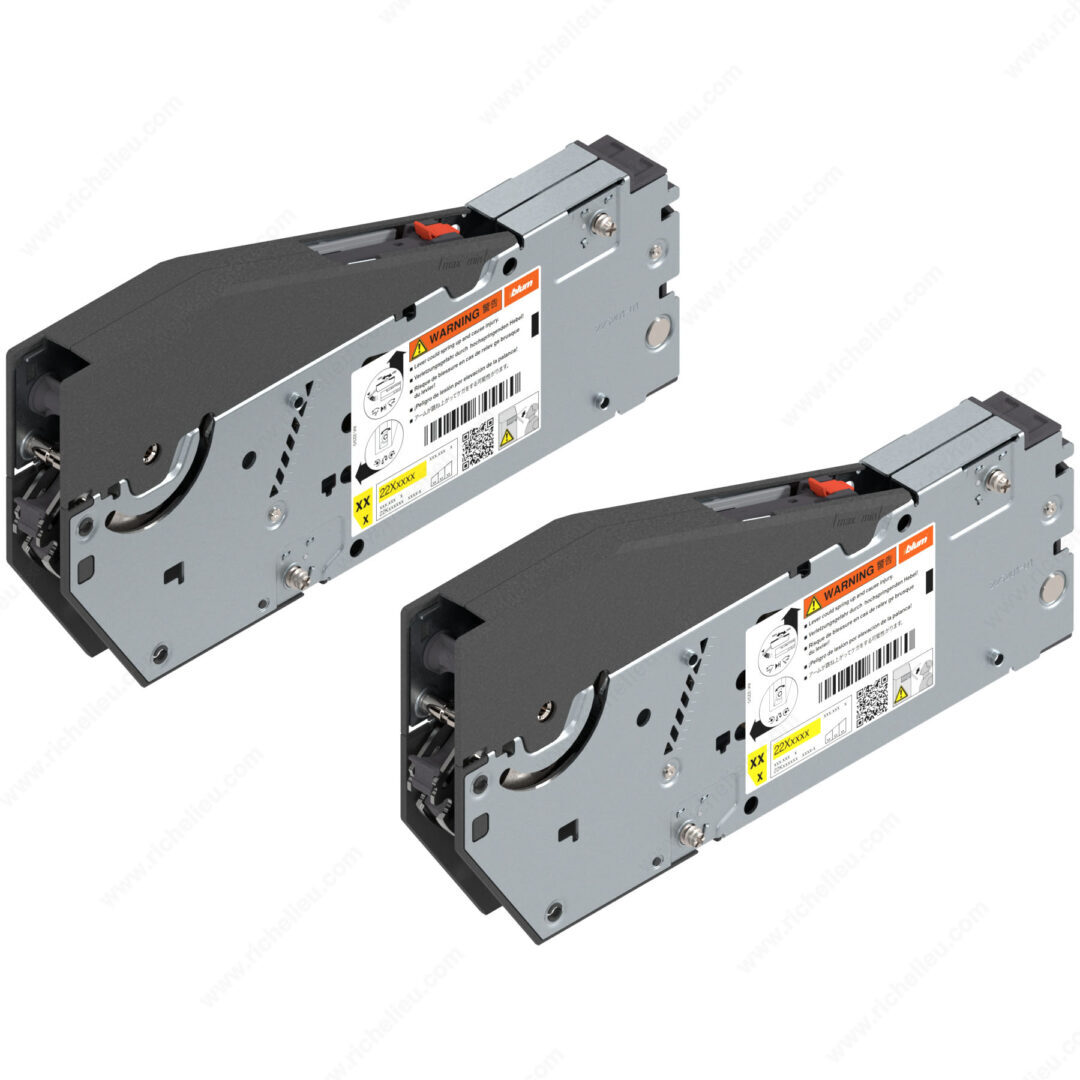

Richelieu 22S2810 AVENTOS HS Top-Opening Mechanism

Richelieu 22S2810 AVENTOS HS Top-Opening Mechanism

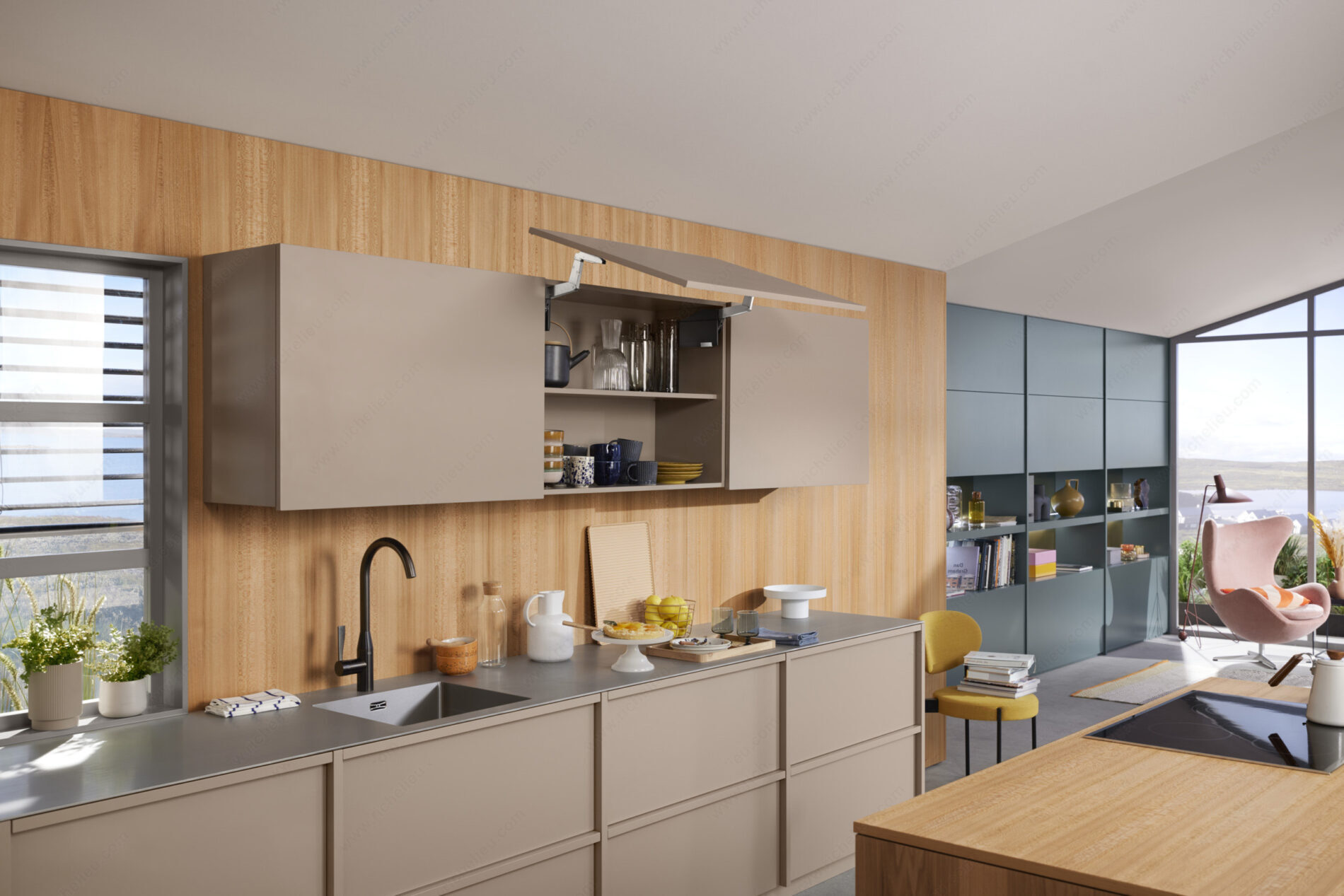

Richelieu 22S2810 AVENTOS HS top Opening Mechanism excels in functionality and design, making it an ideal choice for wide, one-piece fronts and tall cabinets adorned with cornices and arches. This mechanism allows for effortless opening, seamless stops, and soft, silent closing, thanks to the integrated BLUMOTION dampening technology, ensuring a smooth operation every time. Designed for versatility, it accommodates wooden fronts, narrow aluminum frames, and thin materials starting from 8 mm. The symmetrical power mechanism supports lift-up flap doors and provides exceptional stability for large surfaces, enhanced by a cross stabilizer. Adjustments are a breeze with three-dimensional front adjustment capabilities-height, side, and depth can be finely tuned up to ± 2 mm. The compact fitting requires only a shallow cabinet depth of 264 mm, and assembly is simplified through quick, tool-free front assembly using CLIP technology. Additionally, the AVENTOS HS can be paired with the SERVO-DRIVE system for handle-free operation, offering a modern touch to your cabinetry. Suitable for cabinet heights between 350 to 800 mm and widths up to 1,800 mm, this mechanism is a perfect blend of innovation and practicality for any building professional or knowledgeable homeowner.

AVENTOS HS top Opening Mechanism

- Ideal for wide, one-piece fronts
- Also suitable for tall cabinets with cornices and arches
- Easy opening, seamless stop, and soft, silent closing thanks to the integrated BLUMOTION dampening
- Precise and harmonious gap adjustment through three-dimensional front adjustment
- Quick assembly and disassembly thanks to the CLIP technology
- Can be combined with SERVO-DRIVE for handle-free fronts

Blum AVENTOS HS for lift-up flap doors. Fitting for lift-up flap doors. Suitable for wooden fronts, wide and narrow aluminum frames, and thin fronts starting at 8 mm. Symmetrical power mechanism with spring packs. The lift-up flap door stops in any position thanks to the continuous adjustment of the power mechanism. High stability for large and wide fronts thanks to the cross stabilizer. Integrated dampening for both opening and closing. Removable arm pack. Quick, easy, and tool-free front assembly using clip technology. The power mechanism can also be installed on the free side of the cabinet. No protruding parts above the cabinet. Compatible with the SERVO-DRIVE electrical motion support system.

For cabinet heights of 350 to 800 mm and widths up to 1,800 mm.
Three-dimensional front adjustment: Height ± 2 mm, Side ± 2 mm, Depth ± 2 mm.

AVENTOS HS top improvements:

- Compact fitting
- Requires only a shallow cabinet depth of 264 mm
- Convenient and easy power mechanism adjustment from the front
- NO cross stabilizer required
- Suitable for wooden fronts, wide/narrow aluminum frames, thin fronts, miter, and rebated applications
