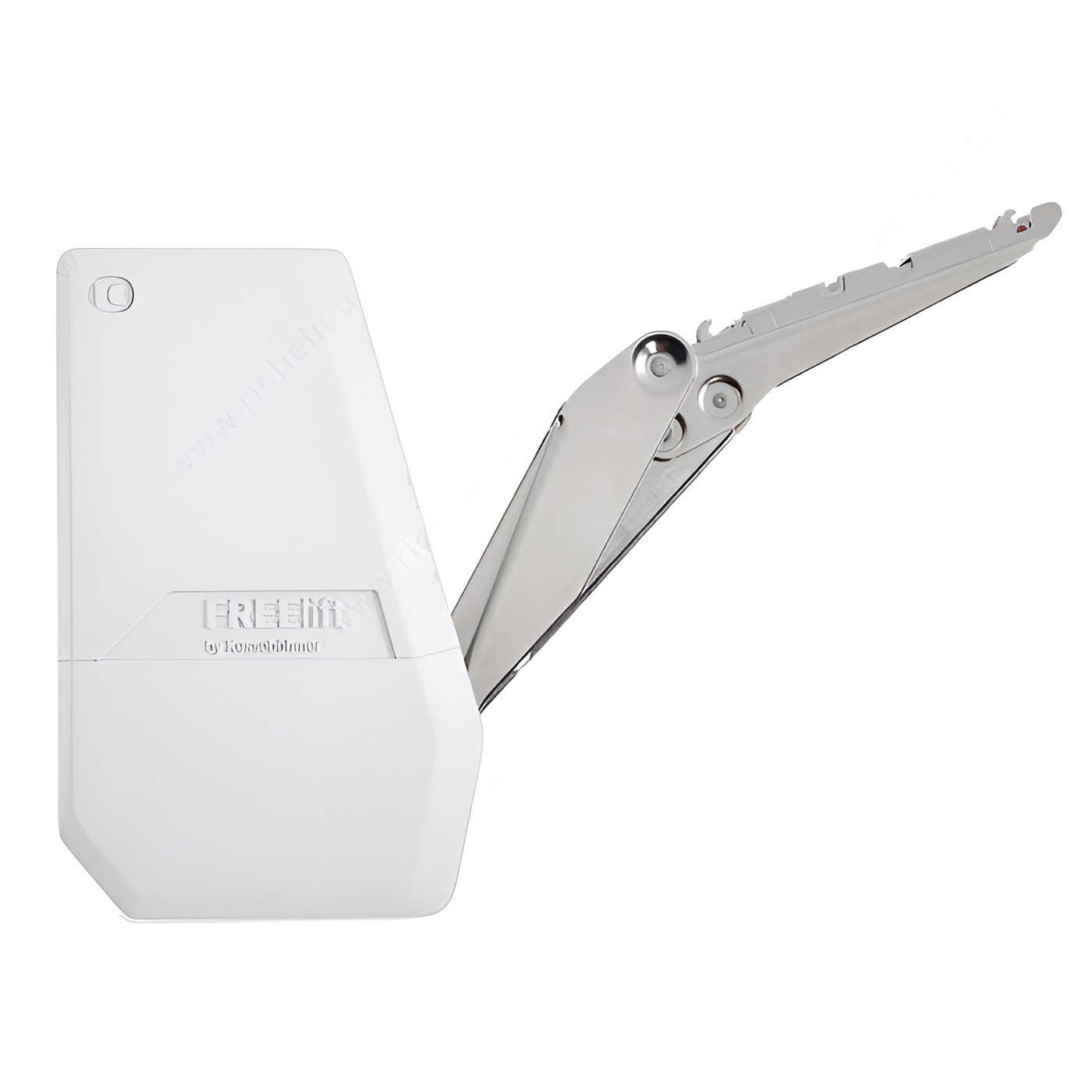

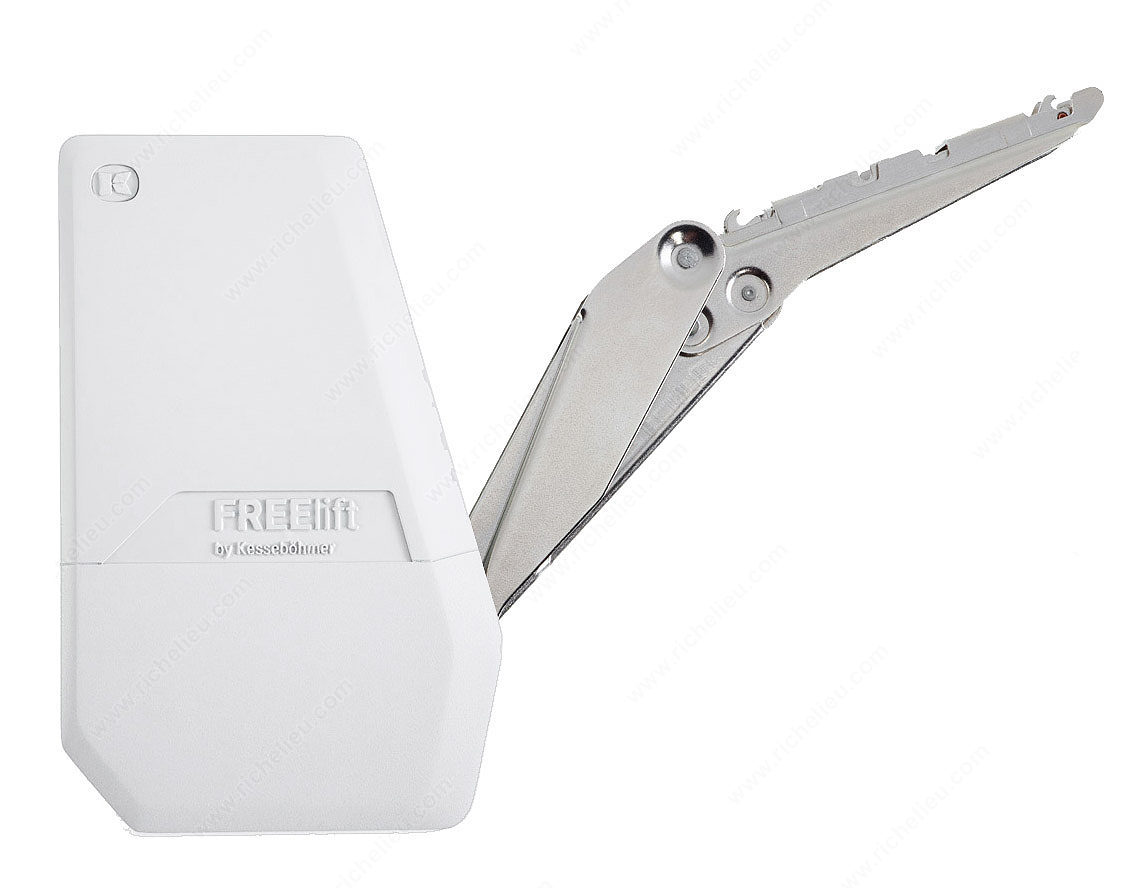

Richelieu 271661930 FREEflap Mini Lift System is a compact and robust lifting solution designed for wood doors. This innovative system is perfect for those seeking a practical and balanced lift mechanism that enhances both functionality and aesthetics. With a door height capacity ranging from 9 27/32 inches to 15 3/4 inches, the FREEflap Mini accommodates various applications, making it a versatile choice for kitchen cabinets or furniture. One of its standout features is the integrated multi-position stop, which allows the door to remain securely in any desired position. This ensures a seamless user experience, promoting ease of access and convenience. The system supports a hinge opening angle of +107°, further enhancing its usability in tight spaces. Finished in a clean white, the FREEflap Mini blends effortlessly with modern designs, while its power factor, ranging from 338 to 783, guarantees reliable performance. Designed for lift-up openings, it is an excellent choice for professionals and knowledgeable homeowners looking to improve their cabinetry. Richelieu's commitment to quality and innovation shines through in the FREEflap Mini, making it an essential addition to any woodworking project. This product ships via UPS, ensuring efficient delivery for your next endeavor.
FREEflap Mini Lift System
Brand: Richelieu
Door Height: 250 to 400 mm
Door Type: Wood Door
Finish: White
Hinge Opening Angle: +107°
Max weight for door height <= to 200 mm: 1.7 to 4.6 kg
Max weight for door height <= to 225 mm: 1.5 to 4.1 kg
Max weight for door height <= to 250 mm: 1.3 to 3.8 kg
Max weight for door height <= to 275 mm: 1.2 to 3.3 kg
Max weight for door height <= to 300 mm: 1.1 to 3.1 kg
Max weight for door height <= to 325 mm: 1 to 2.8 kg
Max weight for door height <= to 350 mm: 0.9 to 2.6 kg
Max weight for door height <= to 375 mm: 0.9 to 2.3 kg
Max weight for door height <= to 400 mm: 0.8 to 2.1 kg
Max weight for door height <= to 425 mm: 0.7 to 1.9 kg
Max weight for door height <= to 450 mm: 0.6 to 1.7 kg
Opening Angle: 107°
Opening Types: Lift-Up Opening
Opening Types NEW: Lift-Up Opening
Power Factor: 338 to 783
Product #: 271661930
Product number: 271661930
Product №: 271661930
System Name: A
System Type: Soft-Close
Unit: Box
Unit 1: skid - 180
Unit 2: skid - 180
