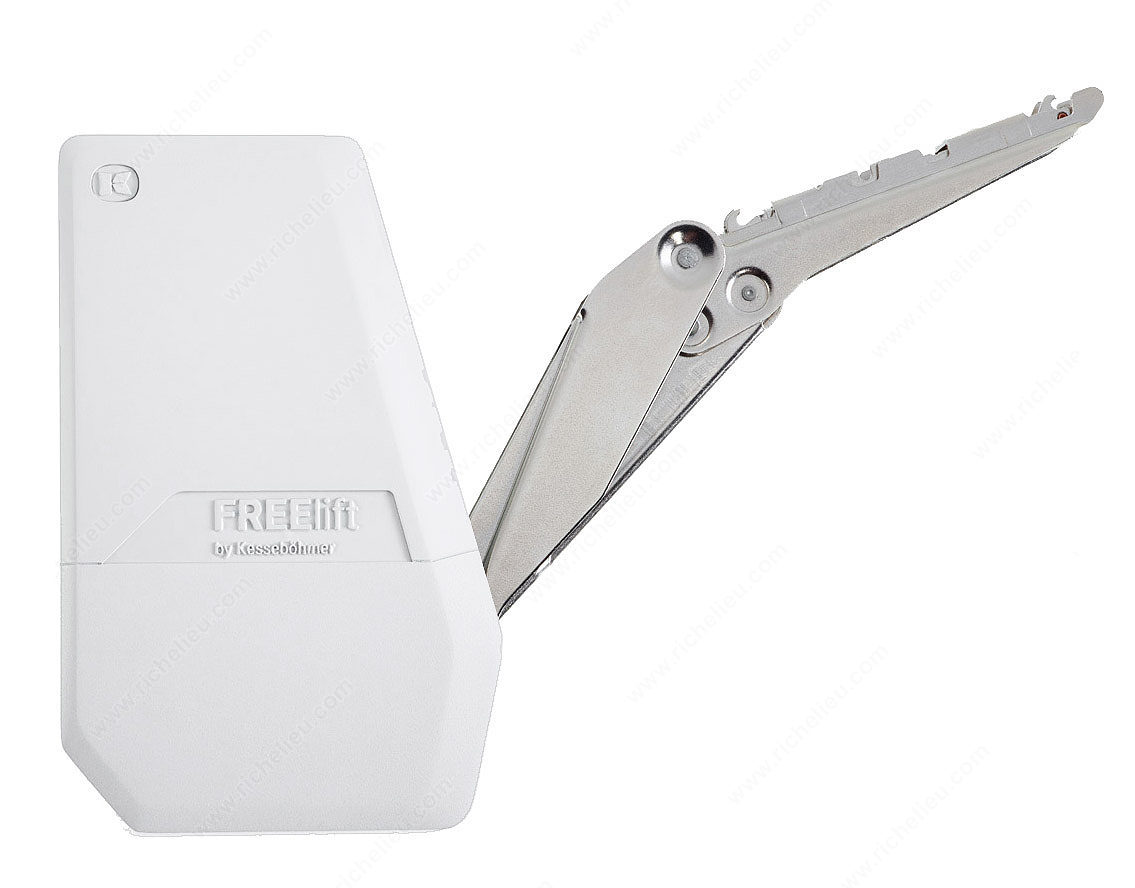

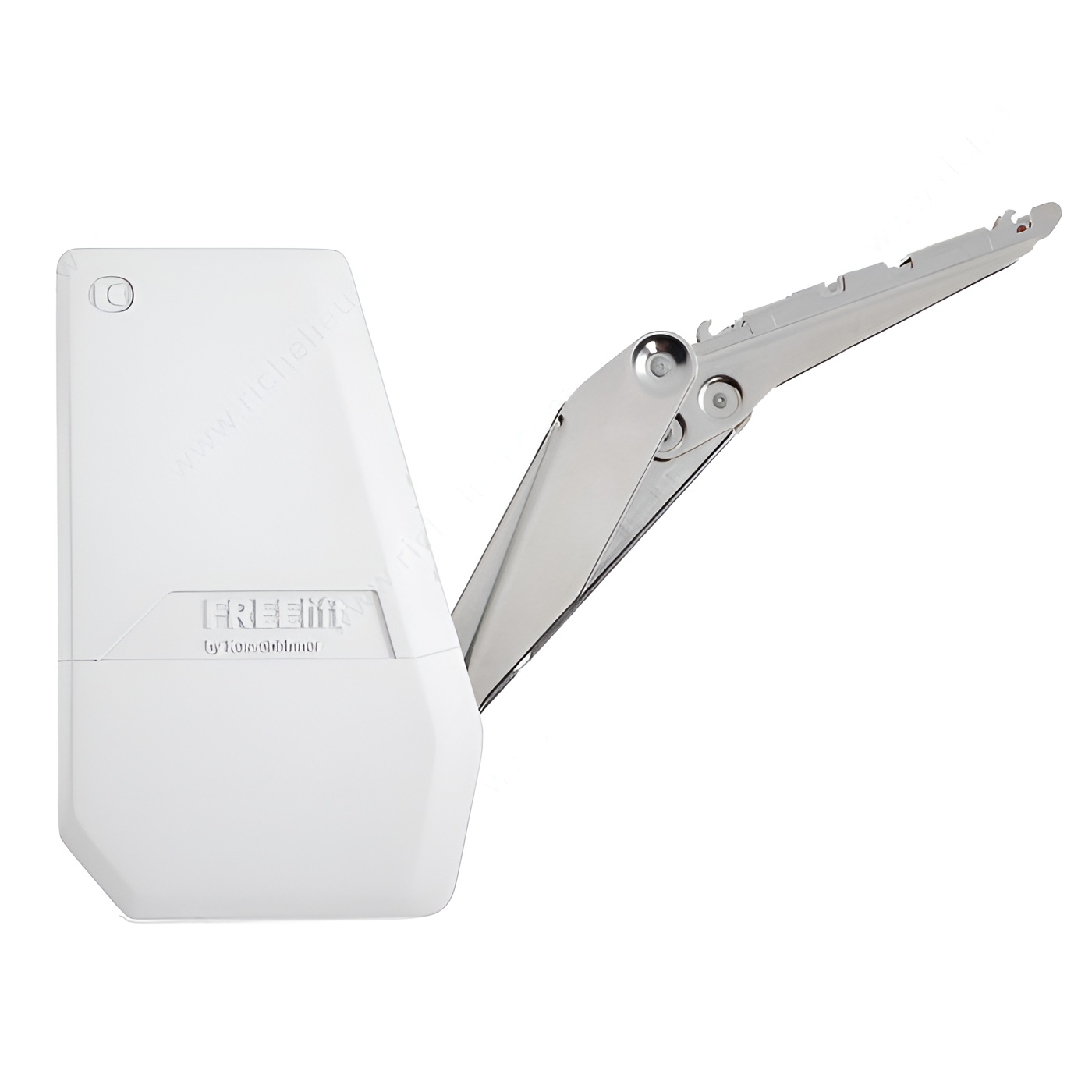

Richelieu 271662930 FREEflap Mini Lift System offers a practical and compact solution for modern cabinetry. Designed for wood doors, this system is engineered to provide reliable performance with a balanced lift mechanism that supports door heights ranging from 9 27/32 to 15 3/4 inches. The standout feature of the FREEflap Mini is its integrated multi-position stop, which allows the door to rest securely in any position, enhancing both convenience and functionality. With a hinge opening angle of +107°, this lift system facilitates smooth access and operation, making it an excellent choice for kitchens and other spaces where efficient design is essential. The crisp white finish complements a variety of decor styles, ensuring seamless integration into your cabinetry. The FREEflap Mini is designed for lift-up opening types, making it ideal for upper cabinets that require a reliable and easy-to-use solution. With a power factor ranging from 784 to 1,388, this system provides the necessary strength for smooth operation. Shipping is hassle-free via UPS, making it easy to incorporate this essential component into your next project. Upgrade your cabinetry with the innovative and sturdy Richelieu FREEflap Mini Lift System.
FREEflap Mini Lift System
Brand: Richelieu
Door Height: 250 to 400 mm
Door Type: Wood Door
Finish: White
Hinge Opening Angle: +107°
Max weight for door height <= to 200 mm: 3.7 to 7.9 kg
Max weight for door height <= to 225 mm: 3.1 to 7.1 kg
Max weight for door height <= to 250 mm: 2.9 to 6.4 kg
Max weight for door height <= to 275 mm: 2.5 to 5.7 kg
Max weight for door height <= to 300 mm: 2.4 to 5.1 kg
Max weight for door height <= to 325 mm: 2.1 to 4.6 kg
Max weight for door height <= to 350 mm: 2 to 4.2 kg
Max weight for door height <= to 375 mm: 1.9 to 3.8 kg
Max weight for door height <= to 400 mm: 1.7 to 3.6 kg
Max weight for door height <= to 425 mm: 1.5 to 3.4 kg
Max weight for door height <= to 450 mm: 1.4 to 3.2 kg
Opening Angle: 107°
Opening Types: Lift-Up Opening
Opening Types NEW: Lift-Up Opening
Power Factor: 784 to 1 388
Product #: 271662930
Product number: 271662930
Product №: 271662930
System Name: B
System Type: Soft-Close
Unit: Box
Unit 1: skid - 180
Unit 2: skid - 180
