Richelieu 271663930 FREEflap Mini Lift System is a practical, balanced, and compact solution designed for wood doors. This versatile lifter stands out as a reliable choice for those seeking efficiency without compromising quality. With an integrated multi-position stop, the FREEflap Mini guarantees that the door front will remain securely in any desired position, making it ideal for various applications. Designed for door heights ranging from 9 27/32 to 15 3/4 inches, this system accommodates a wide array of installations. The hinge opening angle of +107° allows for easy access and optimal usability, enhancing the overall functionality of your cabinetry. The lift-up opening mechanism not only maximizes space but also provides a sleek, modern look that complements contemporary designs. Finished in white, the FREEflap Mini seamlessly integrates into your environment, ensuring that aesthetics are not overlooked. With a power factor ranging from 1,389 to 2,800, it offers robust performance tailored to meet the demands of everyday use. Ideal for building professionals and discerning homeowners alike, the Richelieu FREEflap Mini Lift System combines practicality with style, making it an essential addition to any project. Plus, it ships conveniently via UPS for a hassle-free experience.

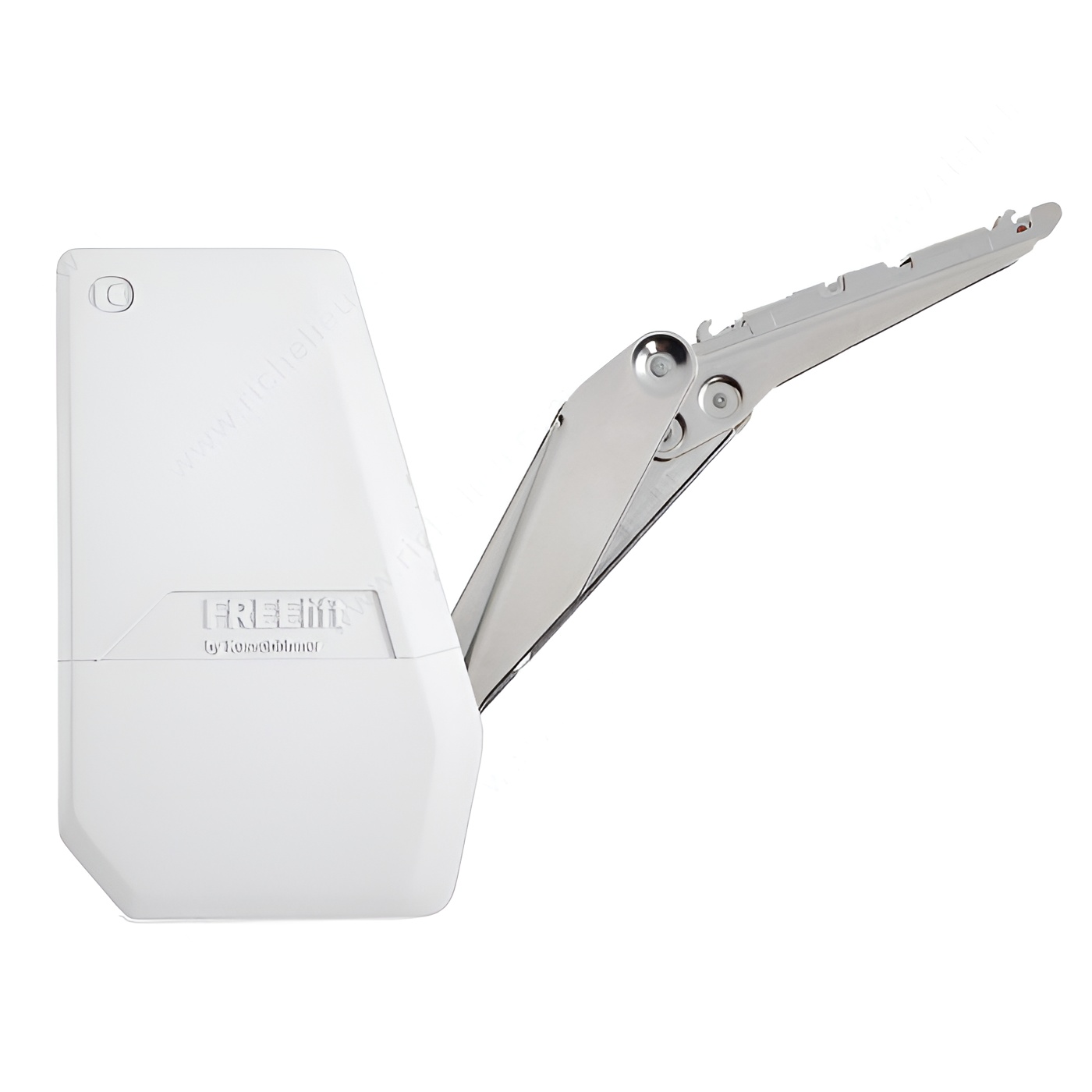

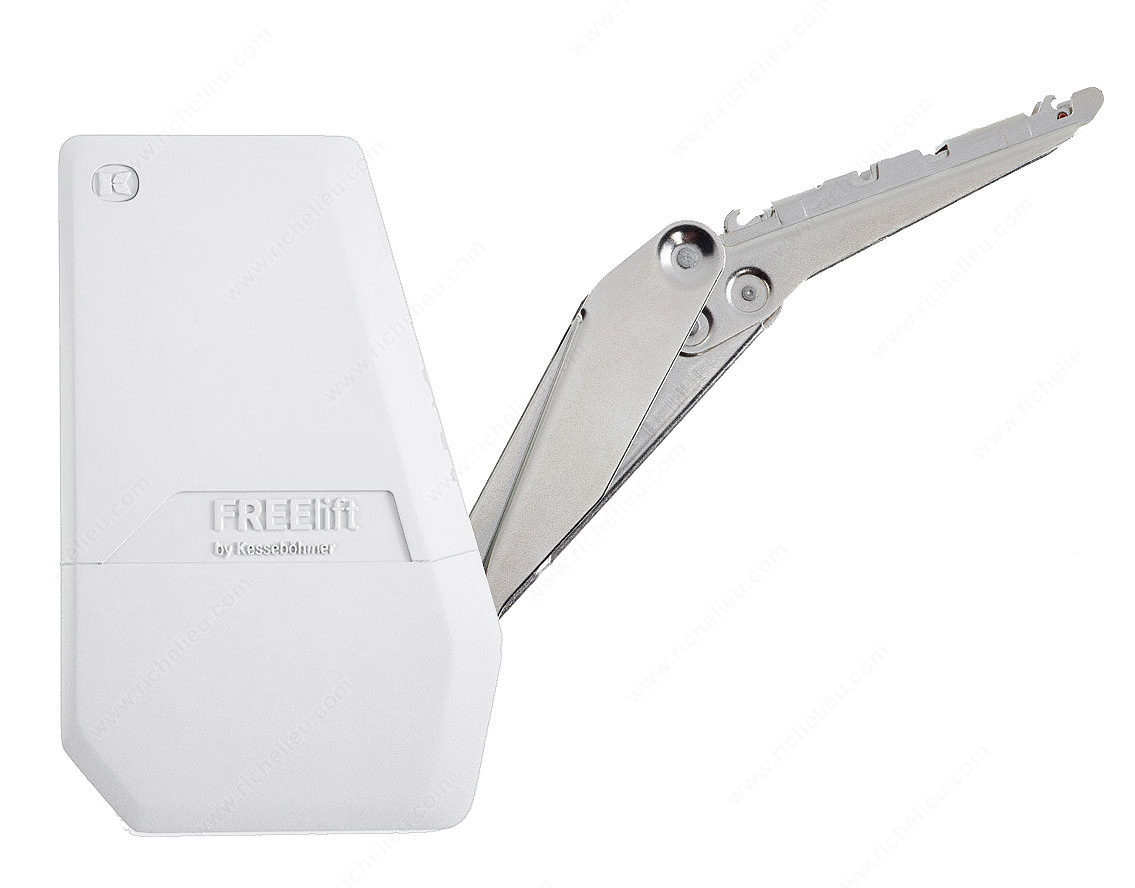

FREEflap Mini Lift System
Brand: Richelieu
Door Height: 250 to 400 mm
Door Type: Wood Door
Finish: White
Hinge Opening Angle: +107°
Max weight for door height <= to 200 mm: 6.8 to 14.7 kg
Max weight for door height <= to 225 mm: 6 to 13.1 kg
Max weight for door height <= to 250 mm: 5.4 to 11.8 kg
Max weight for door height <= to 275 mm: 4.8 to 10.6 kg
Max weight for door height <= to 300 mm: 4.4 to 9.6 kg
Max weight for door height <= to 325 mm: 4 to 8.8 kg
Max weight for door height <= to 350 mm: 3.7 to 8.1 kg
Max weight for door height <= to 375 mm: 3.5 to 7.5 kg
Max weight for door height <= to 400 mm: 3.2 to 7 kg
Max weight for door height <= to 425 mm: 2.9 to 6.5 kg
Max weight for door height <= to 450 mm: 2.7 to 6.1 kg
Opening Angle: 107°
Opening Types: Lift-Up Opening
Opening Types NEW: Lift-Up Opening
Power Factor: 1 389 to 2 800
Product #: 271663930
Product number: 271663930
Product №: 271663930
System Name: C
System Type: Soft-Close
Unit: Box
Unit 1: skid - 180
Unit 2: skid - 180
