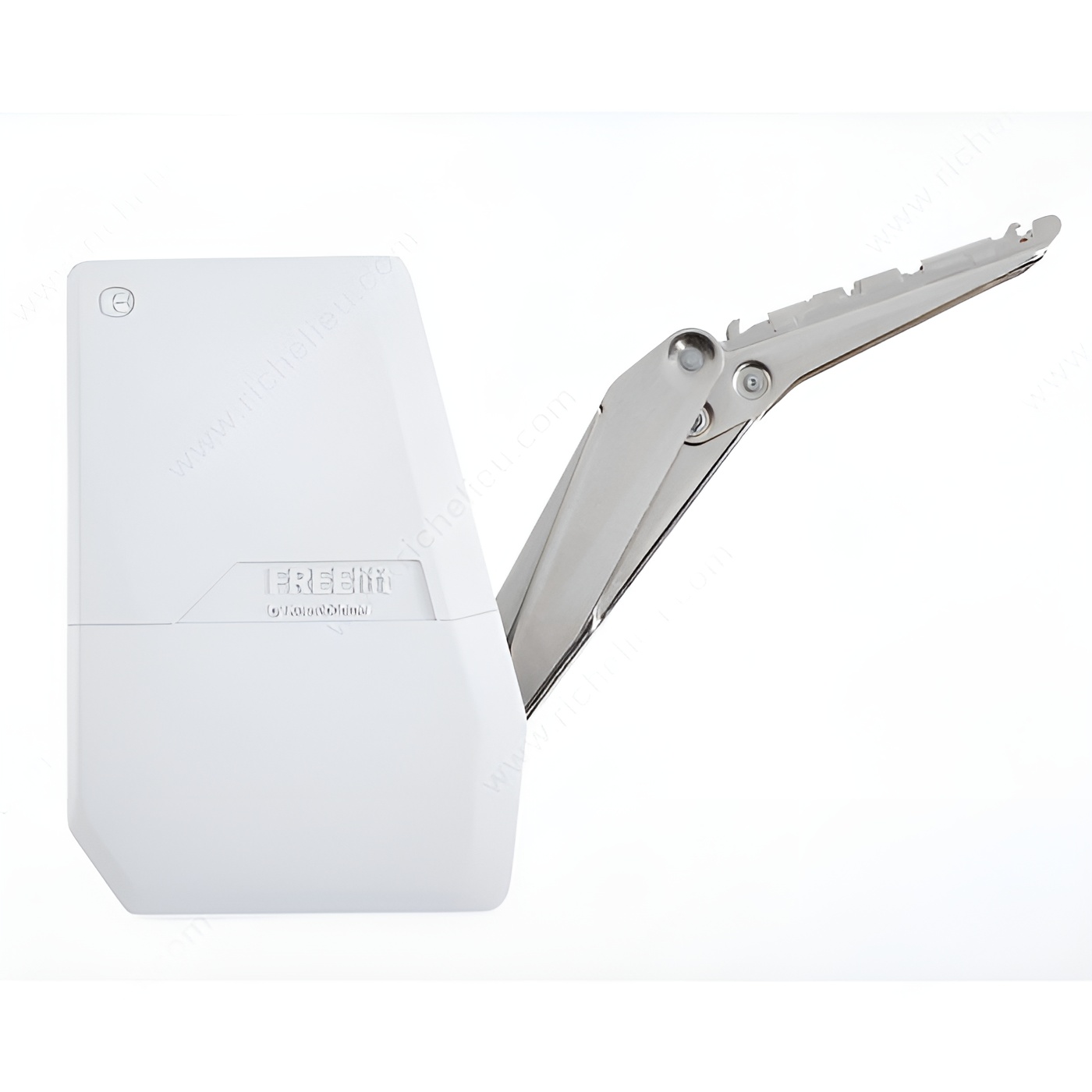

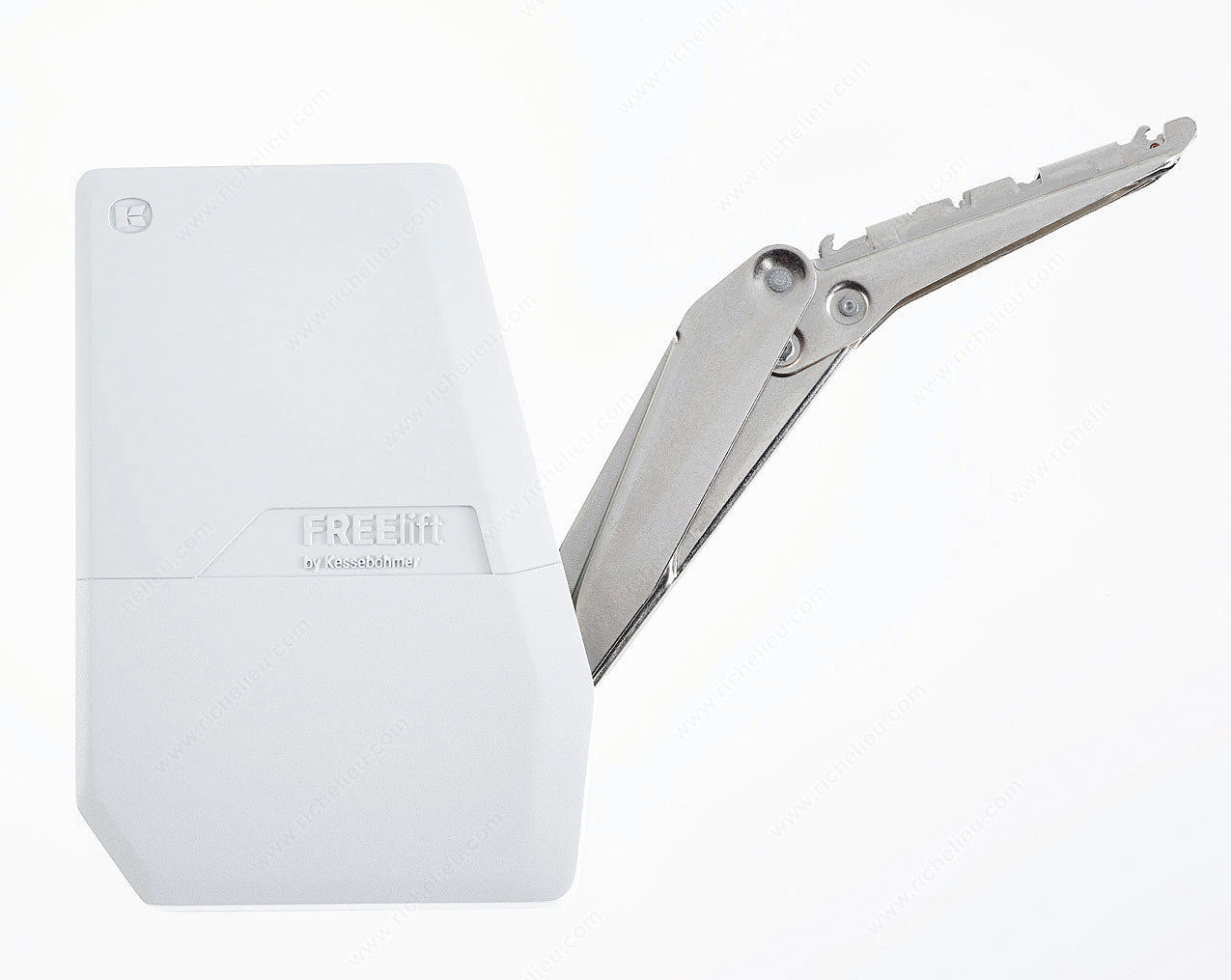

Richelieu 271666930 FREEflap Forte Lift System offers a practical and compact solution for your cabinetry needs. Known as the "little toughie" among lift systems, it combines strength and reliability with ease of use. The integrated multi-position stop feature ensures that the door remains securely in any desired position, providing versatility for various applications. Designed for door heights ranging from 15 3/4 to 23 5/8 inches, this lift system is ideal for both residential and commercial projects. The attractive white finish adds a clean, modern touch, making it suitable for a variety of design styles. With a hinge opening angle of +107°, the FREEflap allows for effortless access to your cabinets while maximizing available space. This lift system is engineered with a power factor ranging from 4,181 to 5,961, ensuring dependable performance under various conditions. Its lift-up opening type facilitates smooth operation, enhancing the functionality of your cabinetry. The FREEflap Forte Lift System is shipped via UPS, making it convenient for projects on the go. Choose Richelieu's FREEflap Forte Lift System for a balance of strength, aesthetics, and innovative design, ensuring your cabinetry operates effortlessly and looks stunning.
FREEflap Forte Lift System
Brand: Richelieu
Compatible with aluminum frame doors: Yes
Door Height: 400 to 600 mm
Finish: White
Hinge Opening Angle: +107°
Max weight for door height <= to 350 mm: 10.1 to 21.4 kg
Max weight for door height <= to 375 mm: 9.4 to 19.8 kg
Max weight for door height <= to 400 mm: 8.9 to 18.6 kg
Max weight for door height <= to 425 mm: 8.3 to 17.4 kg
Max weight for door height <= to 450 mm: 7.8 to 16.3 kg
Max weight for door height <= to 475 mm: 7.4 to 15.4 kg
Max weight for door height <= to 500 mm: 7 to 14.6 kg
Max weight for door height <= to 525 mm: 6.6 to 13.9 kg
Max weight for door height <= to 550 mm: 6.3 to 13.2 kg
Max weight for door height <= to 575 mm: 6 to 12.5 kg
Max weight for door height <= to 600 mm: 5.7 to 12 kg
Max weight for door height <= to 625 mm: 5.4 to 11.5 kg
Max weight for door height <= to 650 mm: 5.3 to 11 kg
Model: FREEflap forte
Opening Angle: 107°
Opening Types: Lift-Up Opening
Opening Types NEW: Lift-Up Opening
Power Factor: 4 181 to 5 961
Product #: 271666930
Product number: 271666930
Product №: 271666930
System Name: F
System Type: Soft-Close
Unit: Box
Unit 1: skid - 152
Unit 2: skid - 152
