Richelieu 295641RDP NC Machine Screw Plug Tap InstructionsRichelieu 295641RDP NC Machine Screw Plug Tap is engineered for exceptional performance, thanks to its titanium nitride coating that enhances durability and longevity. Manufactured from high-quality tool steel, this tap meets the demanding specifications required by professionals in a variety of fields, making it an ideal choice for tradespeople, mechanics, and enthusiastic do-it-yourselfers alike. This tap features a National Coarse (NC) thread type, specifically designed for general-purpose threading applications used on appliances and machinery. With a clear and permanent marking on each tool, users can easily identify sizes, ensuring accuracy and efficiency during projects. The tap is sized using a two-number system, allowing for straightforward identification: the first number indicates the screw or bolt diameter, while the second denotes the threads per inch. For instance, a 3/4 inch (19.05 mm)-10 die will produce 10 threads per inch on a corresponding stock diameter. Available in a good range of sizes and thread types, the Richelieu 295641RDP ensures you have the right tool for your specific needs. Packaged in a convenient blister pack and shipped via UPS, this accessory tool is designed to enhance your toolkit and facilitate seamless threading tasks.

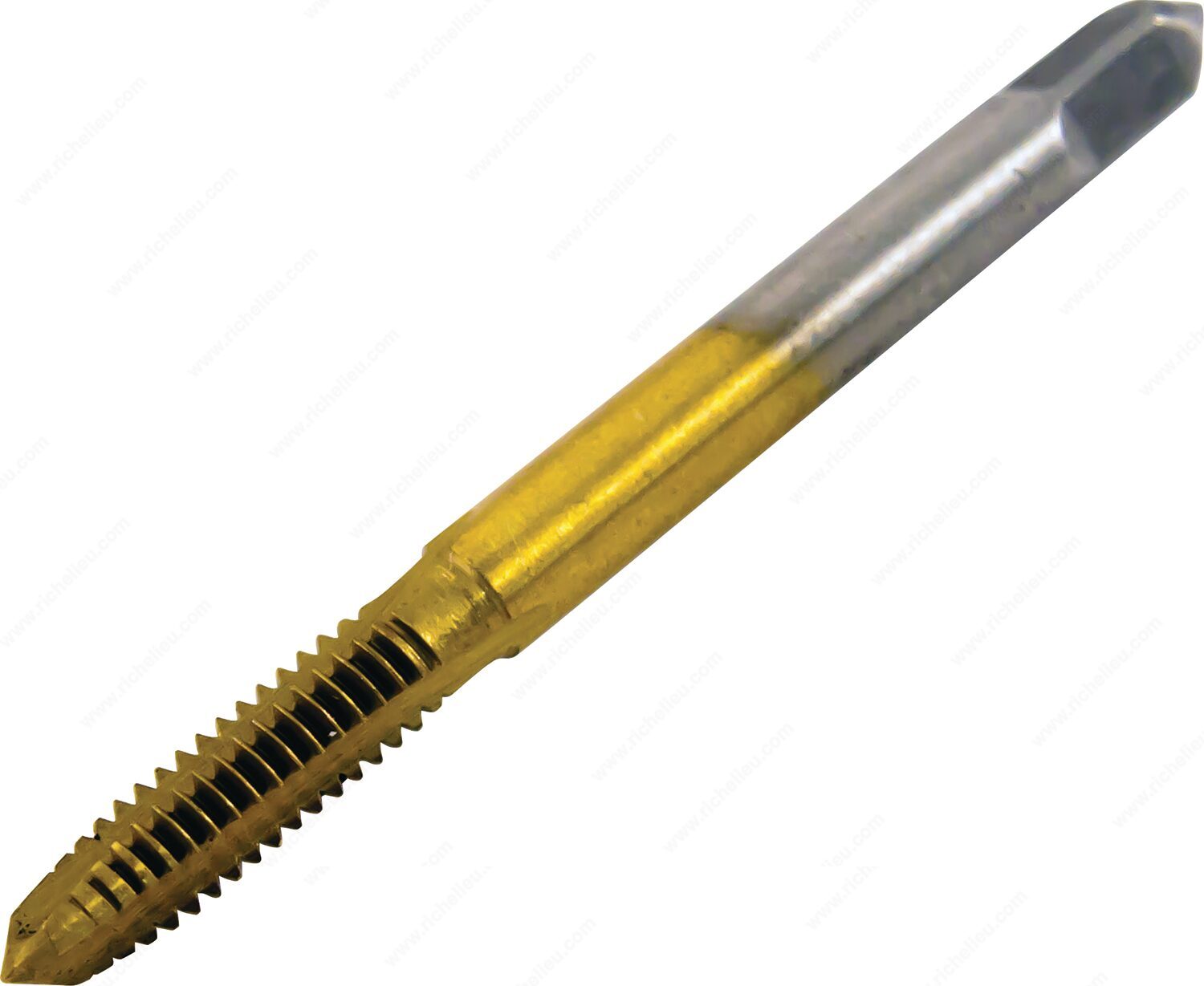

NC Machine Screw Plug Tap
- Titanium nitride coated for superior performance
- Manufactured to exacting specification from long-lasting tool steel
- A good range of sizes and thread types to meet the needs of most tradesmen, mechanics, and do-it-yourselfers
Important information
Thread types:
- NC (USS) National Coarse: general-purpose threading used on appliances and machines
- NF (SAE) National Fine: used for automotive parts requiring extreme pressures
- NPT National Pipe Taper: for threading of pipes both internal and external
Tap and die sizing:
Taps and dies are sized with two numbers:
- The first number signifies the screw or bolt diameter
- The second, the number of threads per inch. A 3/4 in (19.05 mm)-10 die will cut 10 threads per inch on stock 3/4 in (19.05 mm) in outside diameter
- Sizes are clearly and permanently marked on each tap and die
Attributes
Brand: Mibro
Packaging Specifications: Blister
Product #: 295641RDP
Thread: 10-24
Thread Type: NC (USS) National Coarse
Type of Tool: Accessory
