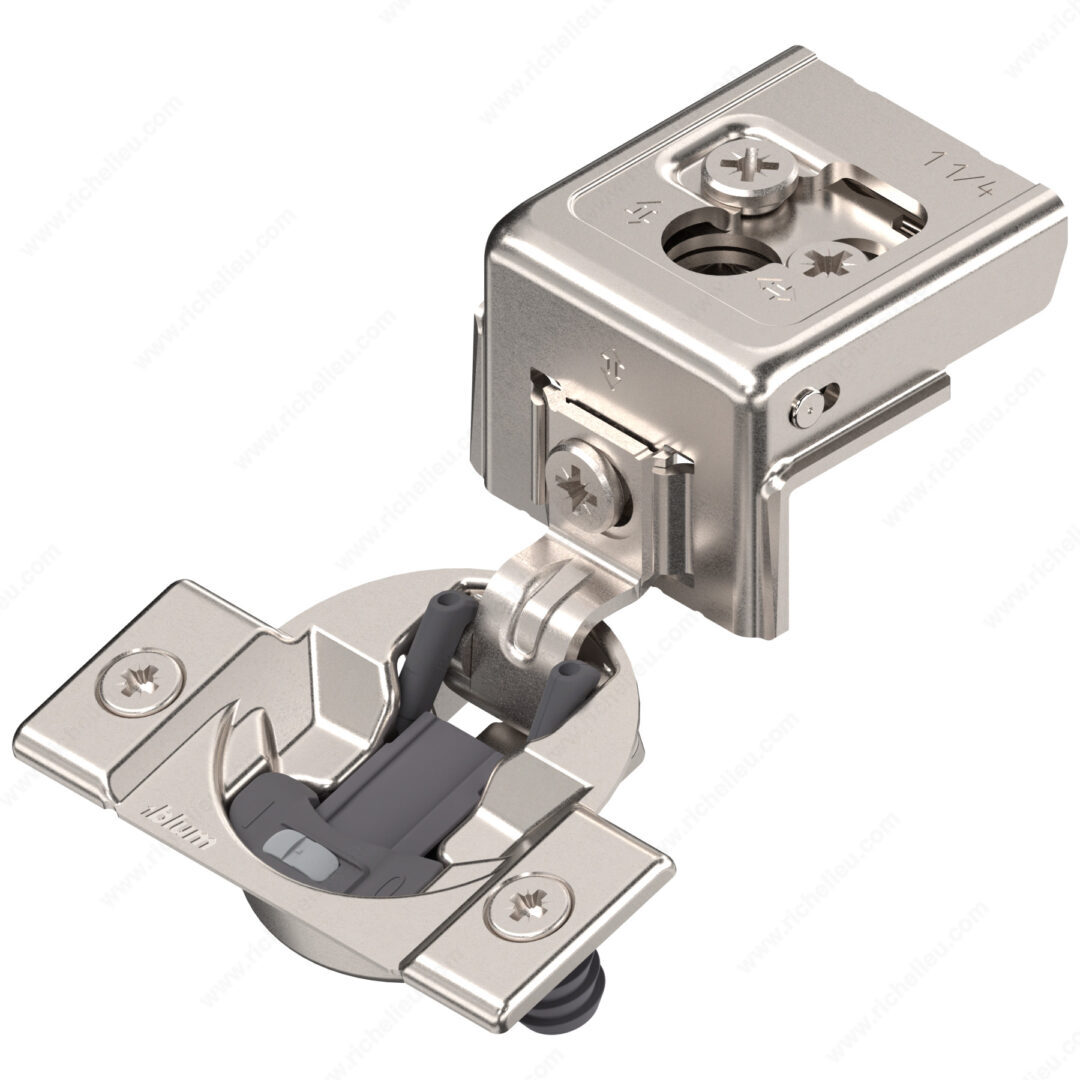

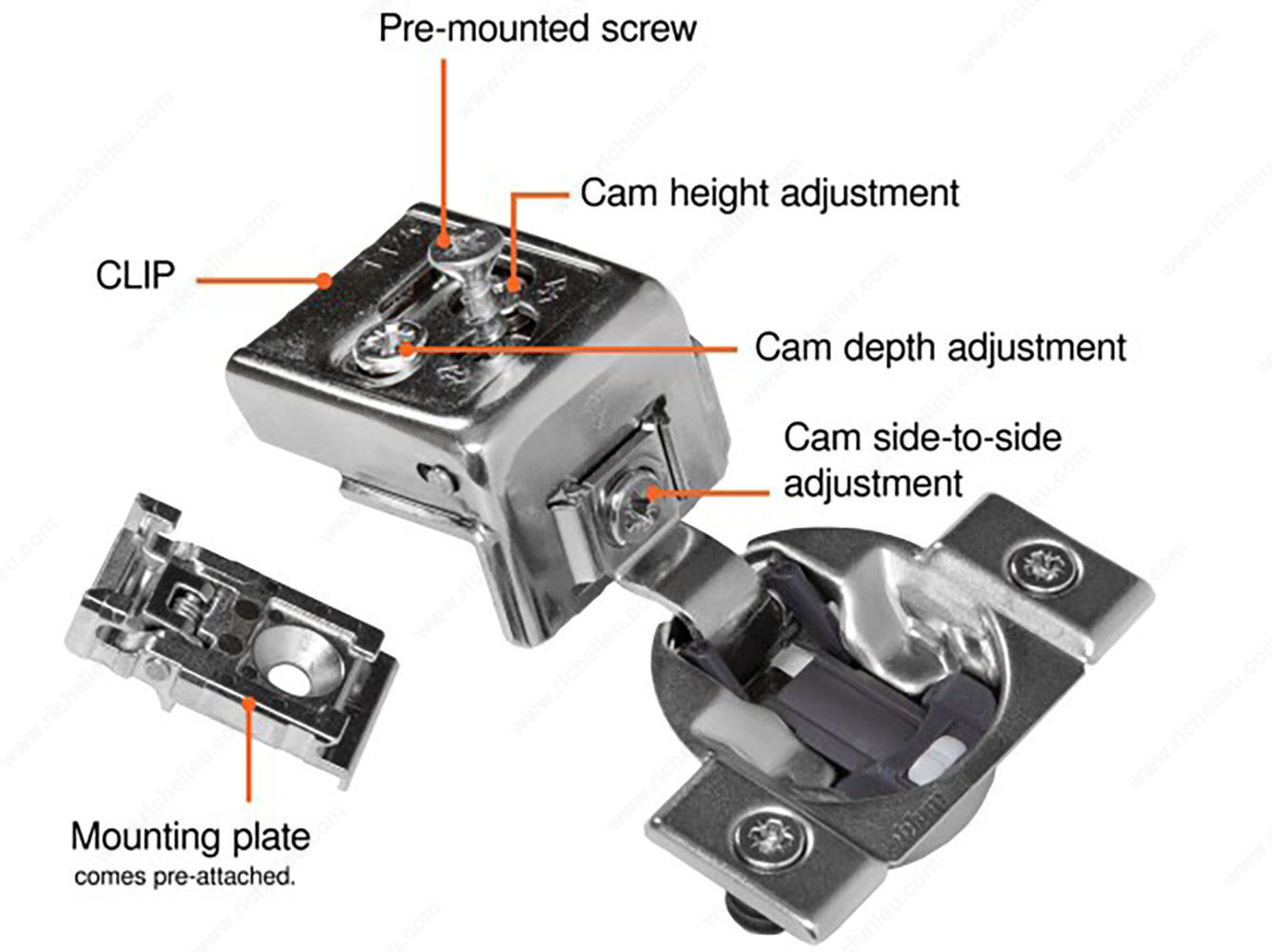

Richelieu 31C358B21180 COMPACT CLIP 31C3 110 hinge delivers an innovative solution for face frame cabinetry with its user-friendly design and exceptional functionality. This hinge installs like a one-piece unit, streamlining the process for builders and homeowners alike. Pre-attached to the mounting plate, the COMPACT CLIP ensures a quick and familiar installation experience. Interchangeable with all current COMPACT BLUMOTION and COMPACT hinges, this model eliminates the need for changes to existing setups or workflows, making it an ideal choice for renovations or new projects. The hinge supports full overlay doors with a maximum thickness of 3/4 inch and offers a generous hinge opening angle of +105°, providing optimal access to cabinet interiors. Constructed with a nickel finish, the COMPACT CLIP hinge not only looks great but also features a soft-closing mechanism, ensuring smooth and quiet door operation. With a wraparound type mounting and a 1 5/16 inch overlay, this hinge is designed for stability and durability. Please note that screws or nails are not included, allowing for customized fastening options. Upgrade your cabinetry with the reliability and efficiency of the Richelieu 31C358B21180 COMPACT CLIP hinge.
COMPACT CLIP 31C3 110 hinge
Brand: Blum
Cabinet Type: Face Frame
Closing Mechanism: Soft-Closing
Door Position: Full Overlay
Door Thickness: Max. 3/4 in
Finish: Nickel
Fixing Type: Knock-In
Hinge Opening Angle: +105°
Hinge Type: COMPACT CLIP BLUMOTION
Mechanism: Soft-Closing
Mounting Type: Wraparound Type Mounting
Overlay: 1 5/16 in
Product #: 31C358B21180
Screw/ Nail: Not Included
