Richelieu 38B358BF22180 Compact Blumotion 38B Hinge 107 InstructionsRichelieu 38B358BF22180 COMPACT BLUMOTION 38B Hinge 107 is expertly crafted for framed cabinets, offering both functionality and a seamless aesthetic. This innovative hinge features an integrated soft-closing mechanism that ensures doors close quietly, enhancing the overall user experience. The BLUMOTION function can be easily deactivated, making it suitable for smaller or lighter doors while maintaining the same high-quality movement that users expect. Designed for full overlay applications, the hinge accommodates a maximum door thickness of 3/4 inch and supports a hinge opening angle of +107°. Its nickel finish adds a sleek touch, ensuring durability while complementing various cabinetry styles. The COMPACT BLUMOTION hinge utilizes a face mount installation method and requires knock-in fixing with an insertion ram, simplifying the installation process. With a minimum overlay of 1 3/8 inches and a milling diameter of 7/16 inches, this hinge is a versatile choice for various cabinet designs. Please note that screws or nails are not included with the product. Richelieu's commitment to quality and innovation shines through in this hinge, making it an ideal solution for builders and homeowners seeking reliable, professional-grade hardware.

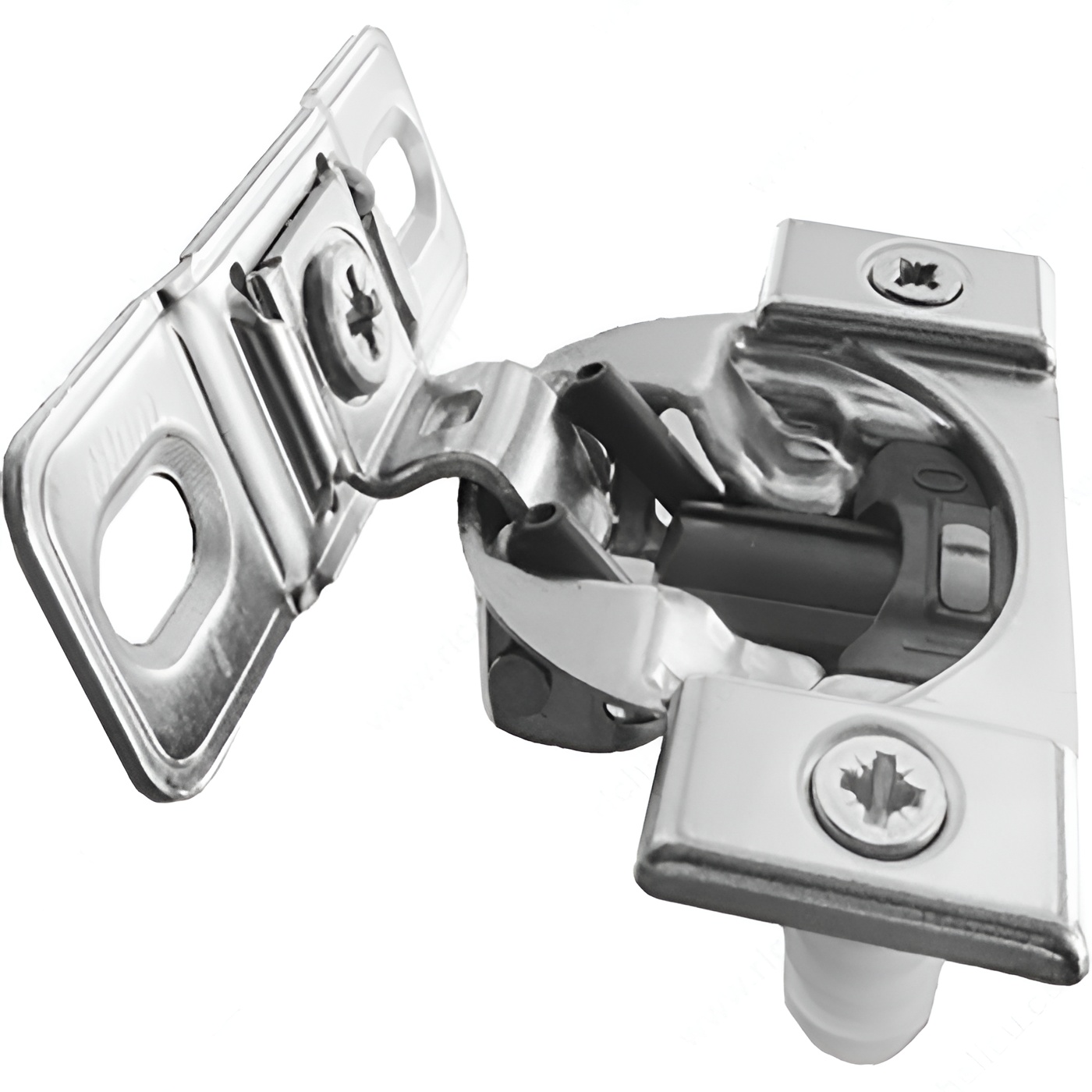

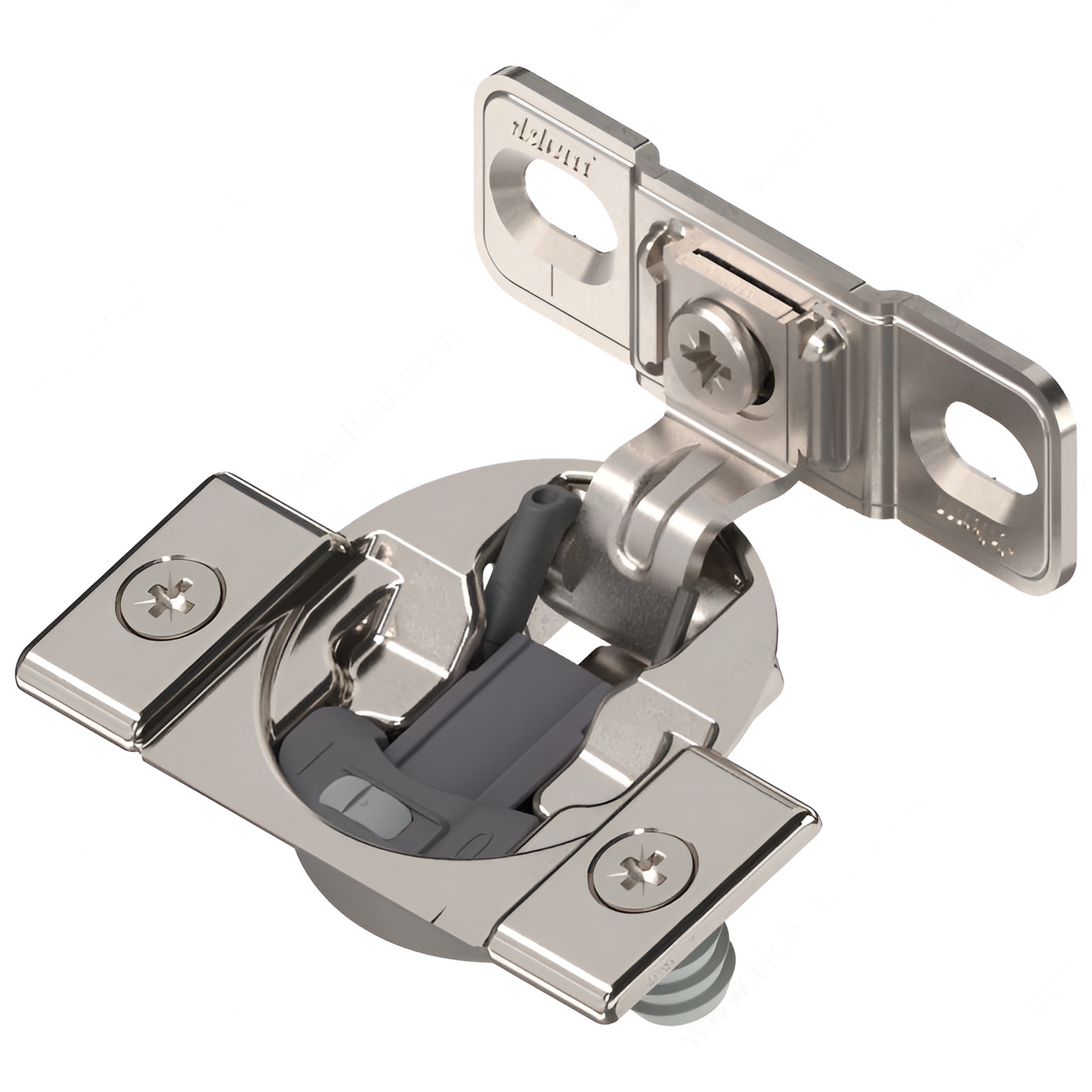

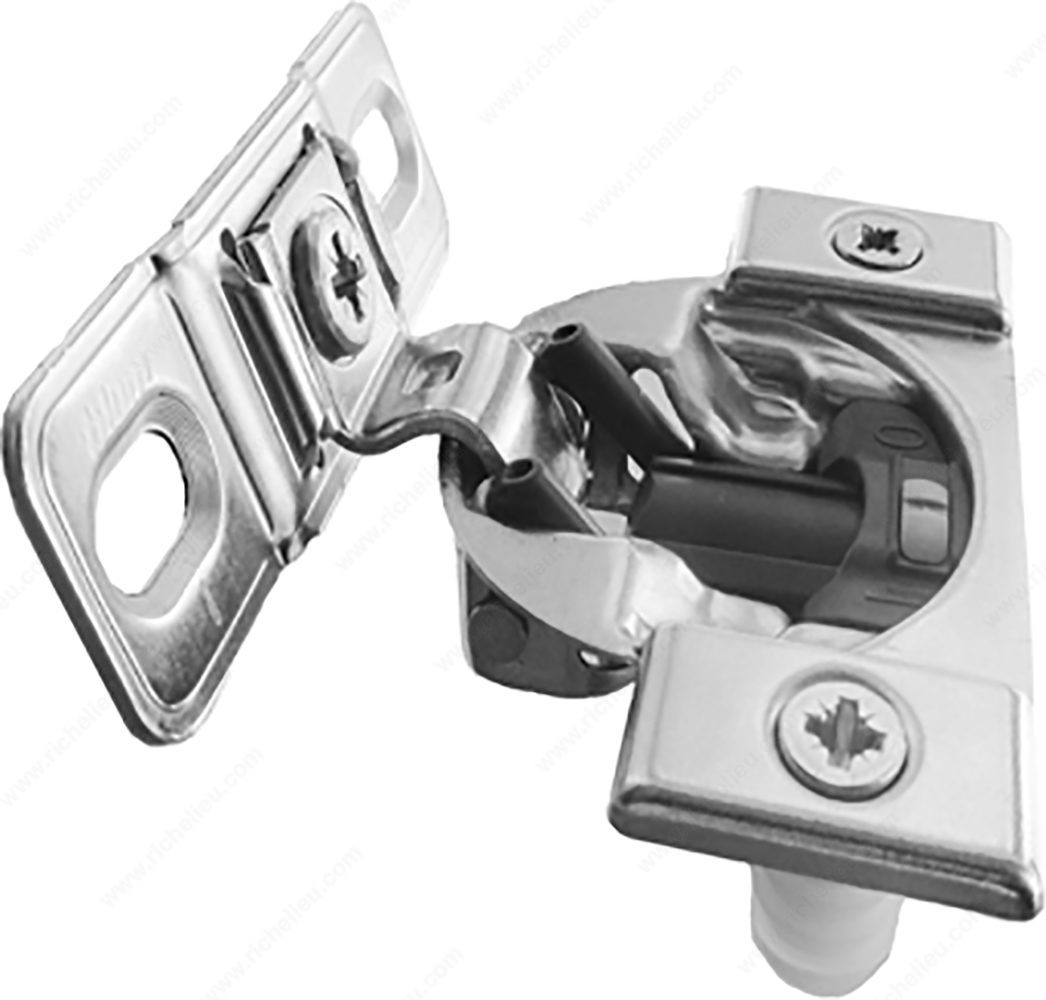

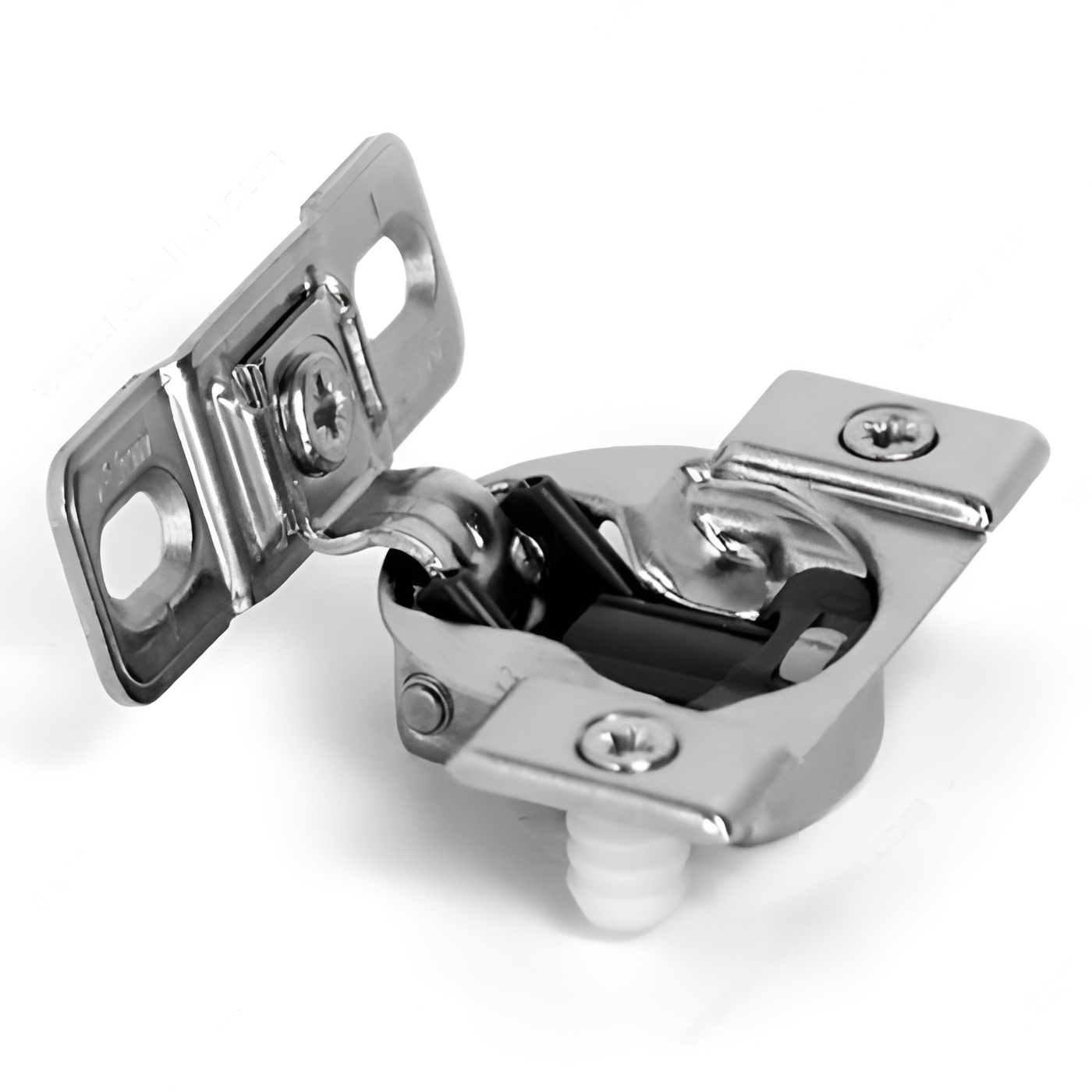

COMPACT BLUMOTION 38B Hinge 107
The COMPACT BLUMOTION hinge has been specially designed for framed cabinets. The soft closing function is integrated directly into the hinge housing and can be deactivated for small or light doors. With COMPACT BLUMOTION, the doors always close quietly.
The BLUMOTION function can easily be deactivated on a hinge, allowing small or light doors to close with the same high quality of movement.
Important information
The best way to clean your Blum fittings is as follows:
- Use a soft, lint-free cloth, a chamois leather or a sponge
- Ensure that the material you use to wipe the furniture with is just damp, not wet
- Always wipe the furniture again afterwards with a dry cloth
- If possible, use cleaning products intended specifically for materials such as leather, stainless steel etc.; otherwise, use only clean water
- Wipe off dirt as soon as it appears
AVOID THE FOLLOWING:
- using steam cleaners
- using cleaning products, such as abrasive cleaning powder, steel wool and scourers, as well as cleaning agents, such as acetone, chlorine, cellulose thinner and solutions whose names start with tri or tetra
- storing open cleaning products, baking powder, dishwasher products or table salt, for example. Fumes can cause corrosion on all metal surfaces.
Attributes
Brand: Blum

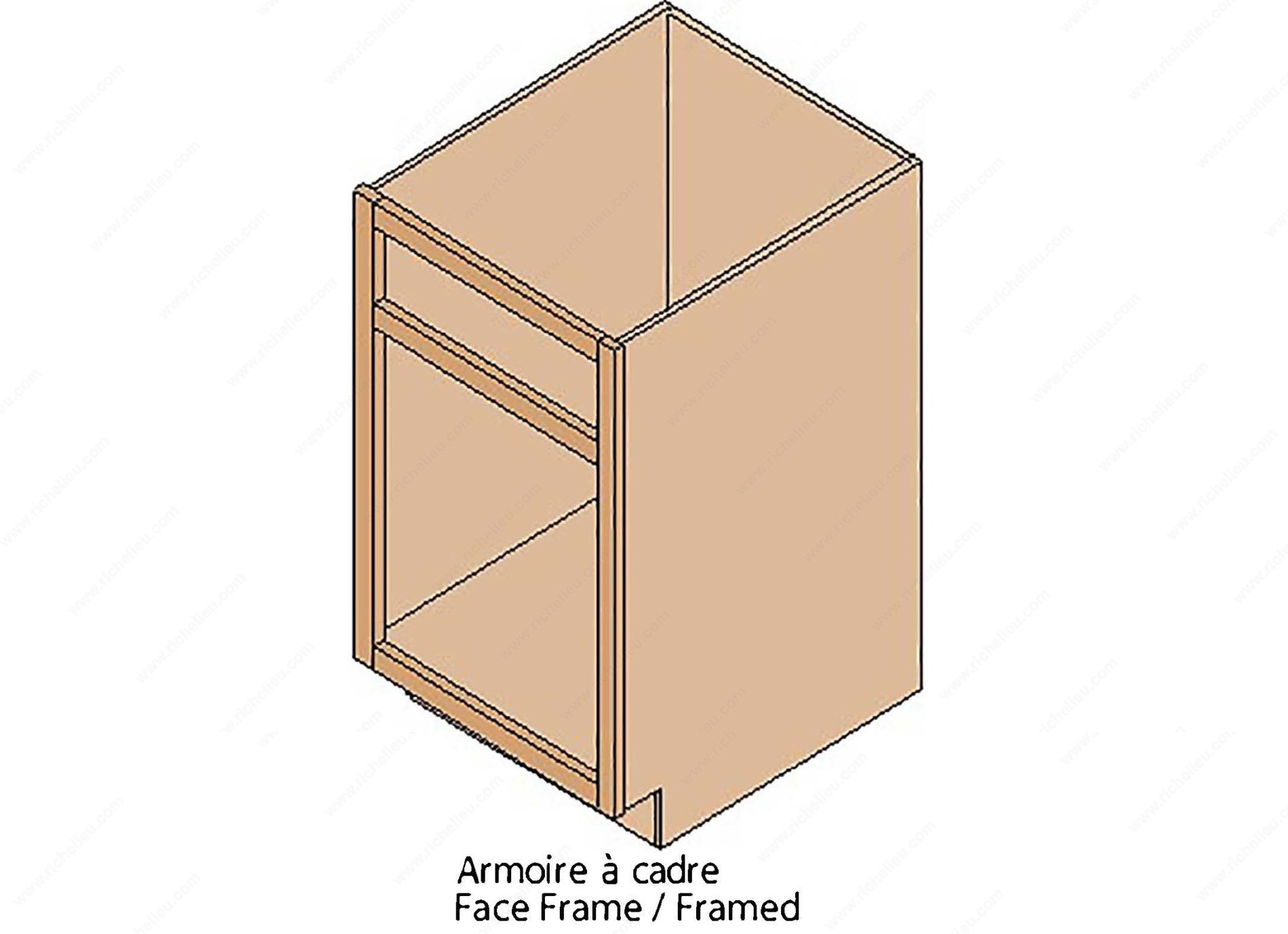

Cabinet Type: Face Frame
Closing Mechanism: Soft-Closing

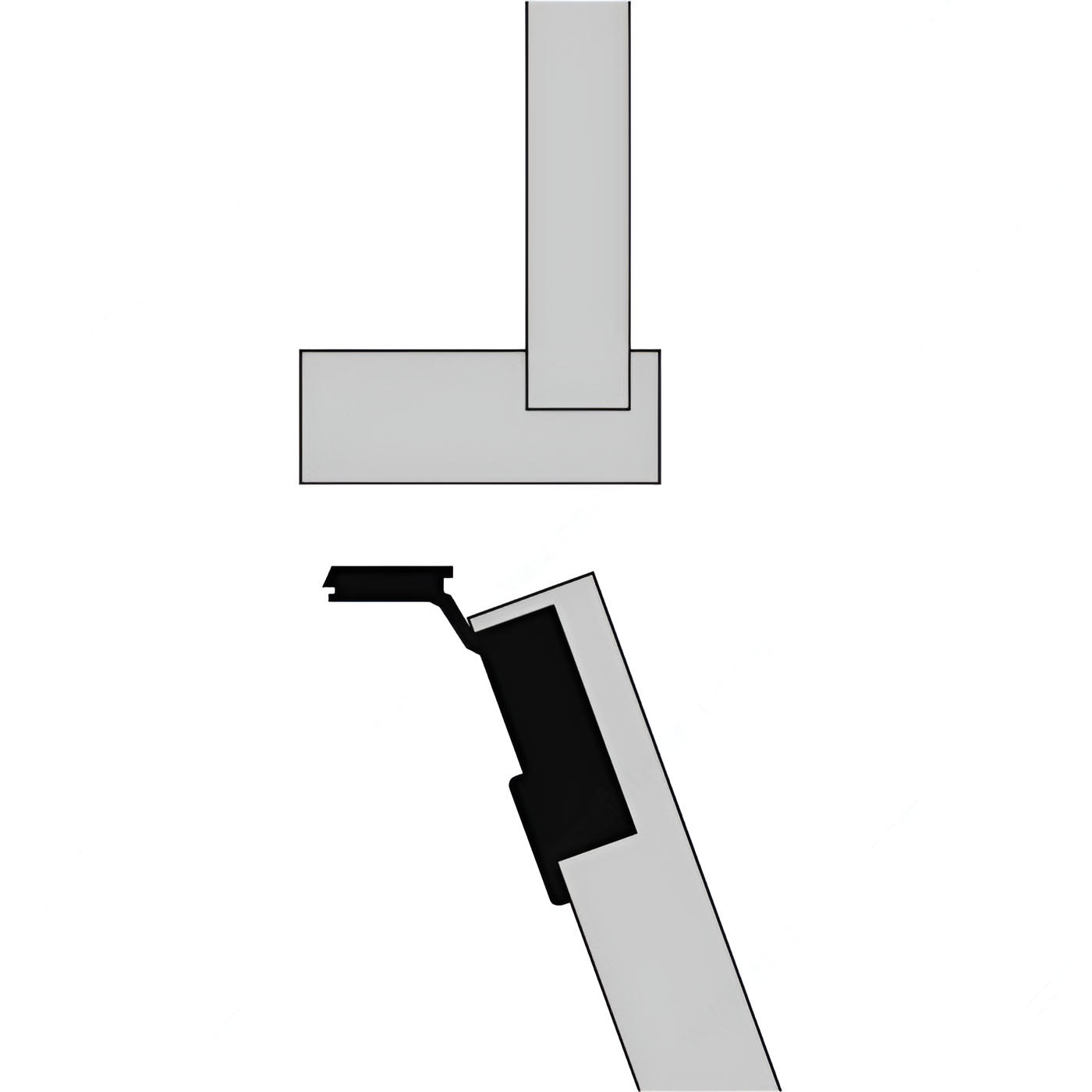

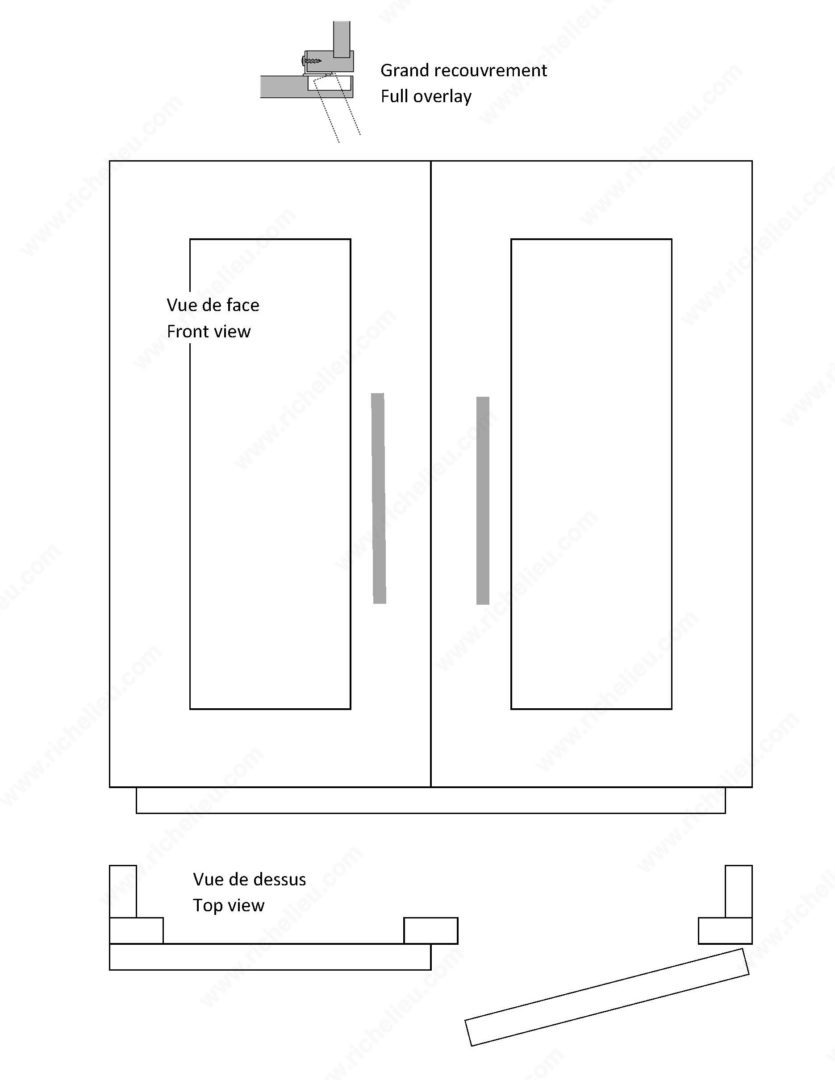

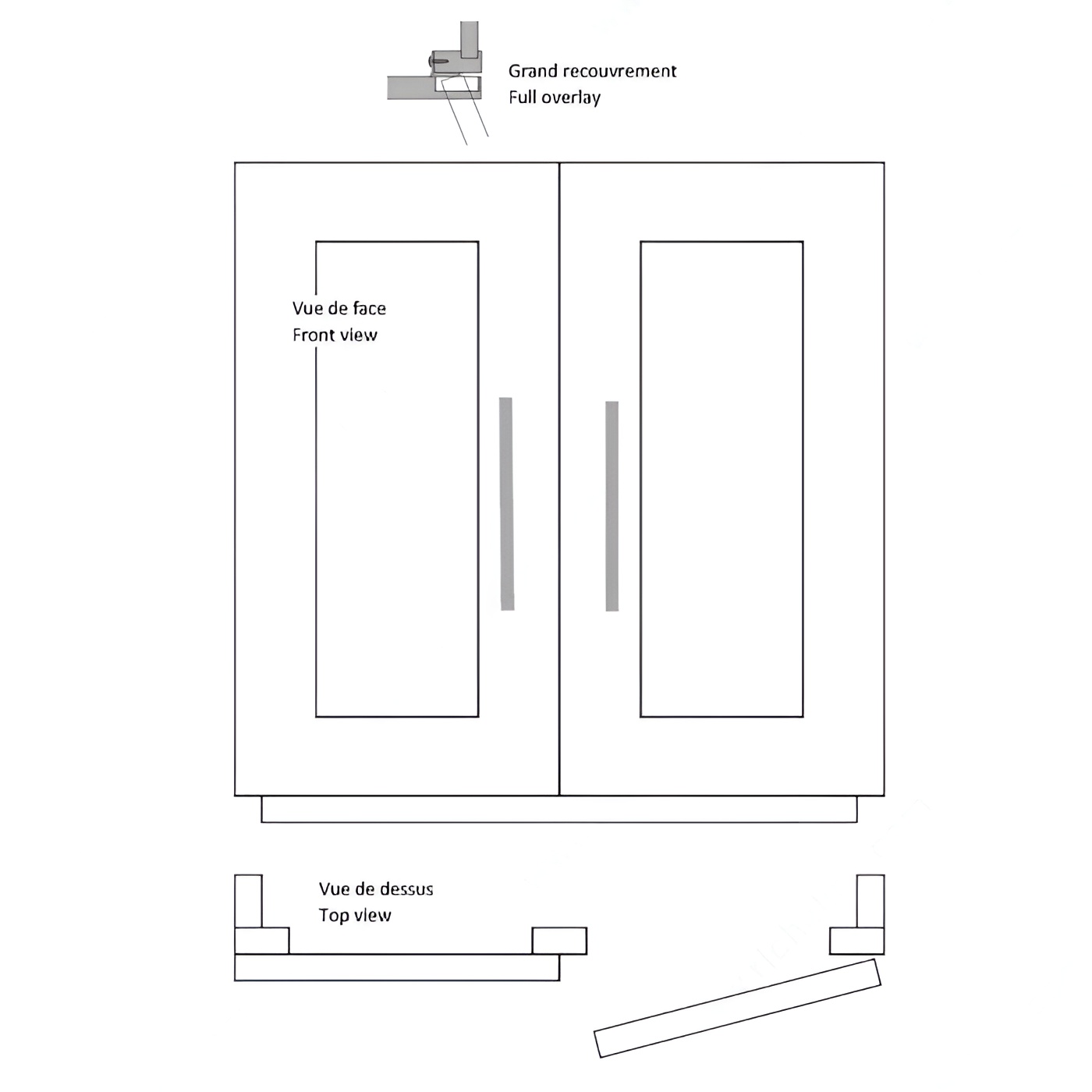

Door Position: Full Overlay
Door Thickness: Max. 3/4 in
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +107°
Hinge Type: COMPACT
Mechanism: Soft-Closing
Milling Diameter: 7/16 in*

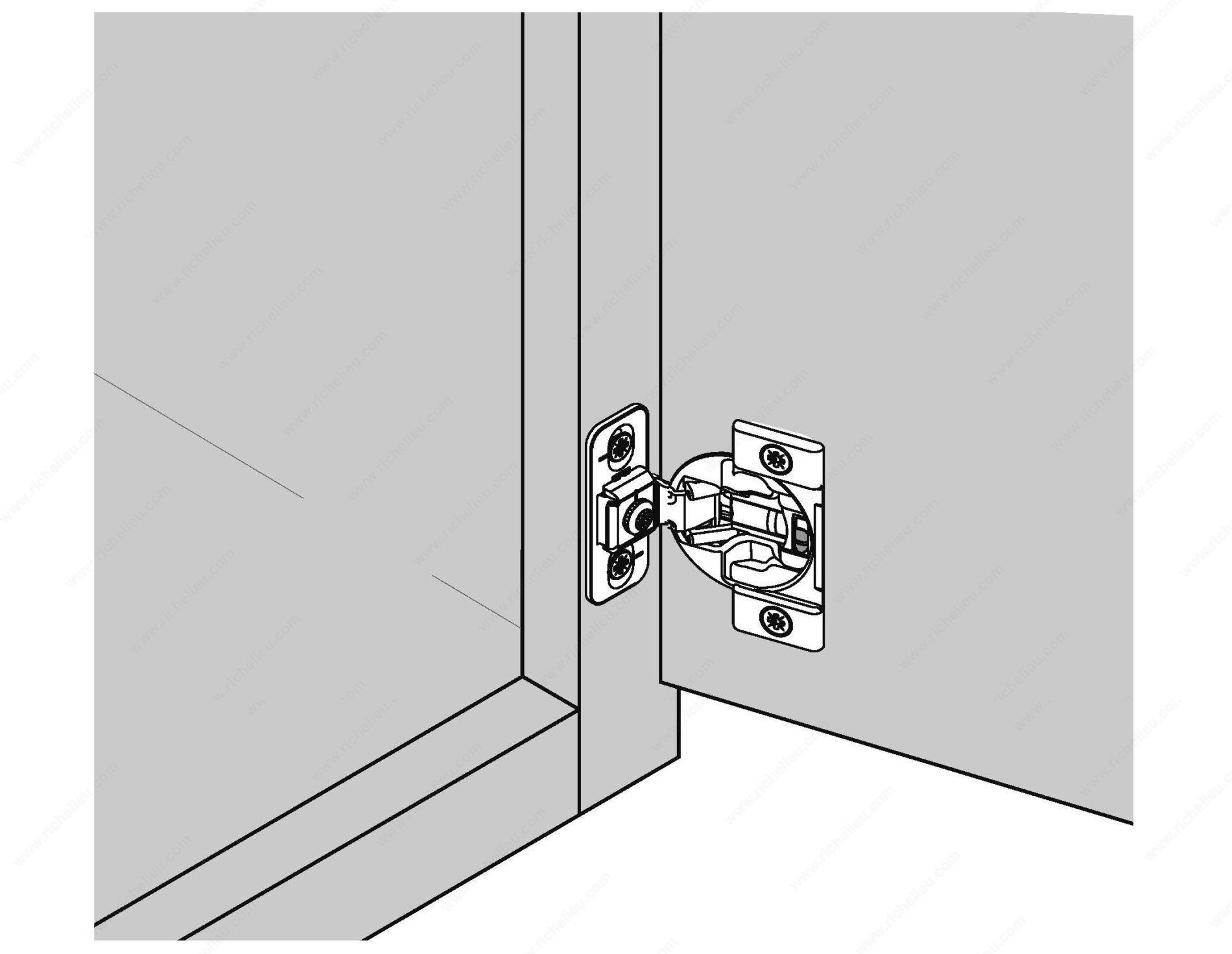

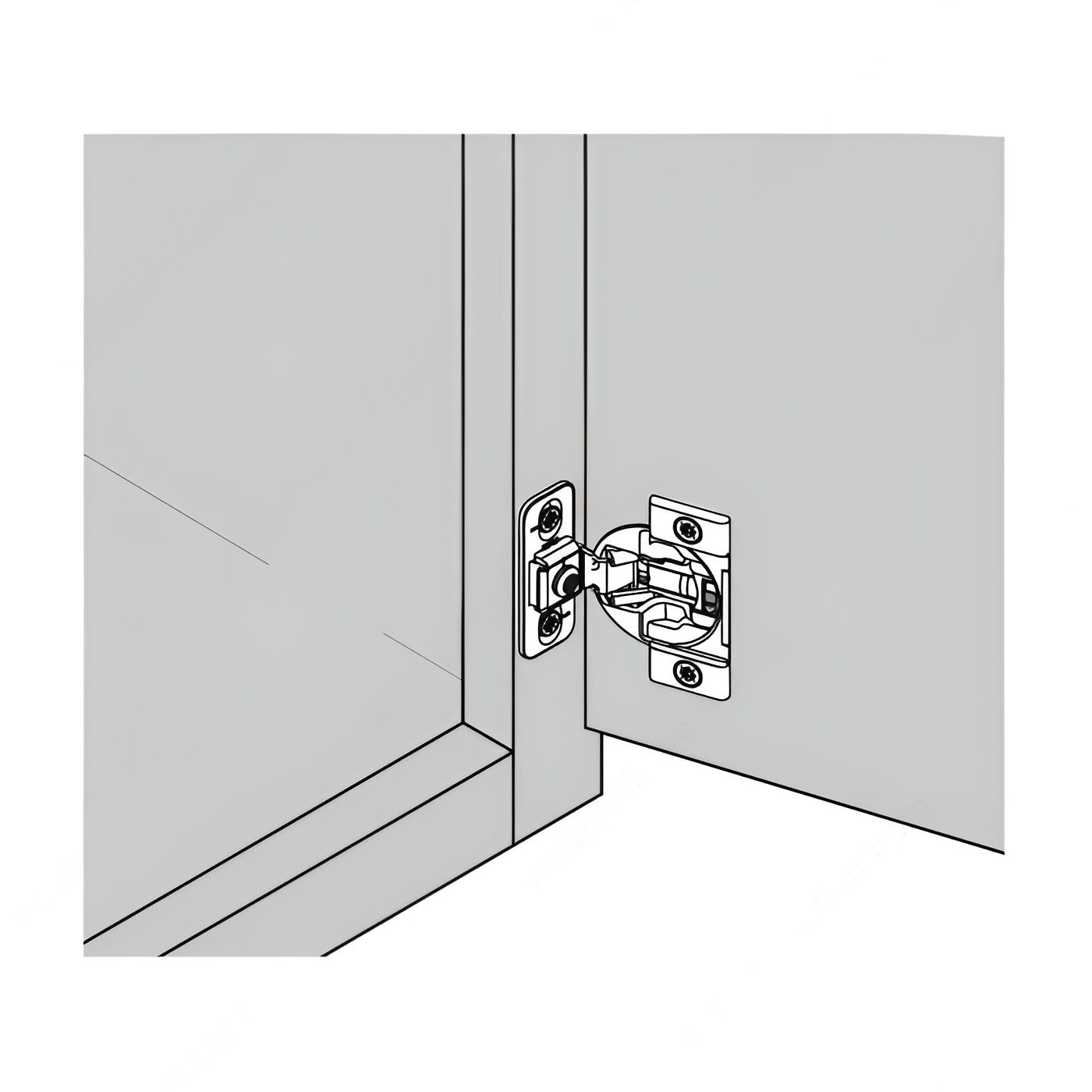

Mounting Type: Face Mount
Overlay: 1 3/8 in
Product #: 38B358BF22180
Product number: 38B358BF22180
Screw/ Nail: Not included
Unit 1: case - 250
Use Type: Inward Opening Door
Resources
