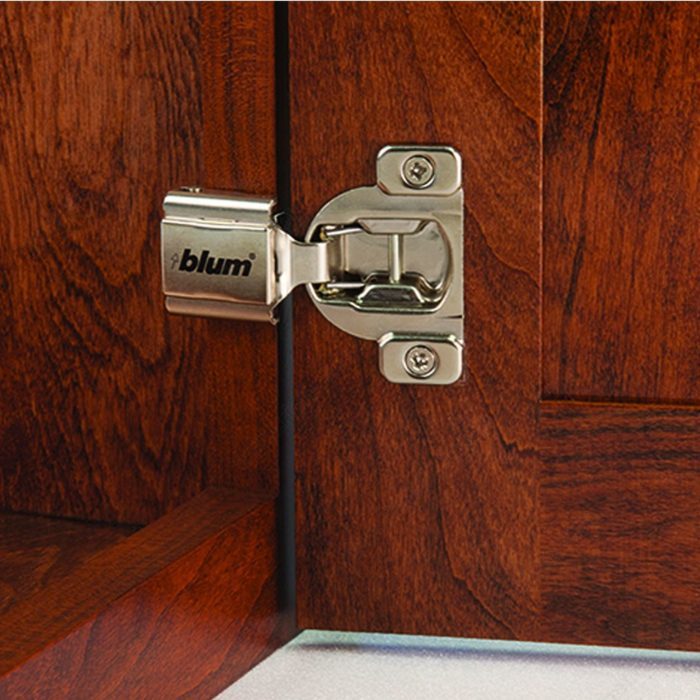

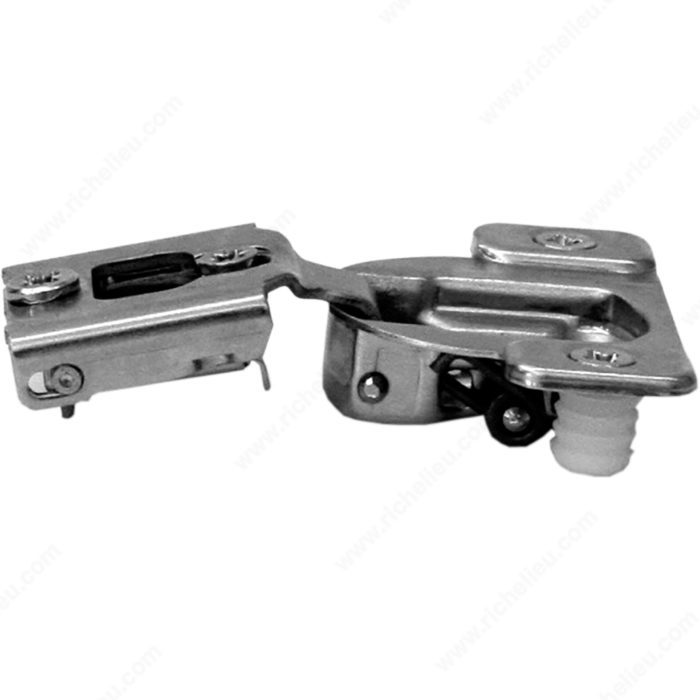

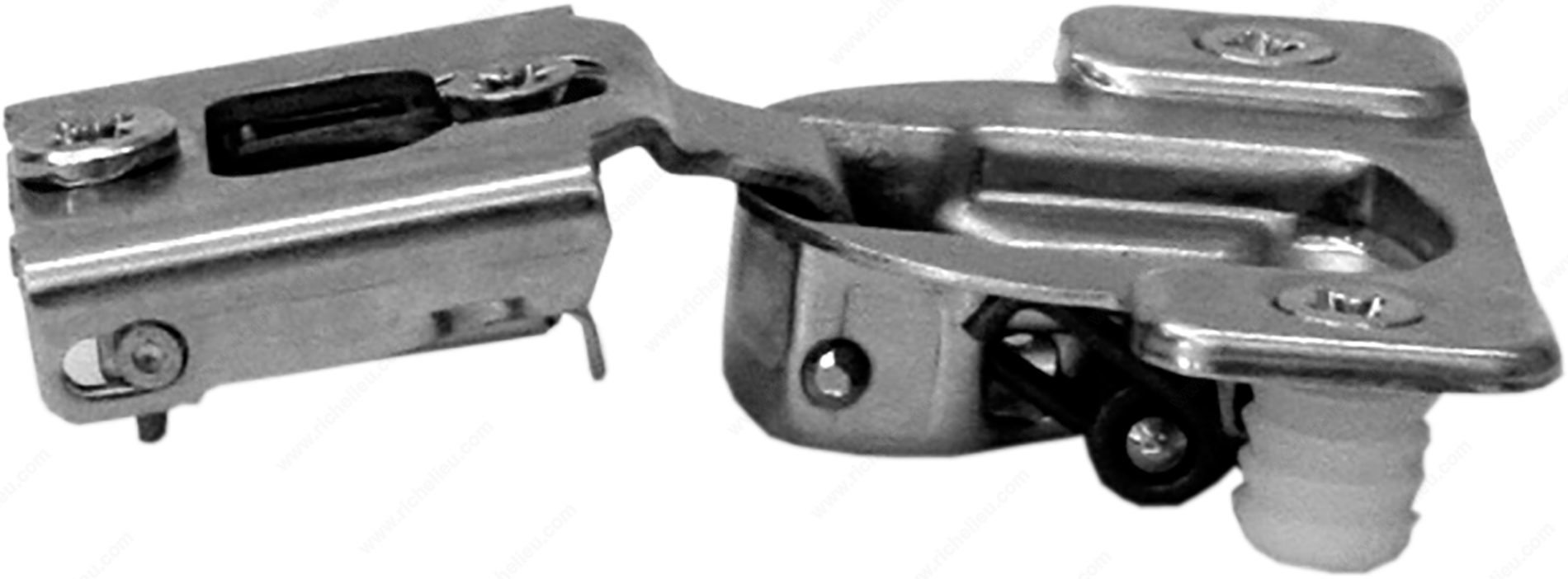

Richelieu 38N35506180 COMPACT 38N Hinge 105 is an ideal solution for face frame cabinets, offering superior functionality in a compact design. These concealed hinges are engineered for both small and large overlays, making them versatile enough for a variety of applications. With an impressive hinge opening angle of +105°, they provide ample access to cabinet interiors, enhancing ease of use. Designed for cabinets with a maximum thickness of 3/4 inch, this hinge accommodates standard doors seamlessly. The installation is straightforward, featuring a screw-on fixing type along with a wrap-around mount for added stability. The hinge includes a plate, simplifying the setup process. Constructed from durable steel, the spring-closing mechanism ensures a smooth operation, maintaining the integrity of your cabinetry. The milling depth of 7/16 inch and diameter of 1 3/8 inch allows for precise fitting, contributing to a streamlined aesthetic. Richelieu’s commitment to quality is evident in the 38N35506180 COMPACT hinge, making it a reliable choice for building professionals and discerning homeowners alike. Each unit is packaged individually, and while screws are not included, the hinge is ready for efficient installation. Elevate your cabinetry projects with this premium hinge solution.

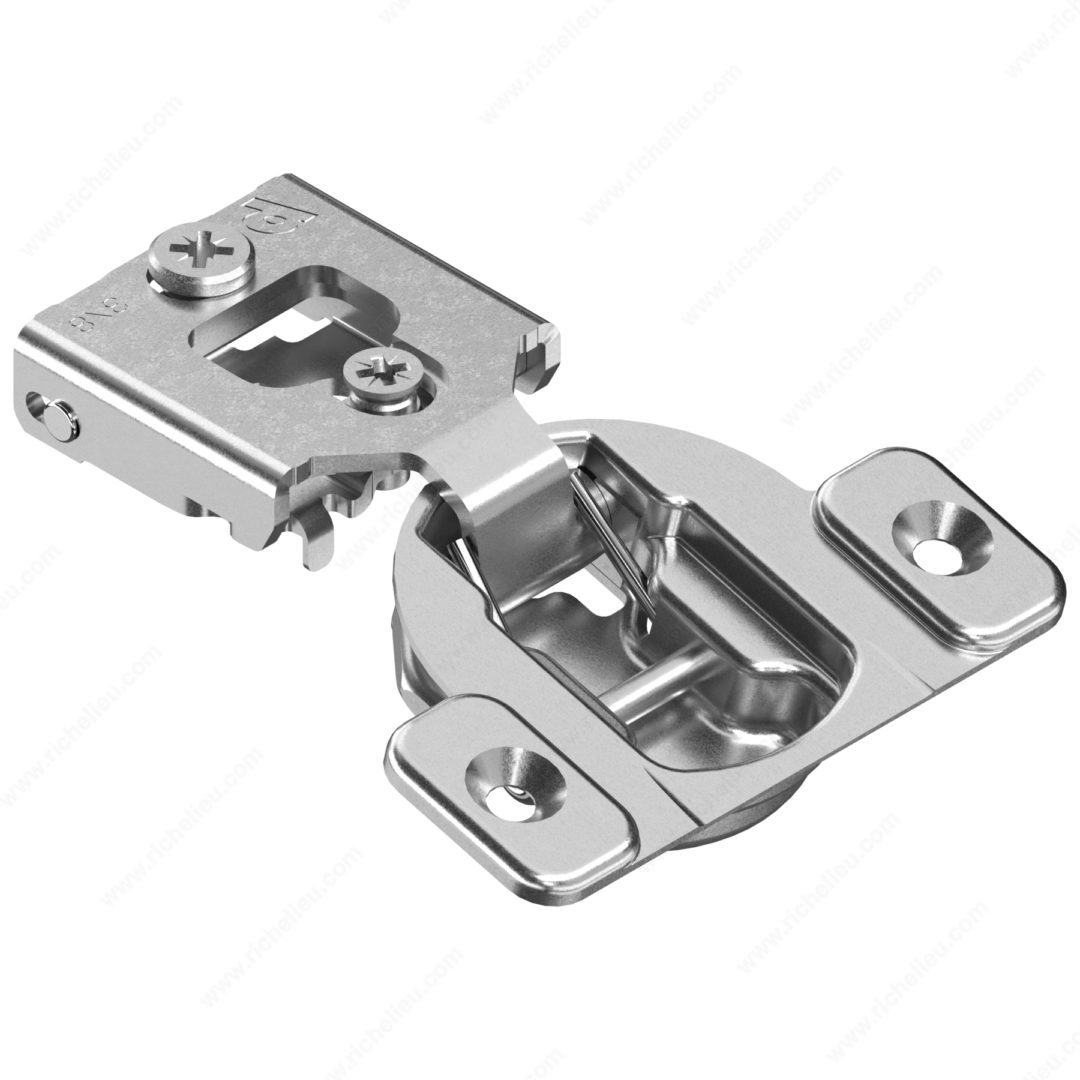

COMPACT 38N Hinge 105
Brand: Blum
Cabinet Thickness: Max. 3/4 in*

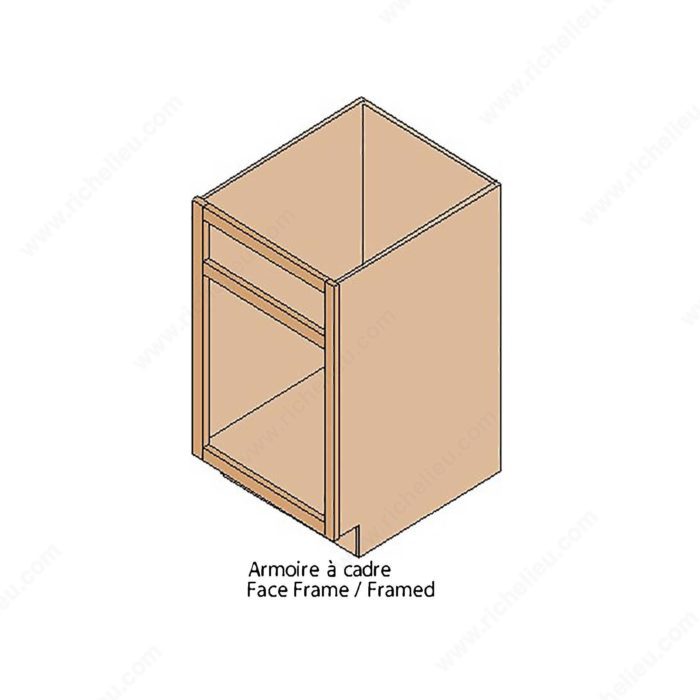

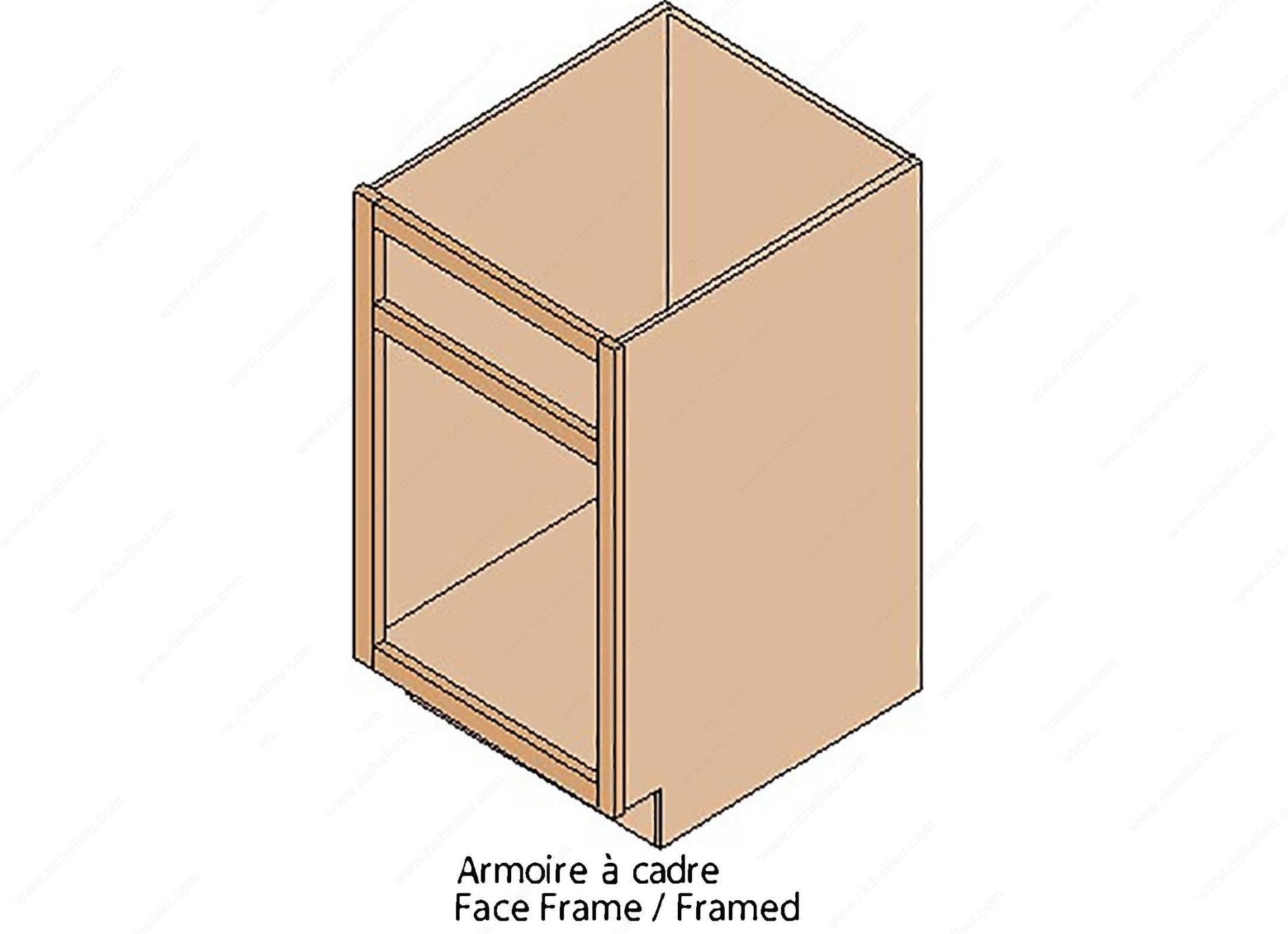

Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Half Overlay
Door Thickness: Max. 3/4 in

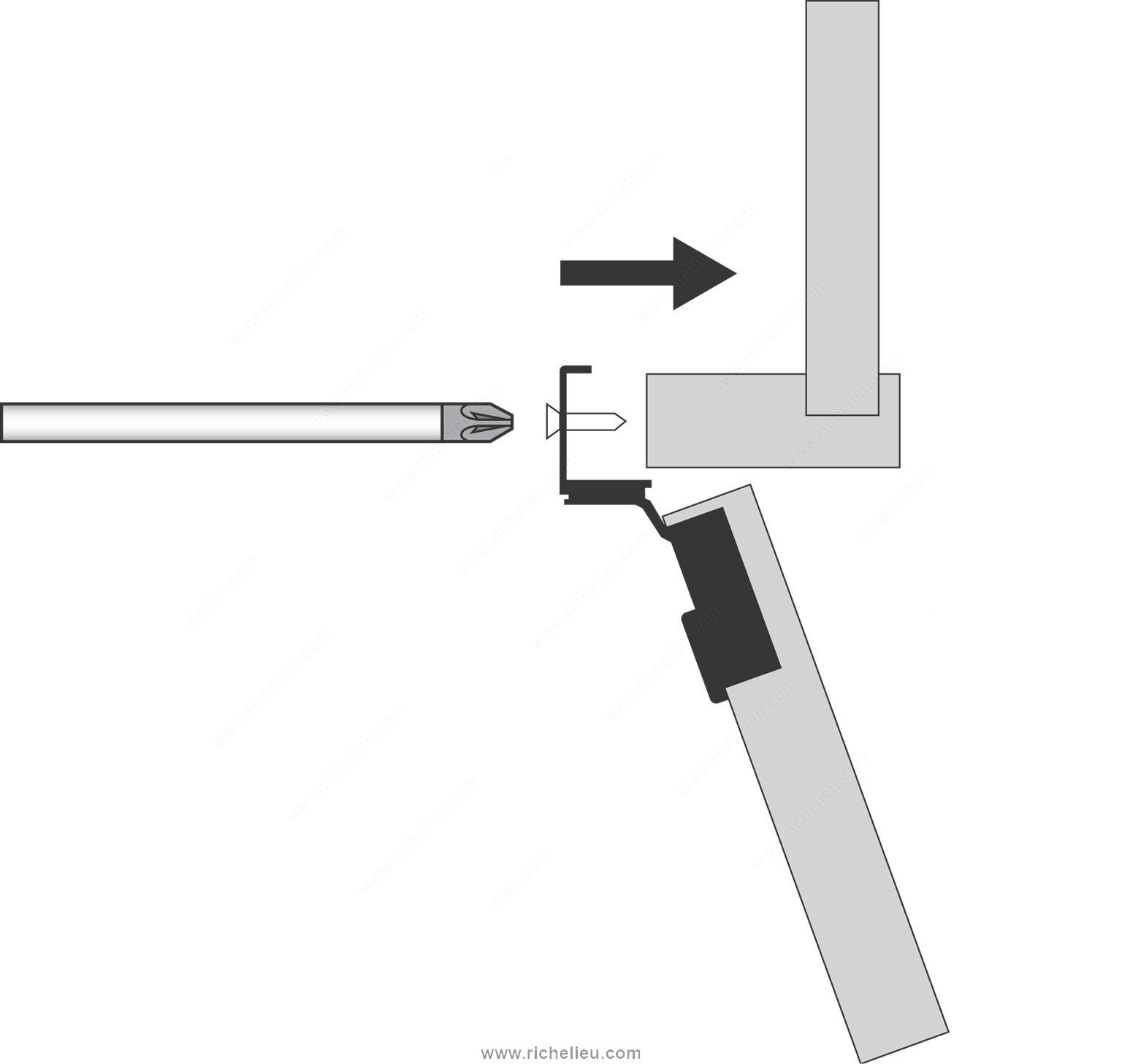

Fixing Type: Screw-On
Hinge Opening Angle: +105°
Hinge Type: COMPACT
Material: Steel
Mechanism: Spring Closing
Milling Depth: 7/16 in
Milling Diameter: 35 mm

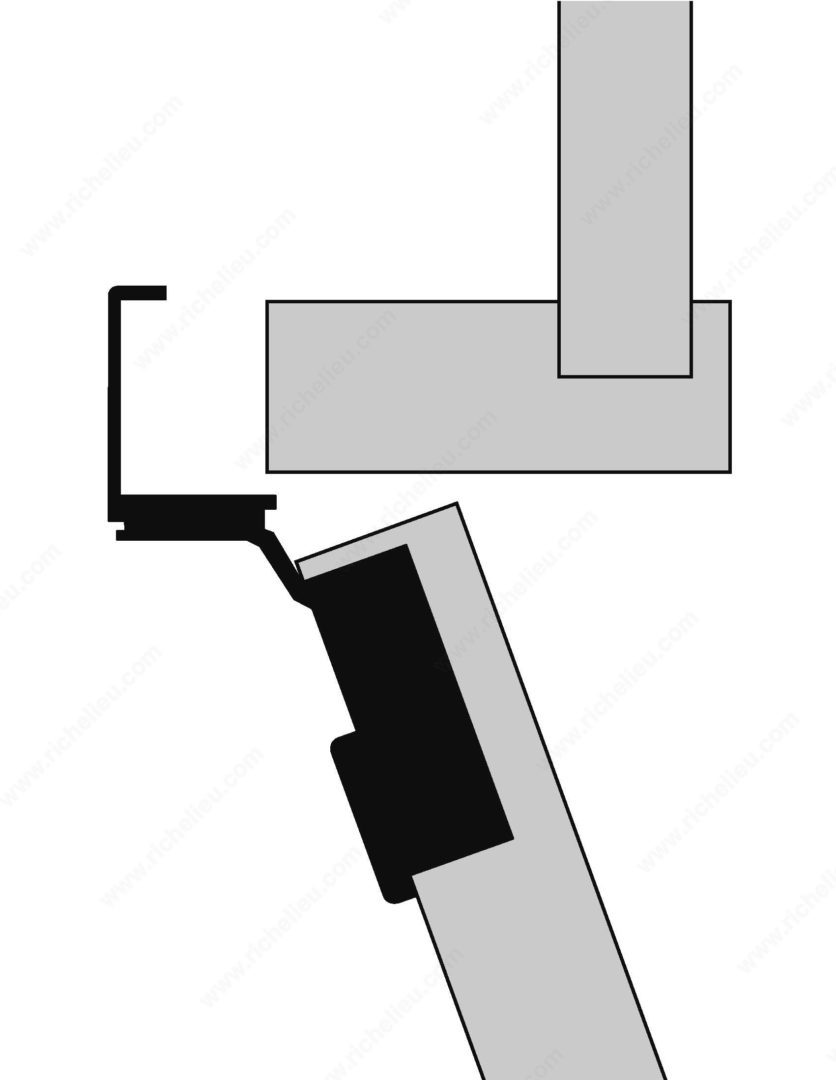

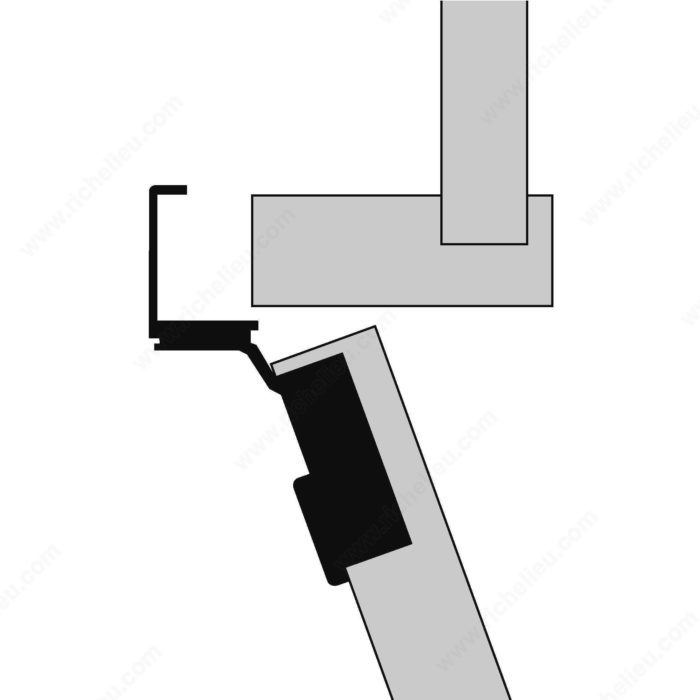

Mounting Type: Wrap-around Mount
Overlay: 3/8 in
Packaging format: Per unit
Plate Included: Yes
Product #: 38N35506180
Product number: 38N35506180
Required Frame Width: 19 mm
Screw/ Nail: Not included
Unit 1: case - 250
Use Type: Standard Door
