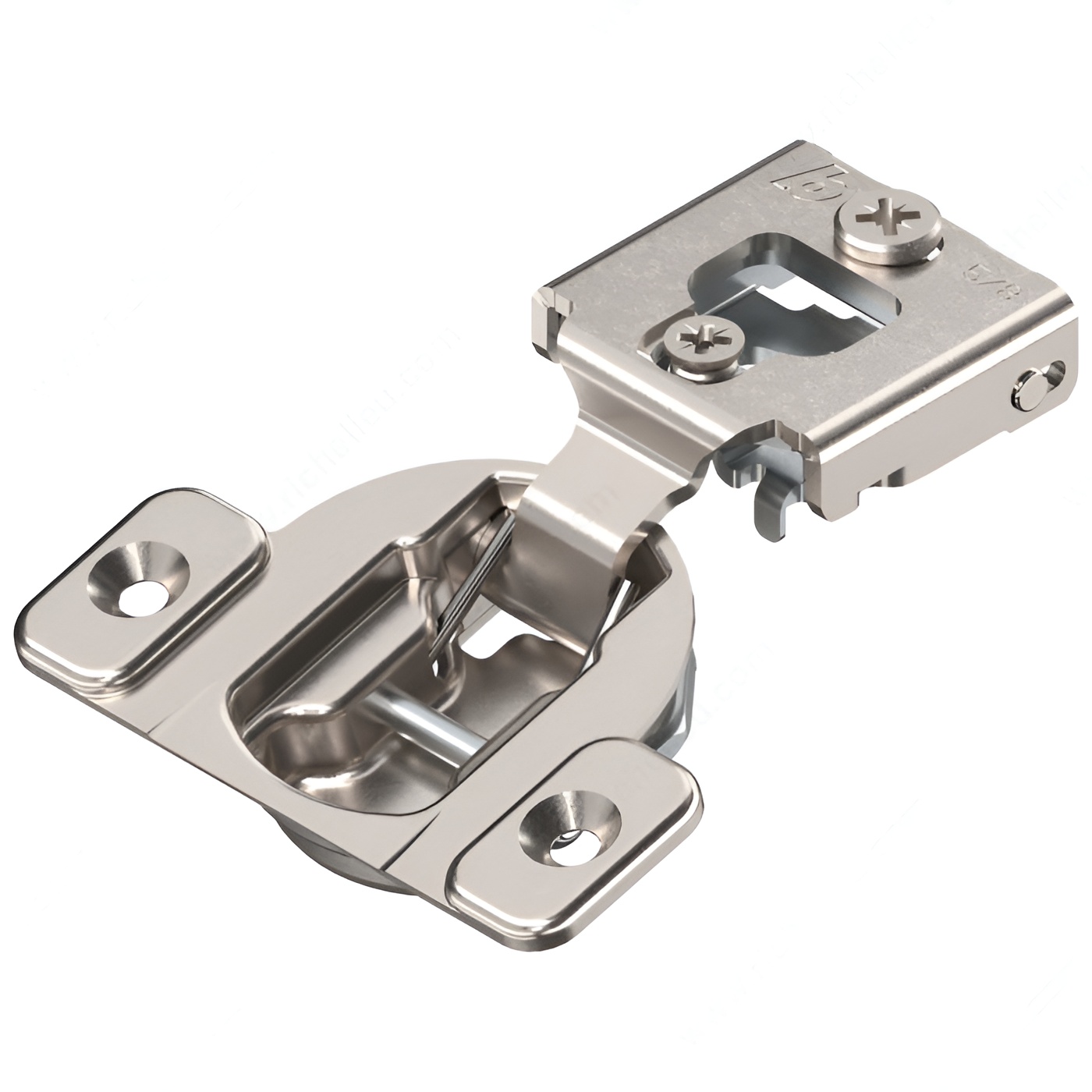

Richelieu 38N35510180 COMPACT 38N Hinge 105 is an ideal solution for concealed hinge applications in face frame cabinets. Designed for versatility, these hinges accommodate both small and large overlays, ensuring a seamless fit for a variety of cabinet styles. With an impressive hinge opening angle of +105°, they provide ample access to cabinet interiors, enhancing functionality. Constructed from durable steel, the COMPACT hinge features a spring-closing mechanism that promotes ease of use and reliable performance. The hinge is adjustable in side, height, and depth dimensions, allowing for precise alignment and installation. It is compatible with cabinet and door thicknesses of up to 3/4 in*, making it suitable for a range of projects. This model requires a wrap-around mount and includes the necessary mounting plate, although screws are sold separately. The milling depth of 7/16 in* and milling diameter of 1 3/8 in* ensure a secure fit within the cabinetry. Packaged per unit for convenience, the Richelieu 38N35510180 COMPACT hinge is a practical choice for builders and homeowners seeking reliable, adjustable hardware for their cabinetry needs. Experience the difference with this dependable hinge that combines quality with performance.
COMPACT 38N Hinge 105
Brand: Blum
Cabinet Thickness: Max. 3/4 in*
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Half Overlay
Door Thickness: Max. 3/4 in
Fixing Type: Screw-On
Hinge Opening Angle: +105°
Hinge Type: COMPACT
Material: Steel
Mechanism: Spring Closing
Milling Depth: 7/16 in
Milling Diameter: 35 mm
Mounting Type: Wrap-around Mount
Overlay: 5/8 in
Packaging format: Per unit
Plate Included: Yes
Product #: 38N35510180
Product number: 38N35510180
Required Frame Width: 19 mm
Screw/ Nail: Not included
Unit 1: case - 250
Use Type: Standard Door
