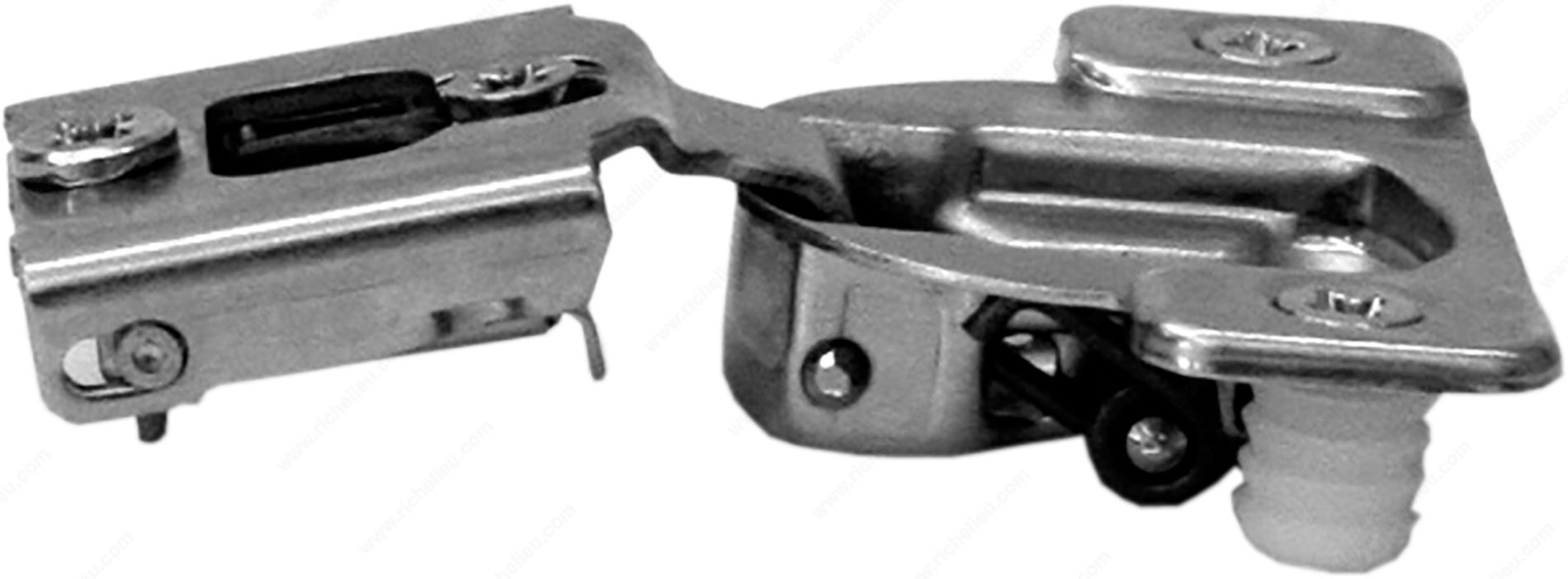

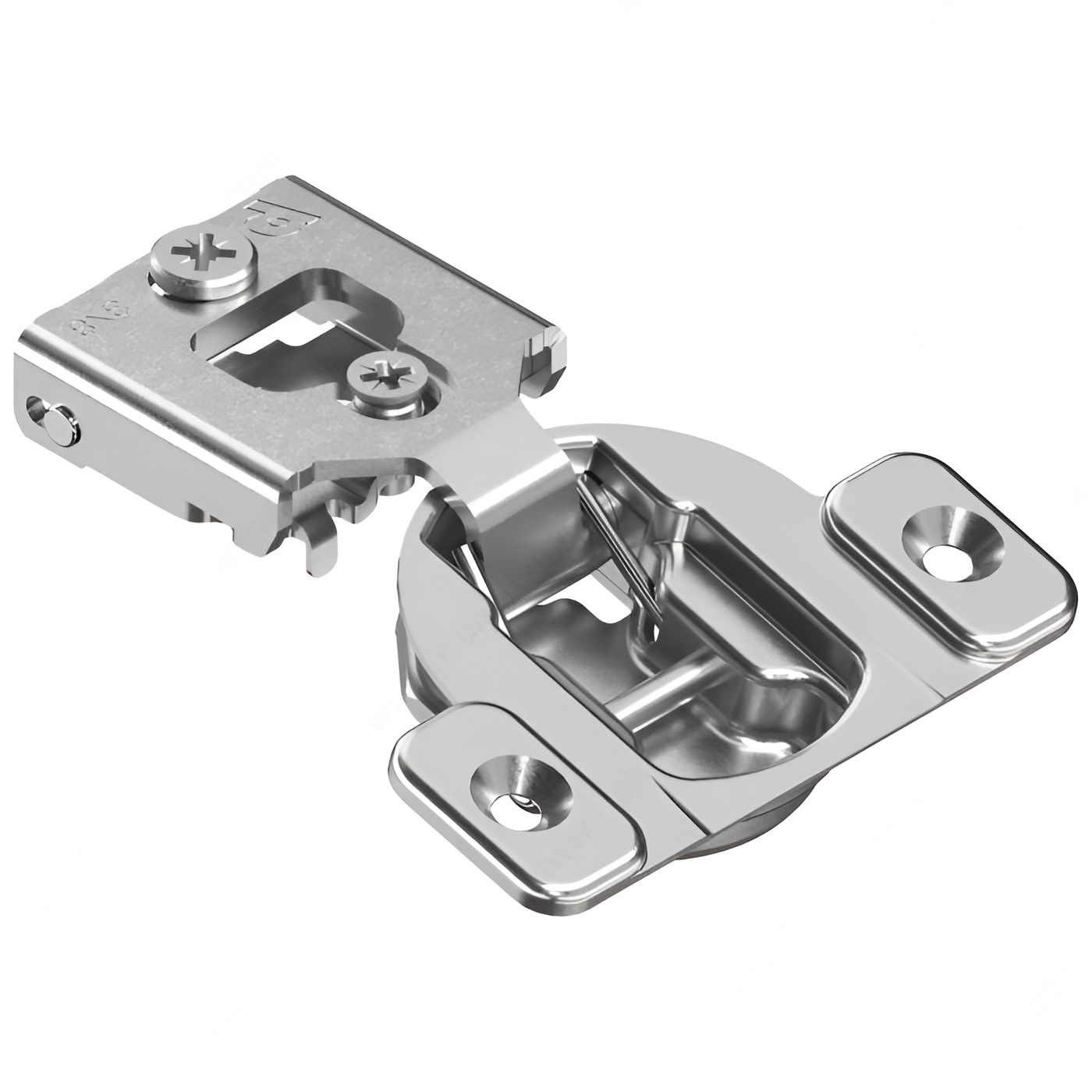

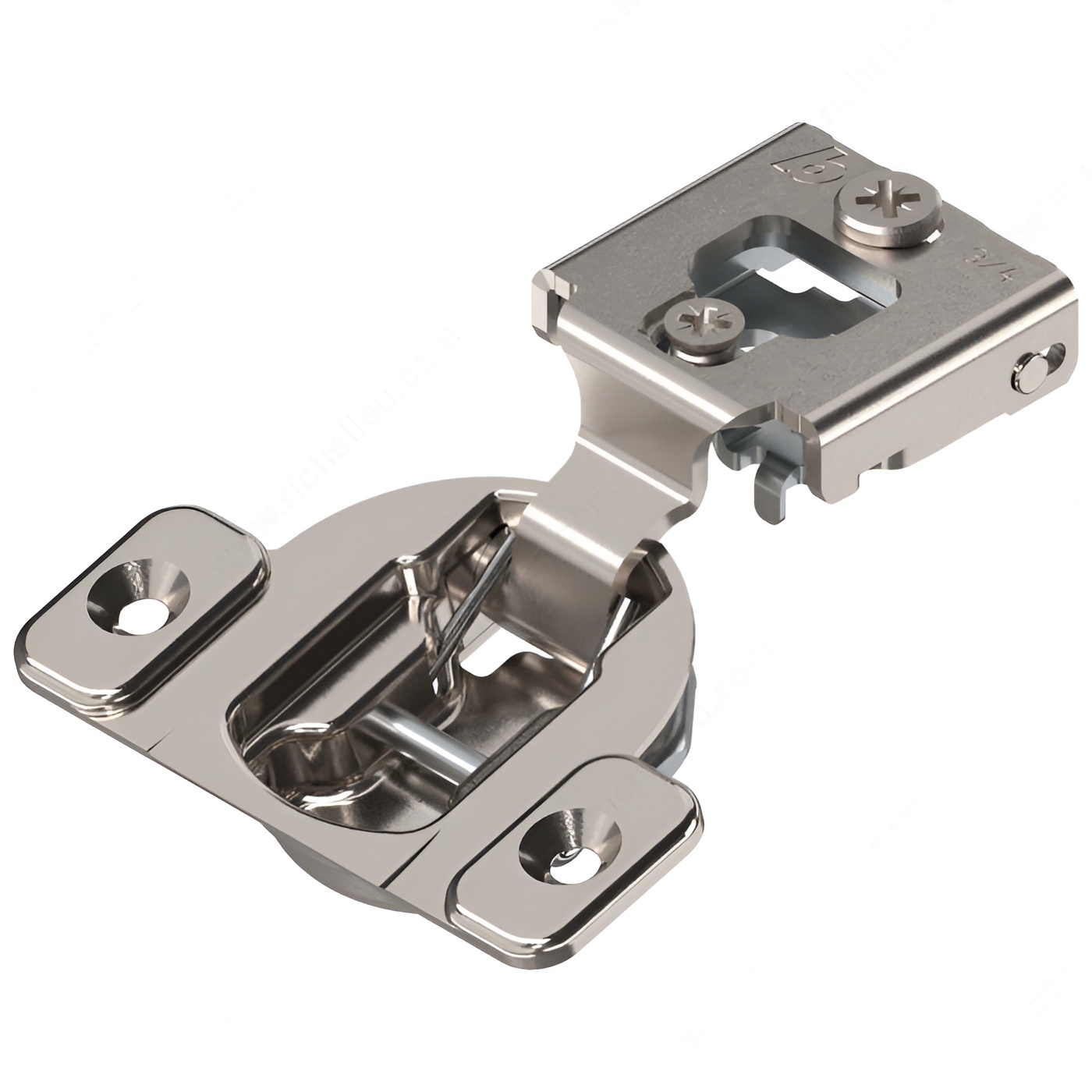

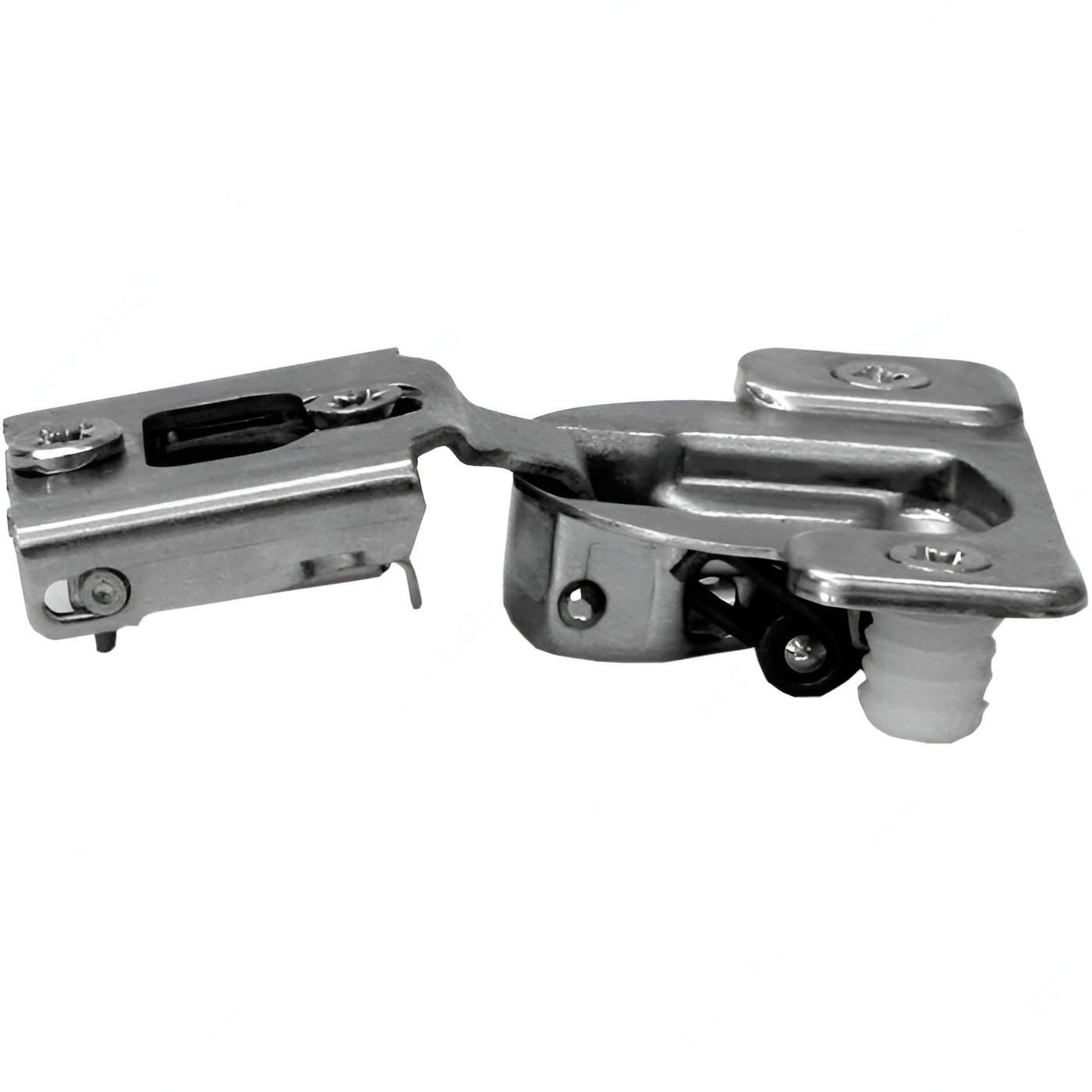

Richelieu 38N35512180 COMPACT 38N Hinge 105 offers a reliable solution for face frame cabinets with its concealed design, ensuring a clean and seamless appearance. These hinges are adjustable in side, height, and depth dimensions, making them incredibly versatile for various applications. Suitable for both small and large overlays, the COMPACT hinge is ideal for any cabinetry project. Designed for maximum efficiency, the 38N hinge accommodates cabinet and door thicknesses up to 3/4 inch. It features a hinge opening angle of +105°, providing ample access for easy use and access. The robust steel construction ensures durability, while the spring-closing mechanism guarantees smooth operation every time. With a milling depth of 7/16 inch and a milling diameter of 1 3/8 inches, installation is straightforward, complemented by the wrap-around mount design. This product comes with a plate included, although screws are not provided. Each hinge is packaged individually, allowing for precise ordering based on your project needs. Whether you're a building professional or a knowledgeable homeowner, the Richelieu COMPACT hinge is an excellent choice for standard doors, ensuring both functionality and aesthetic appeal in your cabinetry.
COMPACT 38N Hinge 105
Brand: Blum
Cabinet Thickness: Max. 3/4 in*
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Half Overlay
Door Thickness: Max. 3/4 in
Fixing Type: Screw-On

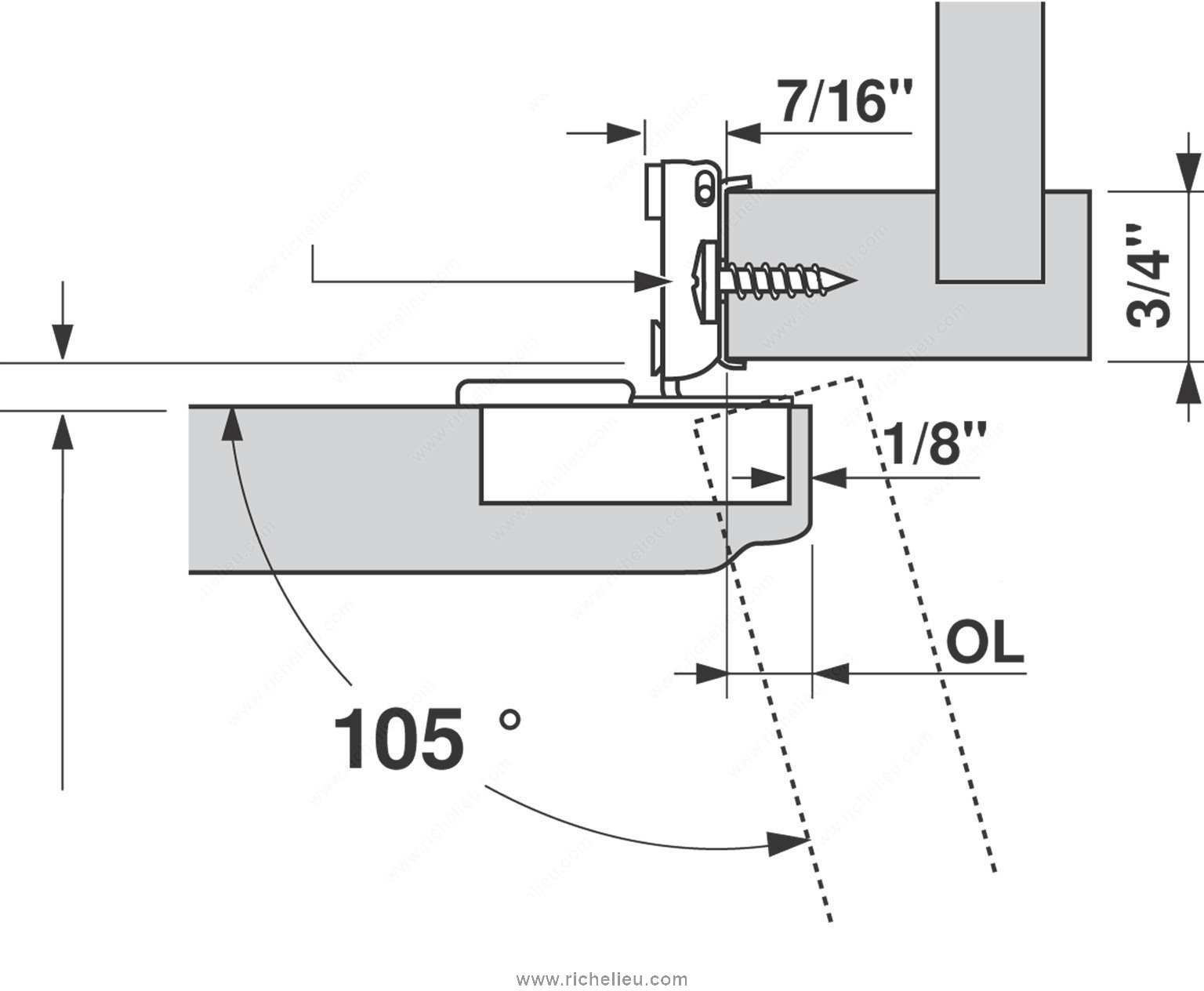

Hinge Opening Angle: +105°
Hinge Type: COMPACT
Material: Steel
Mechanism: Spring Closing

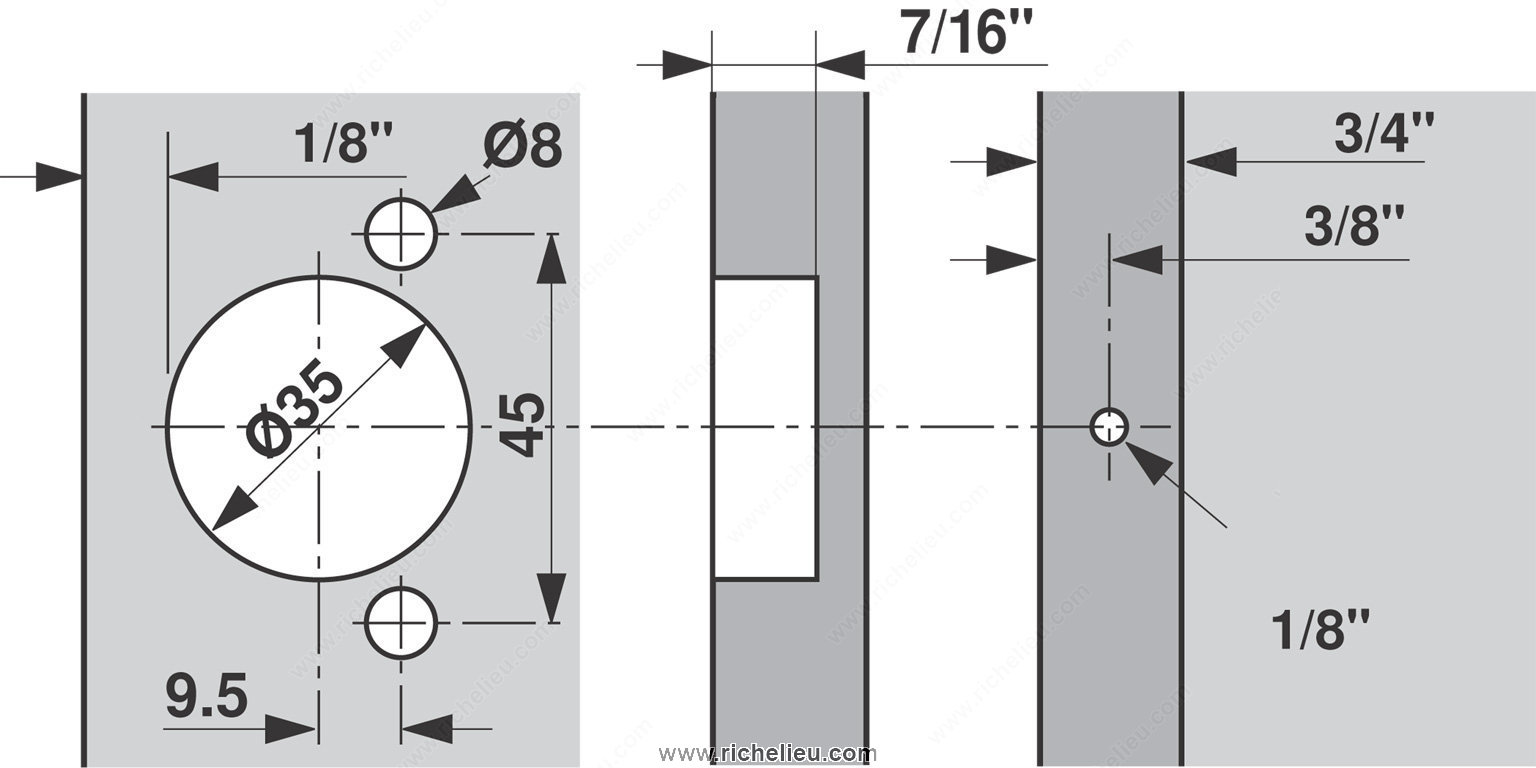

Milling Depth: 7/16 in
Milling Diameter: 35 mm

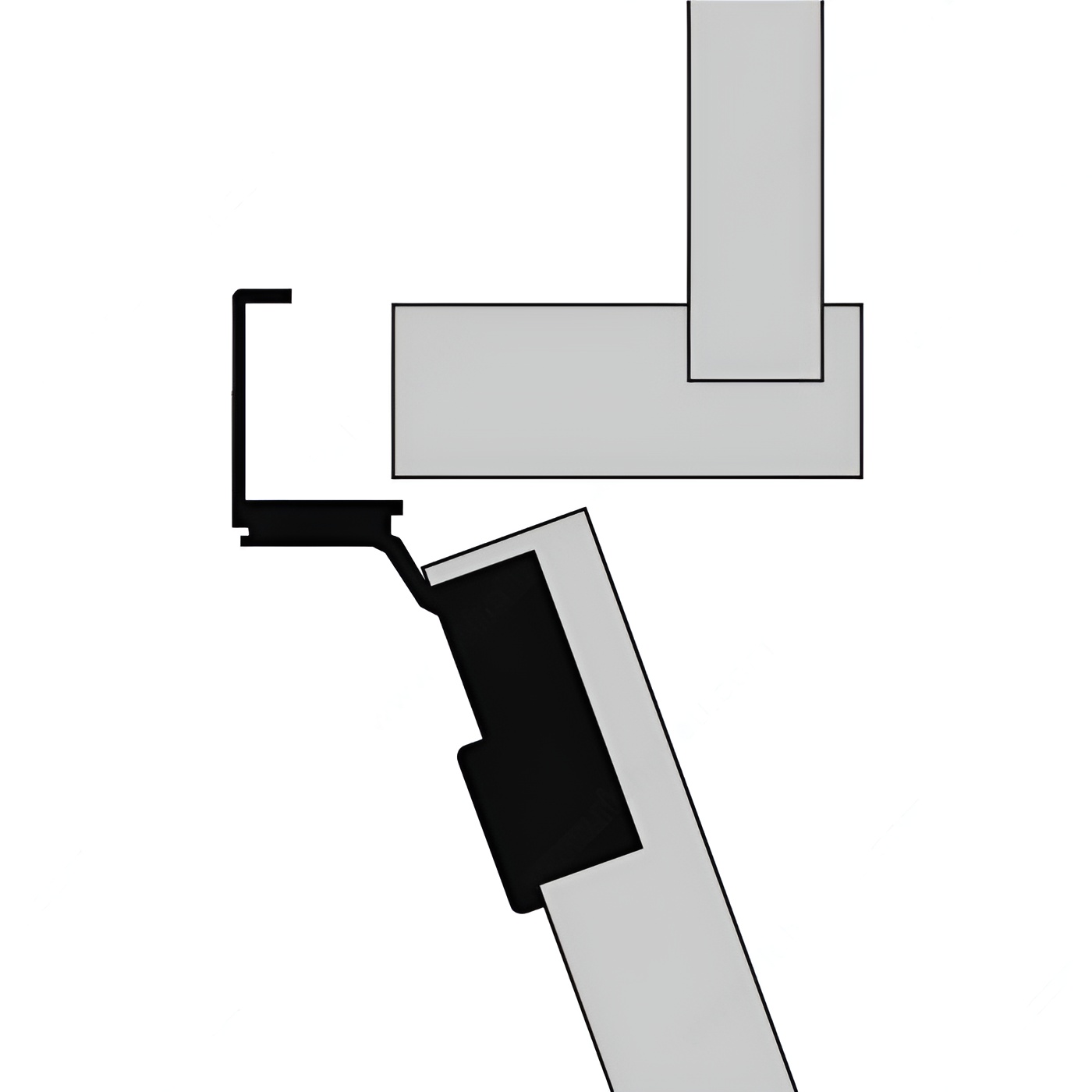

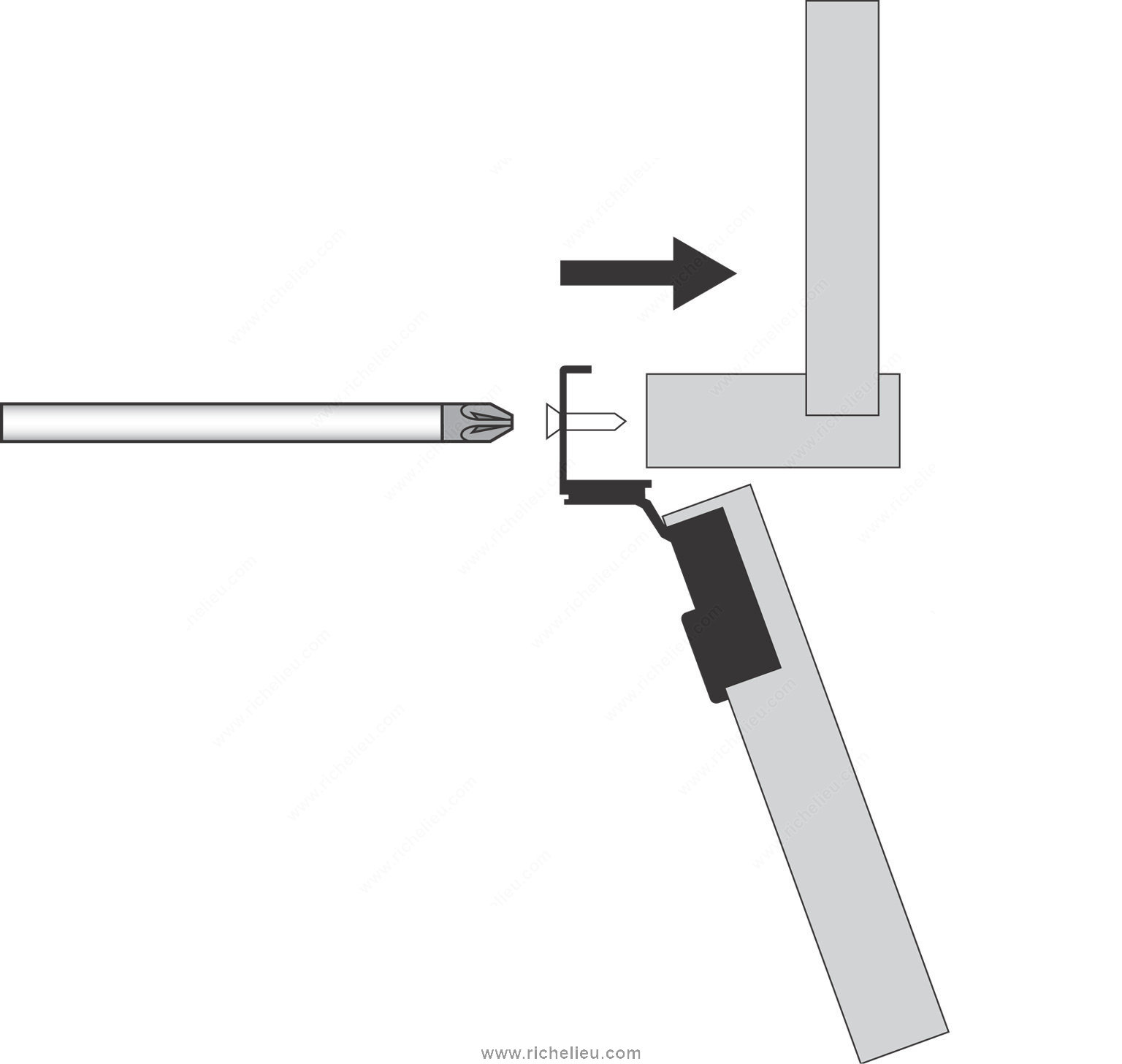

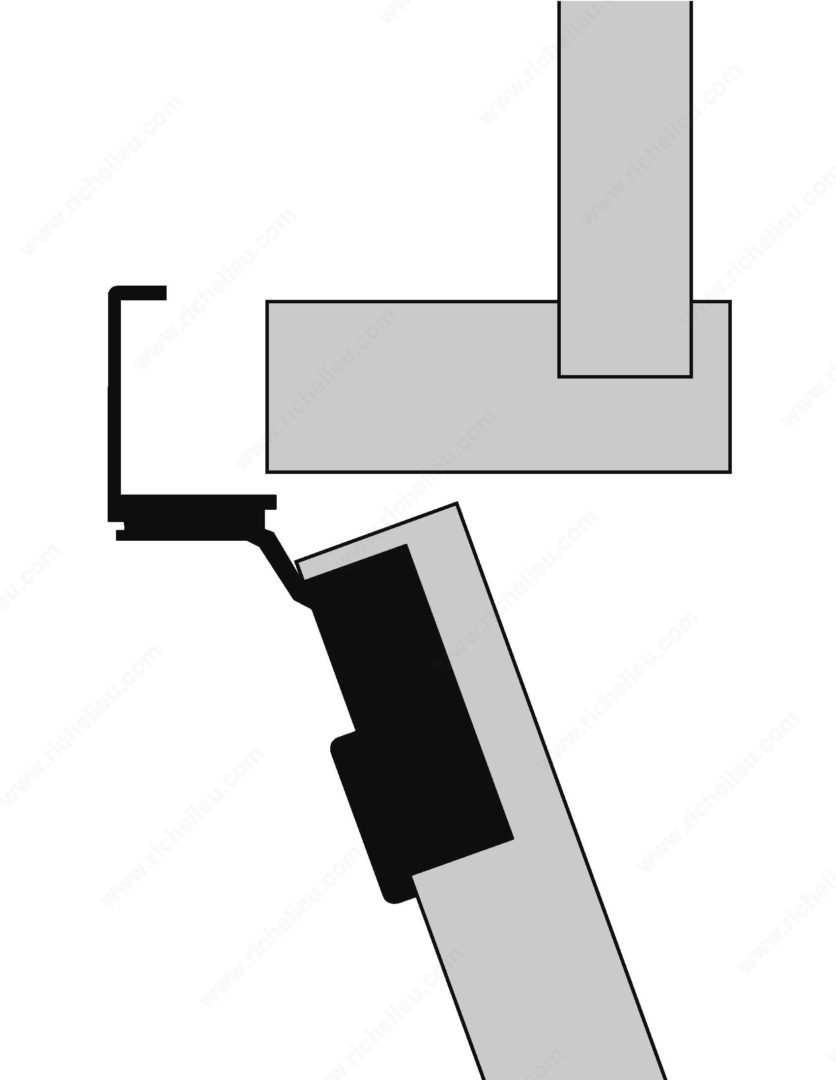

Mounting Type: Wrap-around Mount
Overlay: 3/4 in
Packaging format: Per unit
Plate Included: Yes
Product #: 38N35512180
Product number: 38N35512180
Required Frame Width: 19 mm
Screw/ Nail: Not included
Unit 1: case - 250
Use Type: Standard Door
