Richelieu 38N355B08180 COMPACT BLUMOTION Hinge 38N 105 is specifically engineered for framed cabinets, delivering an exceptional combination of functionality and style. This innovative hinge features an integrated soft-closing mechanism that ensures doors close quietly, enhancing the overall user experience. For smaller or lighter doors, the BLUMOTION function can be easily deactivated, allowing for a seamless closing action without compromising on quality. Designed for durability, the hinge is constructed from high-quality steel and comes in a sleek nickel finish, making it a perfect fit for modern cabinetry. It accommodates a minimum cabinet thickness of 5/8 inches and supports a door thickness of the same measurement, with a half overlay door position. The wrap-around mounting type simplifies installation, while the hinge opening angle of +105° provides ample space for easy access. With a milling depth of 7/16 inches and a diameter of 1 3/8 inches, the hinge is versatile and suitable for standard door applications. Please note that screws are not included in the packaging, which is sold per unit. Upgrade your cabinetry with Richelieu's COMPACT BLUMOTION hinge for a sophisticated and practical solution.

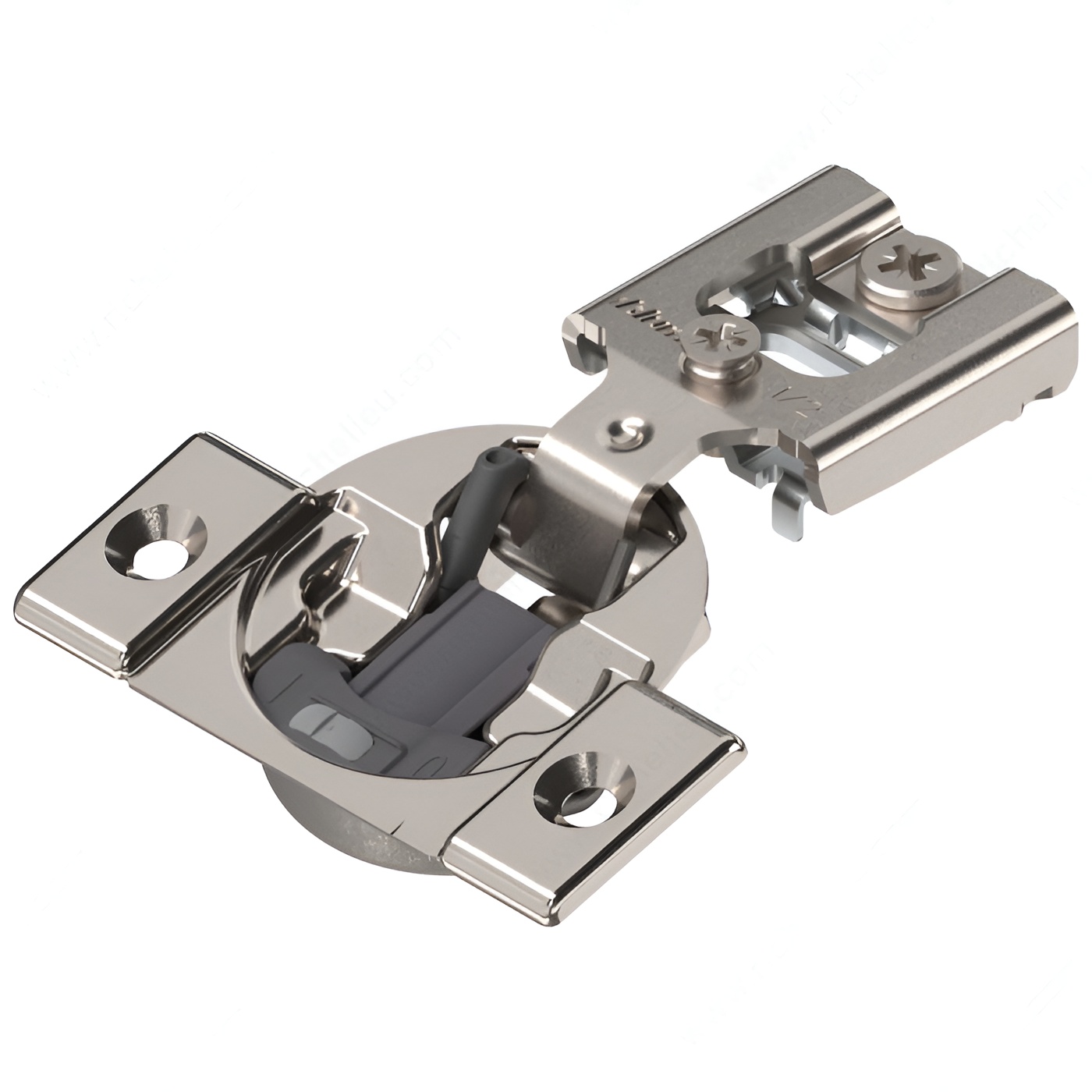

COMPACT BLUMOTION Hinge 38N 105
Brand: Blum
Cabinet Thickness: Min. 5/8 in*
Cabinet Type: Face Frame
Closing Mechanism: Soft-Closing

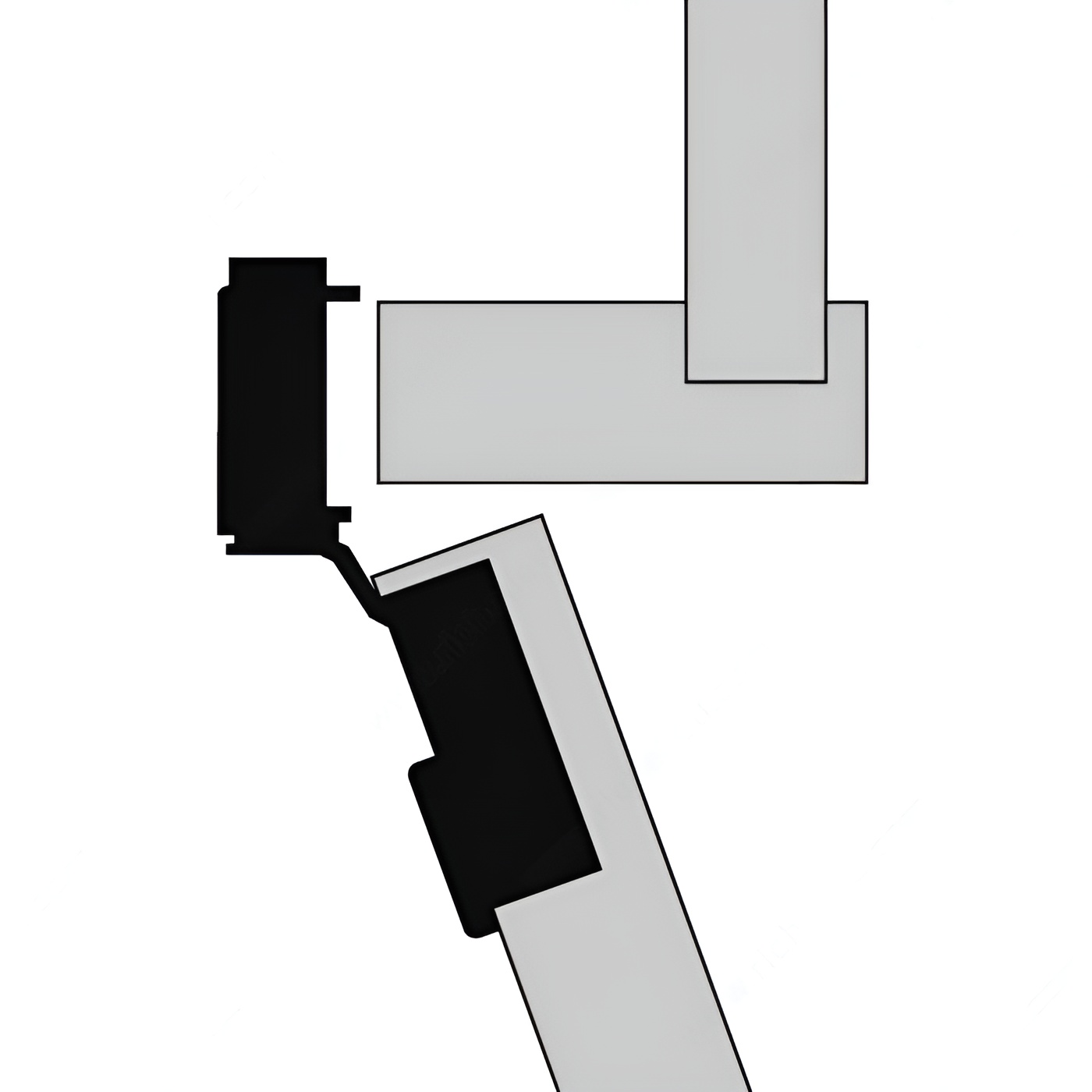

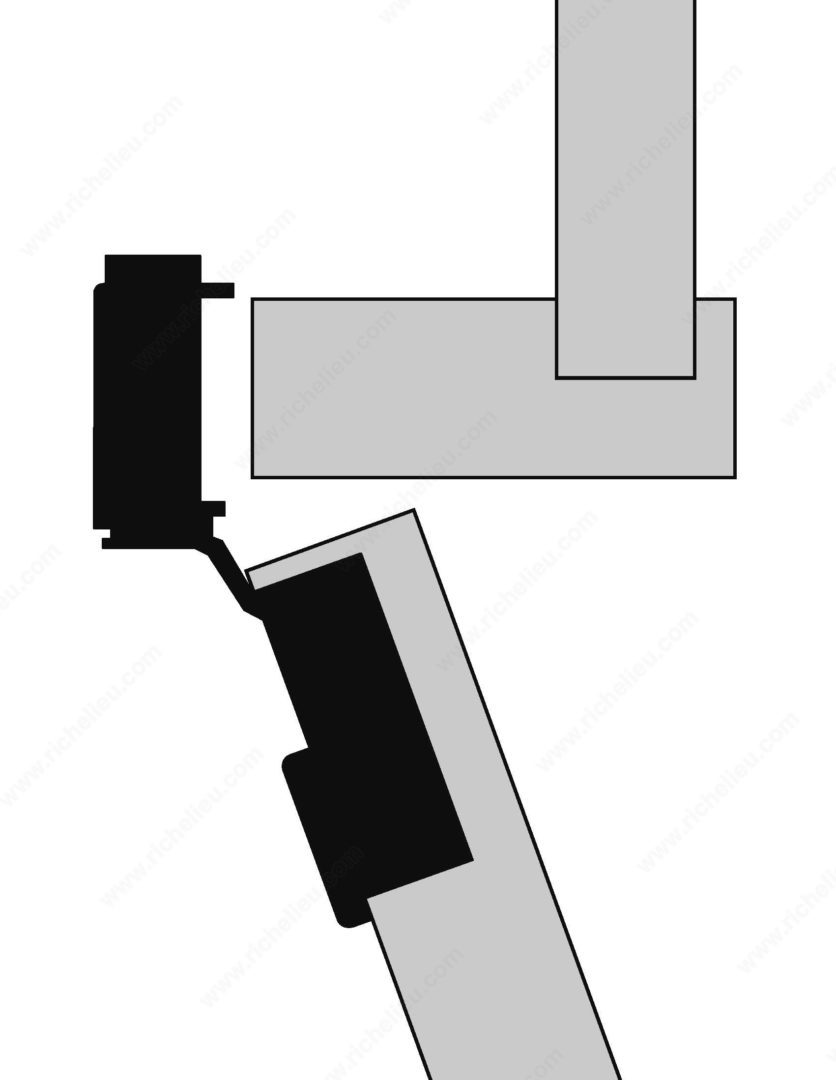

Door Position: Half Overlay
Door Thickness: 5/8 in*
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +105°
Hinge Type: COMPACT BLUMOTION
Material: Steel
Mechanism: Soft-Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Wrap-around Mount
Overlay: 1/2 in
Packaging format: Per unit
Product #: 38N355B08180
Product number: 38N355B08180
Screw/ Nail: Not included
Unit 1: case - 250
Use Type: Standard Door
