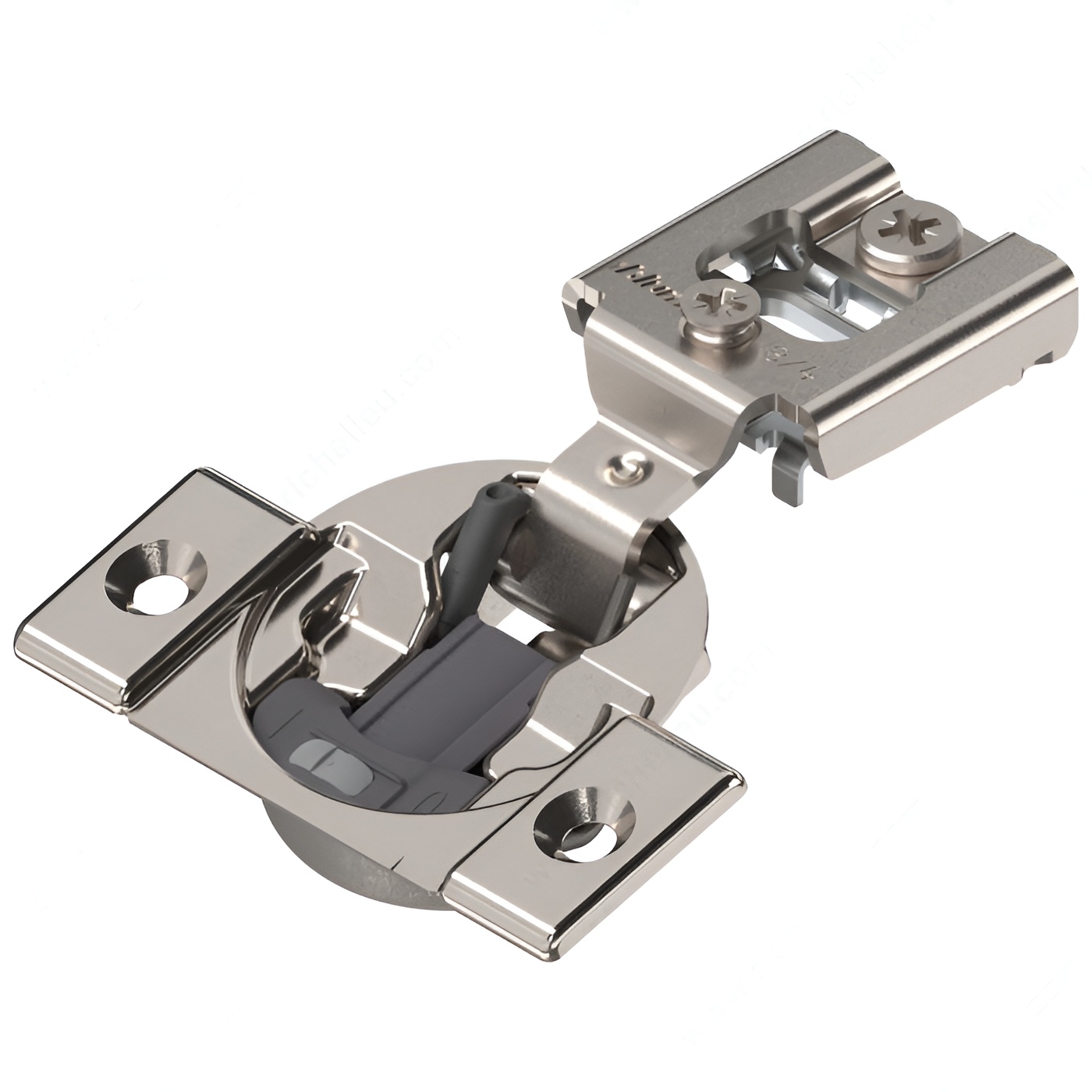

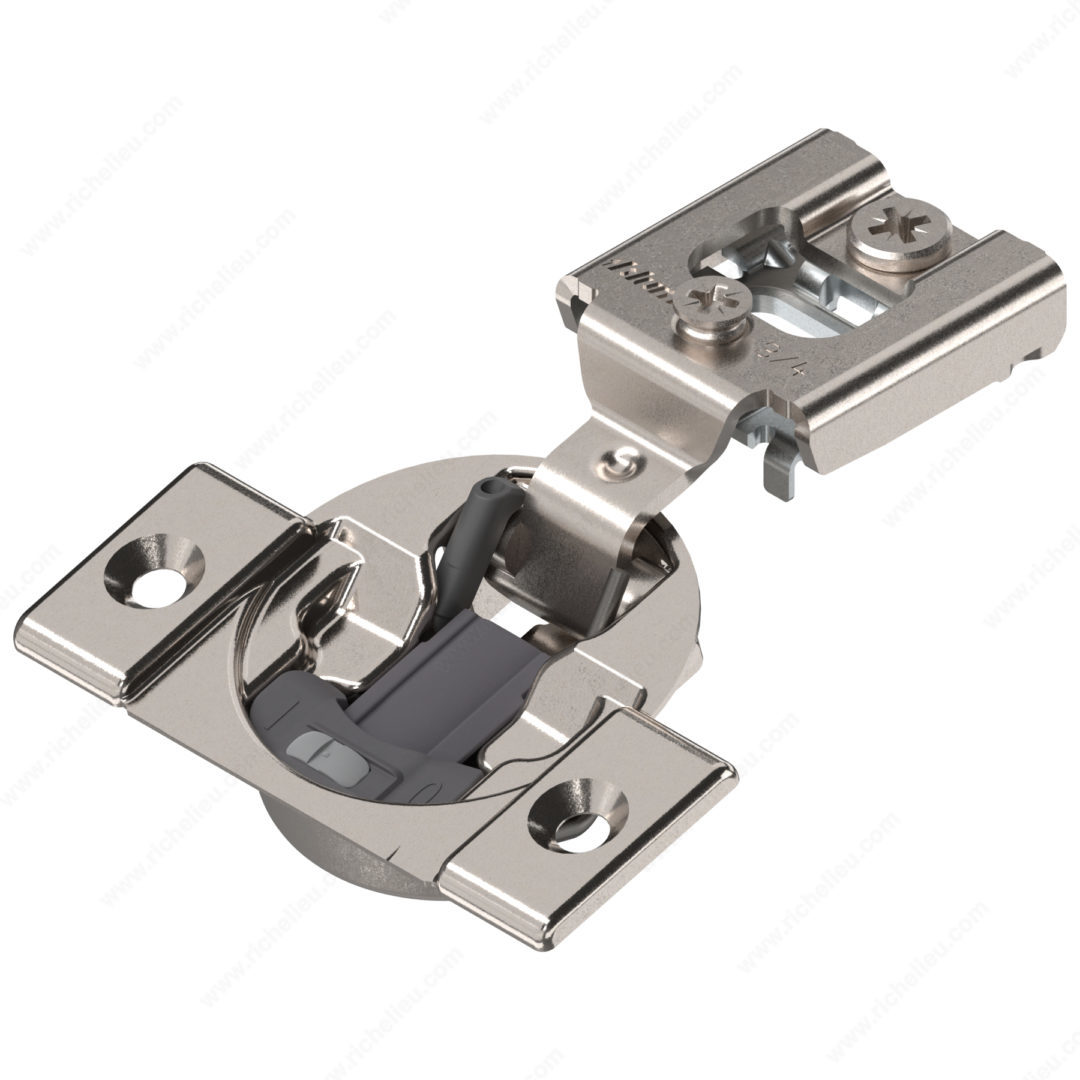

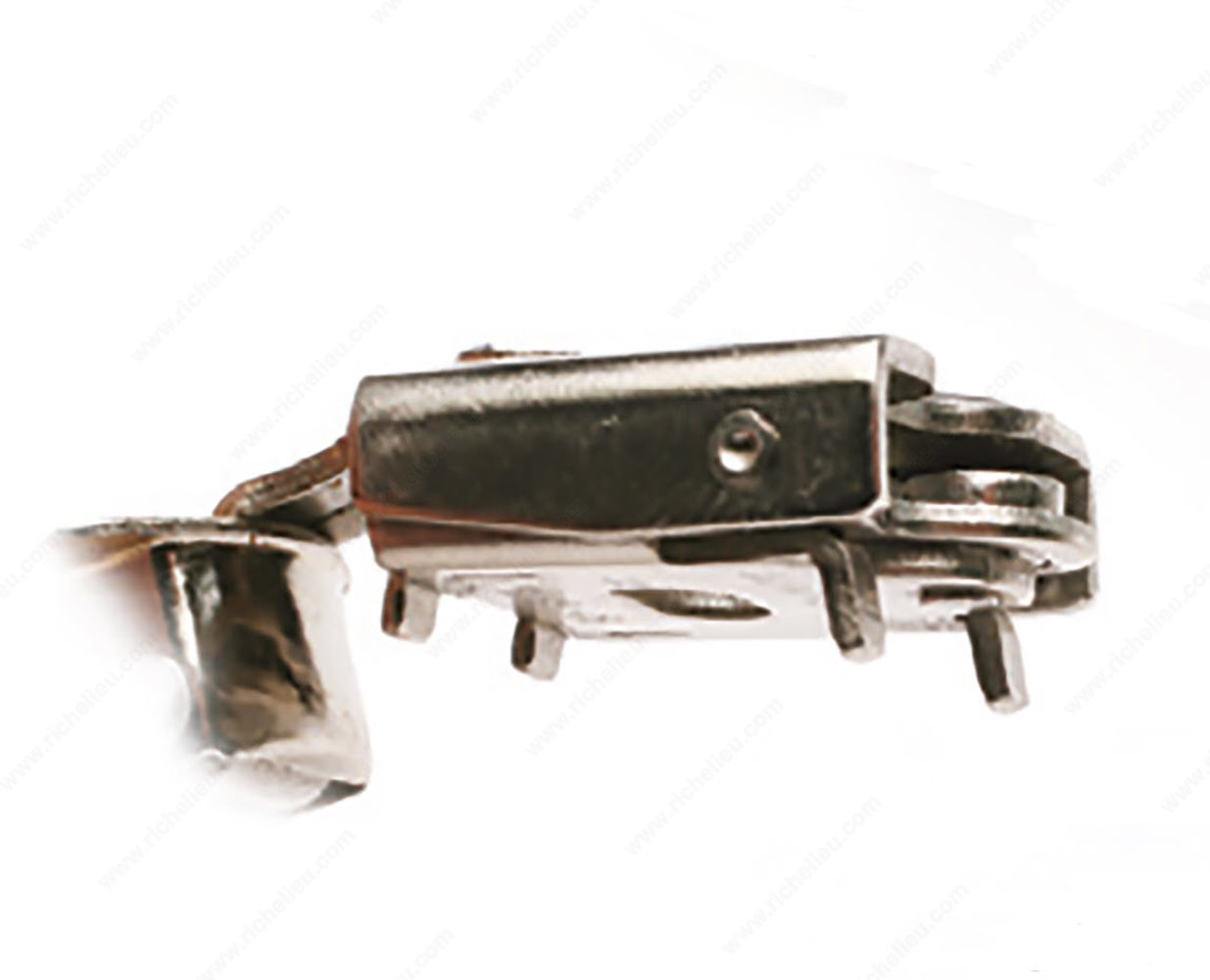

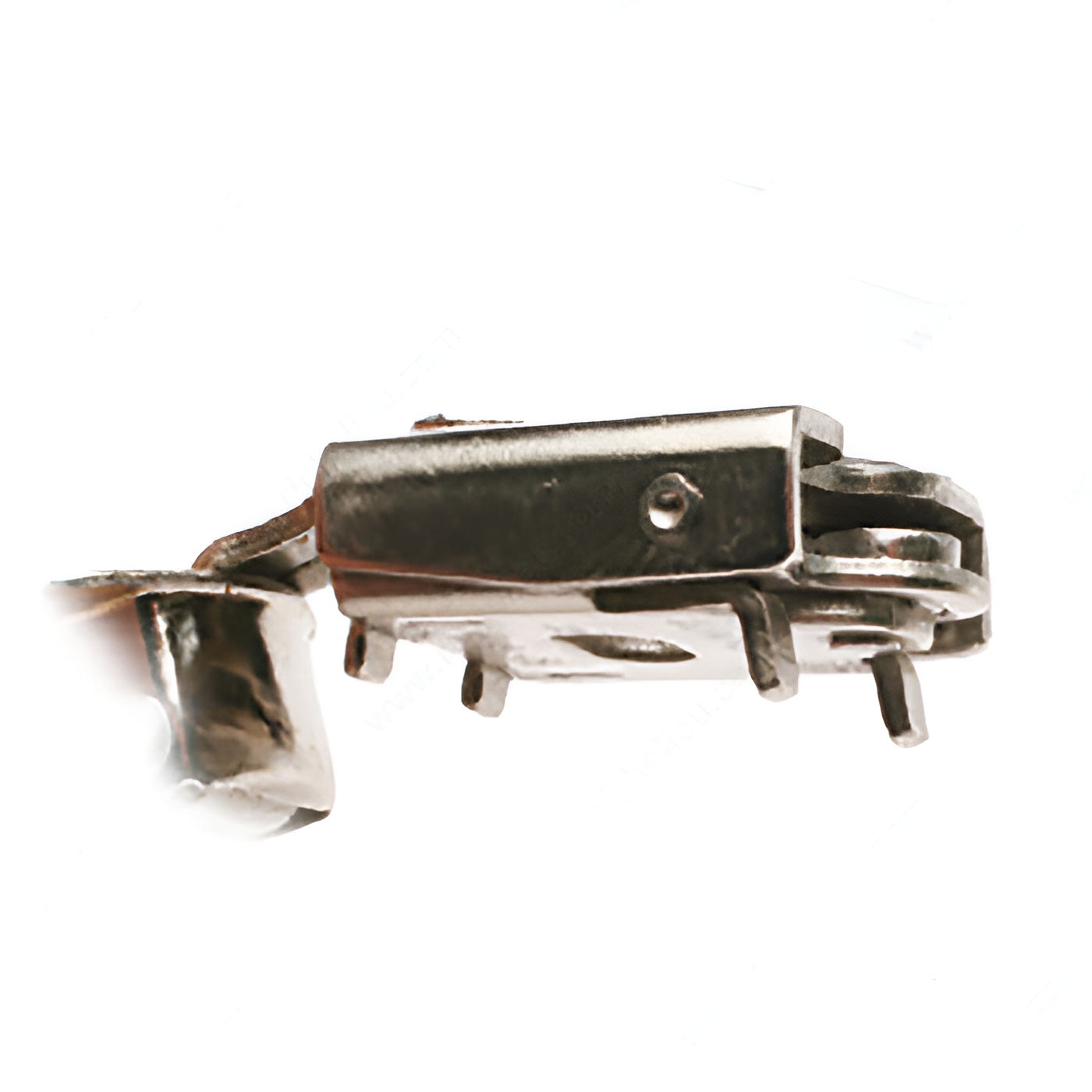

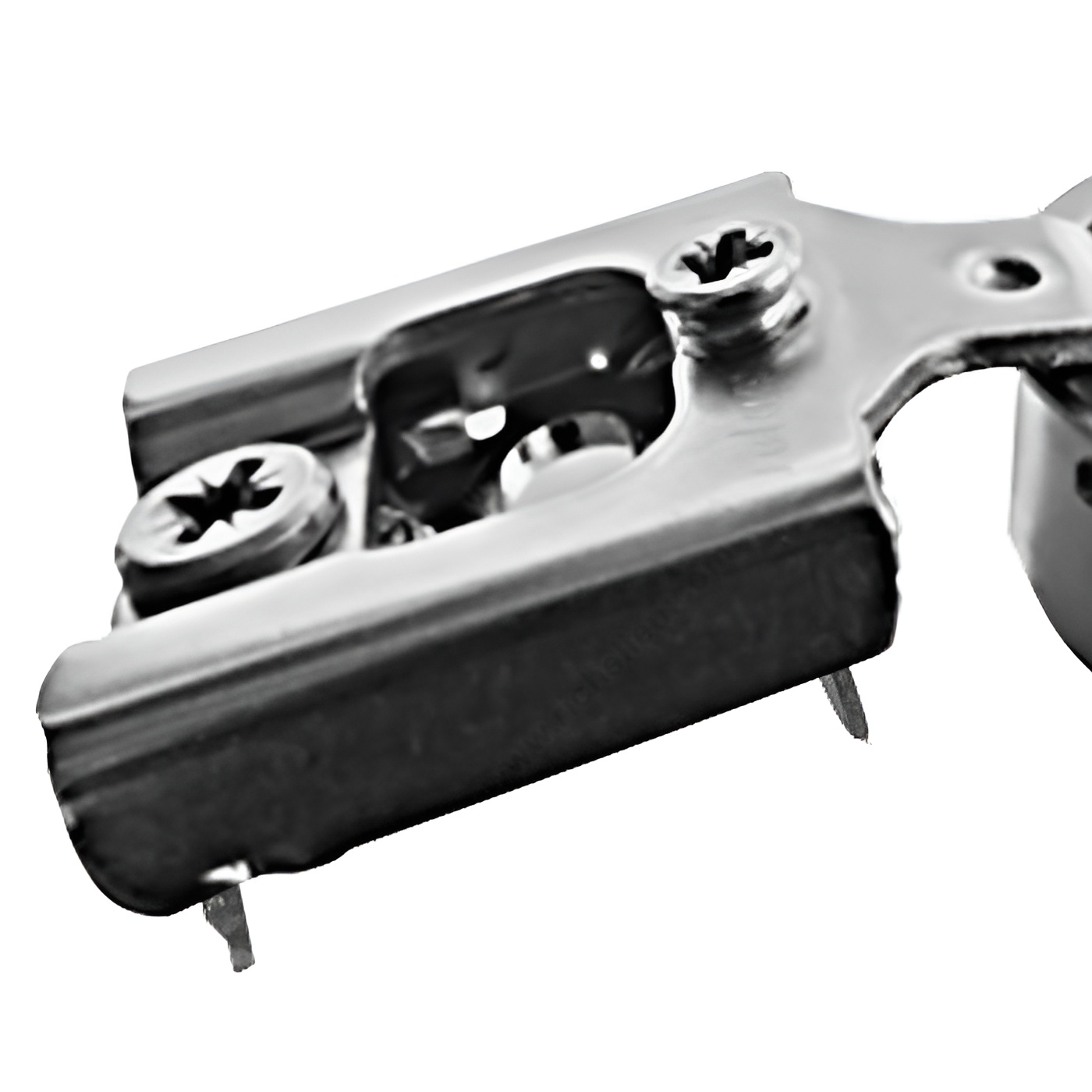

Richelieu 38N355B12180 COMPACT BLUMOTION Hinge 38N 105 offers a seamless solution for framed cabinets, enhancing functionality with its integrated soft-closing mechanism. This innovative hinge ensures that doors close quietly and gently, creating a refined user experience. The soft-closing feature can be conveniently deactivated, making it ideal for smaller or lighter doors, allowing for a consistent quality of movement across various applications. Designed for face frame cabinets, the hinge accommodates a minimum cabinet thickness of 5/8 inches and supports door thicknesses of the same dimension. With a hinge opening angle of +105°, it provides ample access while maintaining an elegant aesthetic. The nickel finish not only complements modern designs but also ensures durability and resistance to wear. Installation is straightforward with a screw-on fixing type and wrap-around mounting, although screws are not included. The hinge is crafted from robust steel, ensuring long-lasting performance. Additionally, it features a milling depth of 7/16 inches and a milling diameter of 1 3/8 inches, making it versatile for various configurations. Whether for new builds or renovations, the Richelieu COMPACT BLUMOTION hinge exemplifies quality and reliability, making it a smart choice for building professionals and discerning homeowners alike.
COMPACT BLUMOTION Hinge 38N 105
Brand: Blum
Cabinet Thickness: Min. 5/8 in*
Cabinet Type: Face Frame
Closing Mechanism: Soft-Closing

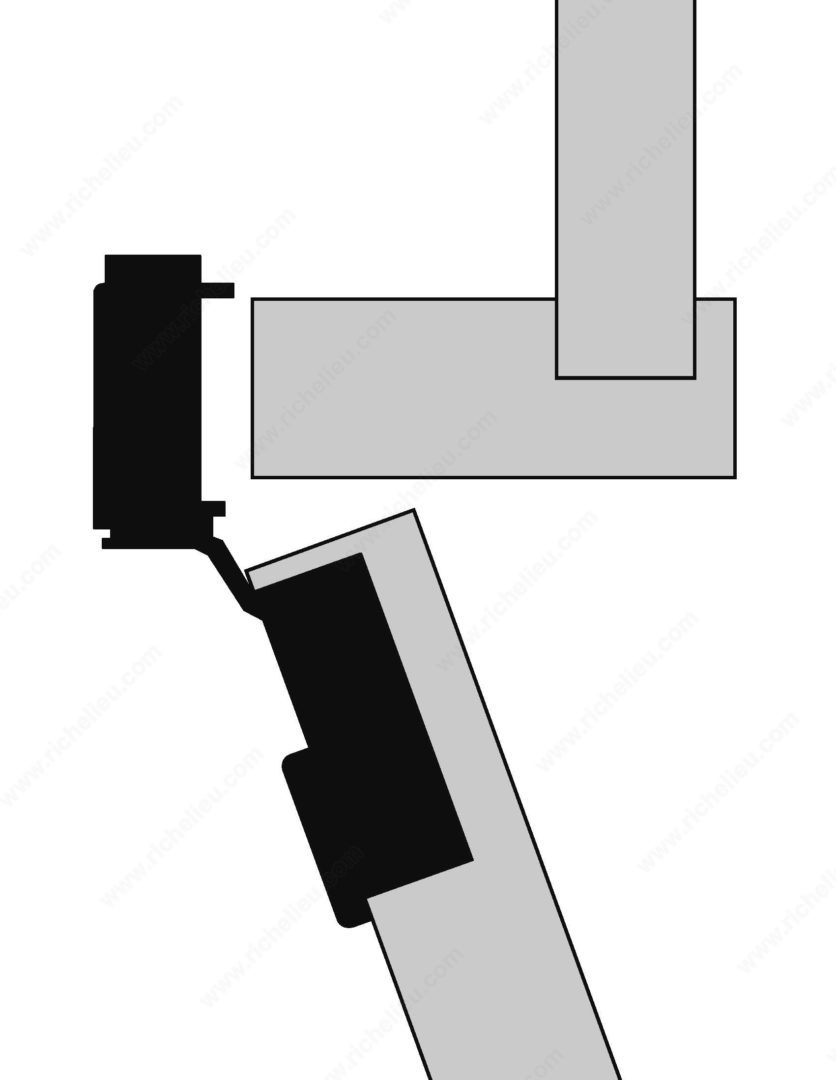

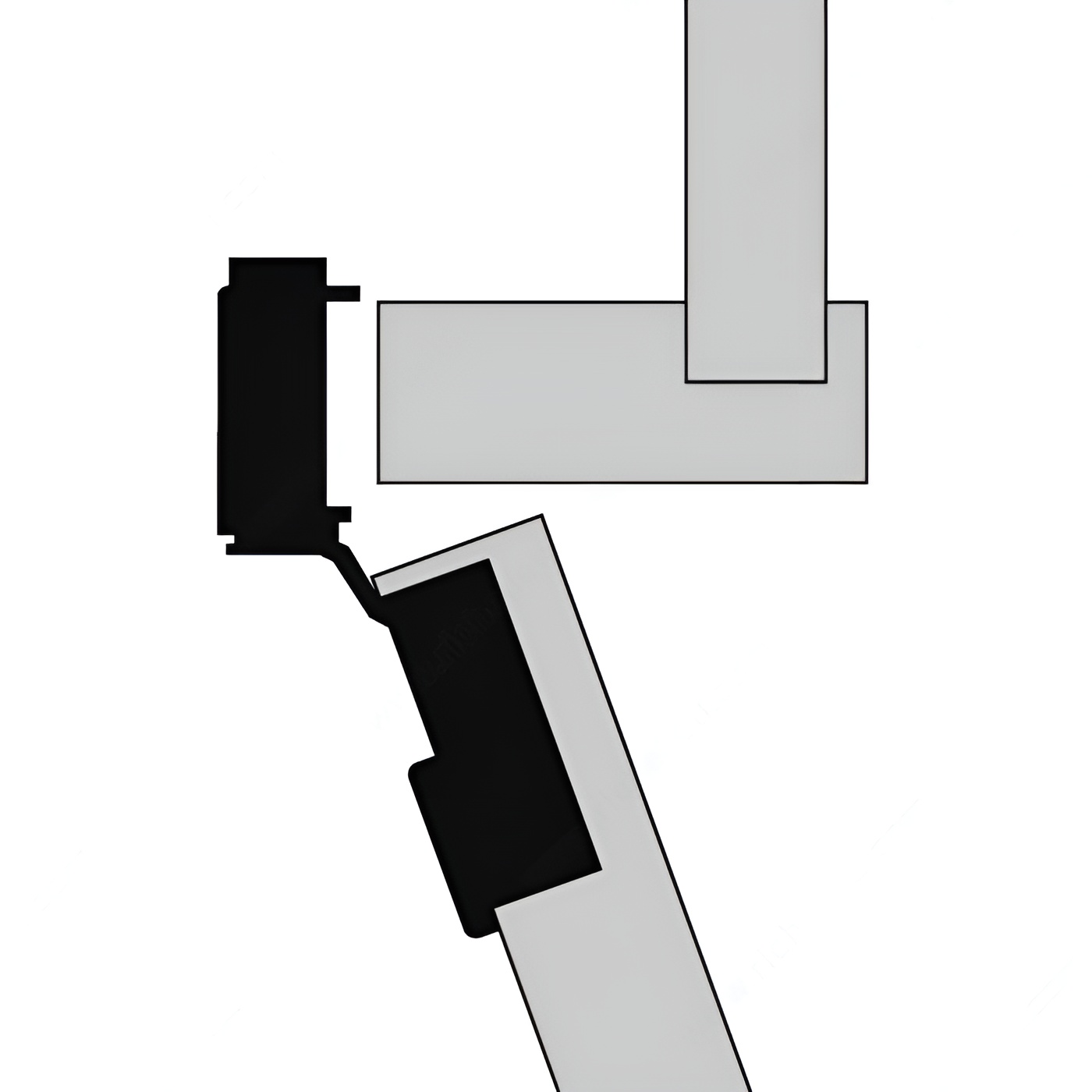

Door Position: Half Overlay
Door Thickness: 5/8 in*
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +105°
Hinge Type: COMPACT BLUMOTION
Material: Steel
Mechanism: Soft-Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Wrap-around Mount
Overlay: 3/4 in
Packaging format: Per unit
Product #: 38N355B12180
Product number: 38N355B12180
Screw/ Nail: Not included
Unit 1: case - 250
Use Type: Standard Door
