Richelieu 38N358B05180 COMPACT BLUMOTION Hinge 38N 105 offers an innovative solution for framed cabinets, combining functionality with quiet operation. This hinge features an integrated soft-closing mechanism that ensures doors close gently and silently, enhancing the overall user experience. Perfect for half overlay applications, the COMPACT BLUMOTION hinge can accommodate door thicknesses of 5/8 inches and is designed for cabinets with a minimum thickness of 5/8 inches. This hinge allows for easy deactivation of the BLUMOTION feature, making it ideal for small or lightweight doors while maintaining high movement quality. Made from durable steel with a sleek nickel finish, it promises both longevity and aesthetic appeal. The hinge opens up to 105 degrees, providing ample access to cabinet interiors. Installation is straightforward with the wrap-around mounting type, and it requires a milling depth of 7/16 inches and a milling diameter of 1 3/8 inches. Note that screws and nails are not included, allowing for flexibility in your installation process. The Richelieu 38N358B05180 COMPACT BLUMOTION hinge is packaged per unit, making it easy to order exactly what you need for your next project.

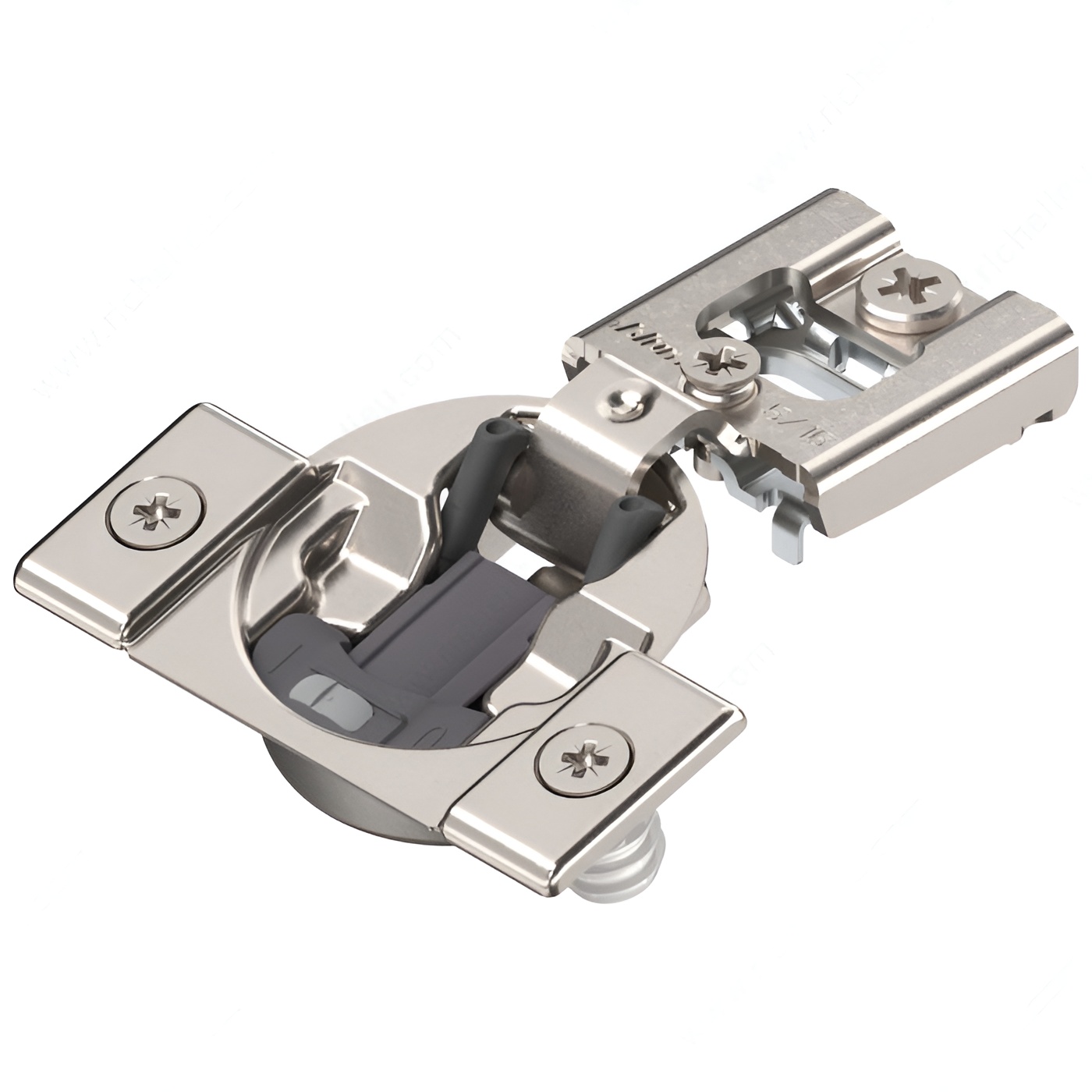

COMPACT BLUMOTION Hinge 38N 105
Brand: Blum
Cabinet Thickness: Min. 5/8 in*
Cabinet Type: Face Frame
Closing Mechanism: Soft-Closing

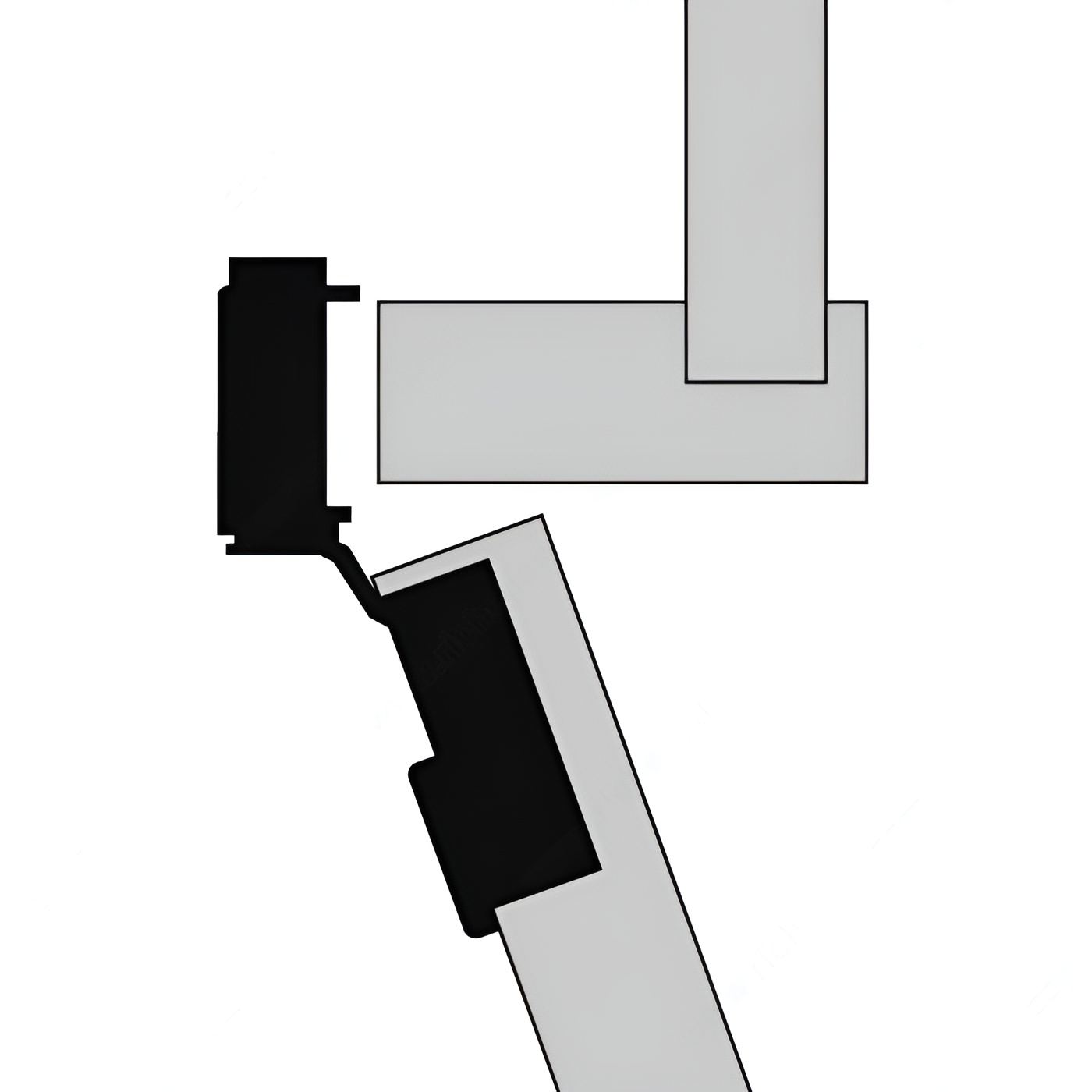

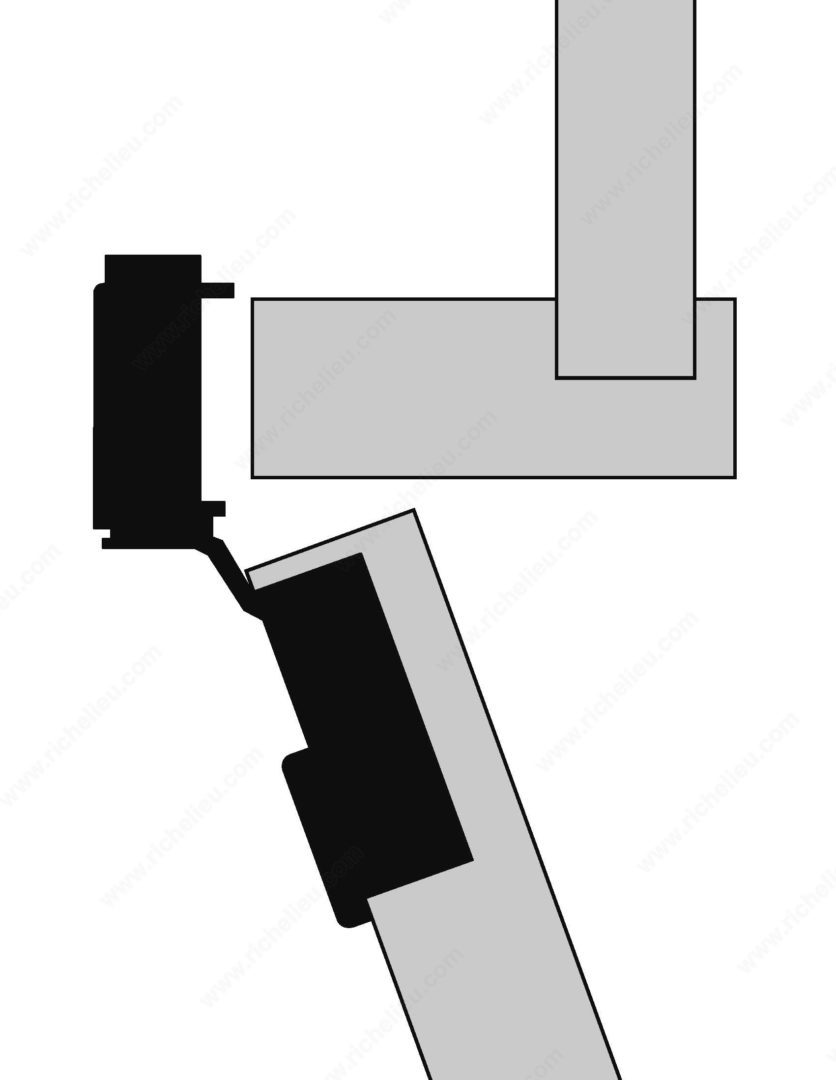

Door Position: Half Overlay
Door Thickness: 5/8 in*
Finish: Nickel
Fixing Type: Knock-In with Insertion Ram Only
Hinge Opening Angle: +105°
Hinge Type: COMPACT BLUMOTION
Material: Steel
Mechanism: Soft-Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Wrap-around Mount
Overlay: 5/16 in
Packaging format: Per unit
Product #: 38N358B05180
Product number: 38N358B05180
Screw/ Nail: Not included
Unit 1: case - 250
Use Type: Standard Door
