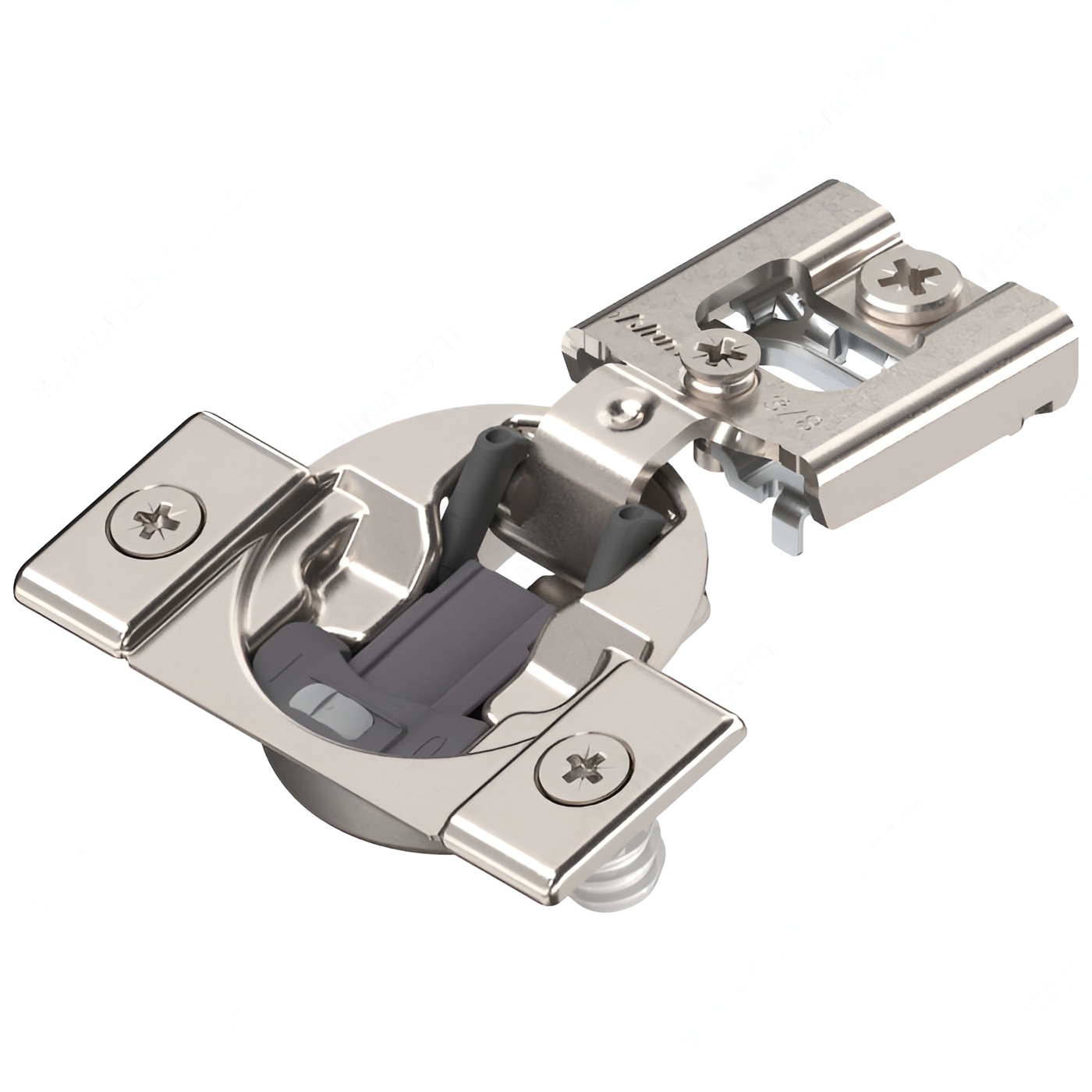

Richelieu 38N358B06180 COMPACT BLUMOTION Hinge 38N 105 is expertly crafted for framed cabinets, ensuring a seamless integration of functionality and style. This hinge features an innovative soft-closing mechanism that is built directly into the hinge housing, providing a gentle and quiet door closure every time. For smaller or lighter doors, the BLUMOTION function can be easily deactivated, allowing for the same quality of movement without compromising performance. Designed for half-overlay applications, this hinge accommodates a minimum cabinet thickness of 5/8 inch and a door thickness of 5/8 inch. The hinge offers an impressive opening angle of +105°, ensuring full access to your cabinet’s contents. With its nickel finish, the hinge not only delivers durability but also adds a sleek touch to your cabinetry. Installation is user-friendly, with a wrap-around mounting type and a knock-in fixing that requires only an insertion ram. The required milling depth is 7/16 inch, and the milling diameter is 1 3/8 inches, making it suitable for standard door usage. Each unit is sold individually, allowing for tailored ordering based on your project needs. Enhance your cabinetry with the reliable performance of the Richelieu COMPACT BLUMOTION hinge, designed for lasting use and effortless operation.
COMPACT BLUMOTION Hinge 38N 105
Brand: Blum
Cabinet Thickness: Min. 5/8 in*
Cabinet Type: Face Frame
Closing Mechanism: Soft-Closing

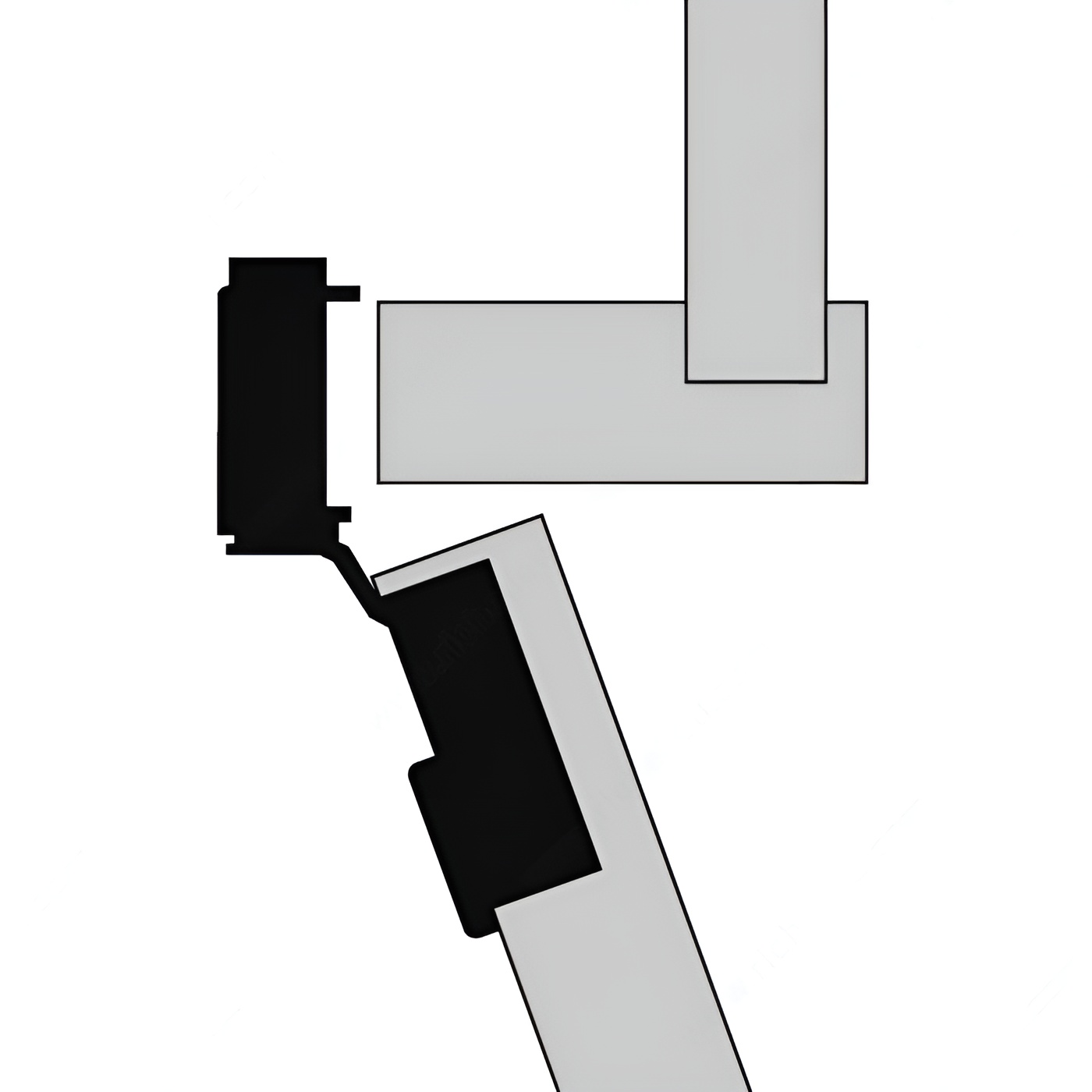

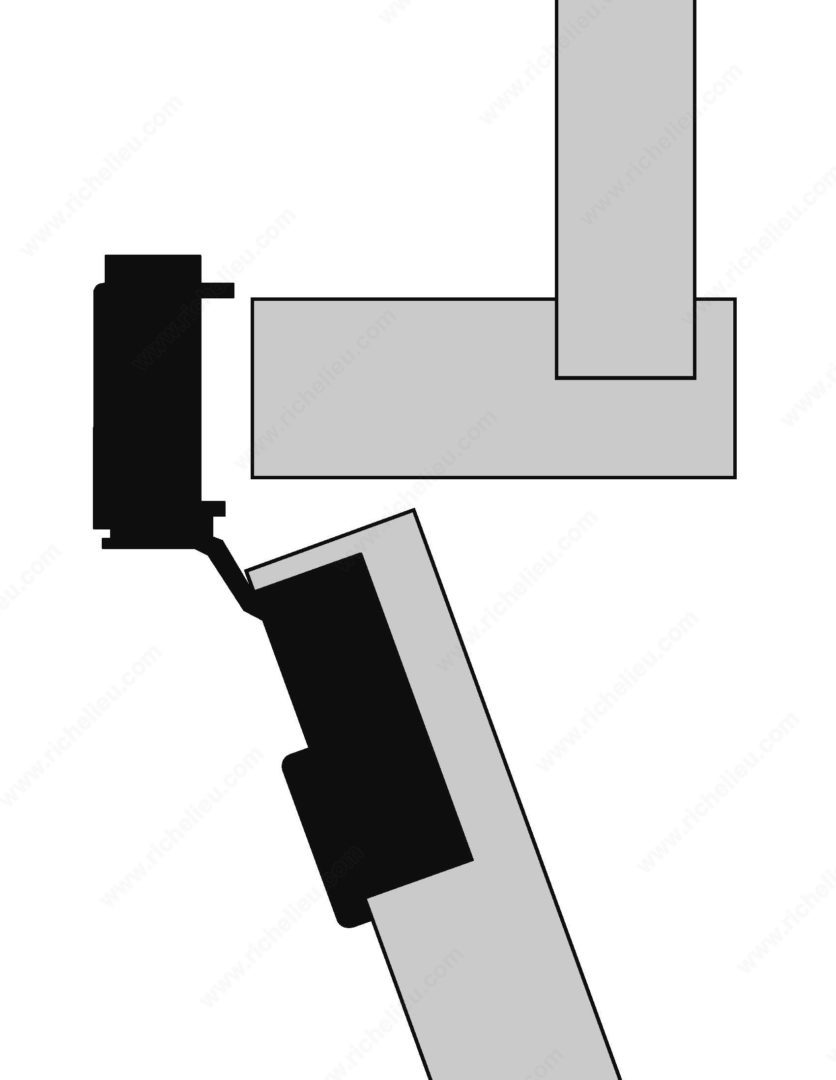

Door Position: Half Overlay
Door Thickness: 5/8 in*
Finish: Nickel
Fixing Type: Knock-In with Insertion Ram Only
Hinge Opening Angle: +105°
Hinge Type: COMPACT BLUMOTION
Material: Steel
Mechanism: Soft-Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Wrap-around Mount
Overlay: 3/8 in
Packaging format: Per unit
Product #: 38N358B06180
Product number: 38N358B06180
Screw/ Nail: Not included
Unit 1: case - 250
Use Type: Standard Door
