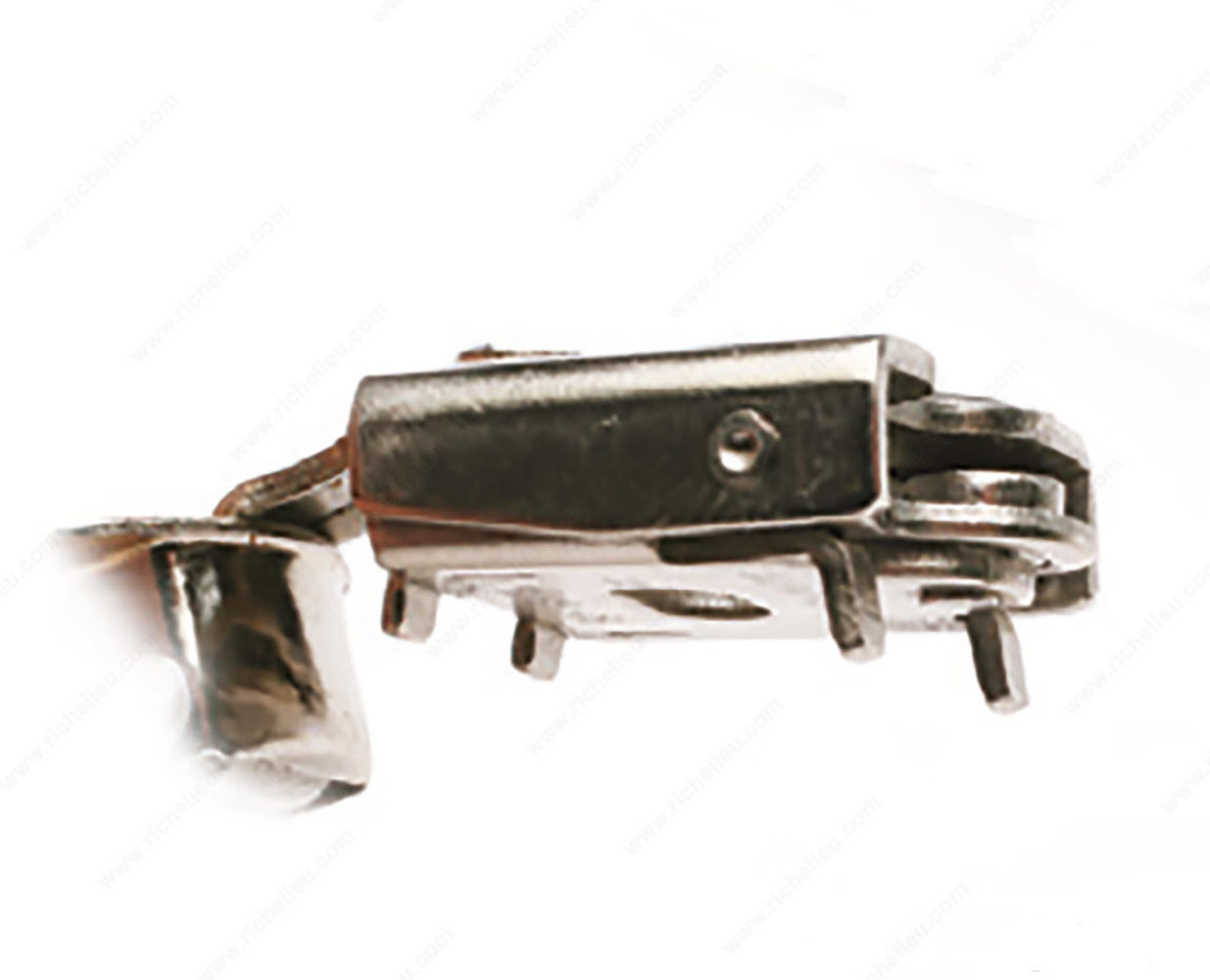

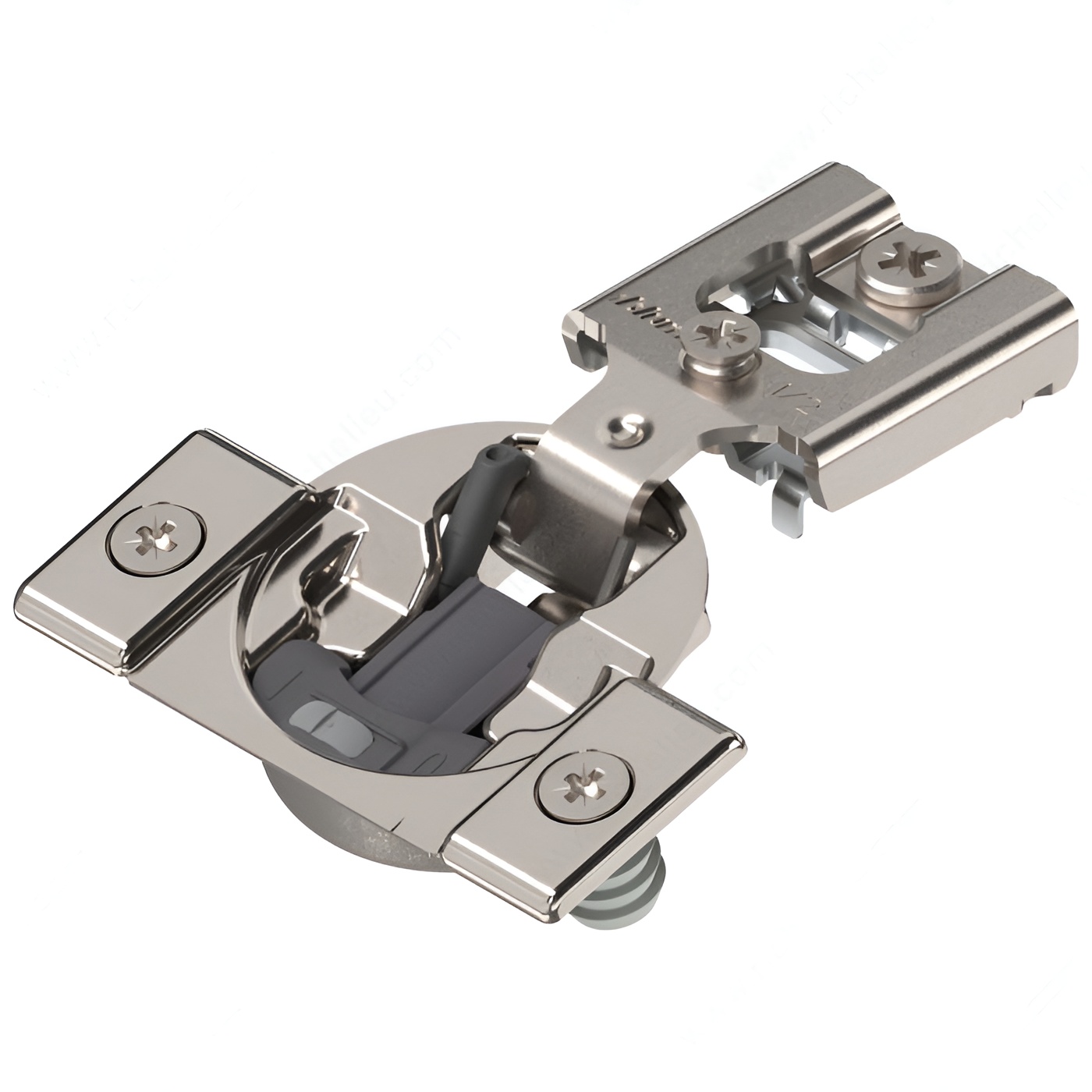

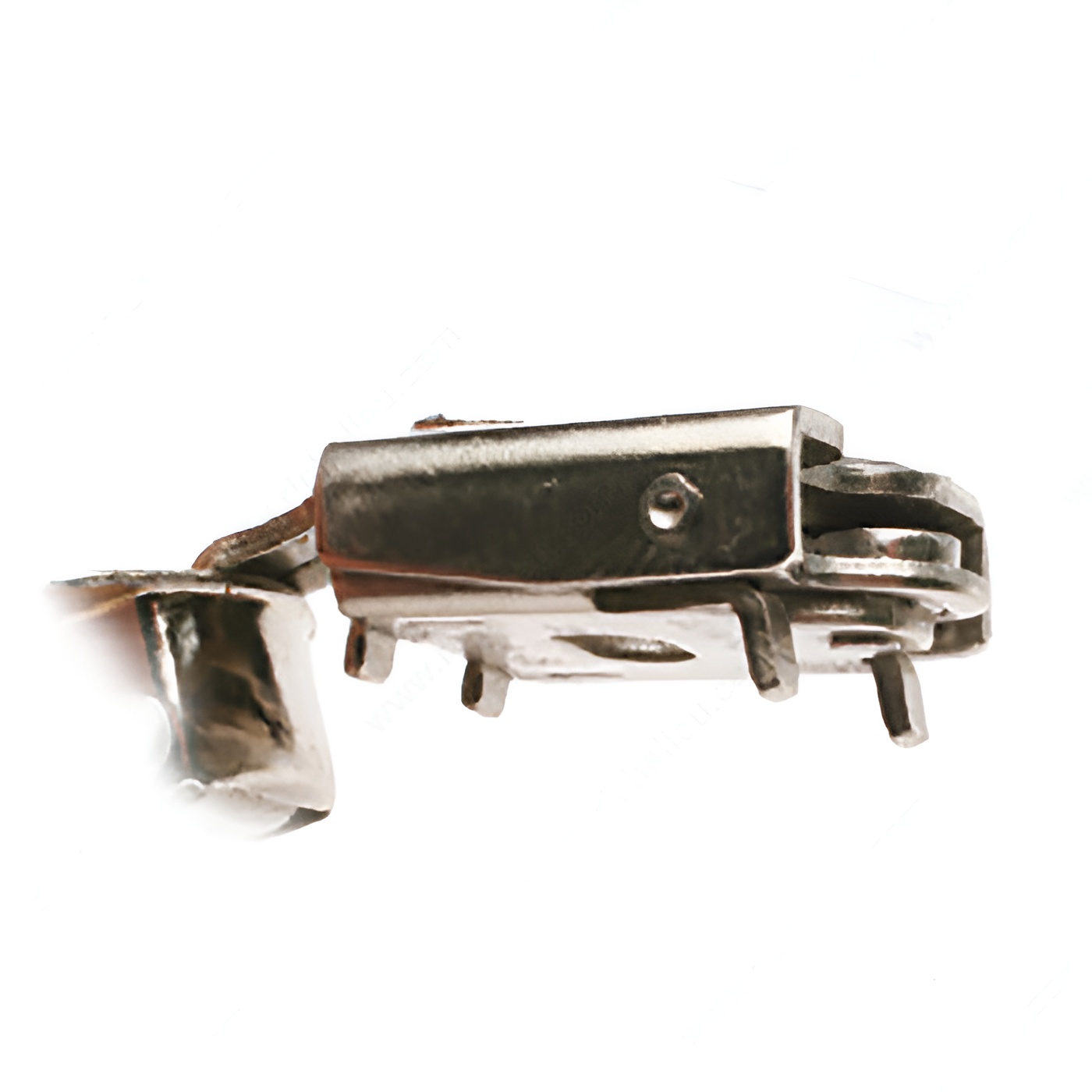

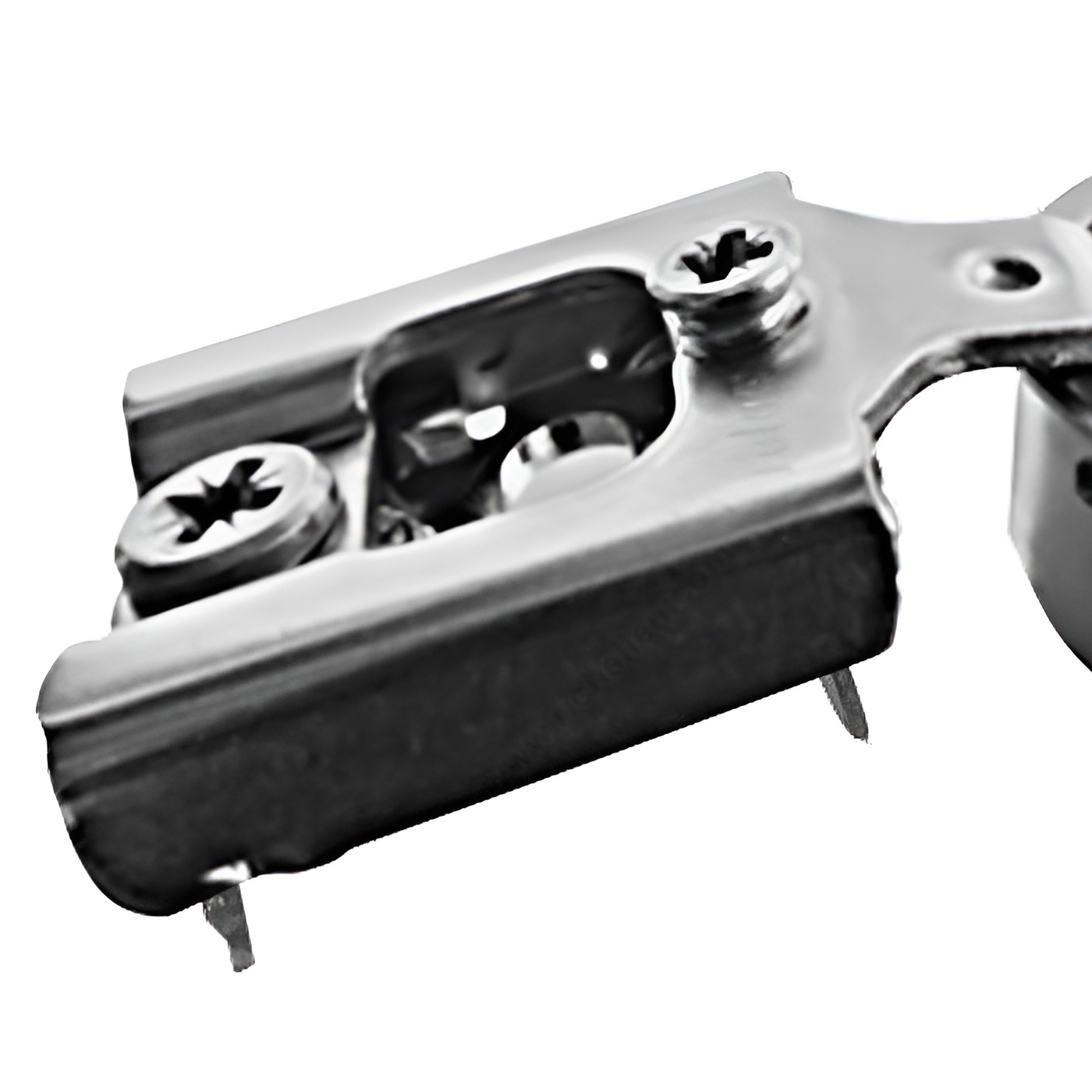

Richelieu 38N358B08180 COMPACT BLUMOTION Hinge 38N 105 is expertly engineered for framed cabinets, offering a seamless blend of functionality and elegance. This hinge features an integrated soft-closing mechanism that ensures quiet, gentle door closure, enhancing the overall user experience. For smaller or lighter doors, the BLUMOTION function can be effortlessly deactivated, allowing for smooth operation without compromising quality. Designed for half overlay applications, this hinge accommodates cabinet thicknesses starting from 5/8 inch and has a door thickness of the same measurement, making it a versatile choice for various cabinetry needs. Crafted from durable steel and finished in nickel, the hinge is built to withstand daily use while maintaining its aesthetic appeal. The COMPACT BLUMOTION hinge allows for a hinge opening angle of +105°, ensuring full access to the cabinet interior. Its wrap-around mounting type and a milling depth of 7/16 inch make installation straightforward, while it requires a milling diameter of 1 3/8 inch for optimal performance. Please note that screws and nails are not included with this product. Ideal for standard doors, the Richelieu 38N358B08180 is a reliable choice for professionals and homeowners alike, enhancing both functionality and design in any kitchen or cabinetry project.
COMPACT BLUMOTION Hinge 38N 105
Brand: Blum
Cabinet Thickness: Min. 5/8 in*
Cabinet Type: Face Frame
Closing Mechanism: Soft-Closing

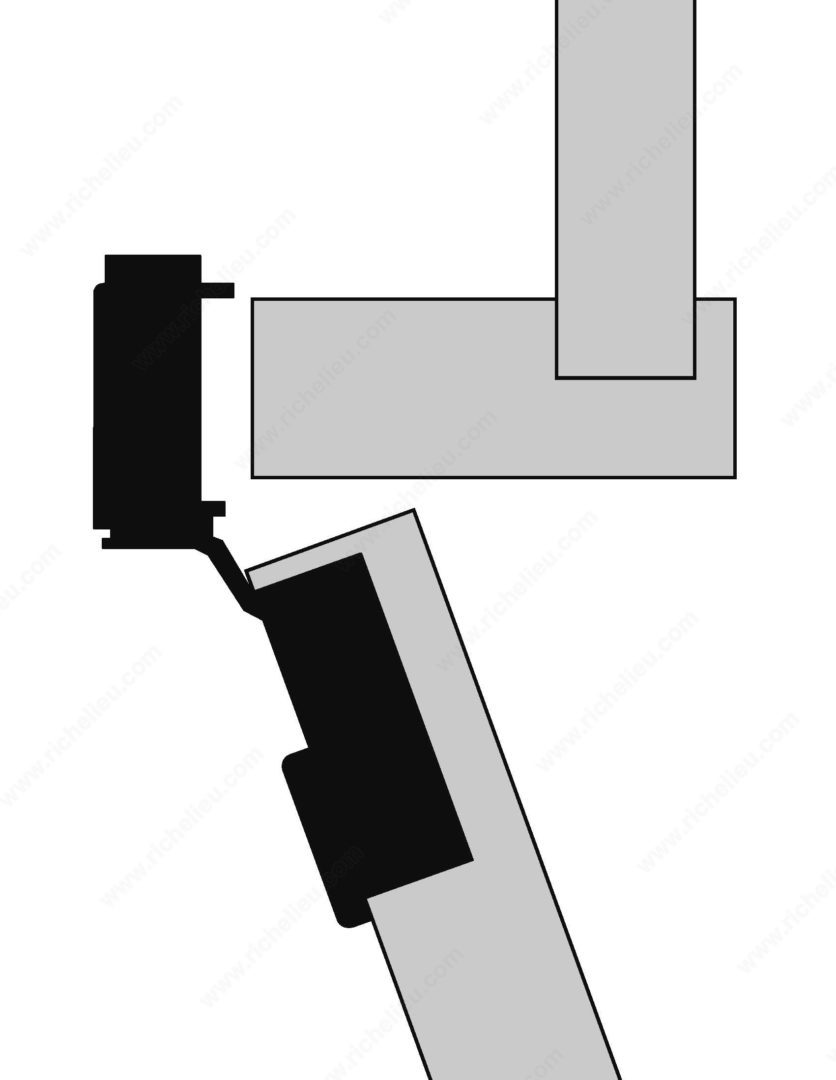

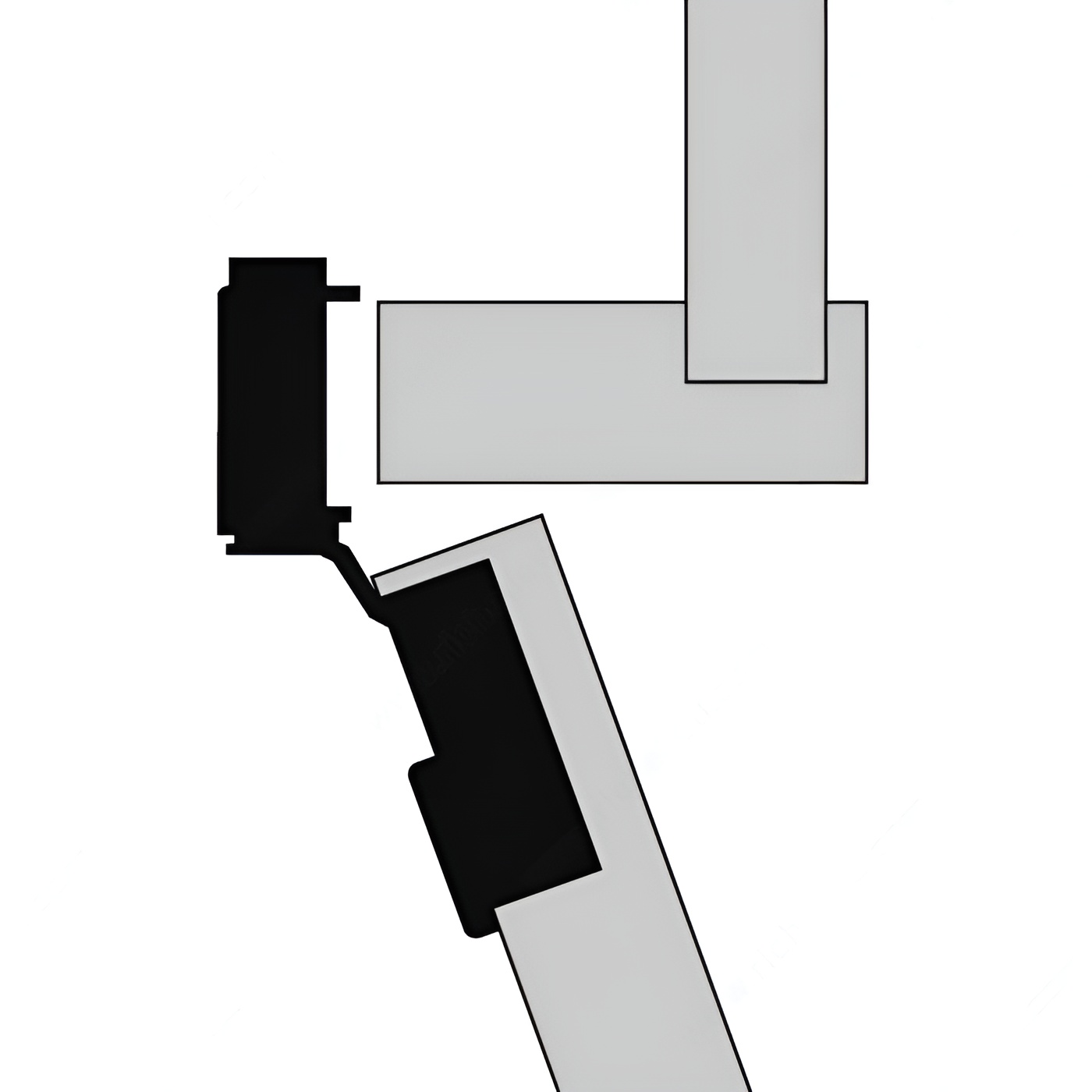

Door Position: Half Overlay
Door Thickness: 5/8 in*
Finish: Nickel
Fixing Type: Knock-In with Insertion Ram Only
Hinge Opening Angle: +105°
Hinge Type: COMPACT BLUMOTION
Material: Steel
Mechanism: Soft-Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Wrap-around Mount
Overlay: 1/2 in
Packaging format: Per unit
Product #: 38N358B08180
Product number: 38N358B08180
Screw/ Nail: Not included
Unit 1: case - 250
Use Type: Standard Door
