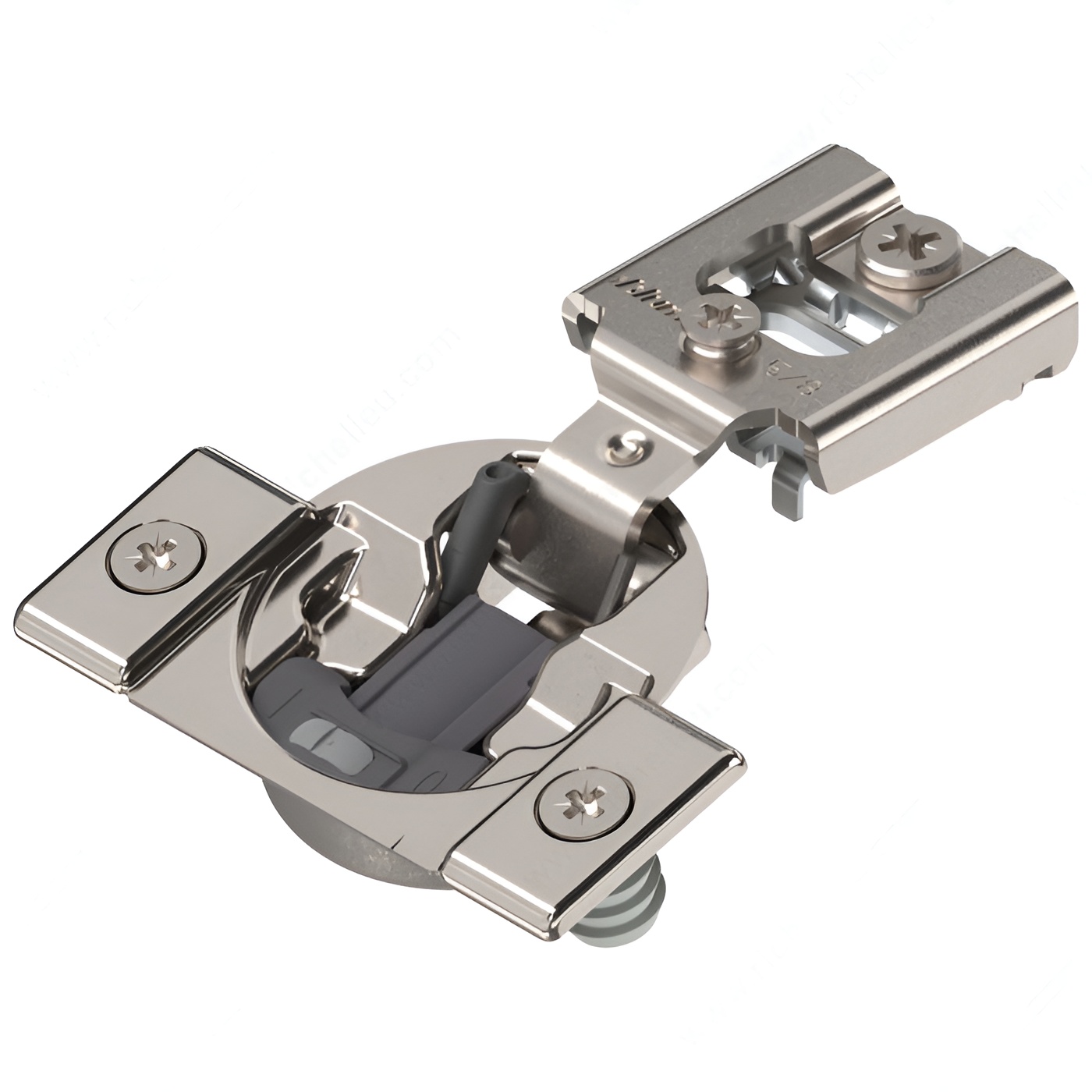

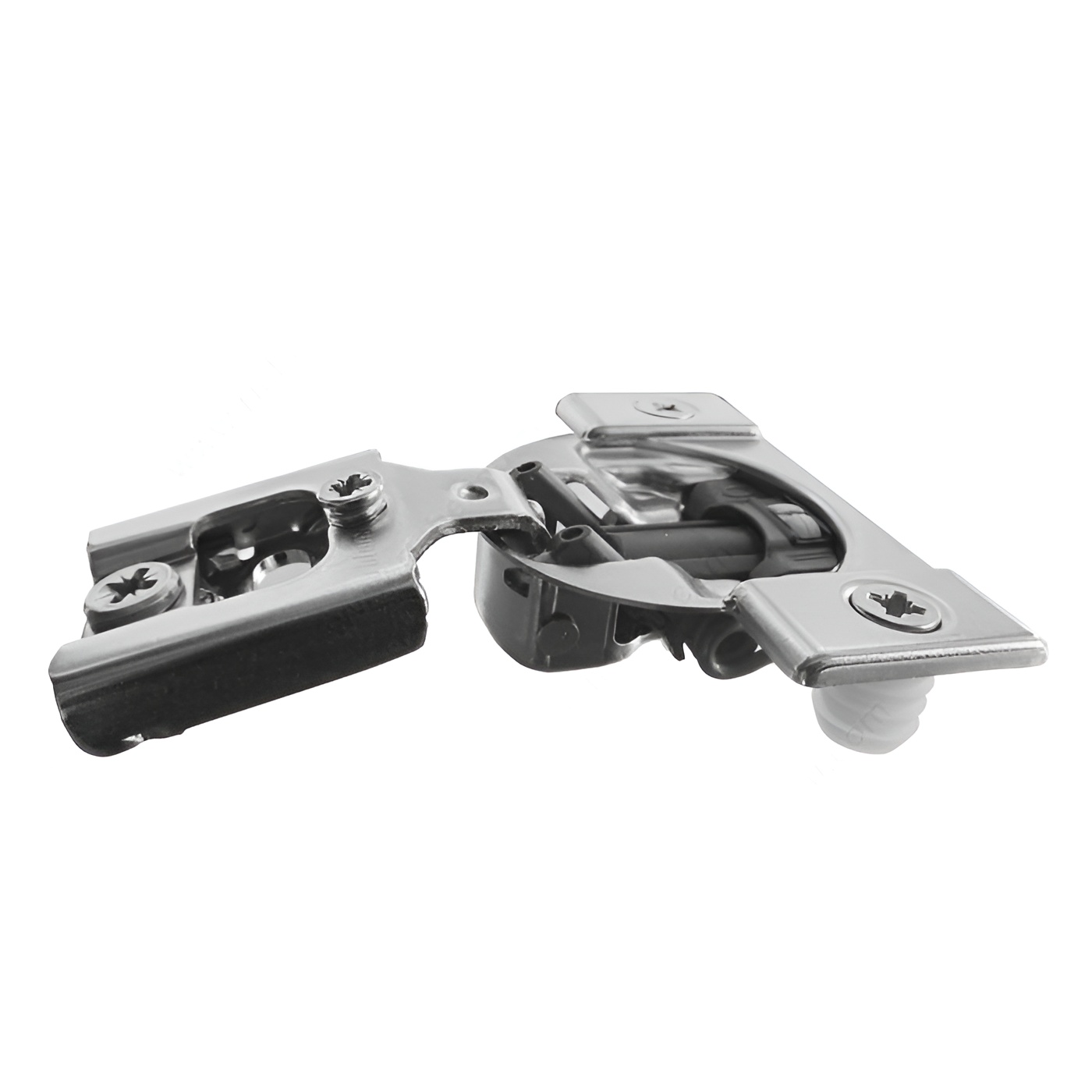

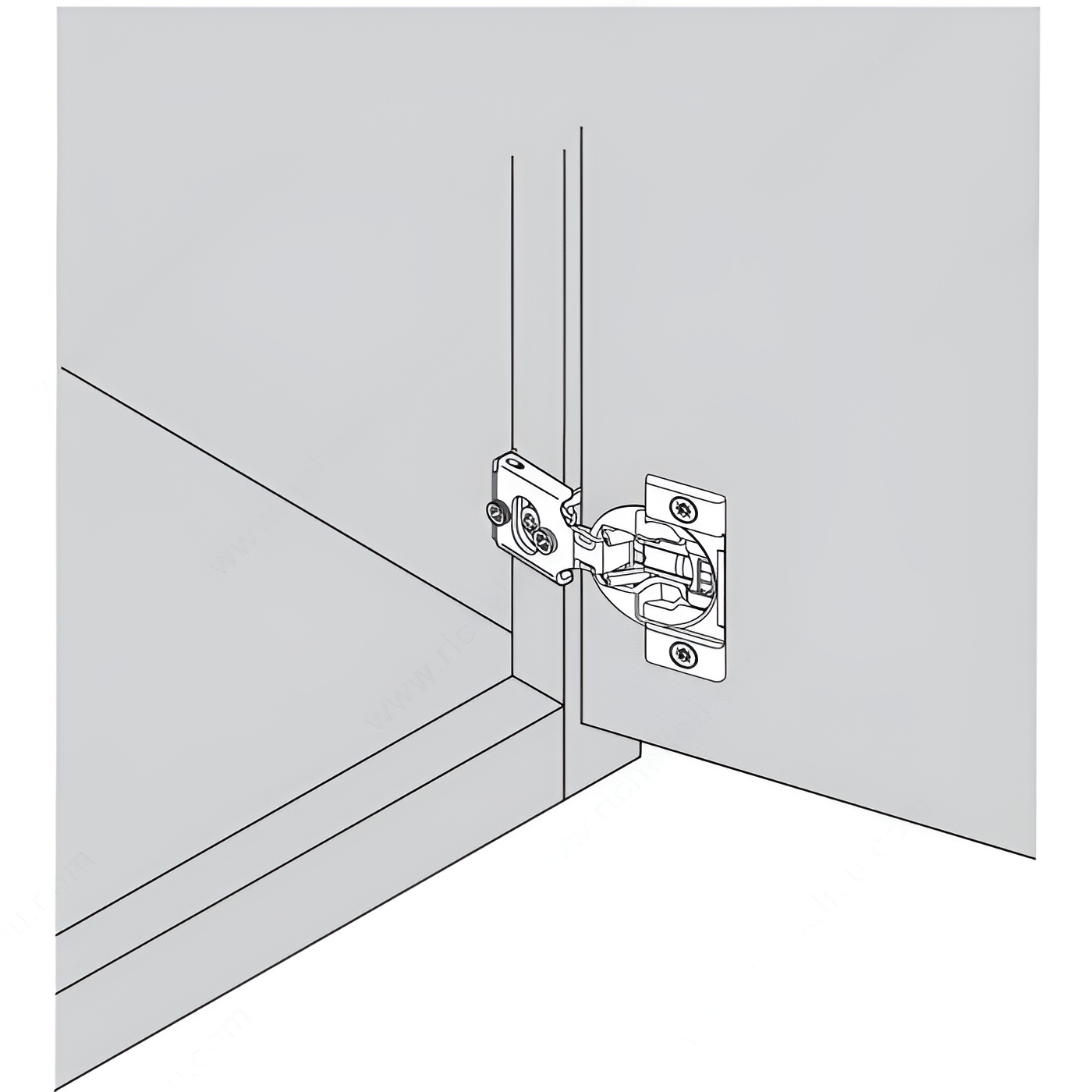

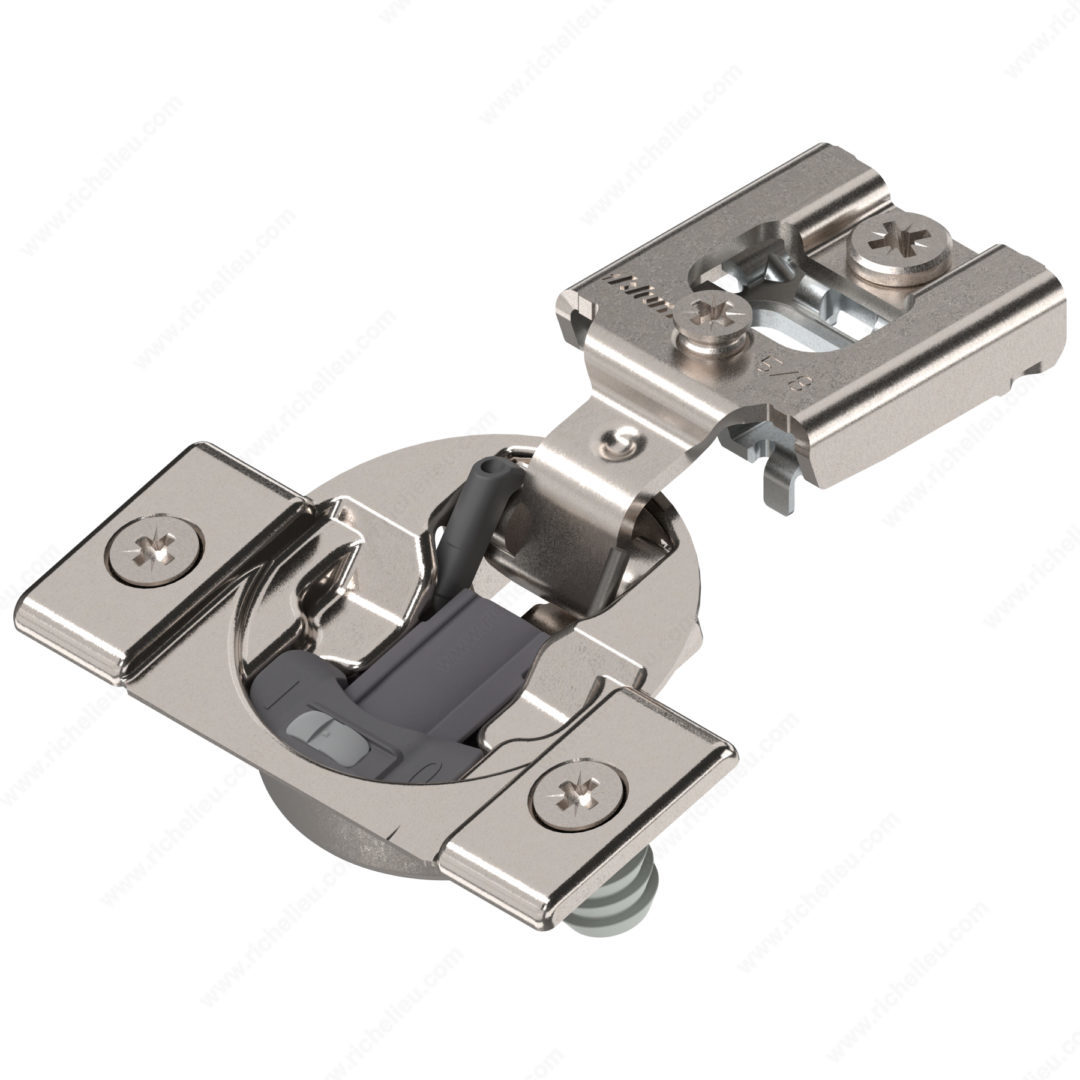

Richelieu 38N358B10180 COMPACT BLUMOTION Hinge 38N 105 is an exceptional choice for framed cabinets, marrying functionality with seamless design. This hinge features an integrated soft-closing mechanism that ensures doors close quietly, enhancing user experience and prolonging the life of your cabinetry. The BLUMOTION function can be easily deactivated, making it ideal for smaller or lighter doors while maintaining high-quality movement. Designed for a cabinet thickness of a minimum of 5/8 inches, this hinge accommodates a half overlay door position and supports a door thickness of 5/8 inches as well. Its durable steel construction, finished in a sleek nickel, guarantees both aesthetic appeal and long-lasting performance. The wrap-around mount style simplifies installation, and with a hinge opening angle of +105°, it offers excellent access. With a milling depth of 7/16 inches and a diameter of 1 3/8 inches, the installation requirements are straightforward. Note that screws or nails are not included, so be sure to have those on hand. The Richelieu 38N358B10180 is packaged per unit and is ready to ship via UPS, making it a convenient choice for your next cabinetry project.
COMPACT BLUMOTION Hinge 38N 105
Brand: Blum
Cabinet Thickness: Min. 5/8 in*

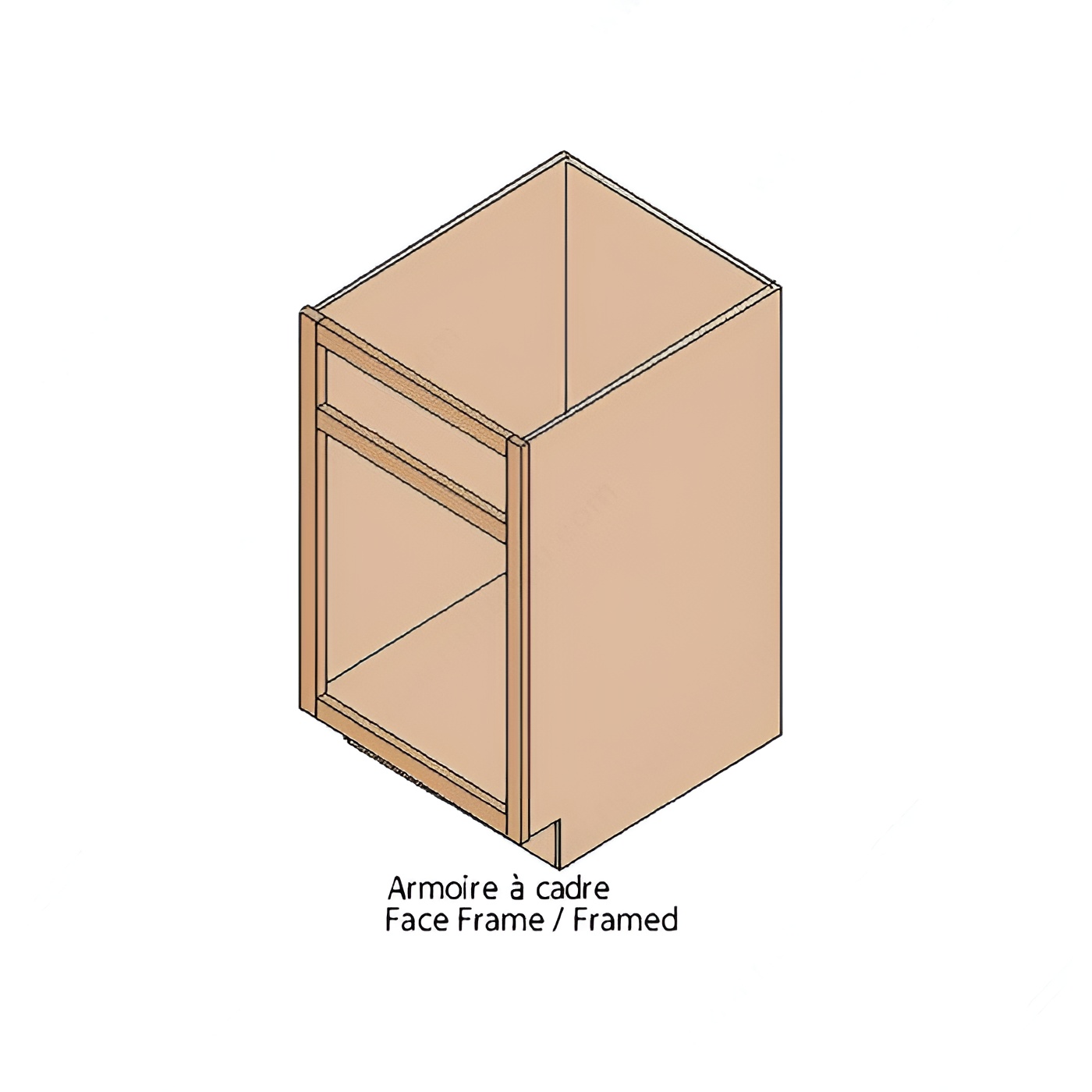

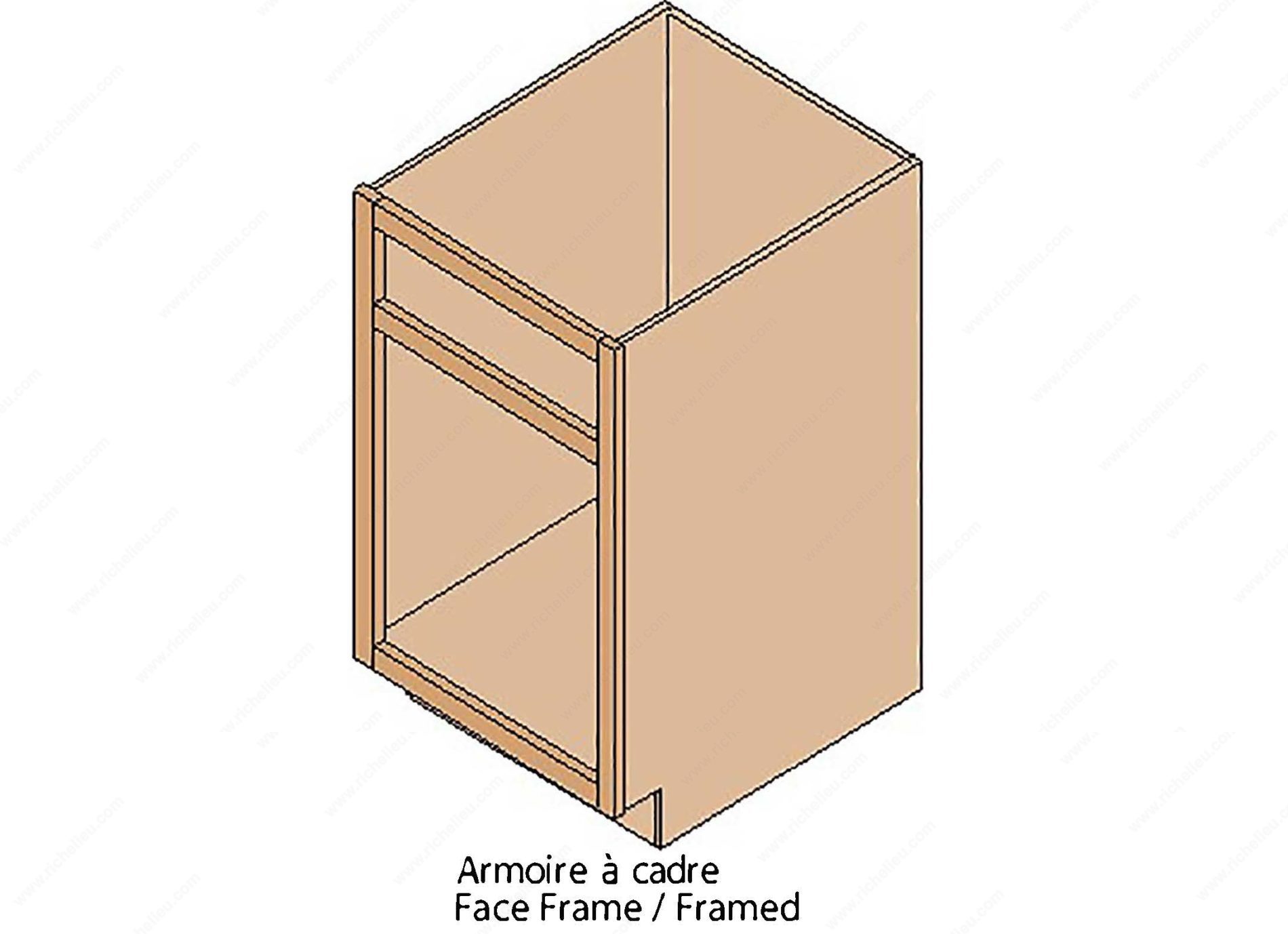

Cabinet Type: Face Frame
Closing Mechanism: Soft-Closing

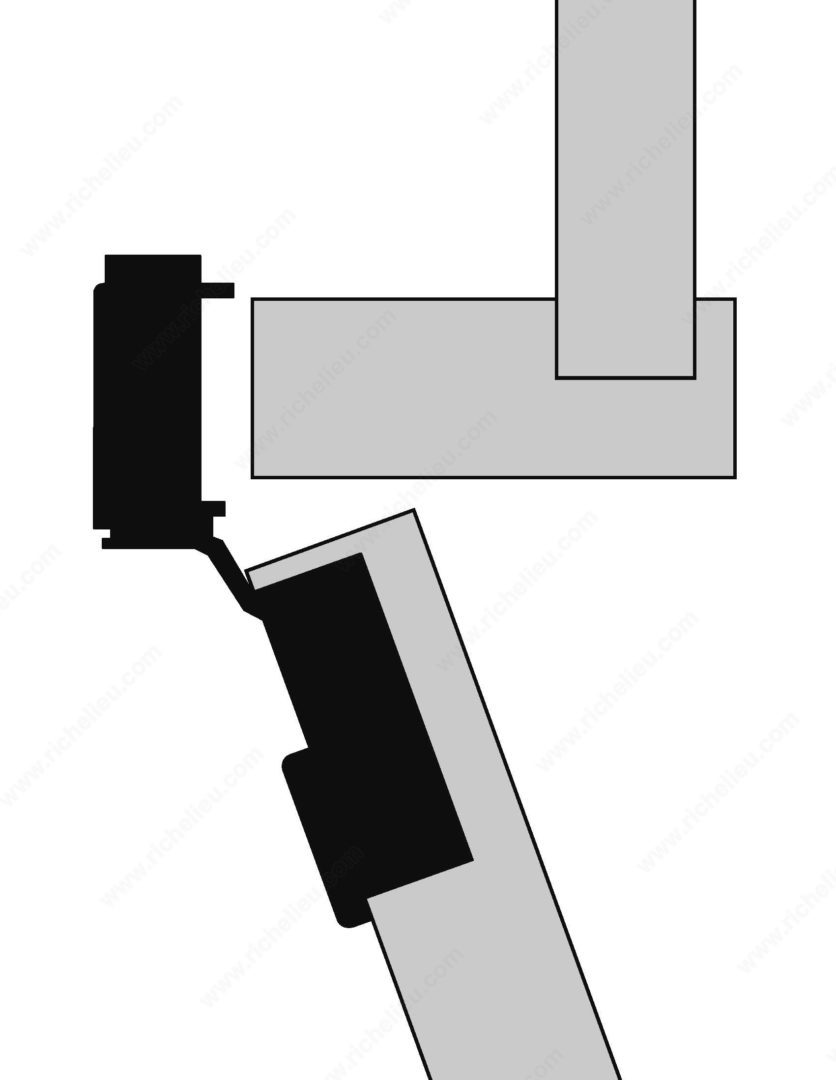

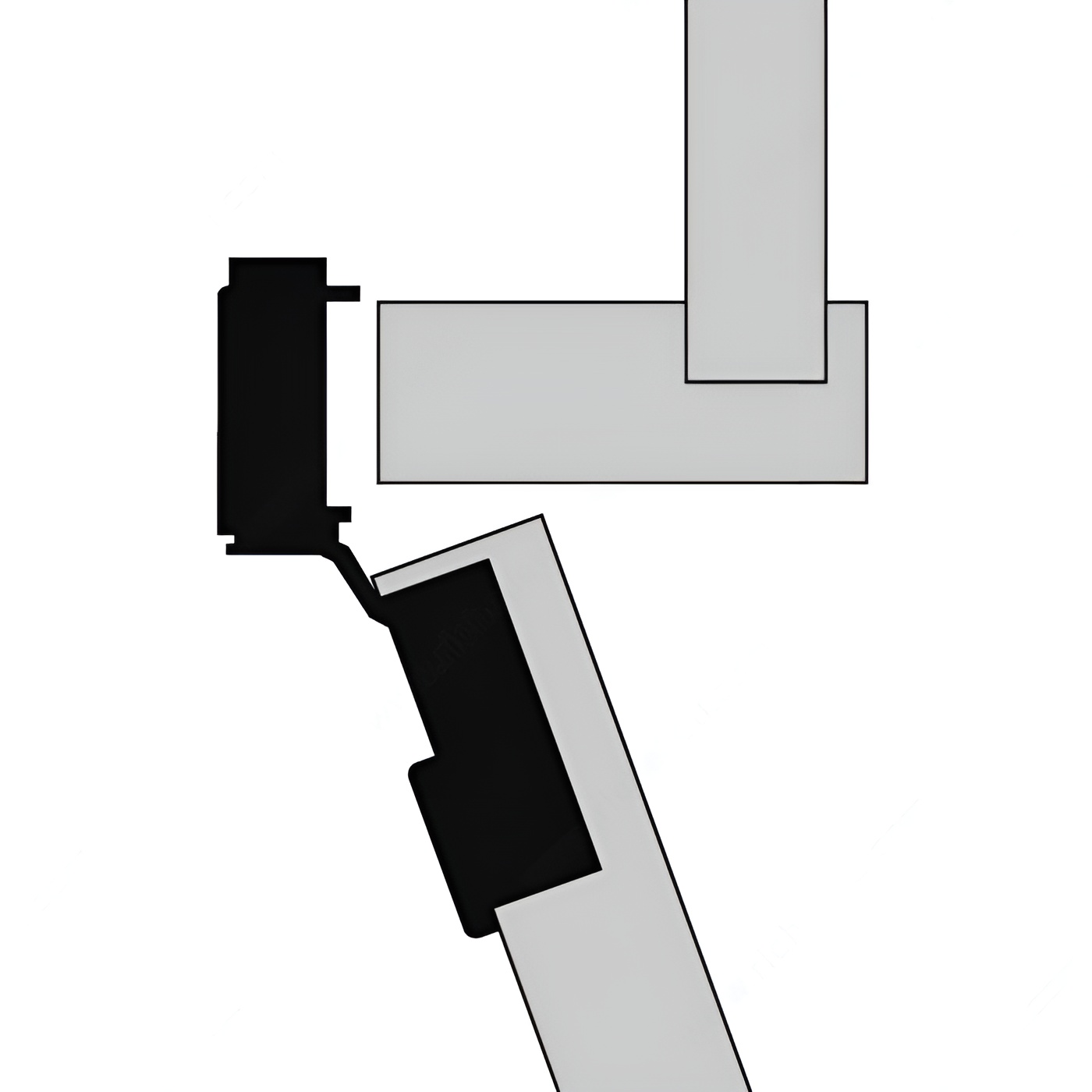

Door Position: Half Overlay
Door Thickness: 5/8 in*
Finish: Nickel
Fixing Type: Knock-In with Insertion Ram Only
Hinge Opening Angle: +105°
Hinge Type: COMPACT BLUMOTION
Material: Steel
Mechanism: Soft-Closing

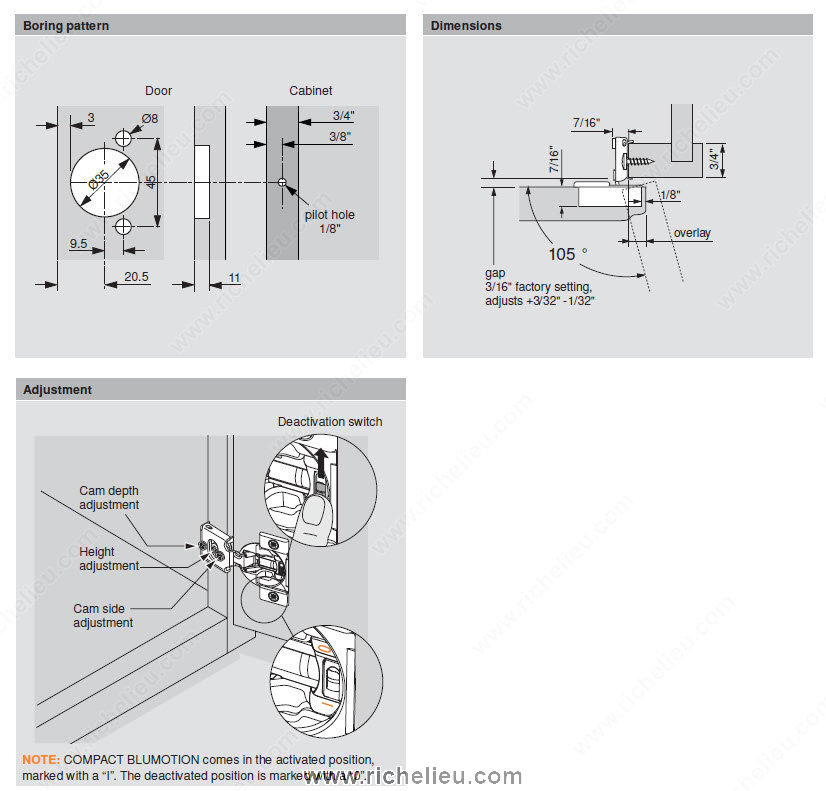

Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*

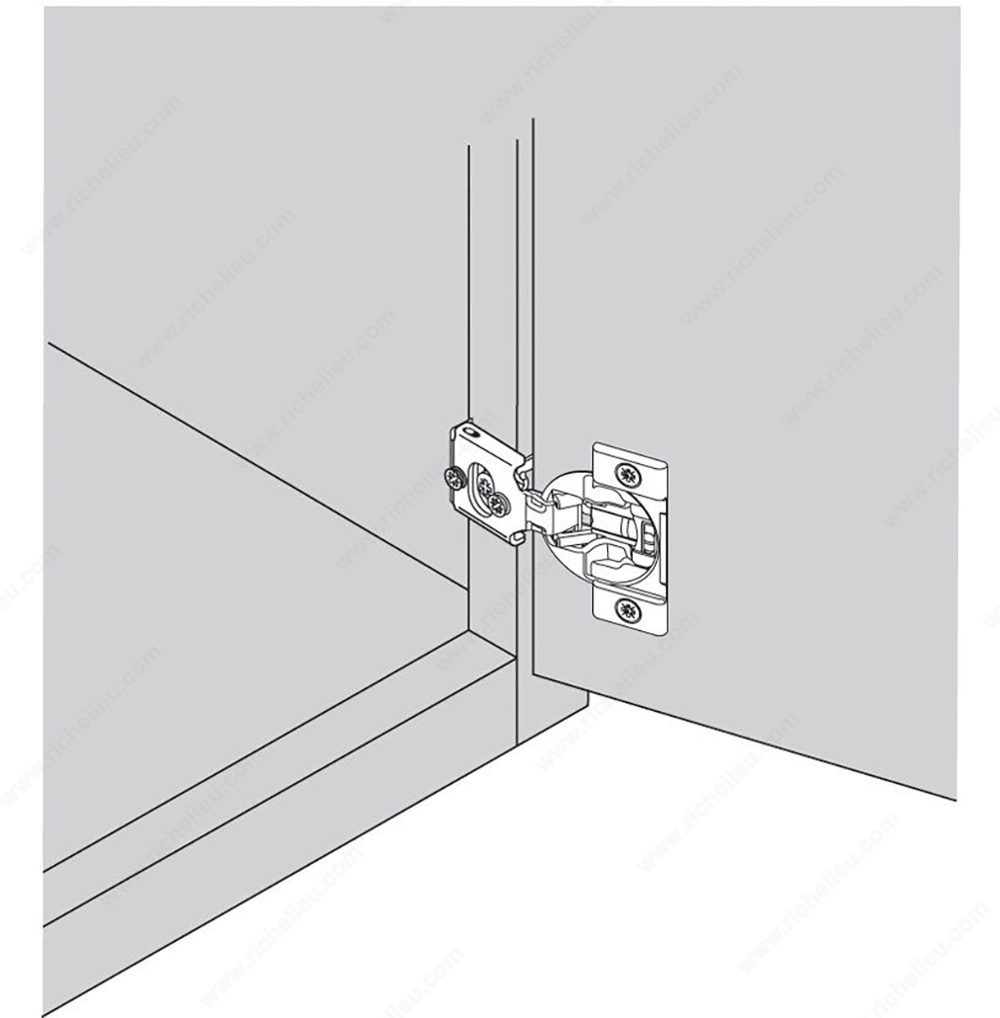

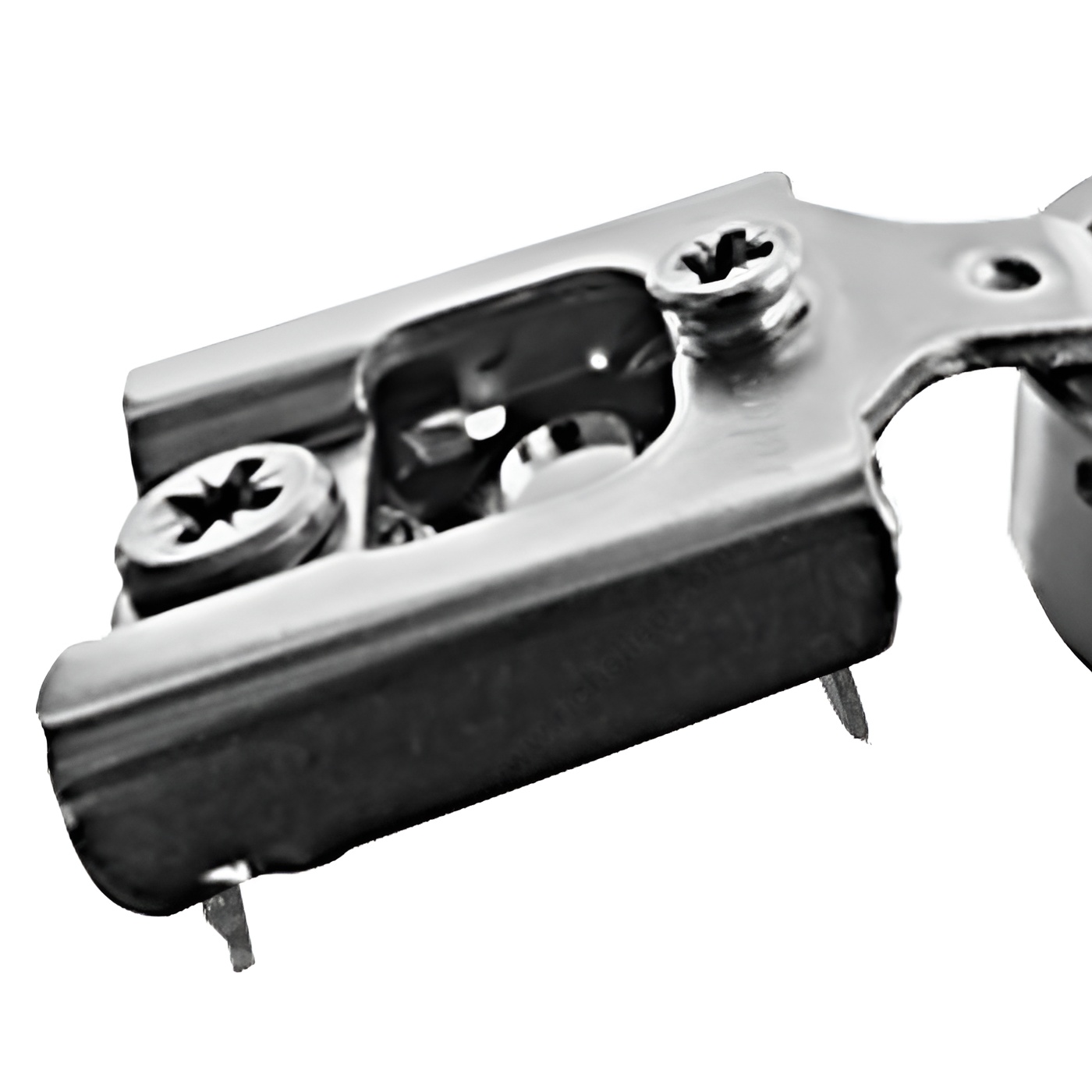

Mounting Type: Wrap-around Mount
Overlay: 5/8 in
Packaging format: Per unit
Product #: 38N358B10180
Product number: 38N358B10180
Screw/ Nail: Not included
Unit 1: case - 250
Use Type: Standard Door
