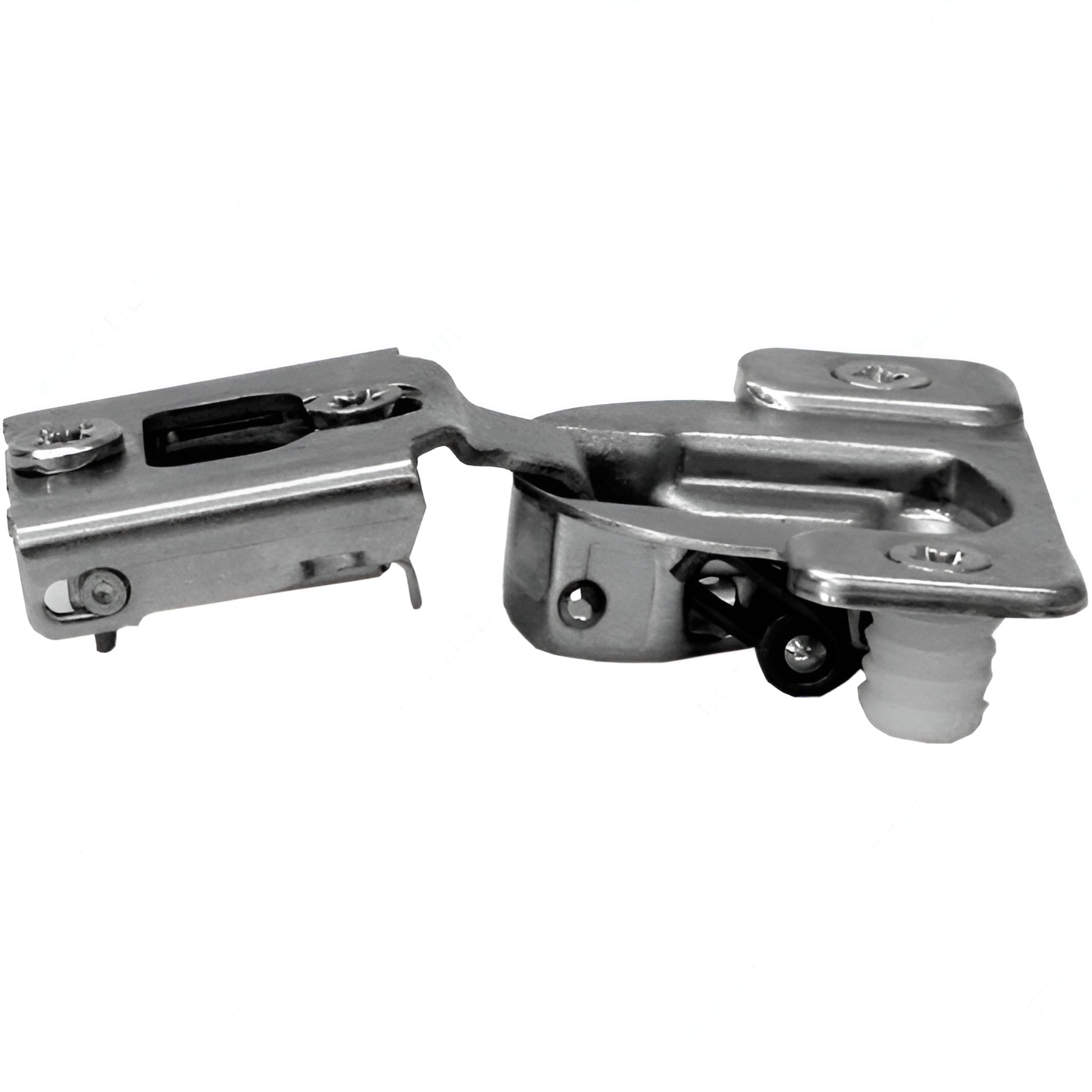

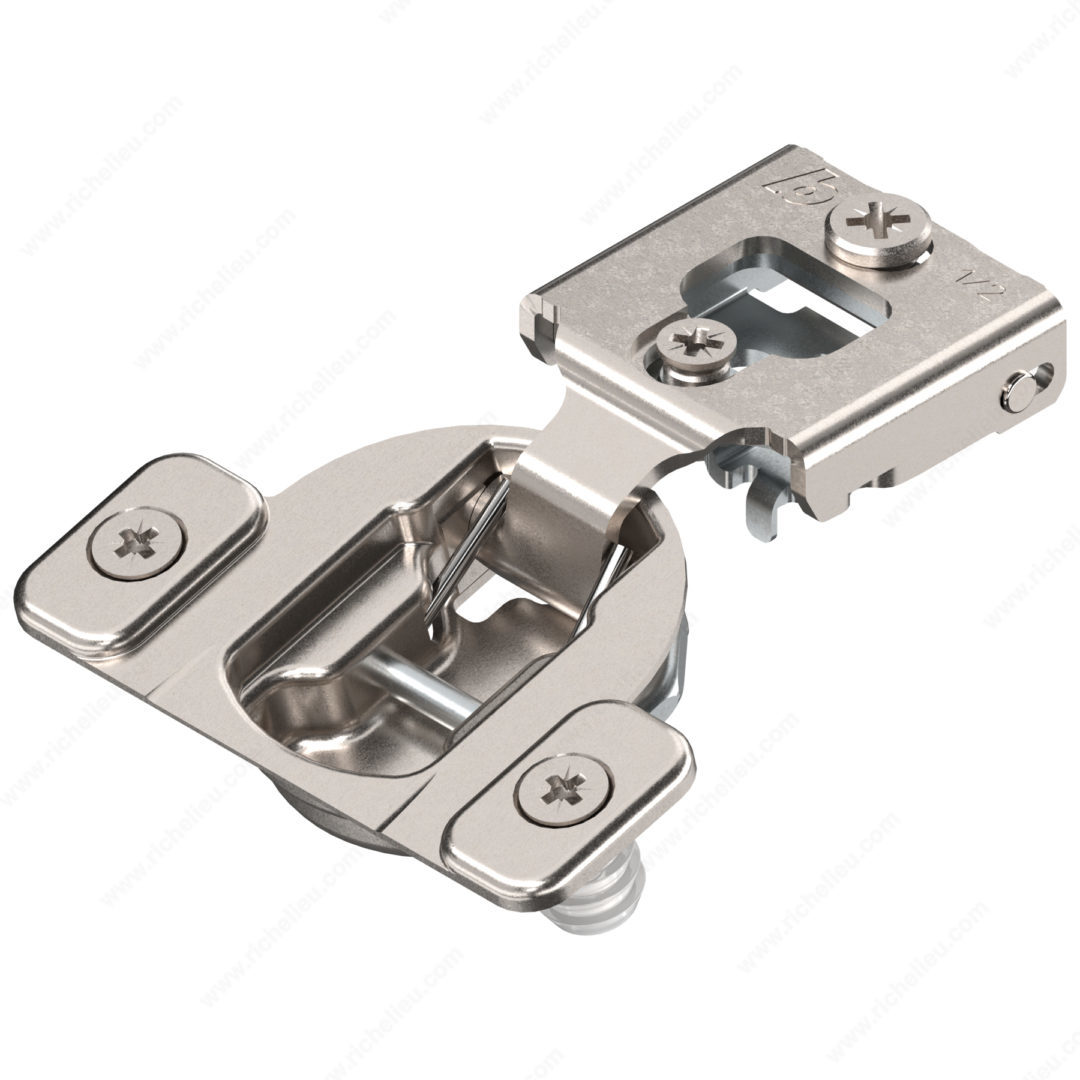

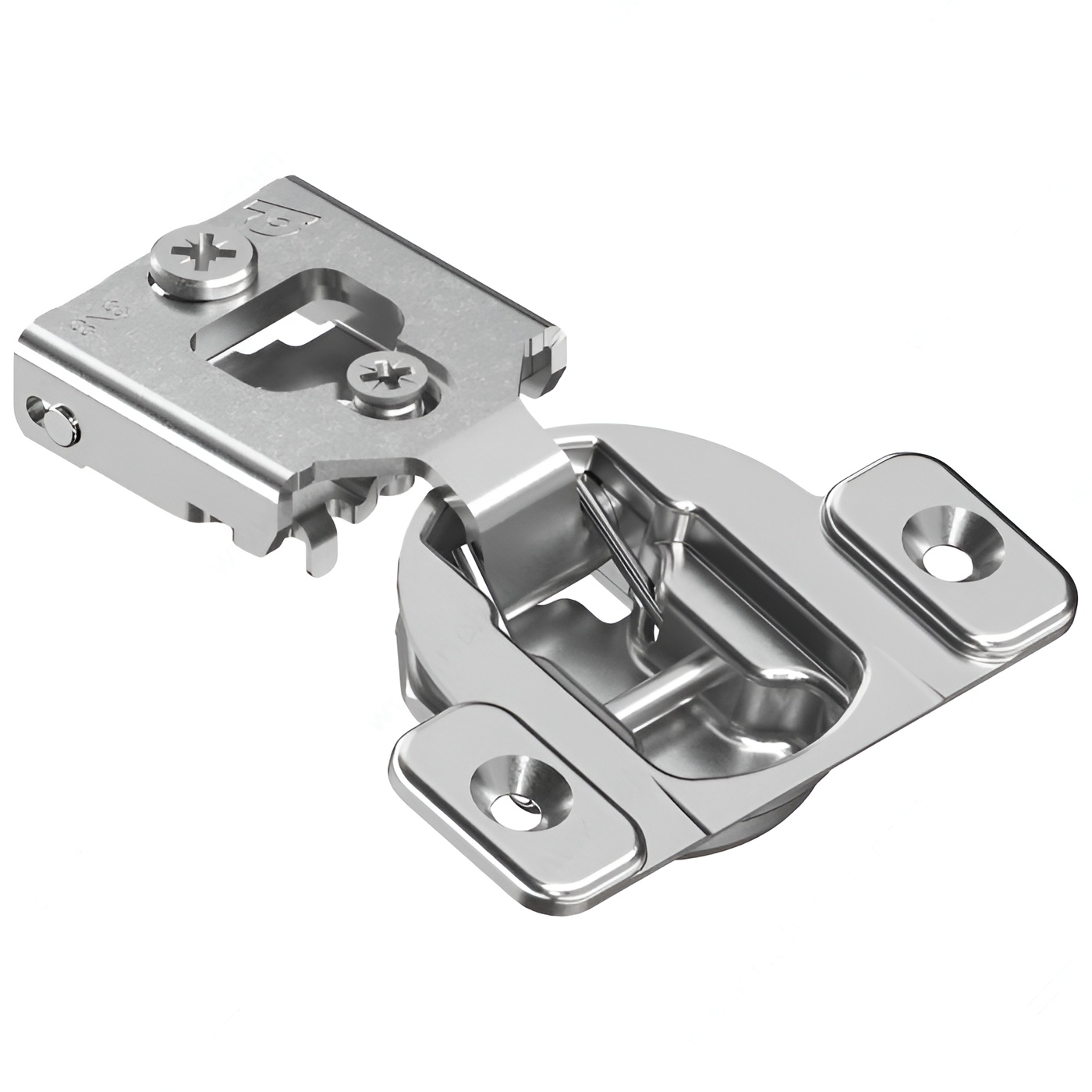

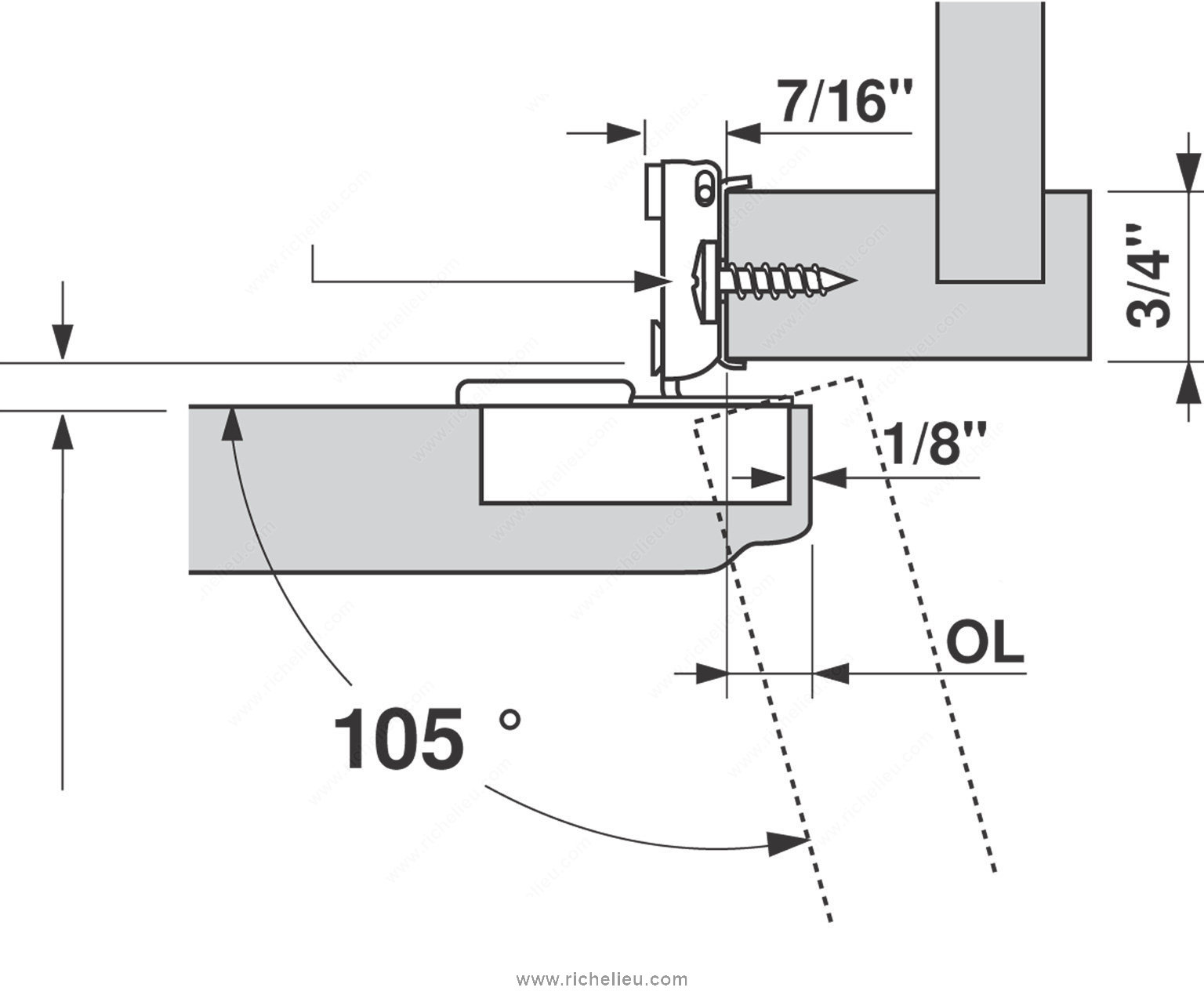

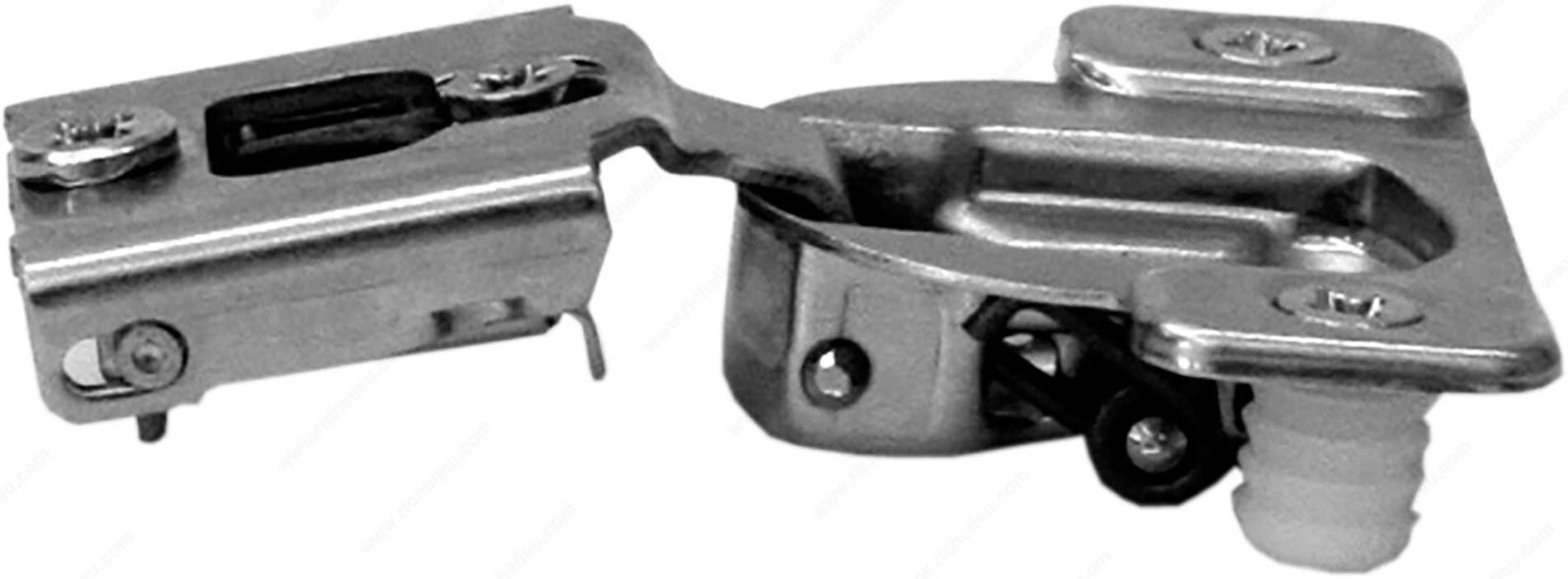

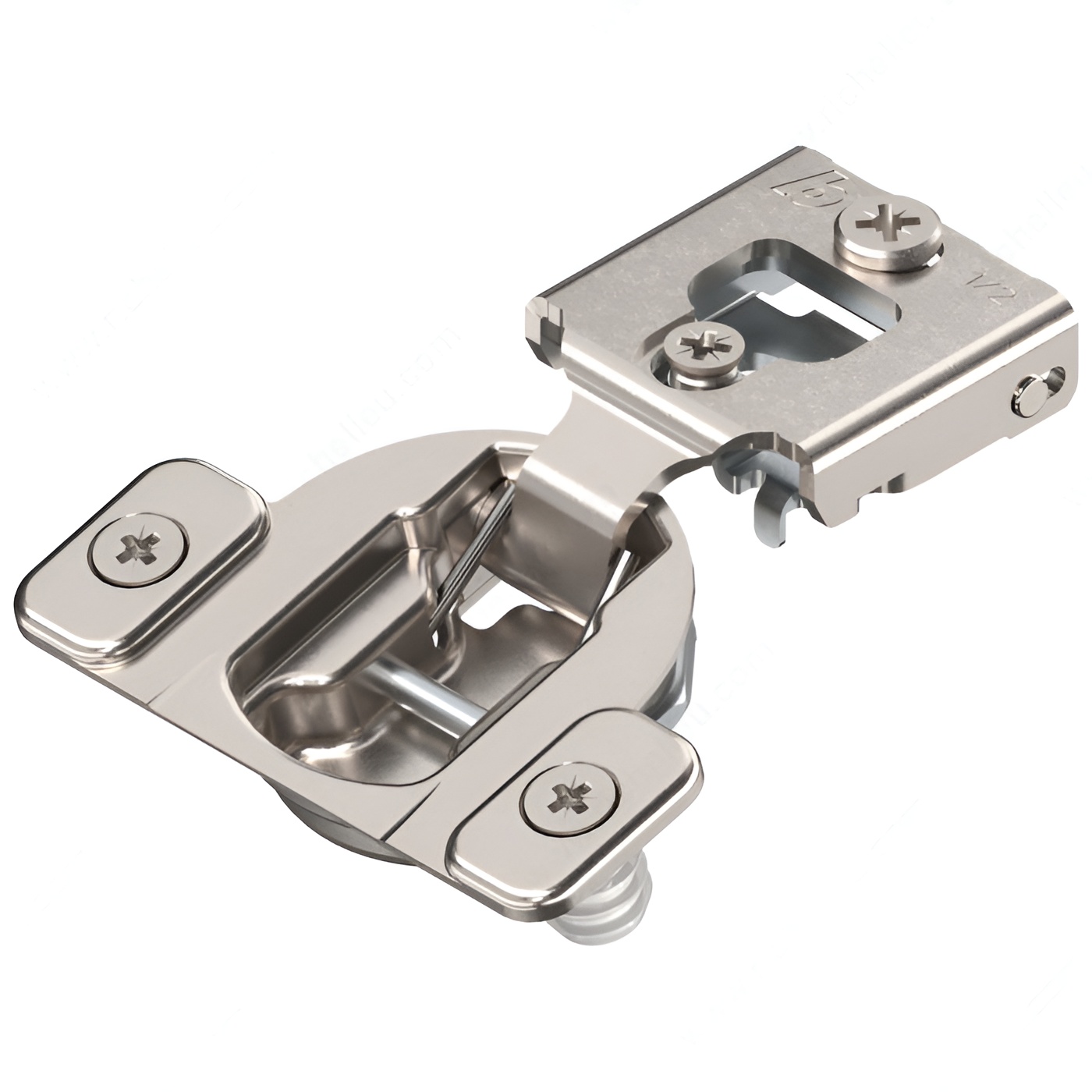

Richelieu 38N358E08180 COMPACT 38N Hinge 105 offers a reliable solution for concealed hinges in face frame cabinets. Designed for ease of use, these hinges are fully adjustable in side, height, and depth dimensions, making them adaptable for both small and large overlays. With a hinge opening angle of +105°, they facilitate smooth access to cabinet interiors, enhancing functionality. Constructed from durable steel, the COMPACT hinge supports cabinet and door thicknesses of up to 3/4 inches, ensuring a robust installation. Its edge-mount design is complemented by a half overlay door position, ideal for various face frame applications. The hinge features a spring-closing mechanism that guarantees doors close securely each time. Installation is straightforward, utilizing a knock-in fixing type with an insertion ram, while the milling requirements include a depth of 7/16 inches and a diameter of 1 3/8 inches. Each unit is packaged individually and includes a mounting plate, although screws and nails are not included. Whether you're a building professional or a knowledgeable homeowner, the Richelieu COMPACT hinge is an excellent choice for creating functional and aesthetically pleasing cabinetry. Upgrade your projects with this versatile hinge that promises reliability and performance.
COMPACT 38N Hinge 105
Brand: Blum
Cabinet Thickness: Max. 3/4 in*
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Half Overlay
Door Thickness: Max. 3/4 in
Fixing Type: Knock-In with Insertion Ram Only
Hinge Opening Angle: +105°
Hinge Type: COMPACT
Material: Steel
Mechanism: Spring Closing

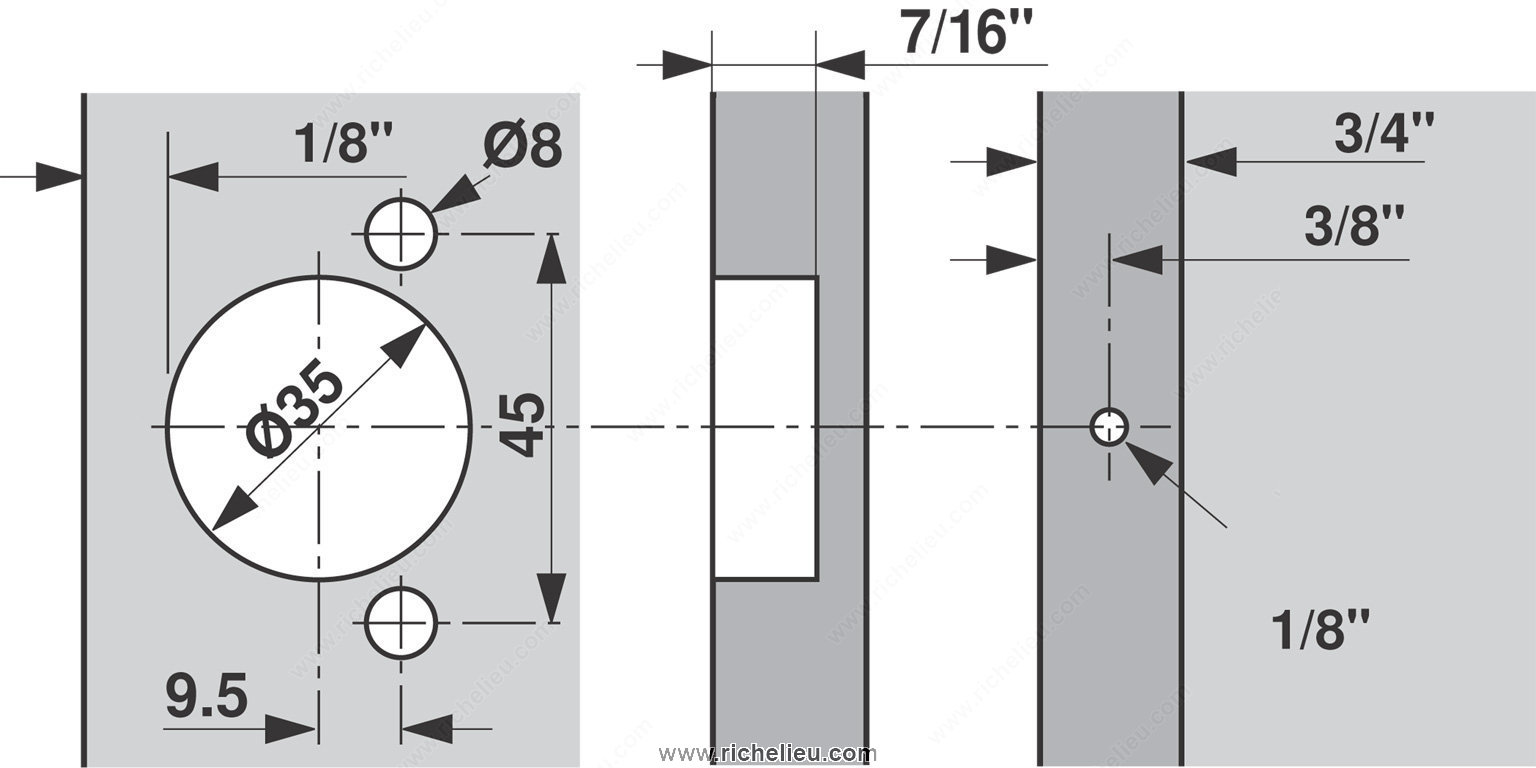

Milling Depth: 7/16 in
Milling Diameter: 35 mm

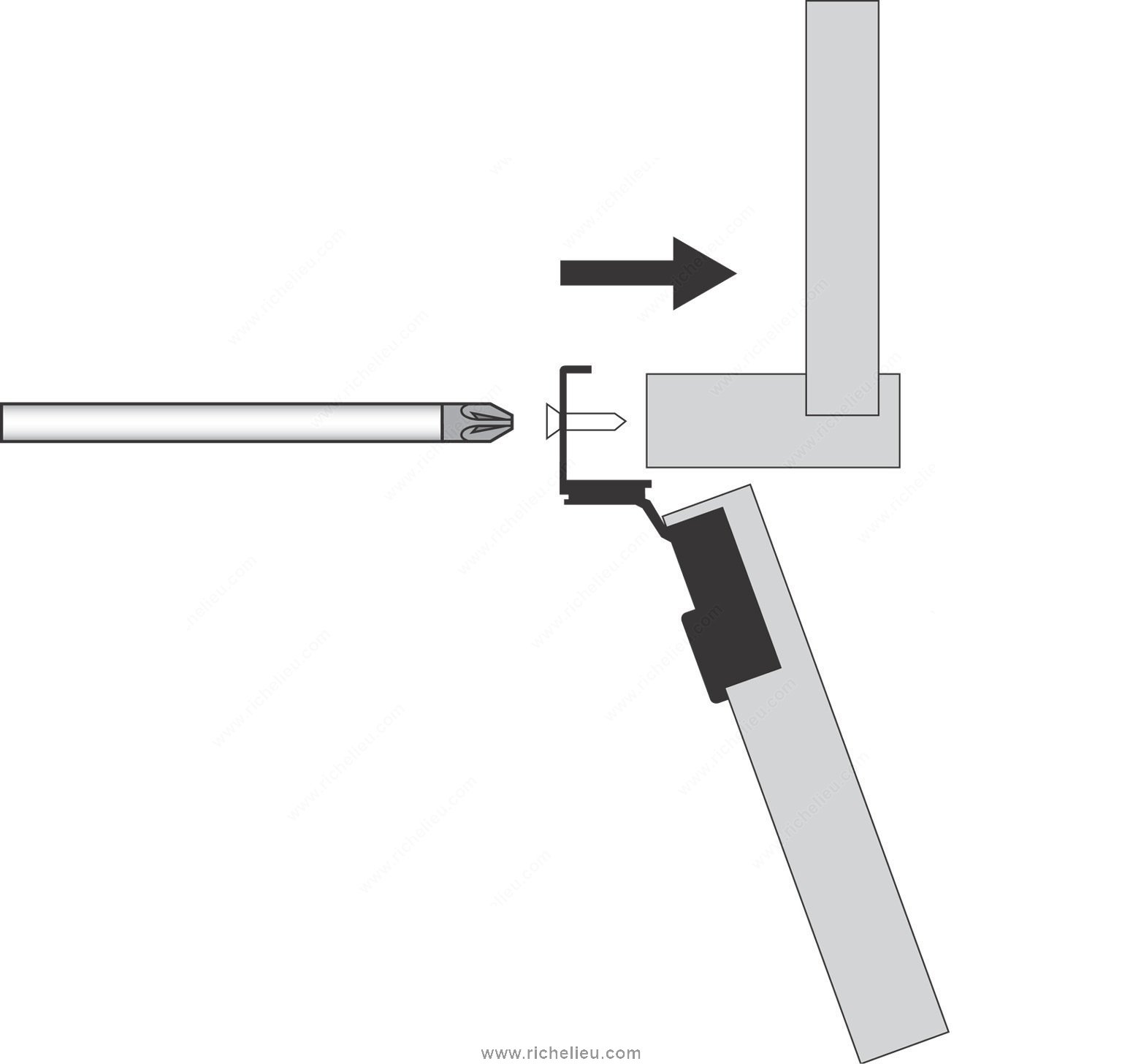

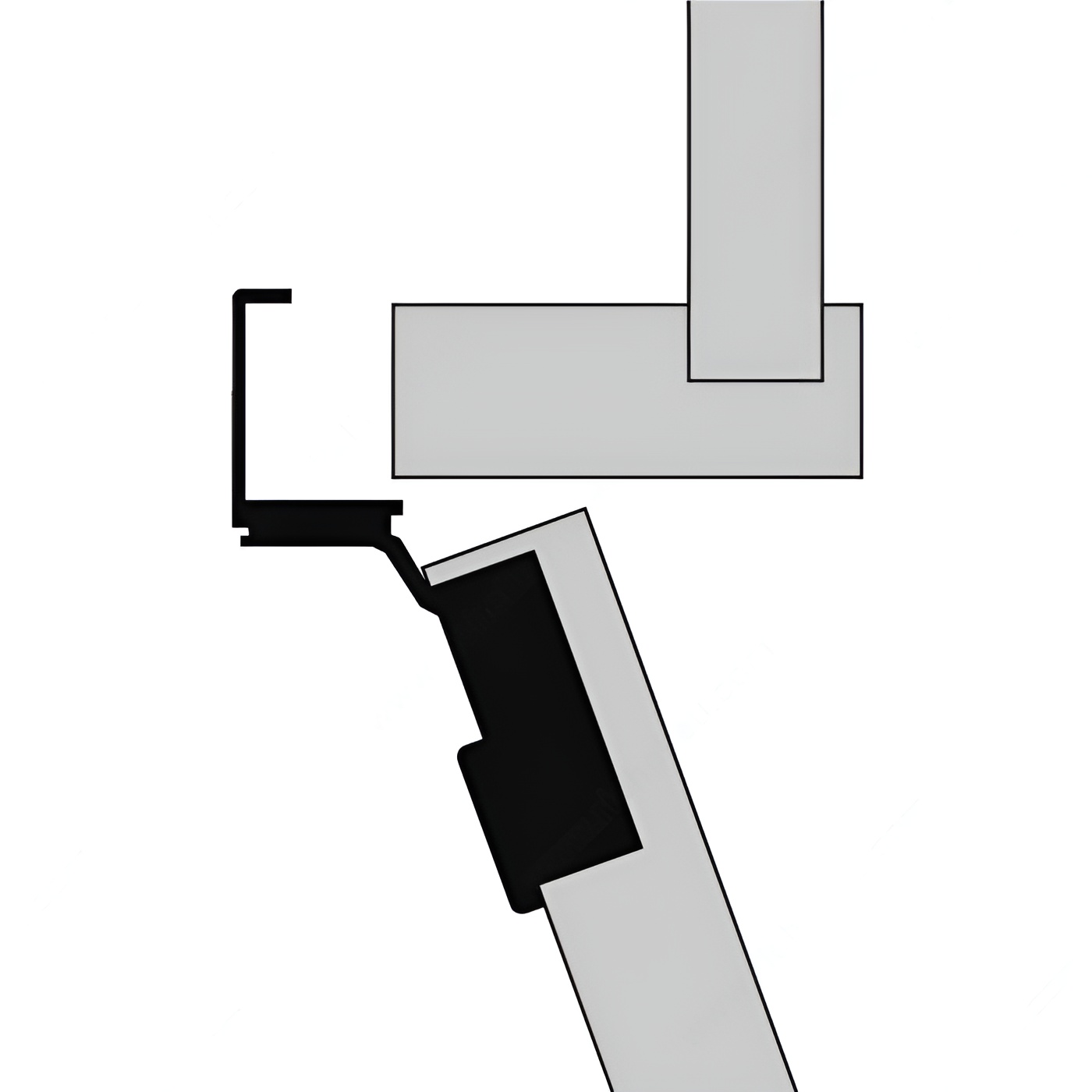

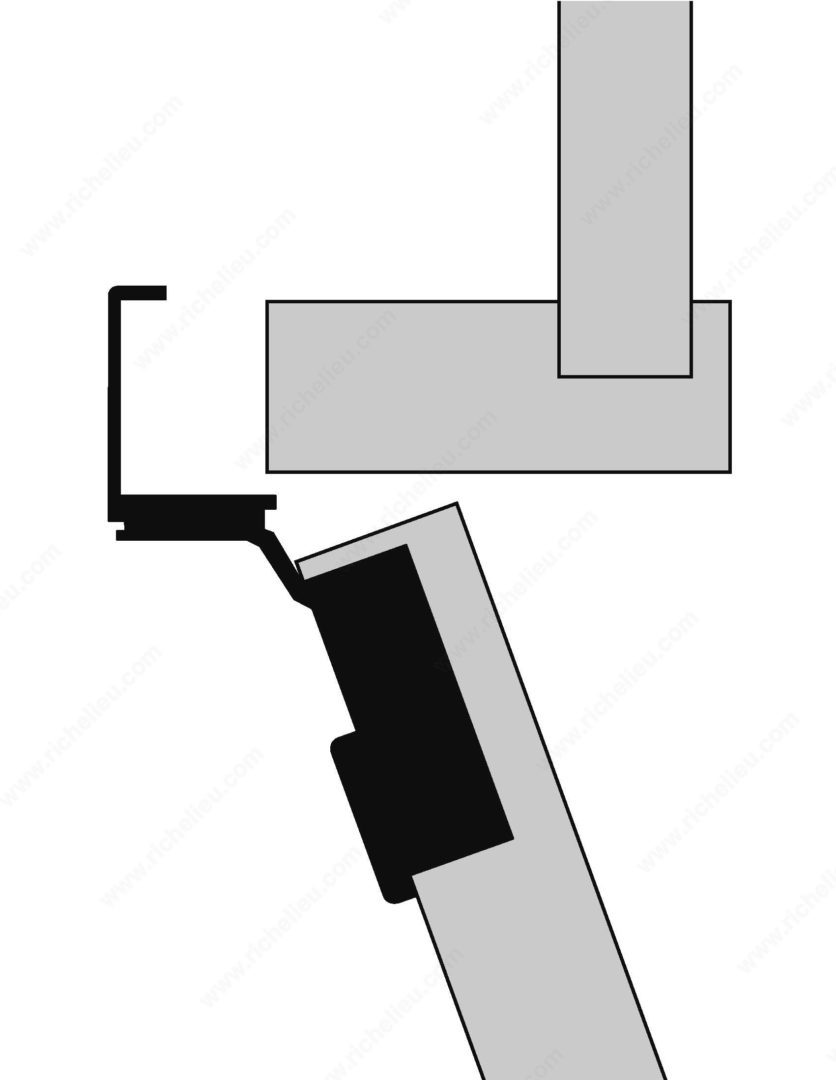

Mounting Type: Edge Mount
Overlay: 1/2 in
Packaging format: Per unit
Plate Included: Yes
Product #: 38N358E08180
Product number: 38N358E08180
Required Frame Width: 19 mm
Screw/ Nail: Not included
Unit 1: case - 250
Use Type: Standard Door
