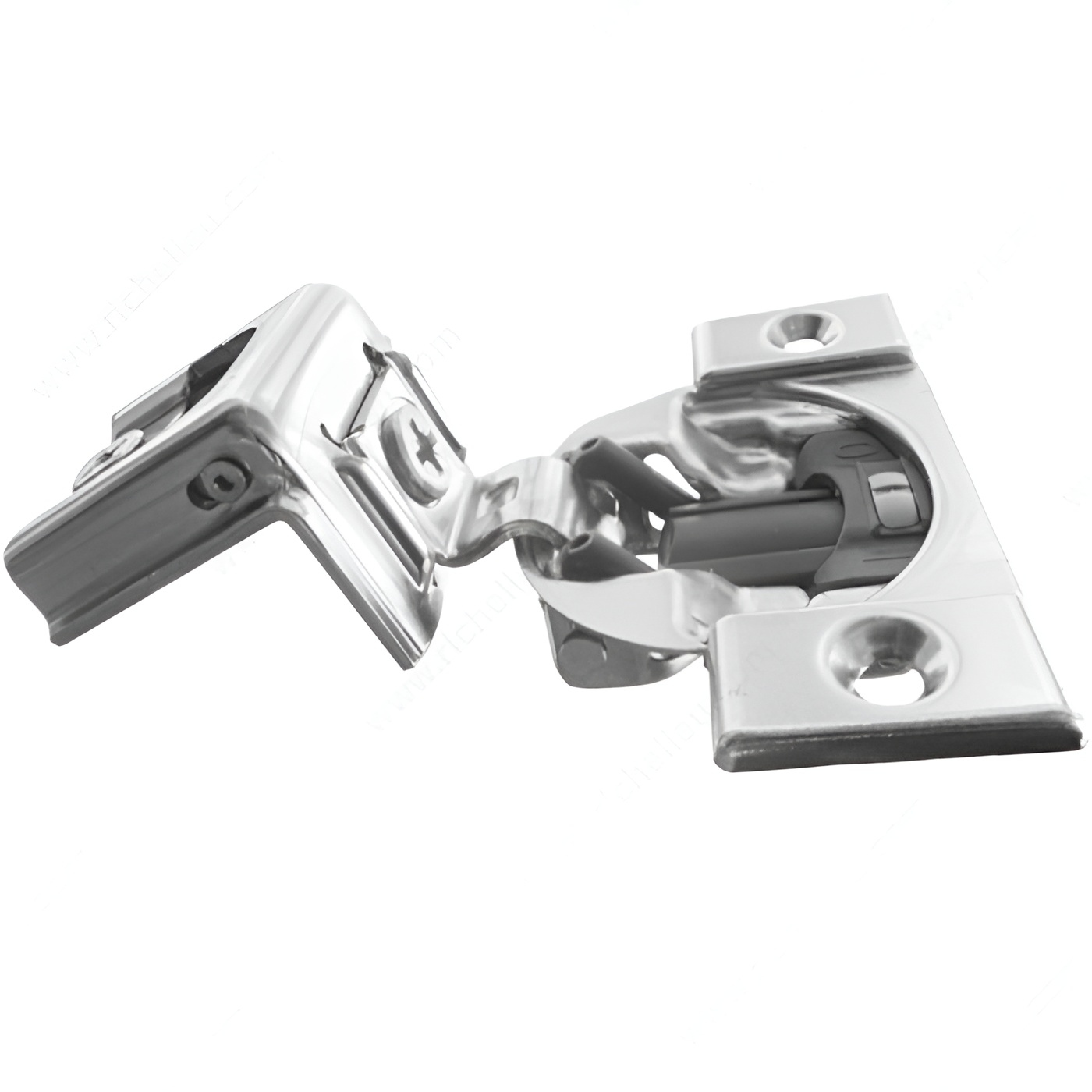

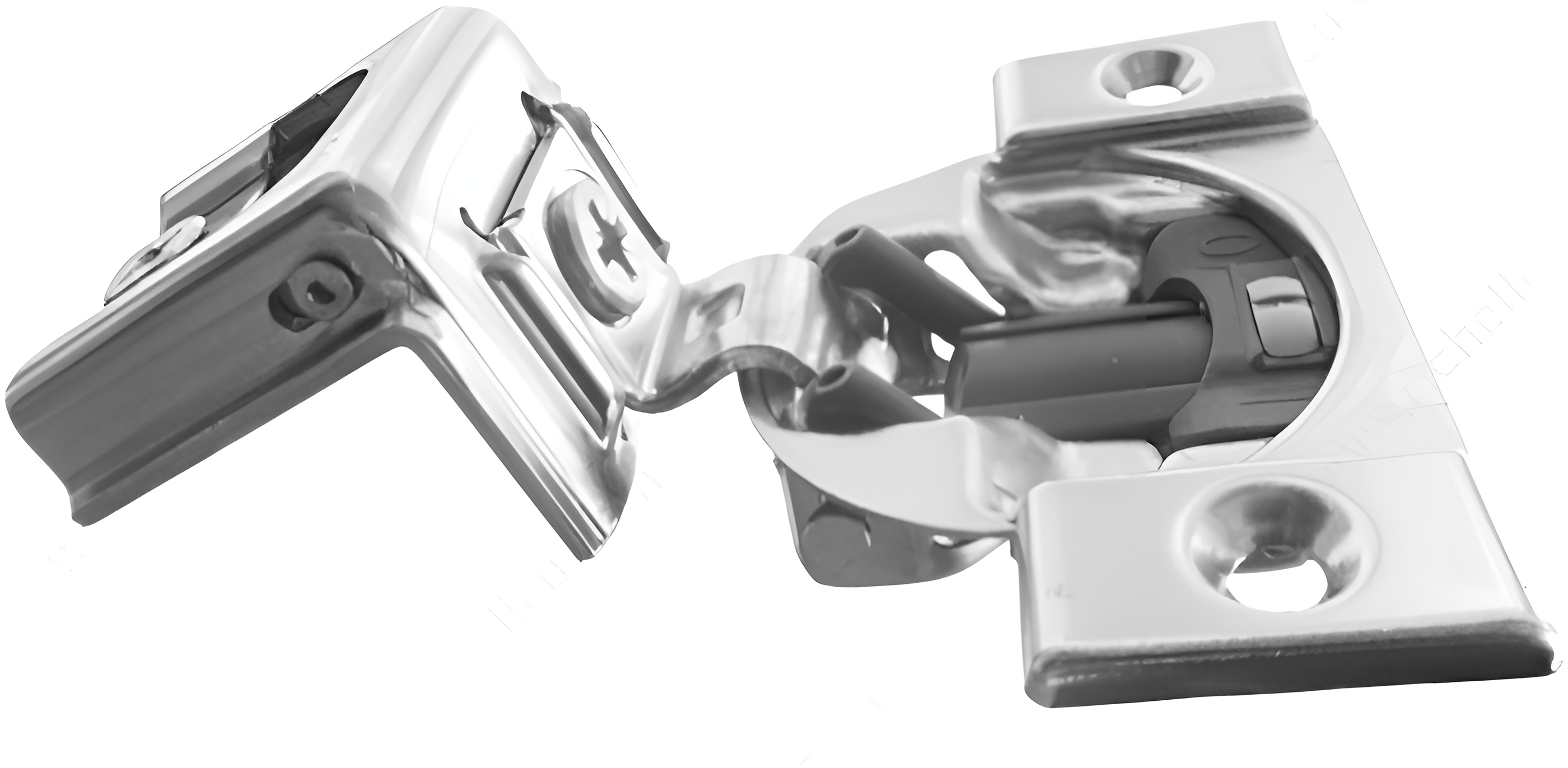

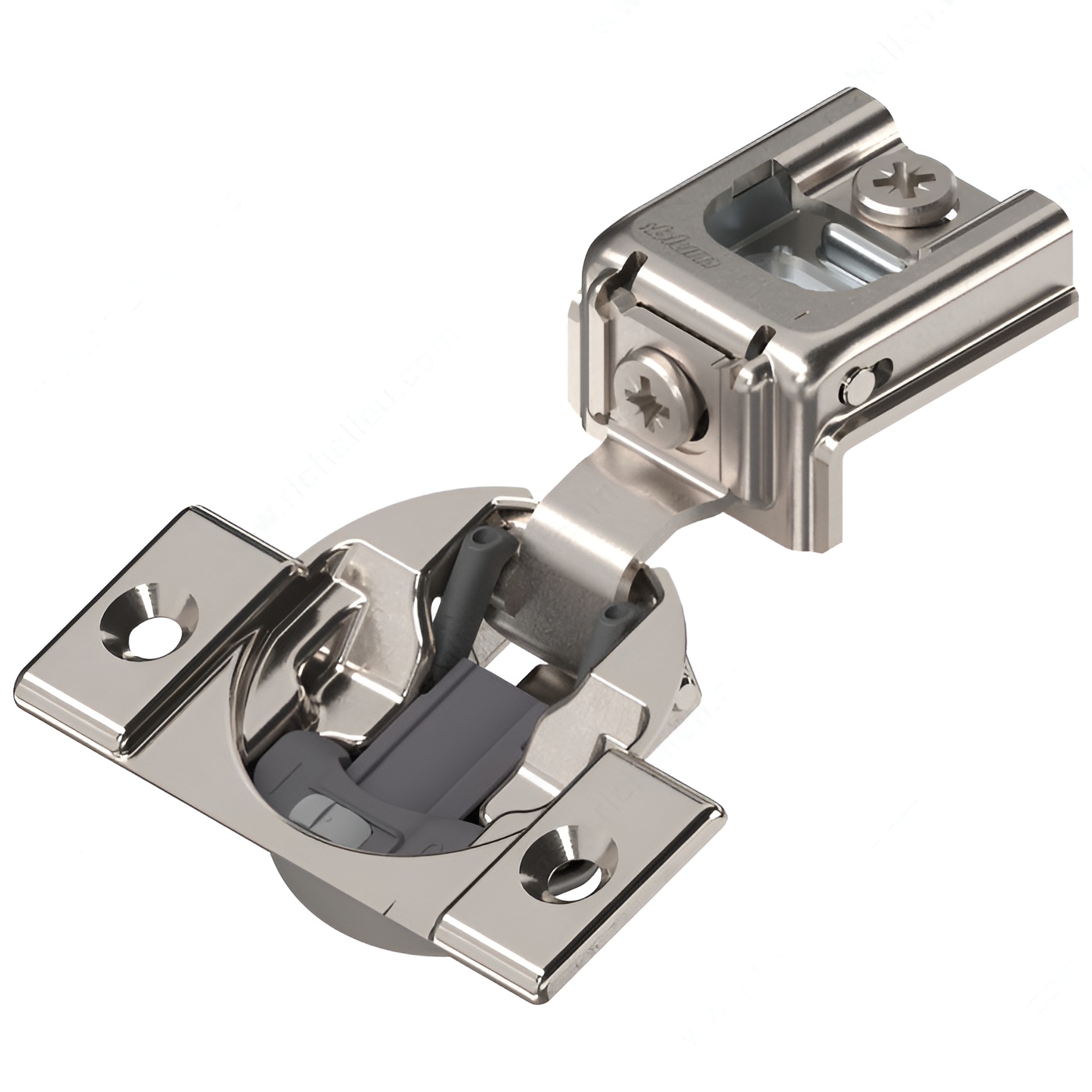

Richelieu COMPACT BLUMOTION 39C Hinges 110 offer an exceptional solution for framed cabinets, combining innovative design with a focus on usability. These hinges feature an integrated soft-closing mechanism that ensures doors close quietly and smoothly, enhancing the overall user experience. For flexibility, the BLUMOTION function can be easily deactivated, making it ideal for smaller or lighter doors while maintaining the same high-quality movement. Designed to accommodate cabinet thicknesses starting from 5/8 inch, these hinges provide a full overlay door position, ensuring a seamless look. The hinge opening angle of +110° allows for easy access, making them suitable for a variety of applications. Crafted from durable steel and finished in nickel, they not only offer robust performance but also add a touch of sophistication to your cabinetry. With a milling depth of 1/2 inch and a diameter of 1 3/8 inches, the COMPACT BLUMOTION hinges are designed for wraparound type mounting, ensuring a secure fit. Each unit is sold individually, and while screws are not included, the screw-on fixing type provides straightforward installation. Enhance your cabinet functionality with Richelieu’s COMPACT BLUMOTION 39C Hinges 110, where quality meets convenience.
COMPACT BLUMOTION 39C Hinges 110
Brand: Blum
Cabinet Thickness: Min. 5/8 in*
Cabinet Type: Face Frame
Closing Mechanism: Soft-Closing

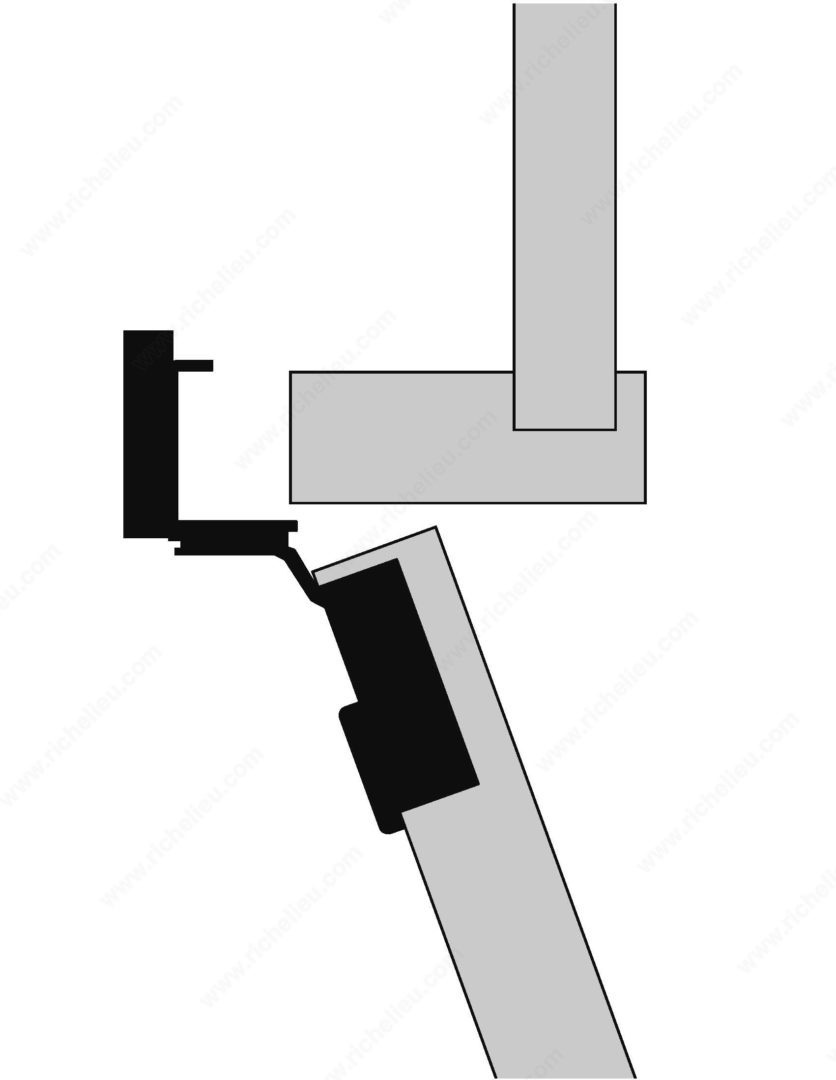

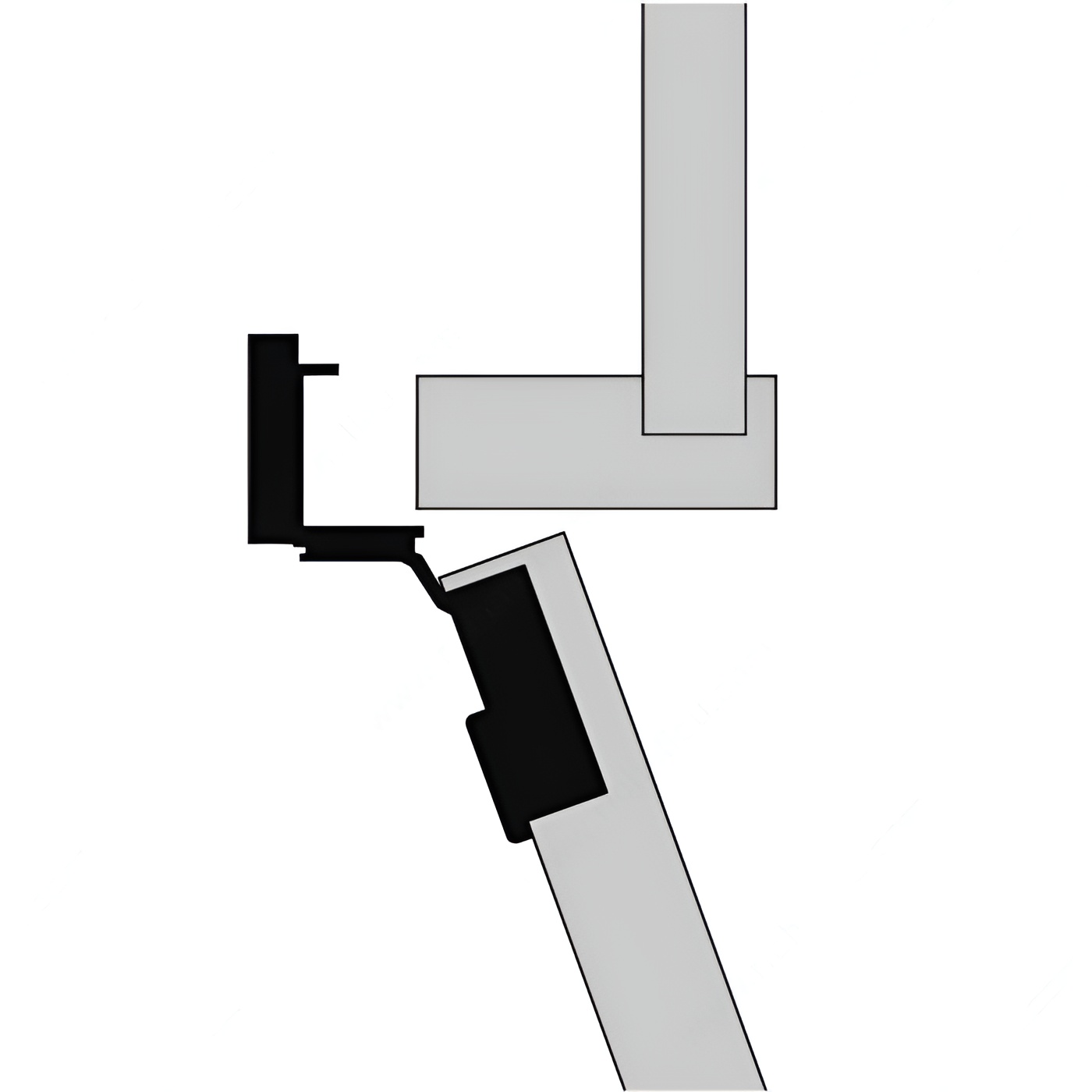

Door Position: Full Overlay
Door Thickness: 5/8 in*
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +110°
Hinge Type: COMPACT BLUMOTION
Material: Steel
Mechanism: Soft-Closing
Milling Depth: 1/2 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Wrap-around Mount
Overlay: 1 in
Packaging format: Per unit
Product #: 39C355B16180
Product number: 39C355B16180
Screw/ Nail: Not included
Unit 1: case - 300
Use Type: Standard Door
